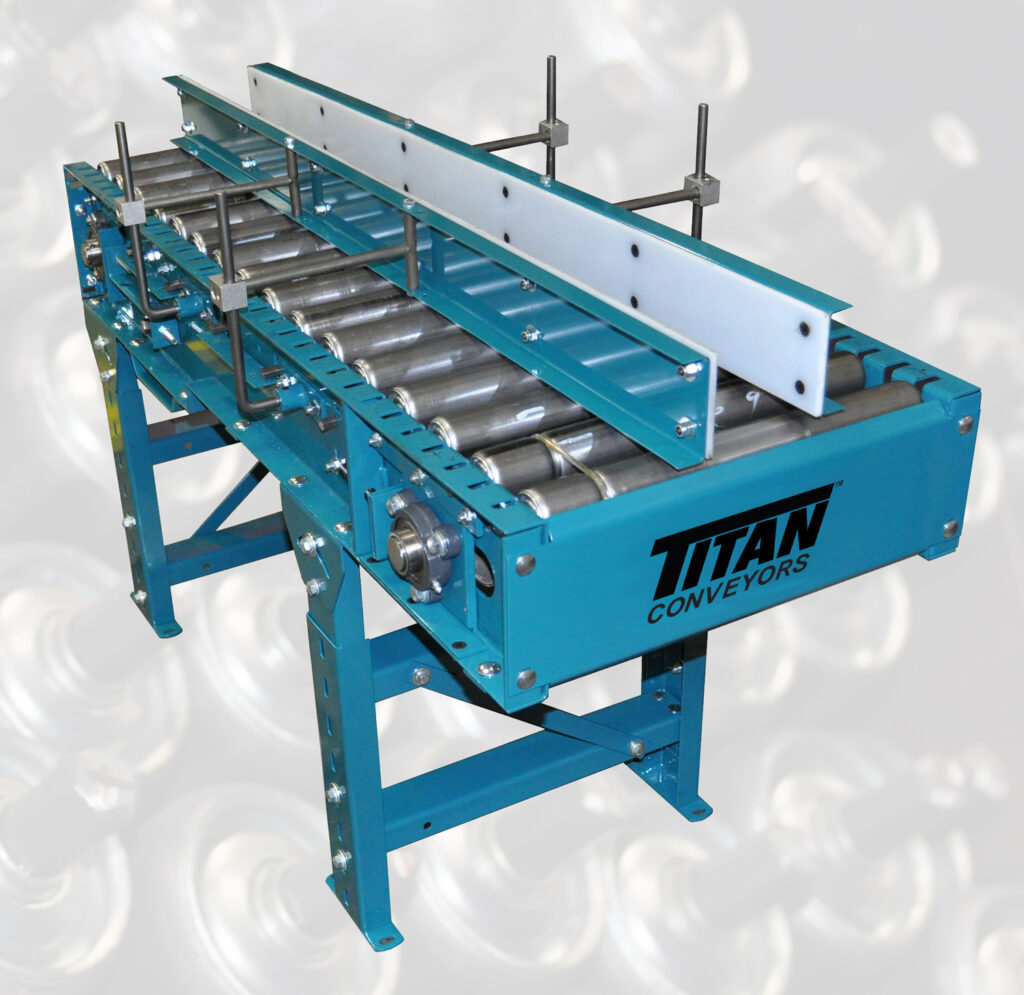

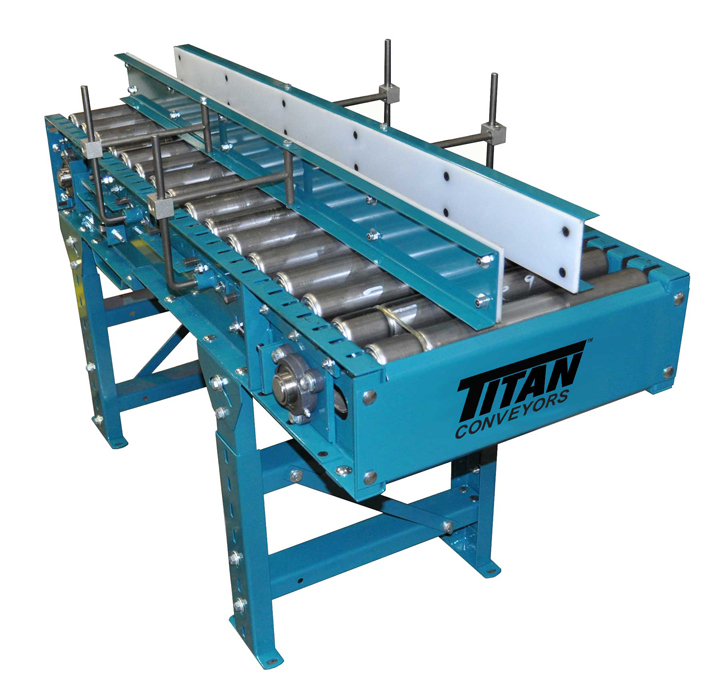

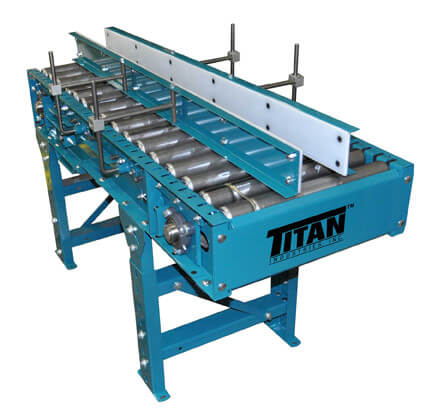

Model 402

Belt-Driven Live Roller Conveyor

Model Description:

When your situation calls for light-duty conveying of small packages or close roller centers, the TITAN Model 402 Belt Driven Live Roller Conveyor should be specified. Ideally suited for packages as small as 5” long the 1-3/8” diameter rollers can be supplied on 1-1/2” centers. The standard 1-3/8” diameter rollers are 18 gauge with a 5/16” hex spring loaded shaft and grease packed bearings. The drive pulley is a 4” diameter crown face rubber lagged with 1-3/16” bore. Even though the rollers are considered light-duty, the rugged 12 gauge frame will withstand most industrial applications.

Model 402 Belt-Driven Live Roller Conveyor Specifications:

Between Frame Widths: 10", 13", 16", 19", 22"

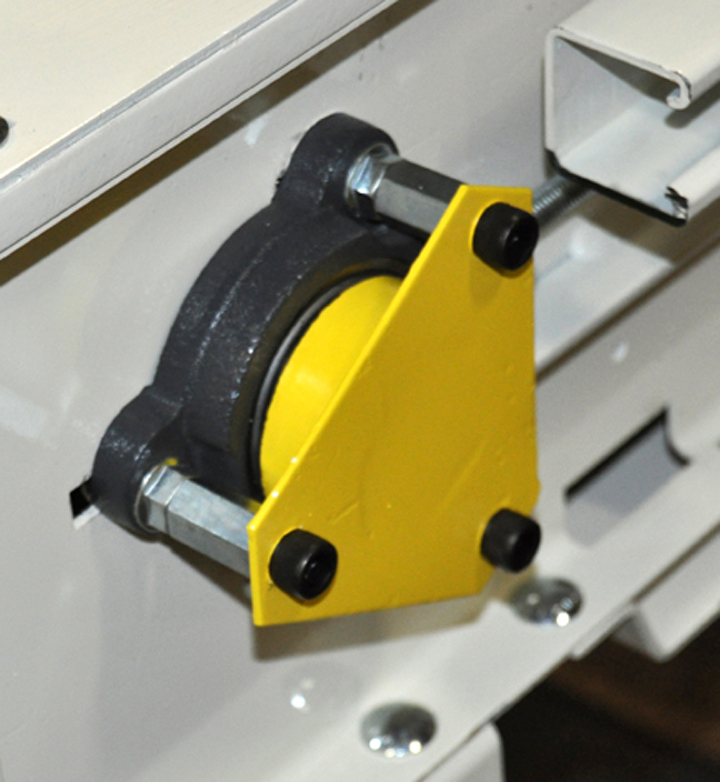

Bearings: Grease Sealed

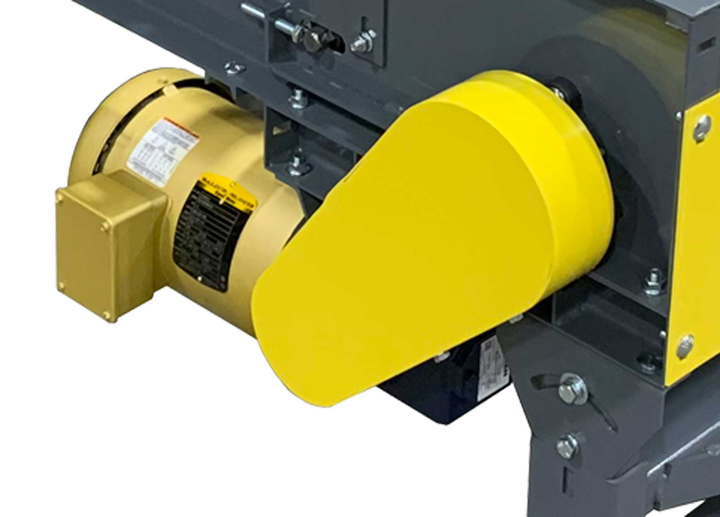

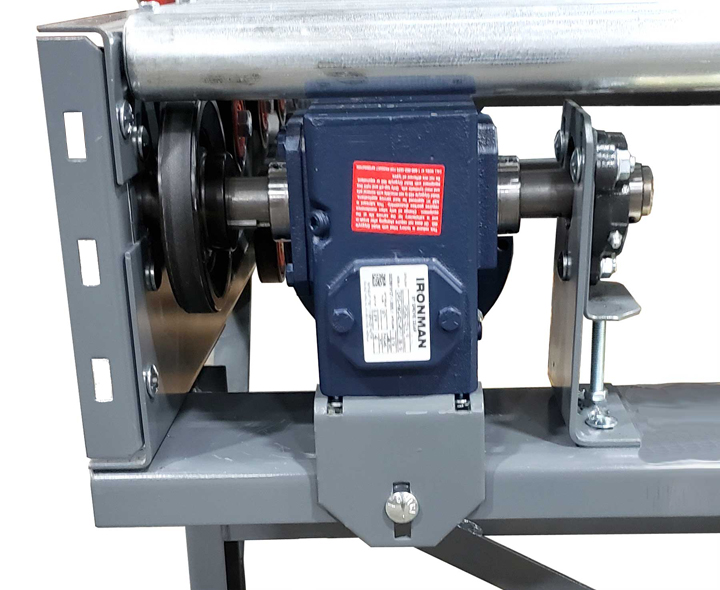

Drive: 1/2 H.P. 230/460/3/60

Frame: Formed 12 Gauge

Paint: One Coat Industrial Enamel

Pulleys: 4" Dia. Crown Face Rubber Lagged Drive; 4" Dia. Crown Face Take-up

Rollers: 1-3/8" Dia. x 18 Gauge

Speed: Various available

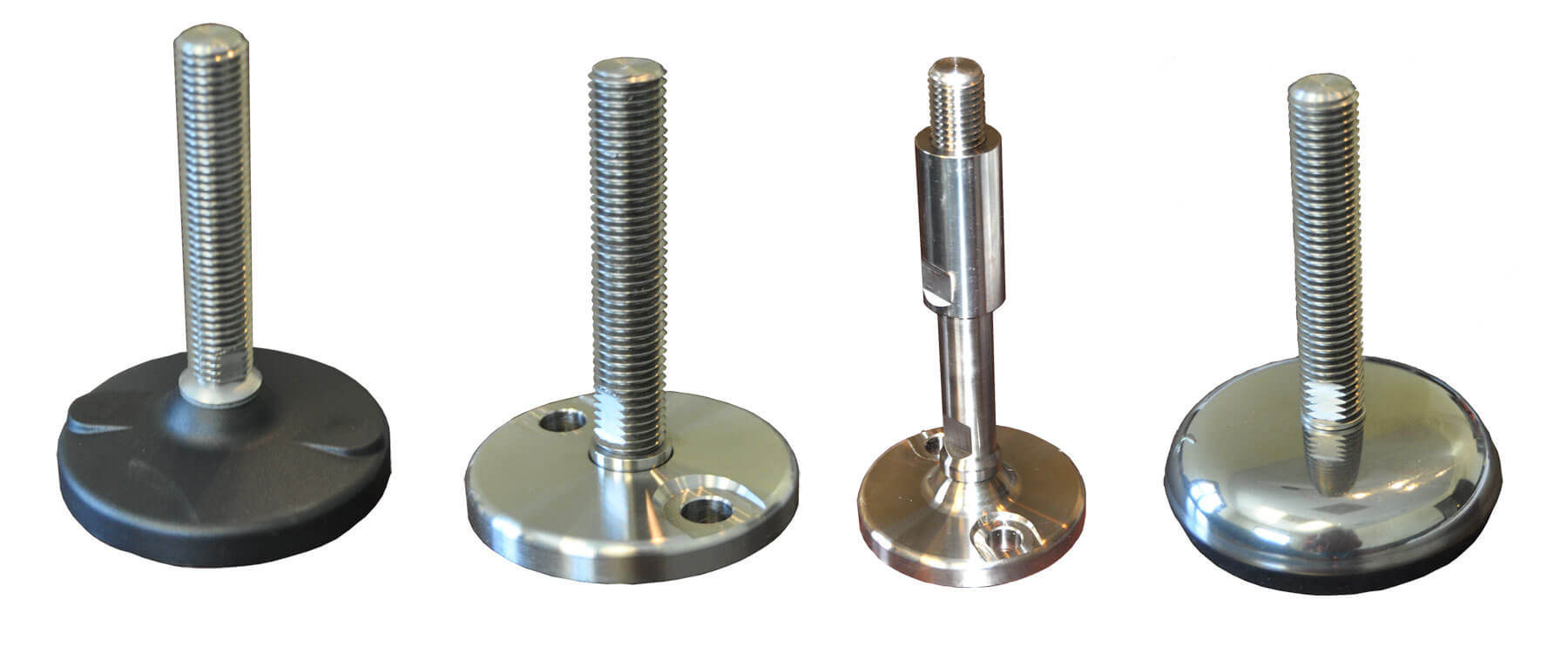

Supports: "H" Type Adjustable
