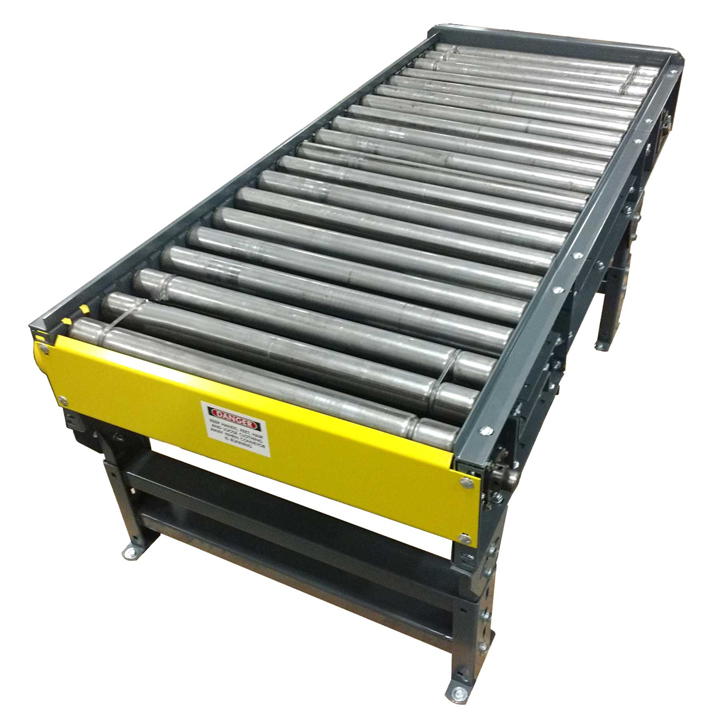

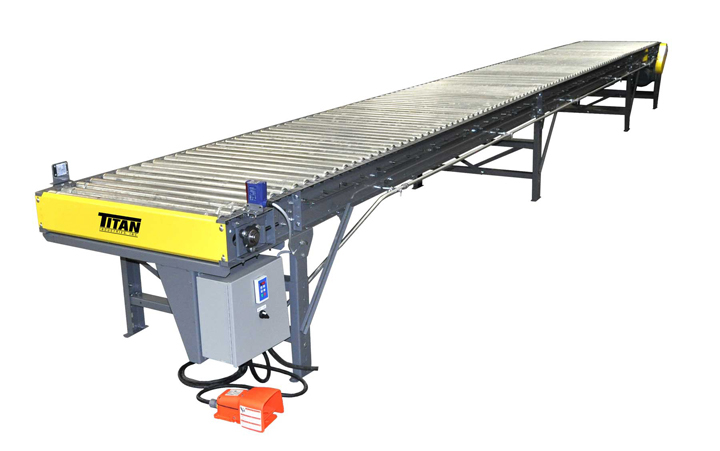

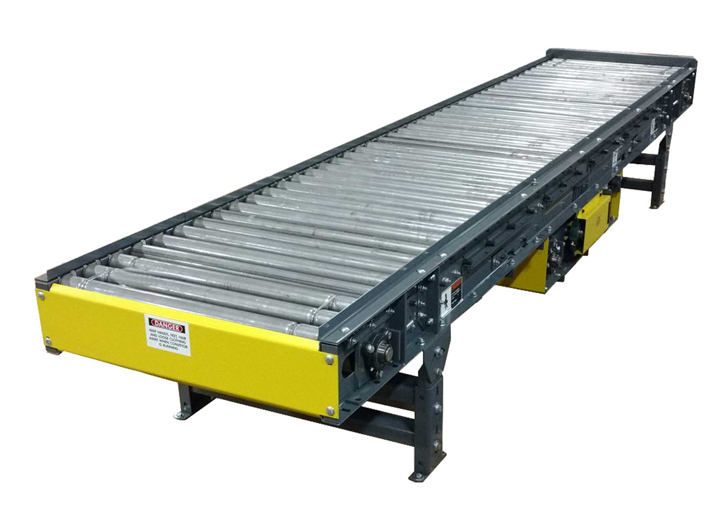

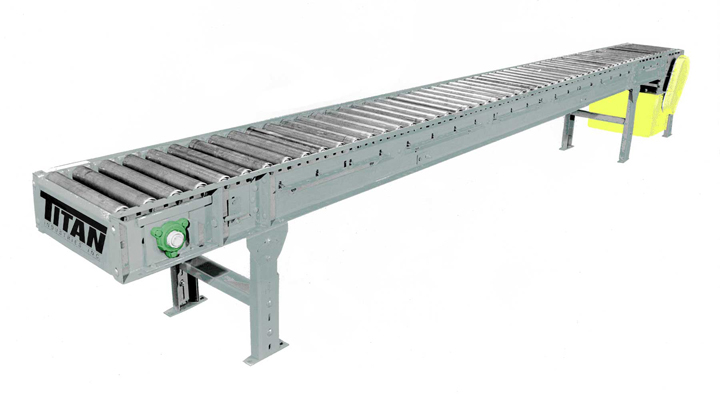

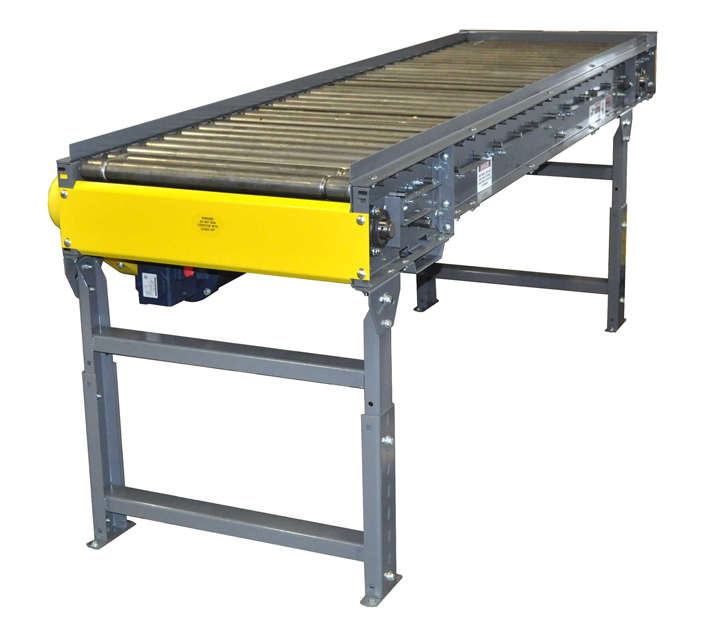

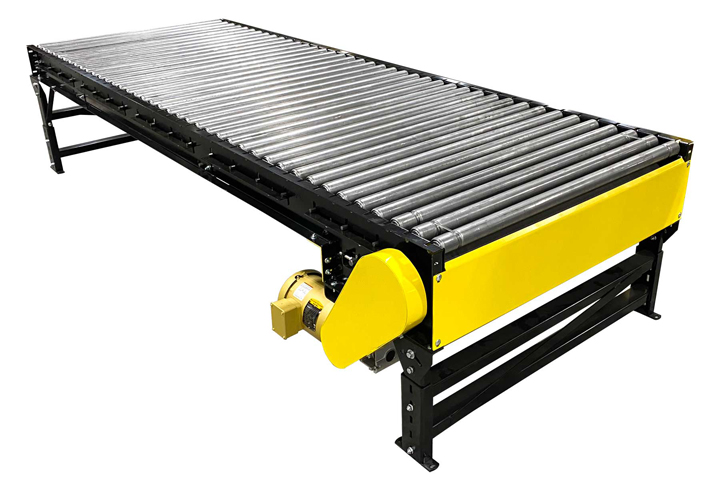

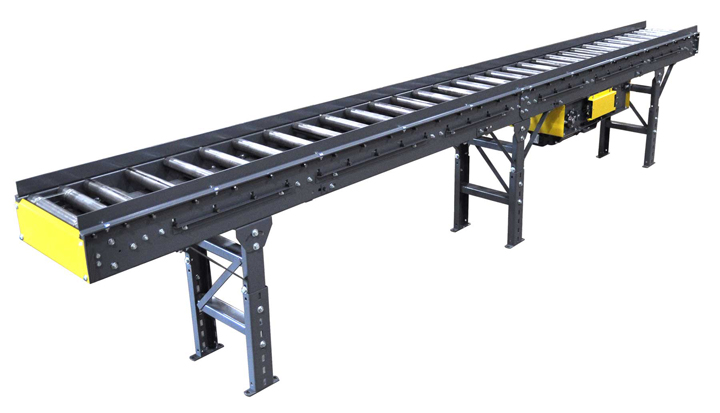

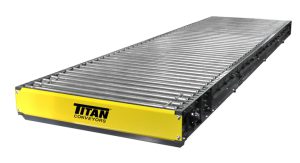

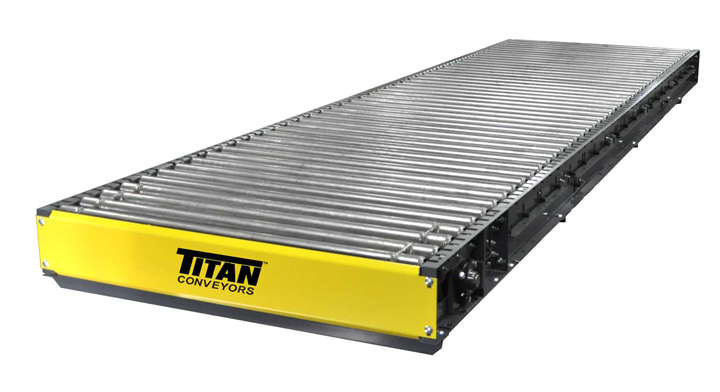

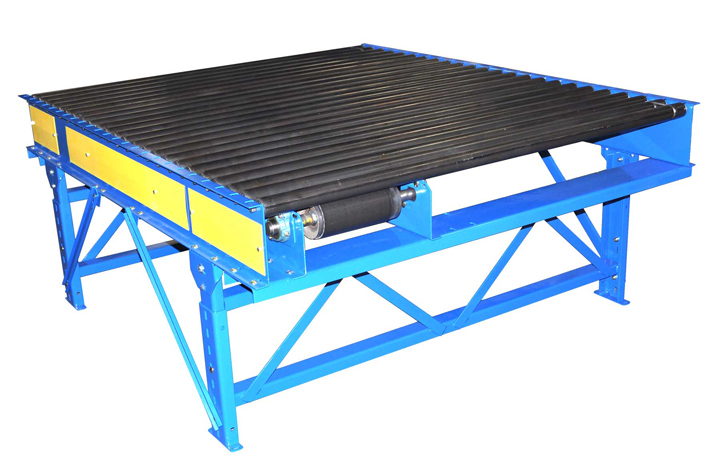

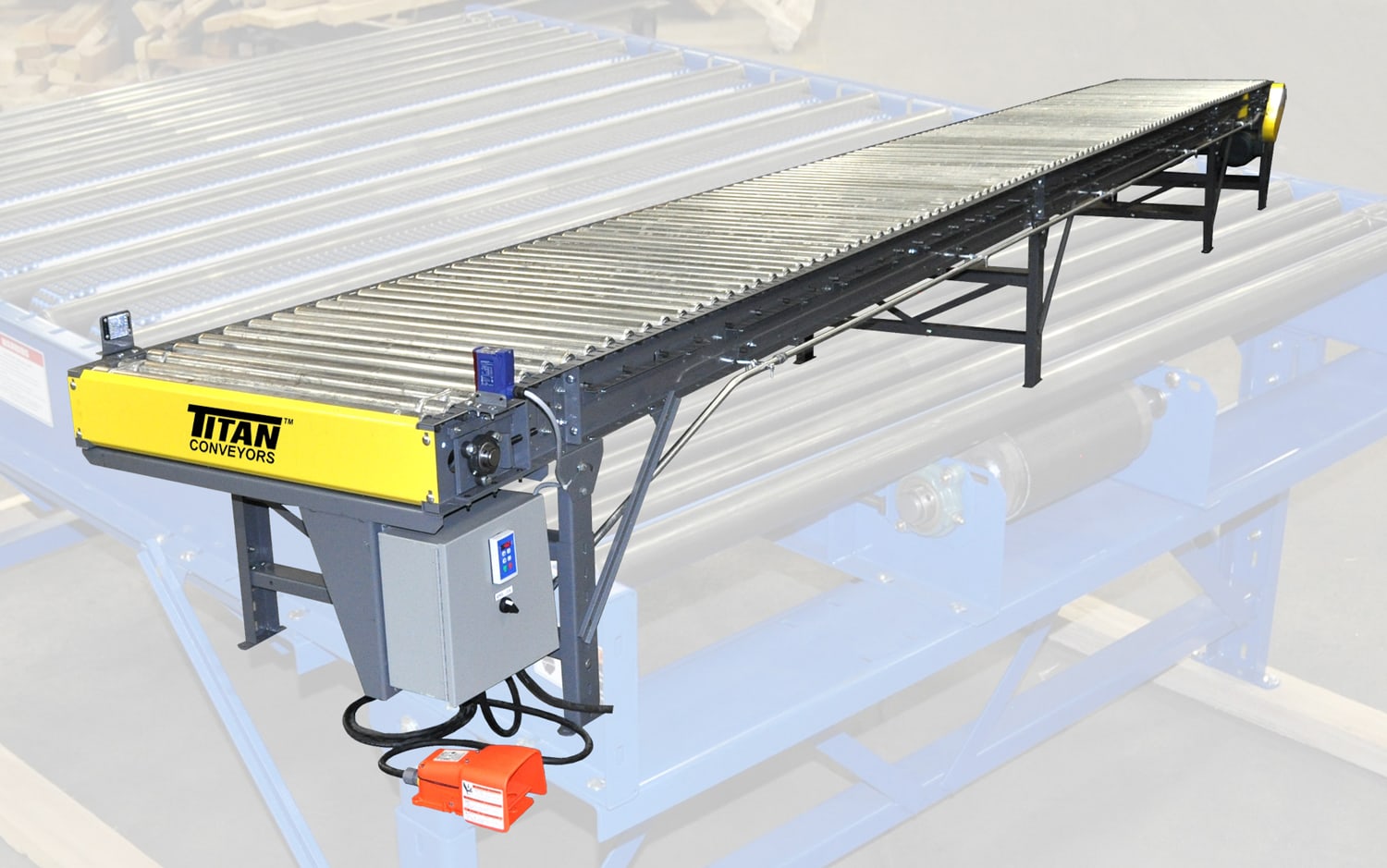

Model 404

Belt-Driven Live Roller Conveyor

Model Description:

The TITAN Model 404 Belt-Driven Live Roller Conveyor features all of the time proven design features that you've come to expect from TITAN. Standard features include 4" diameter drive and tail pulleys, grease sealed industrial 3 bolt flange bearings, heavy duty formed 12 gauge frame and a P.V.C. drive belt. The Model 404 uses 1.9" diameter x 16 gauge rollers with 7/16" spring loaded hex shaft and grease-packed bearings. Standard roller centers are 6" with optional 3" and 4-1/2" centers. Compression rollers are also 1.9" x 16 gauge and mounted on 6" centers. Standard between frame widths start at 13" and range to 41".

Model 404 Belt-Driven Live Roller Conveyor Specifications:

Between Frame Widths: 13", 16", 19", 22", 25", 28", 31", 34", 37", 40"

Bearings: Grease Sealed

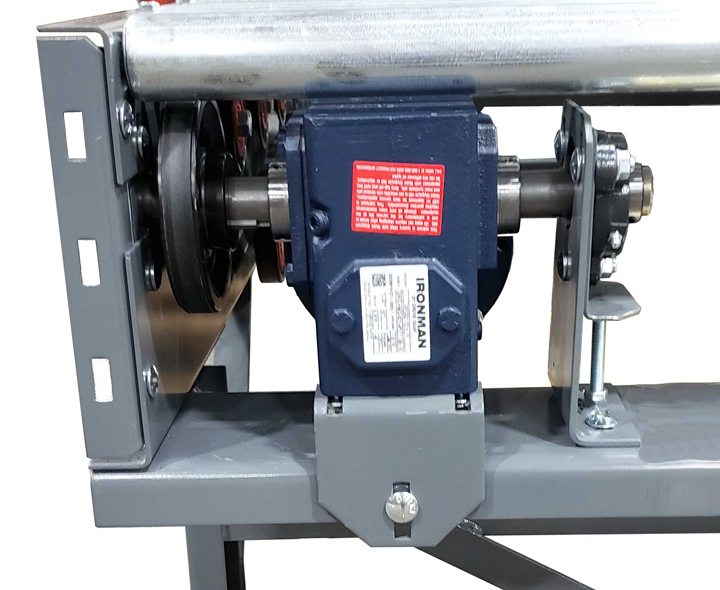

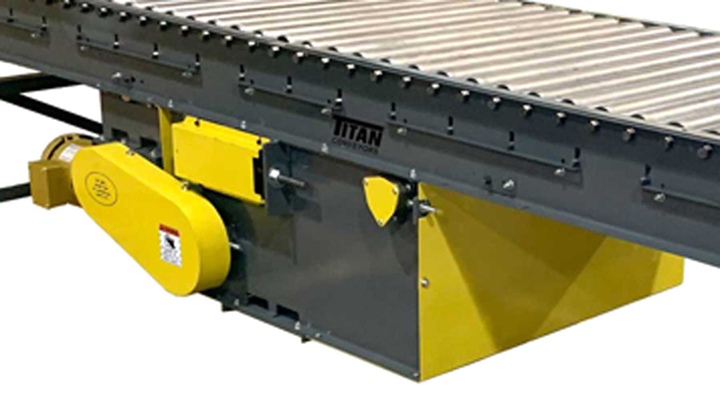

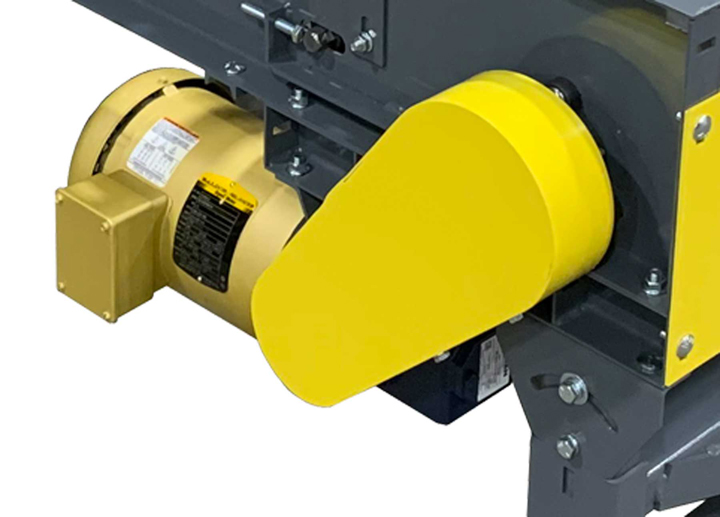

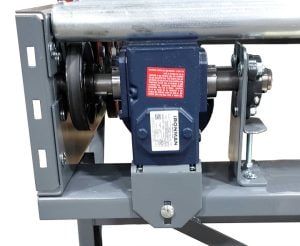

Drive: 1/2 H.P. 230/460/3/60

Frame: Formed 12 Gauge

Paint: One Coat Industrial Enamel

Pulleys: 4" Dia. Crown Face Rubber Lagged Drive; 4" Dia. Crown Face Take-up

Rollers: 1.9 Dia. x 16 Gauge

Speed: 60 F.P.M.

Supports: "H" Type Adjustable
