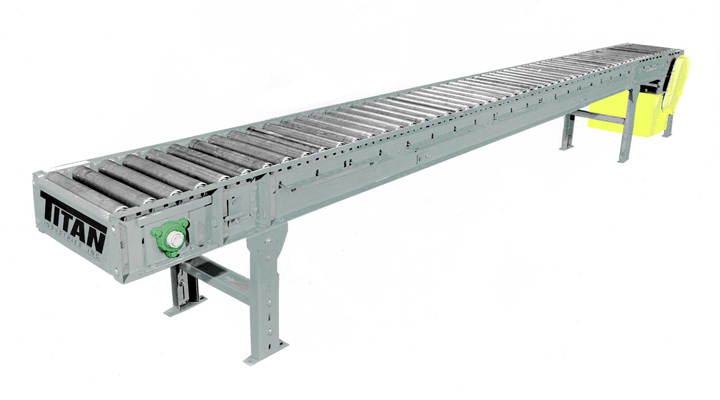

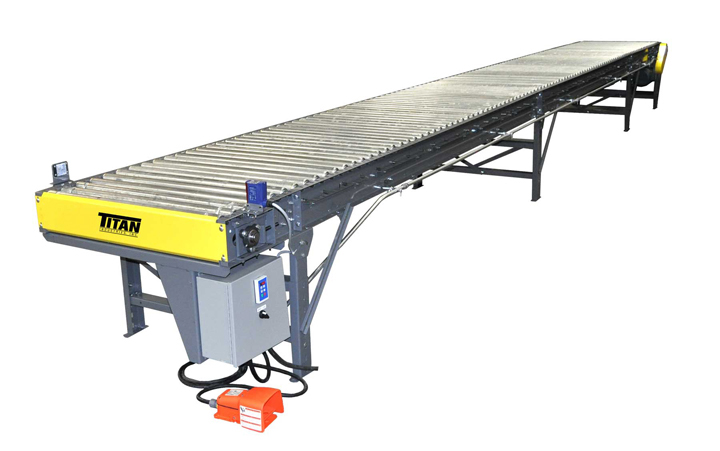

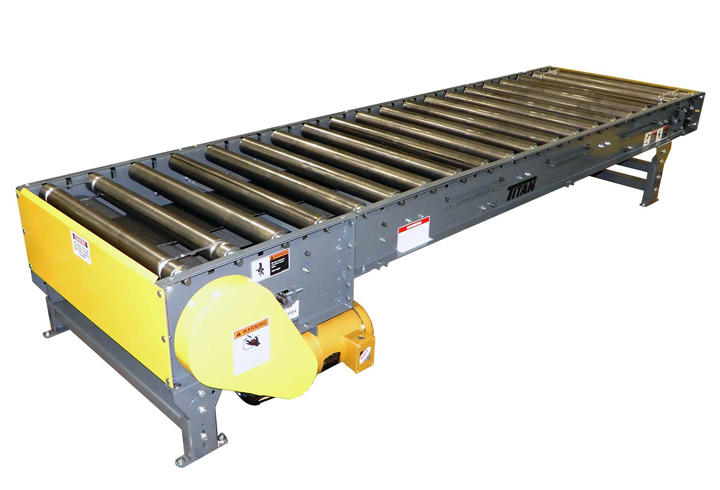

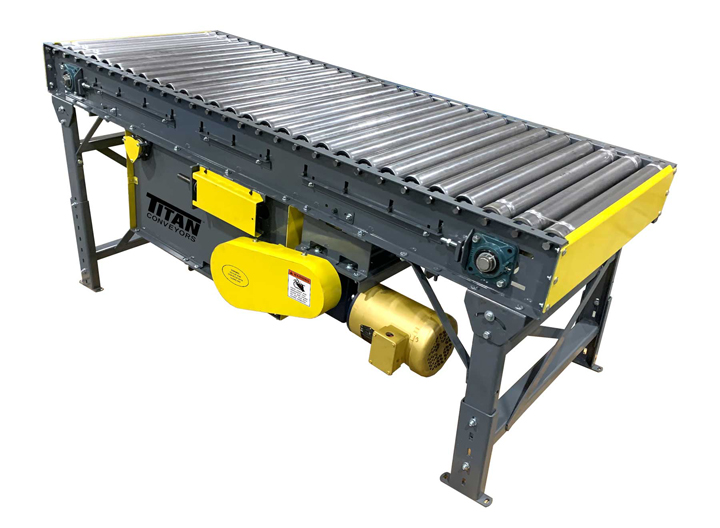

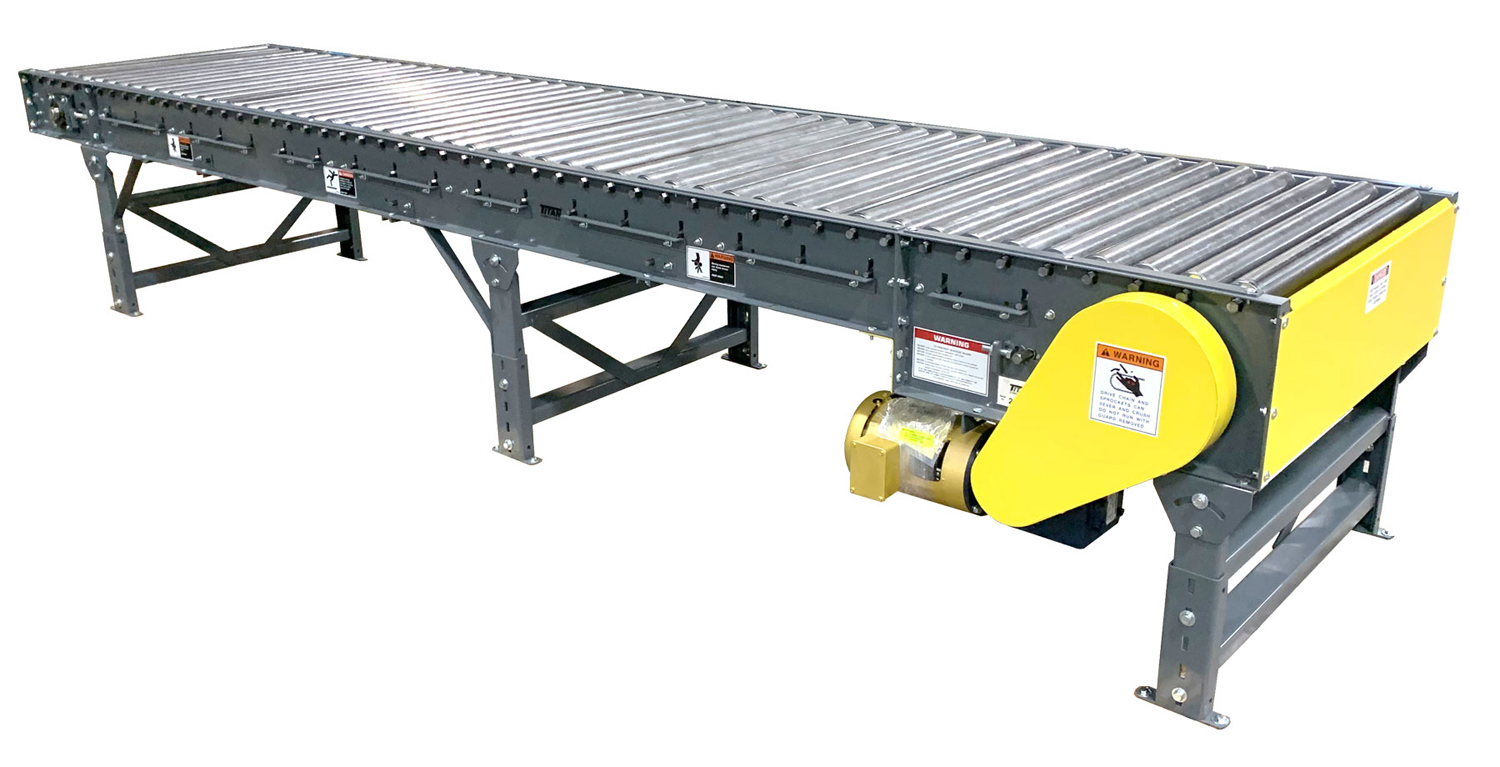

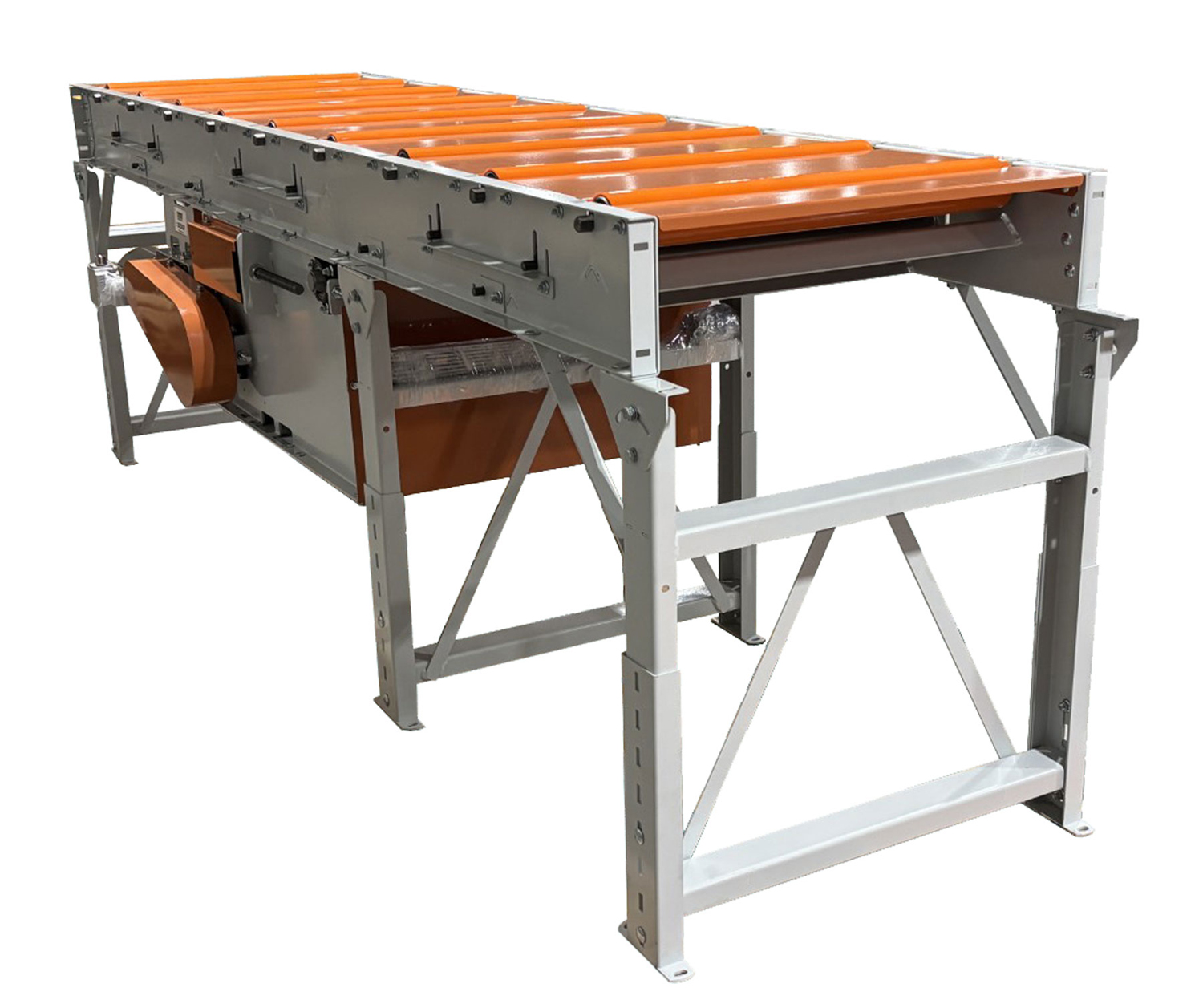

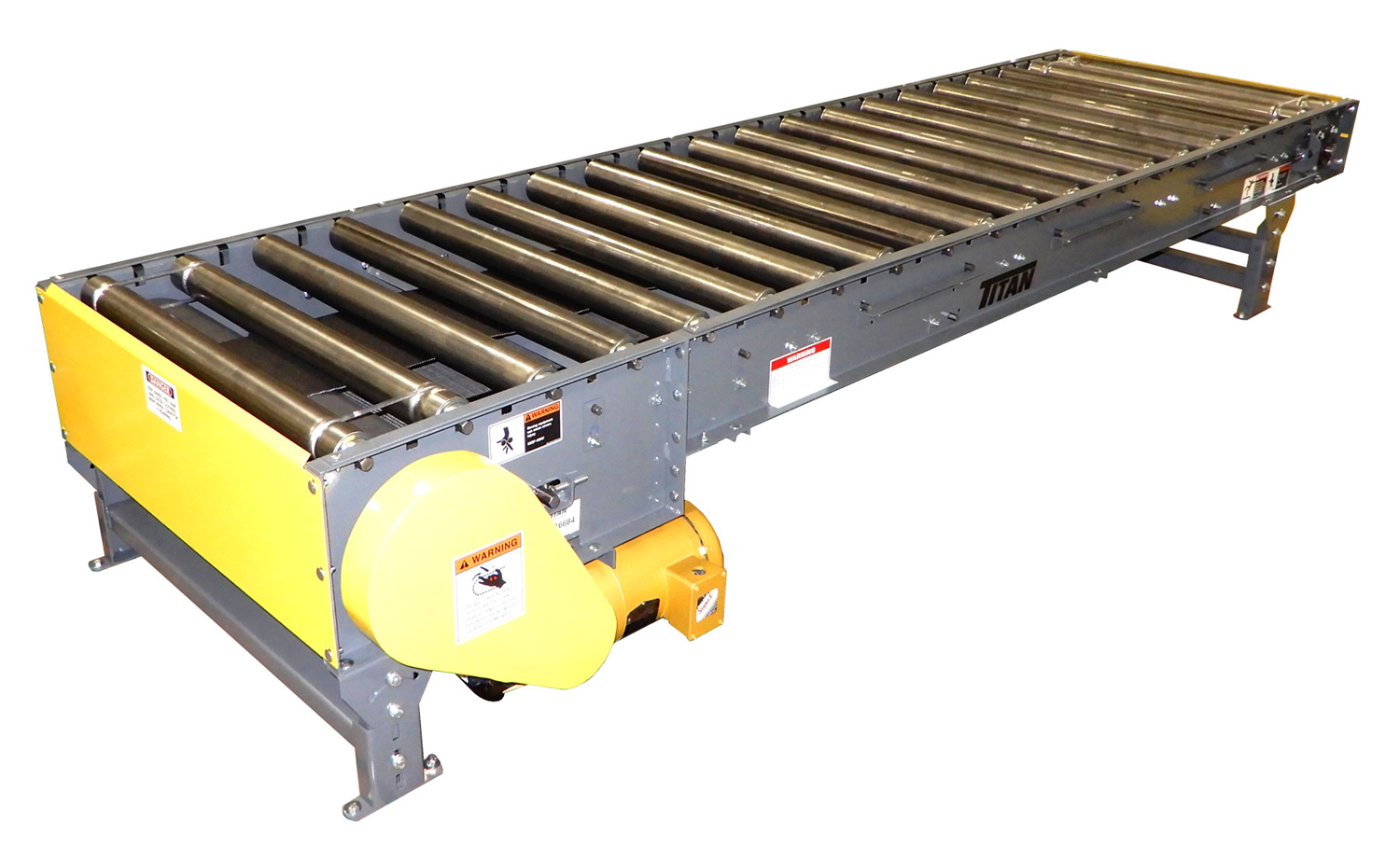

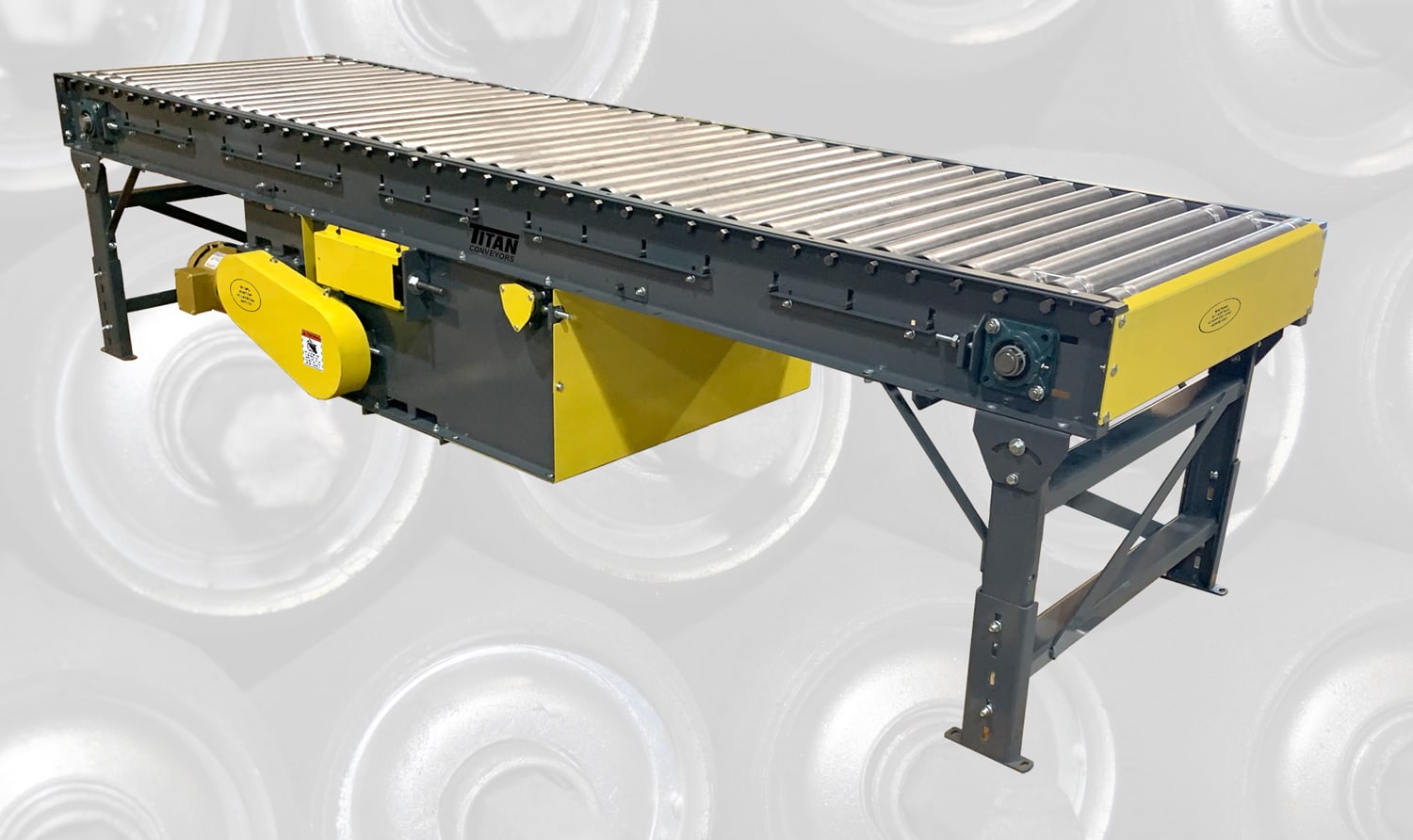

Model 408

Belt-Driven Live Roller Conveyor

Model Description:

When your application requirements dictate a heavier capacity Belt Driven Live Roller Conveyor, the selection should be a TITAN Model 408. The 1.9" diameter x 16 gauge rollers are mounted in a formed 12 gauge frame and have the "lift out" feature that meets most safety requirements. The Model 408 features a heavy duty 8" diameter crown face rubber lagged (vulcanized) pulley with a 1-7/16" diameter drive shaft. Compression rollers are mounted on 6" centers. The compression roller brackets are supplied in 2" increments and mounted externally for quick access. All components used in the Model 408 are designed to be compatible with other TITAN equipment for interface and systems integration.

Model 408 Belt-Driven Live Roller Conveyor Specifications:

Between Frame Widths: 13", 16", 19", 22", 25", 28", 31", 34", 37", 40", 42",48", 54", 60"

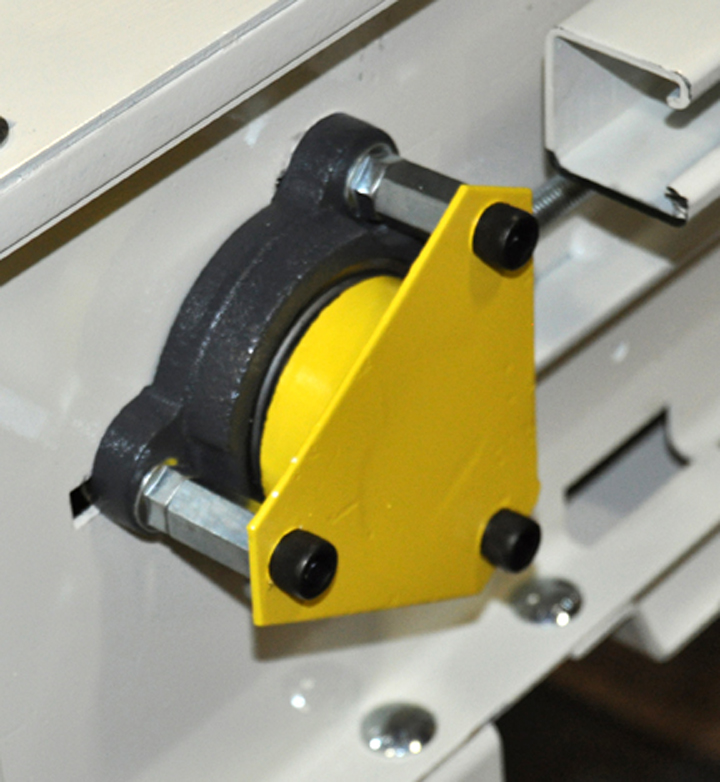

Bearings: Grease Sealed

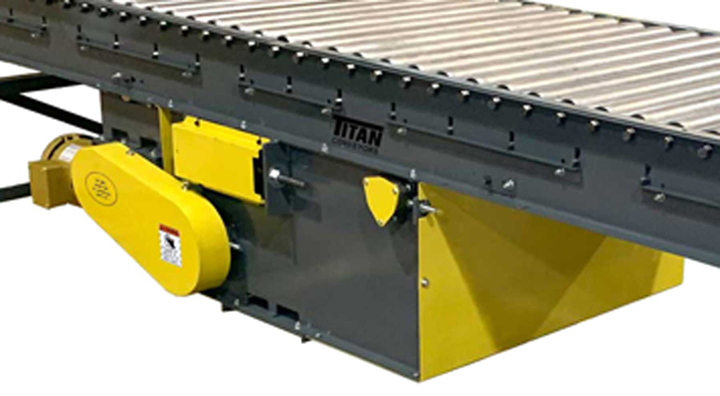

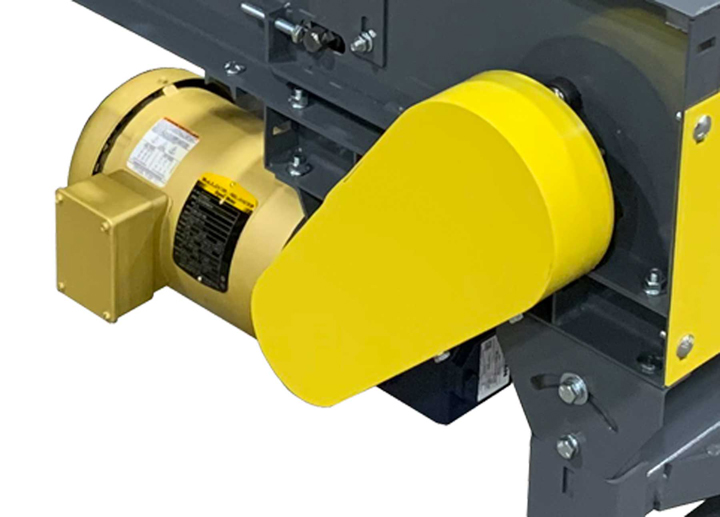

Drive: 1/2 H.P. 230/460/3/60

Frame: Formed 12 Gauge

Paint: One Coat Industrial Enamel

Pulleys: 8" Dia. Crown Face Rubber Lagged Drive;

4" Dia. Crown Face Take-up

Rollers: 1.9 Dia. x 16 Gauge

Speed: Various available

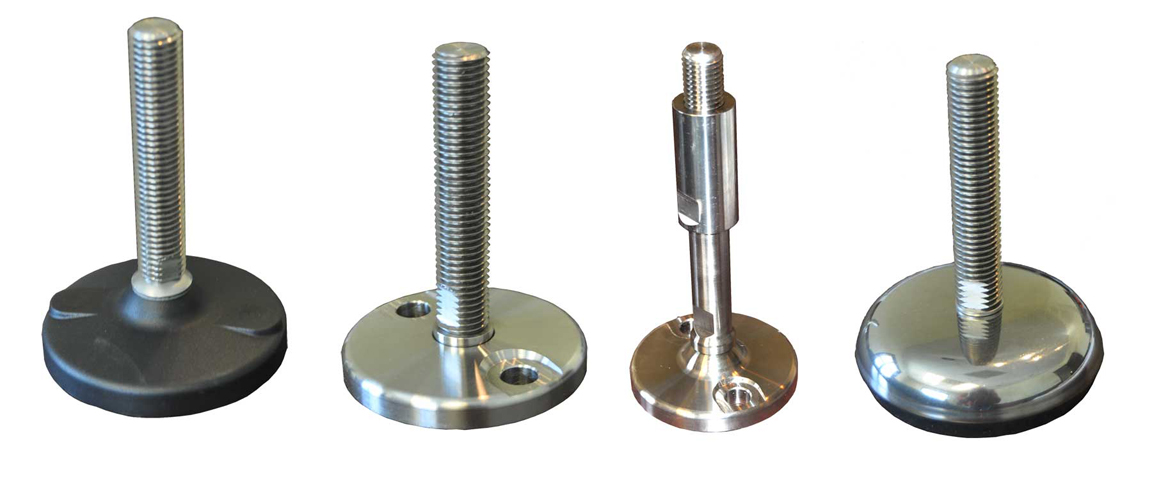

Supports: "H" Type Adjustable
