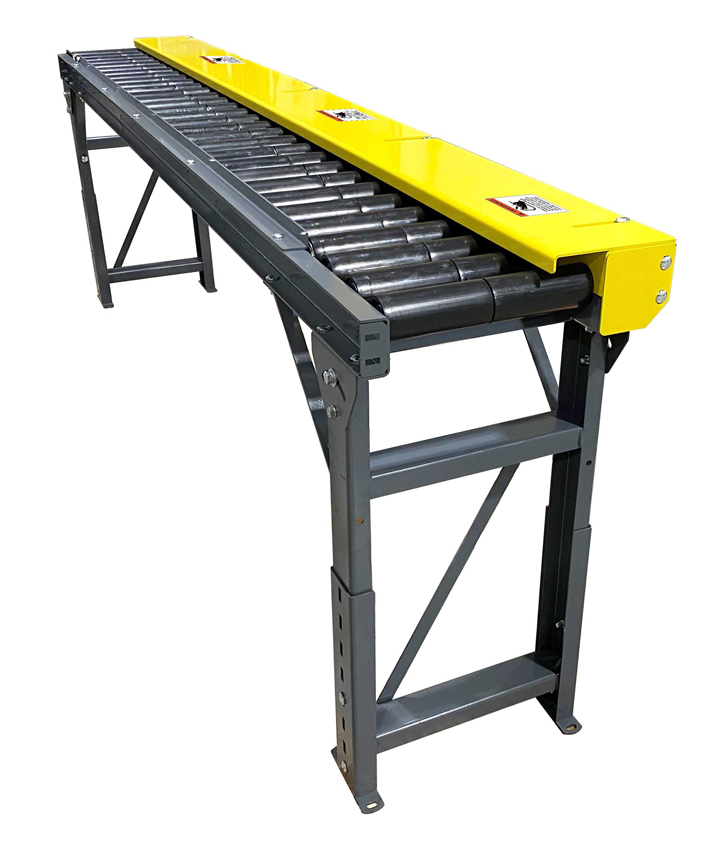

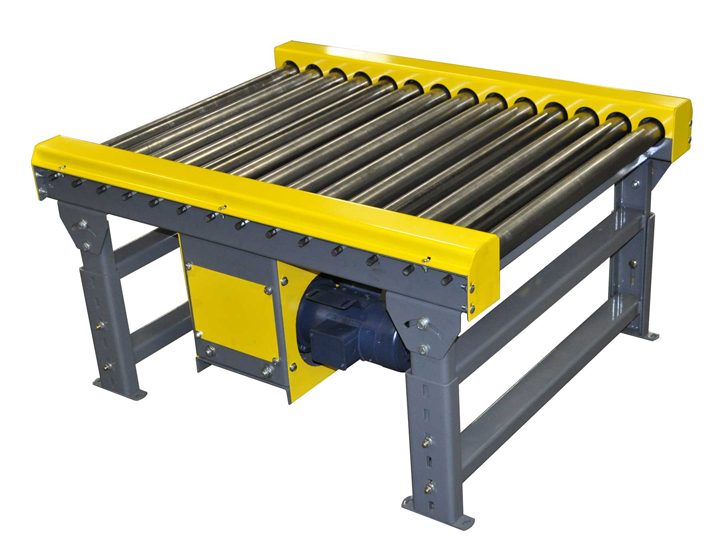

Model 519

Chain Driven Live Roller Conveyor

Model Description:

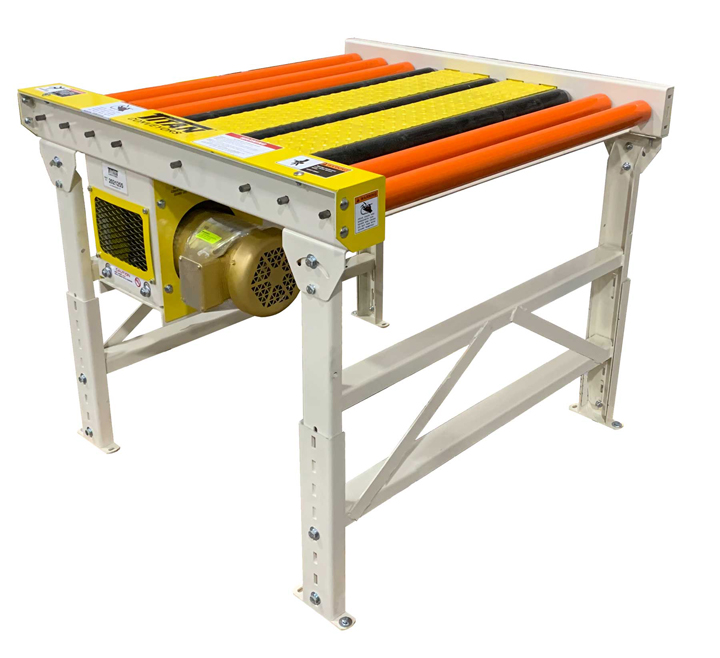

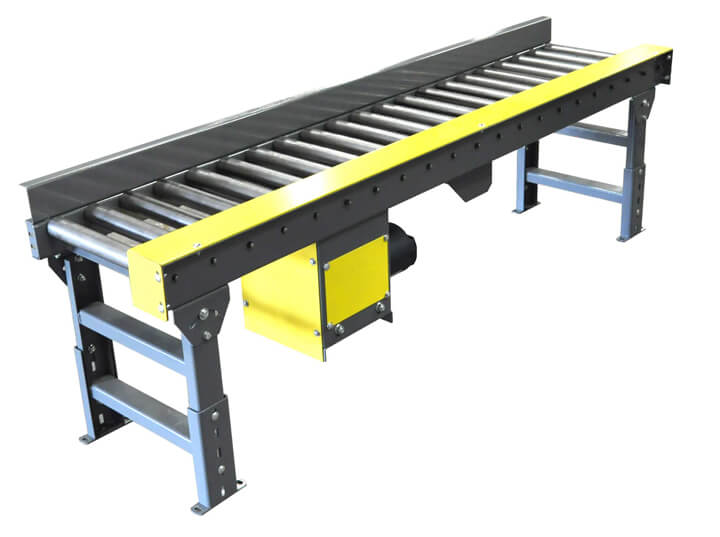

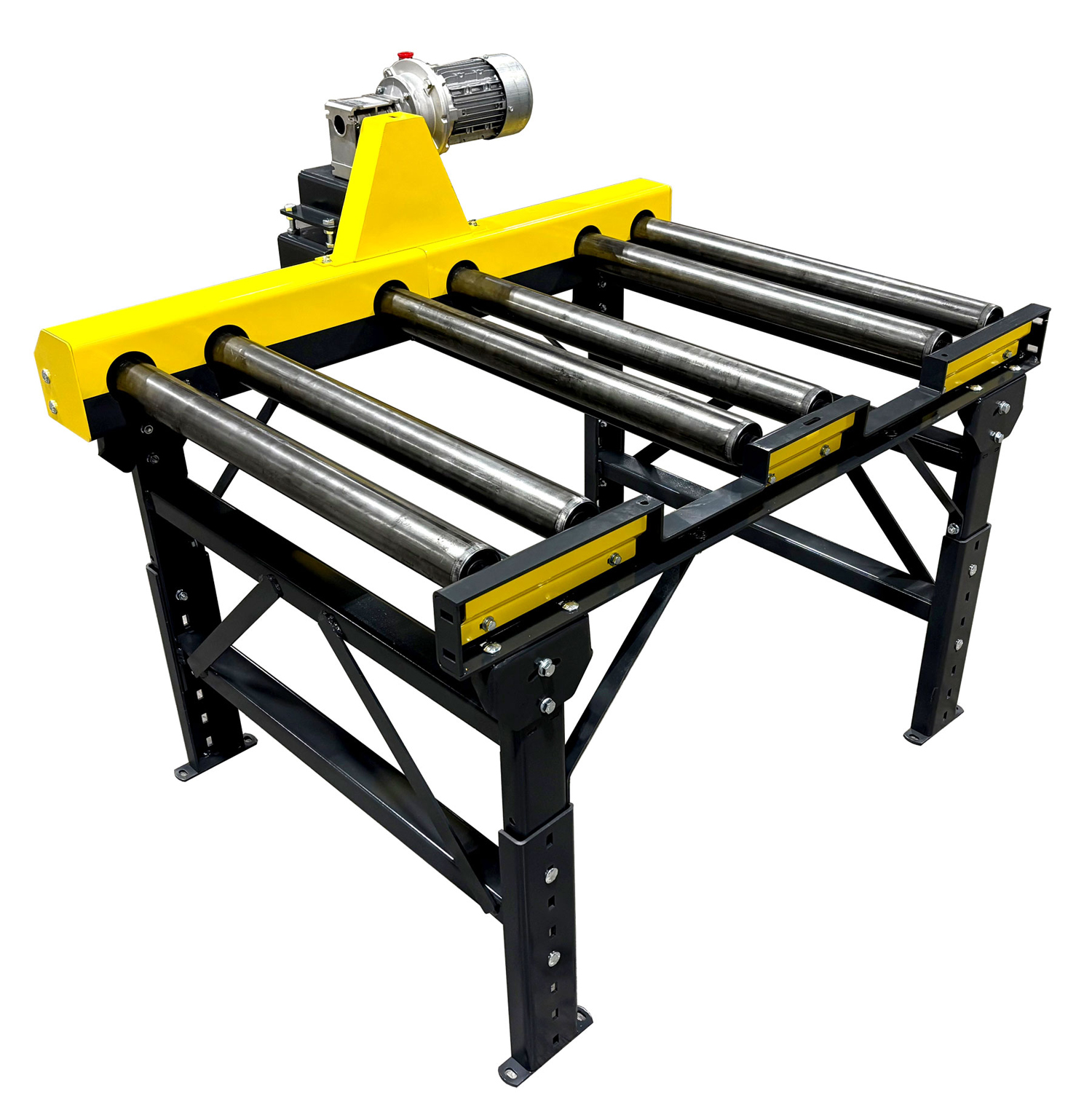

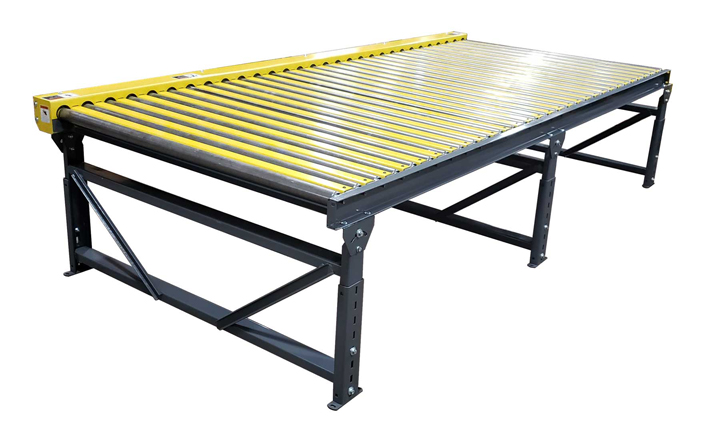

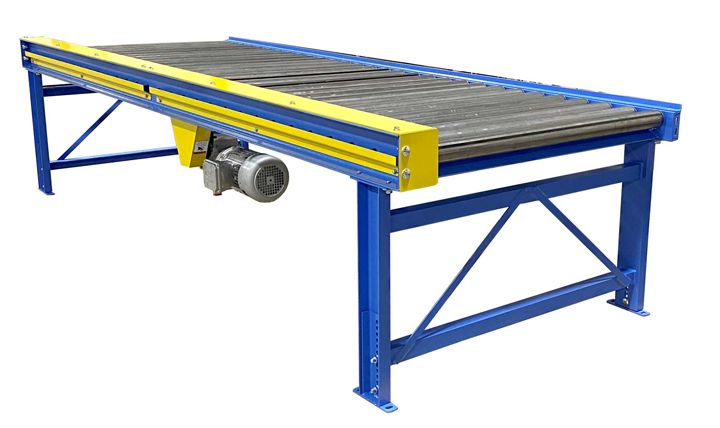

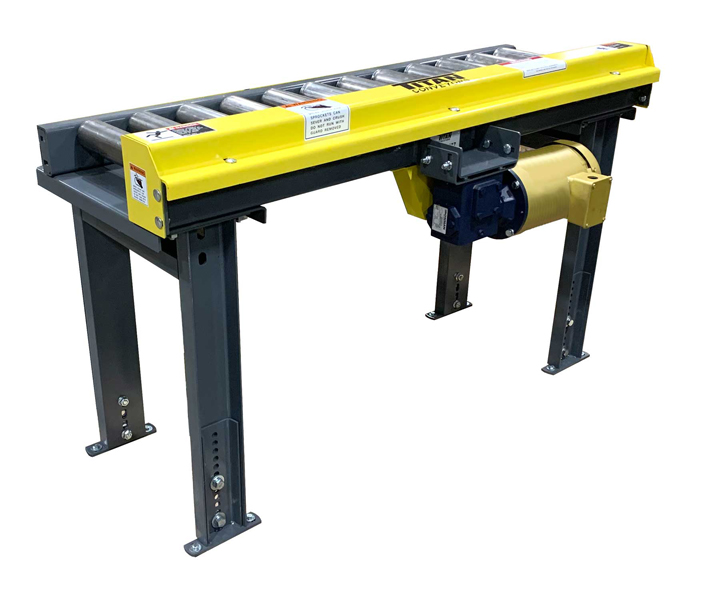

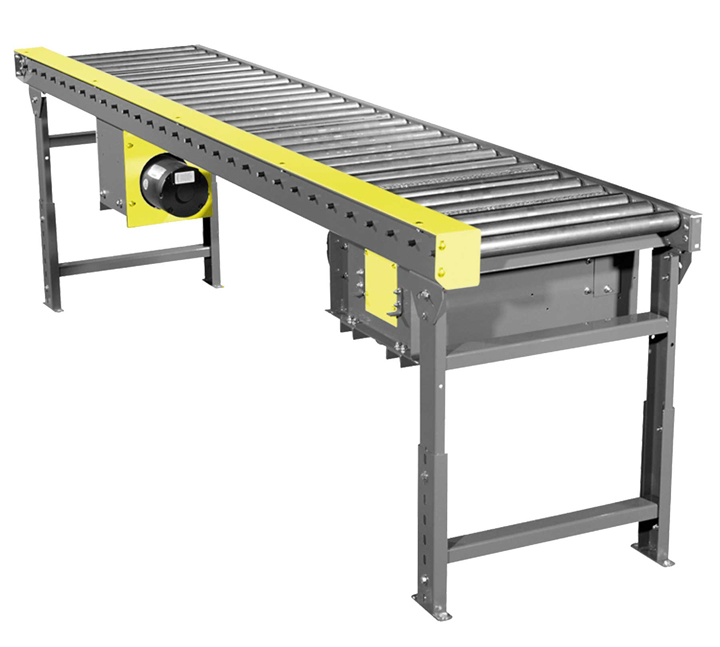

The Model 519 Chain Driven Live Roller Conveyor from Titan is designed to handle medium duty loads such as boxes, light weight pallets and drums. The unit incorporates a #40 chain with heavier duty roll-to-roll drive. The frame is made of formed 10 gauge. The standard drive is 1/2 H.P. for 60 F.P.M. roller speed. A wide range of standard effective widths are available. Standard roller spacings are 4”, 6”, 8”, and 12”. Standard floor supports supplied are adjustable for approximately 30” top of roller. The Model 519 has a minimum length of 4’ and can be ordered in lengths to meet individual requirements. Consult factory for further details and options.

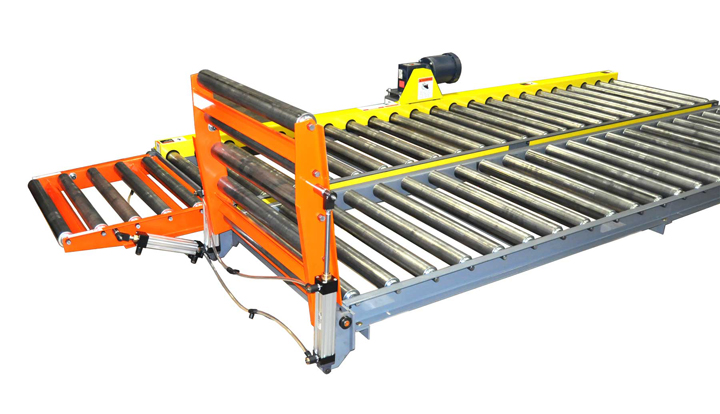

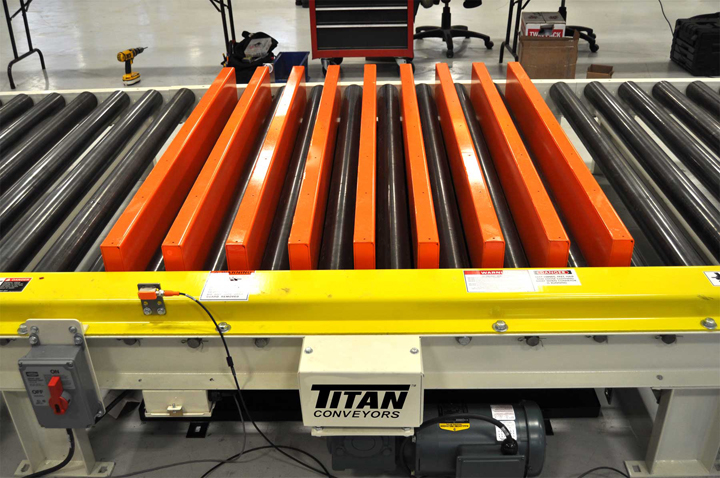

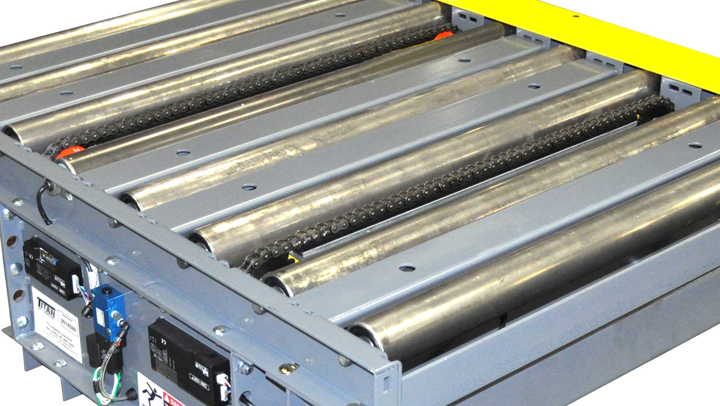

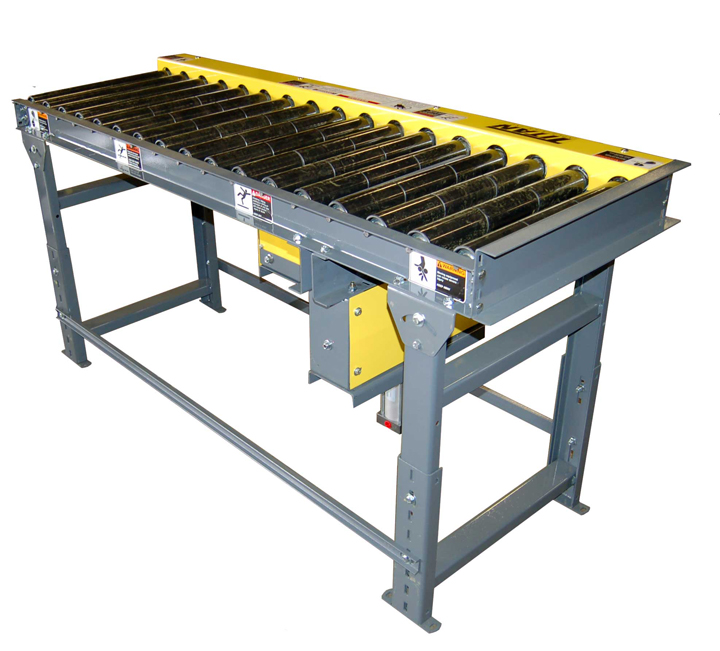

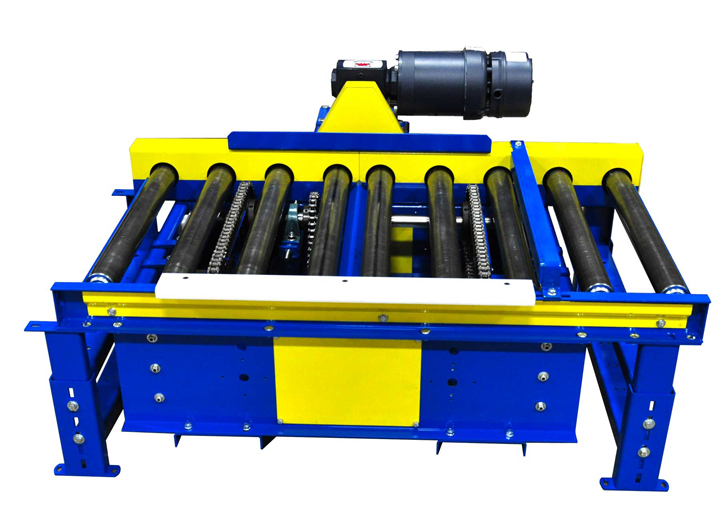

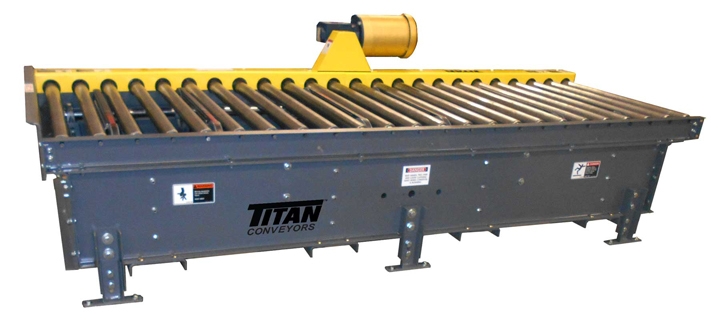

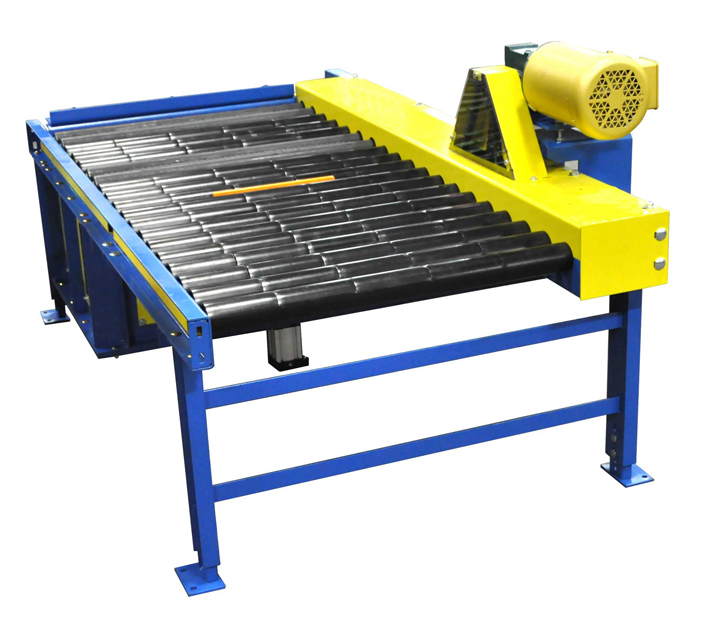

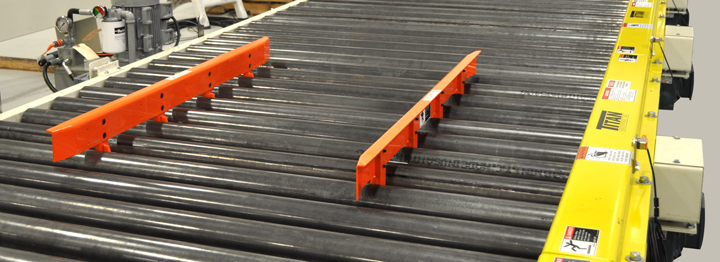

Titan Pop-Up Transfers, Stops, Pallet Centering, Pallet Lifts, Pallet Crowders and Product Rotation units are designed for integration in Titan roller conveyor systems.

Model 519 Chain Driven Live Roller Conveyor Specifications:

Effective Widths: 12" to 50"

Bearings: Grease Sealed

Capacity: 250# Per Roller

Chain: #40 Roll-to-Roll Drive

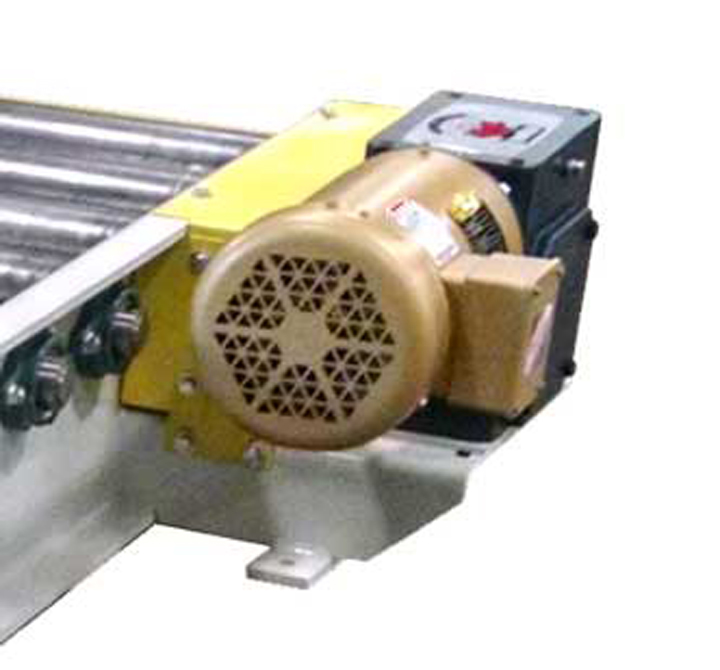

Drive: 1/2 H.P. 230/460/3/60

Frame: Formed 10 Gauge

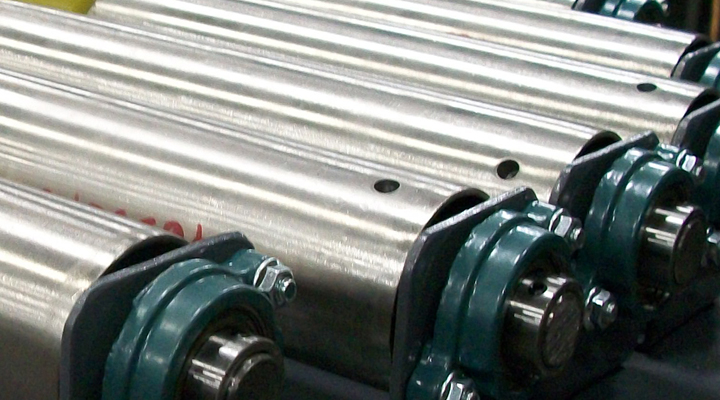

Optional: (1-1/2" Sch 40 PIPE Rollers)

Paint: One Coat Industrial Enamel

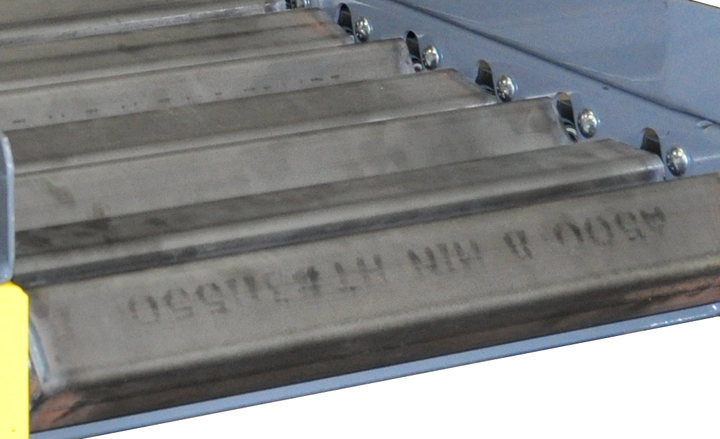

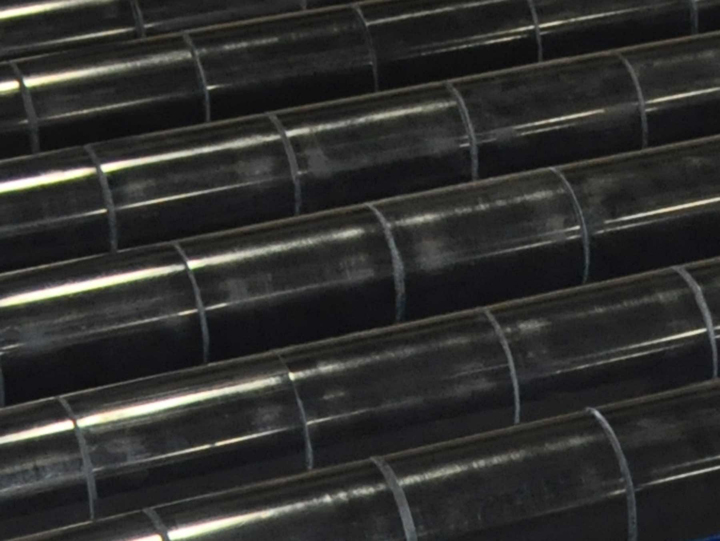

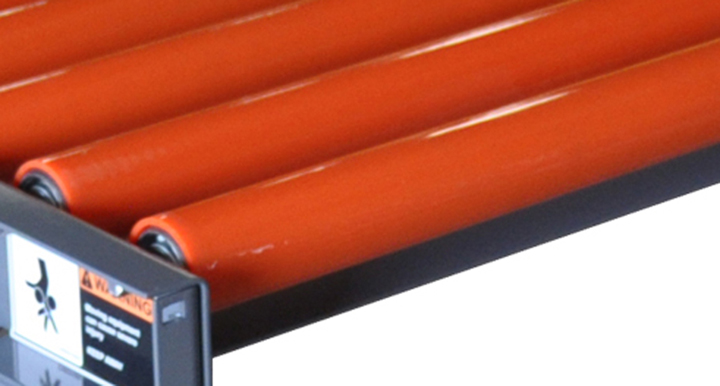

Rollers: 1.9" dia. X 16 ga./Spring Loaded 7/16" Hex Shaft

Speed: 60 F.P.M.

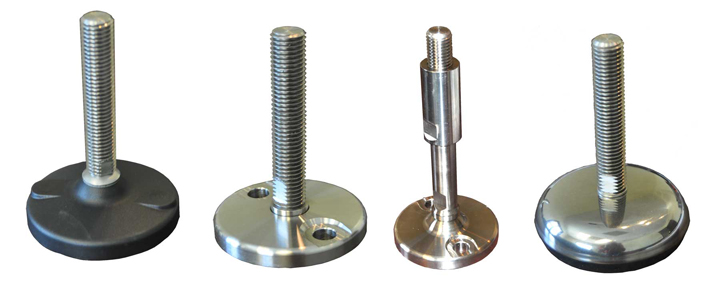

Supports: "H" Type Adjustable
