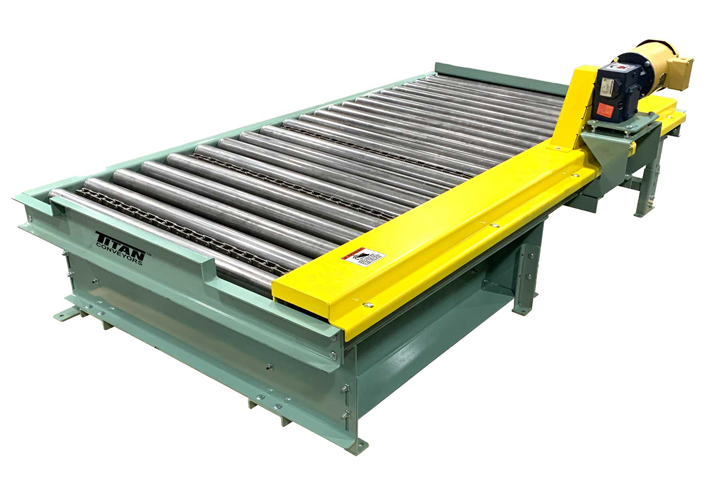

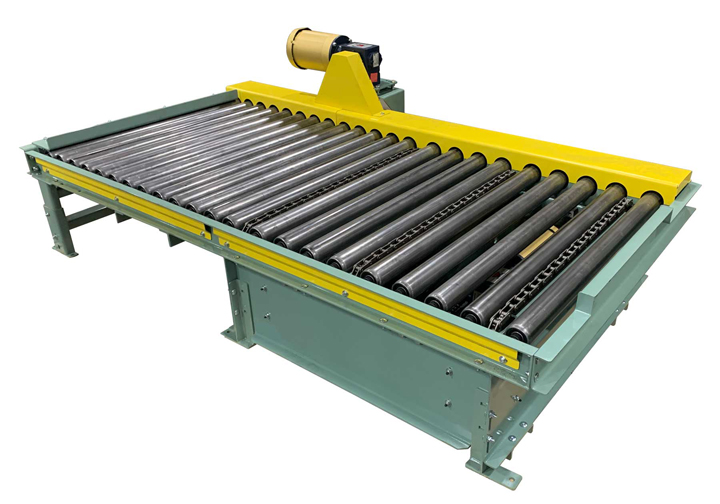

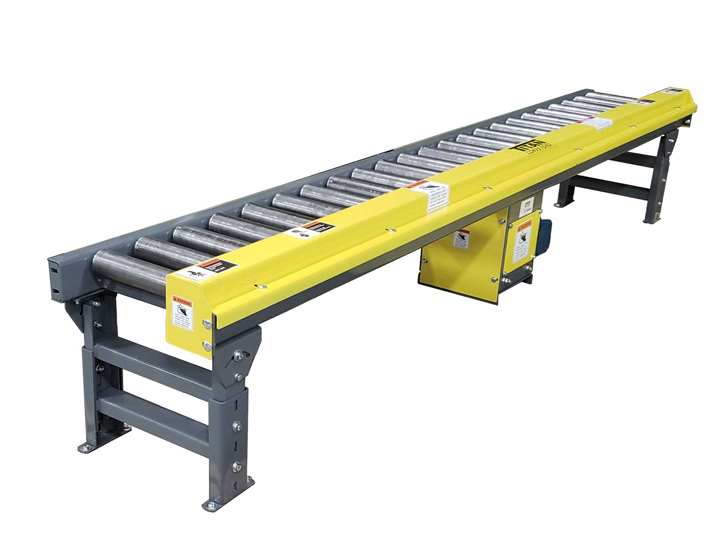

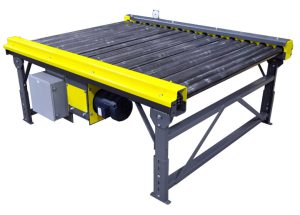

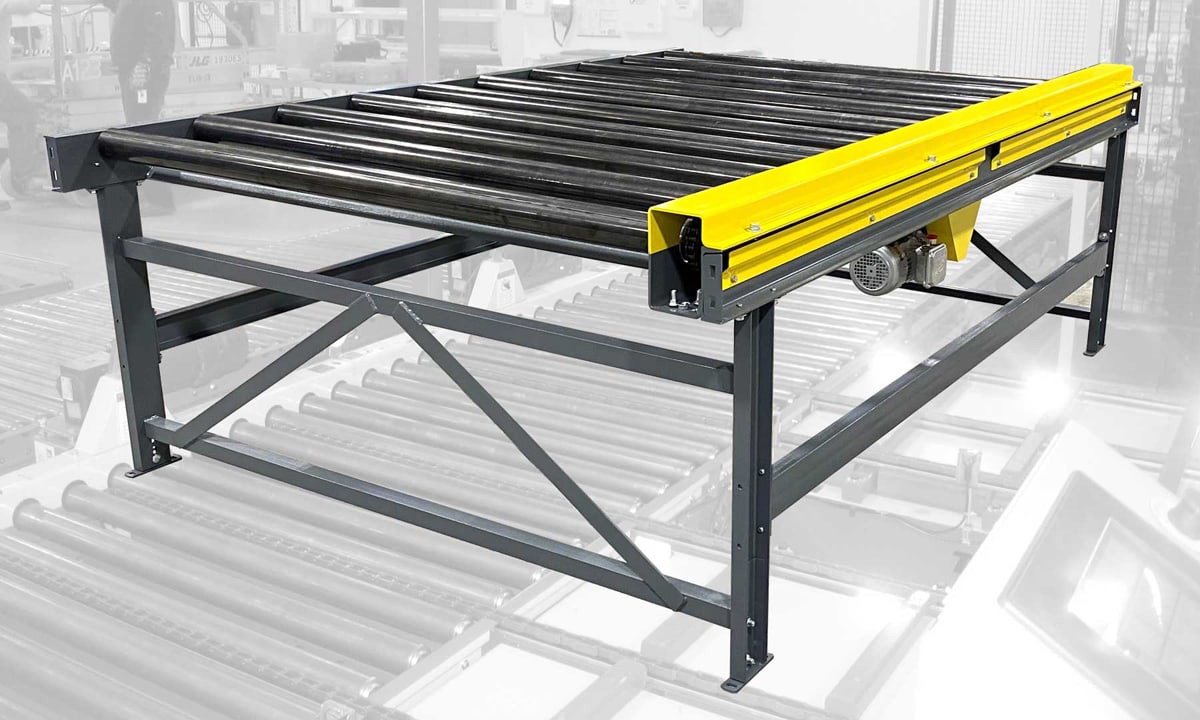

Model 526

Chain Driven Live Roller Conveyor

Model Description:

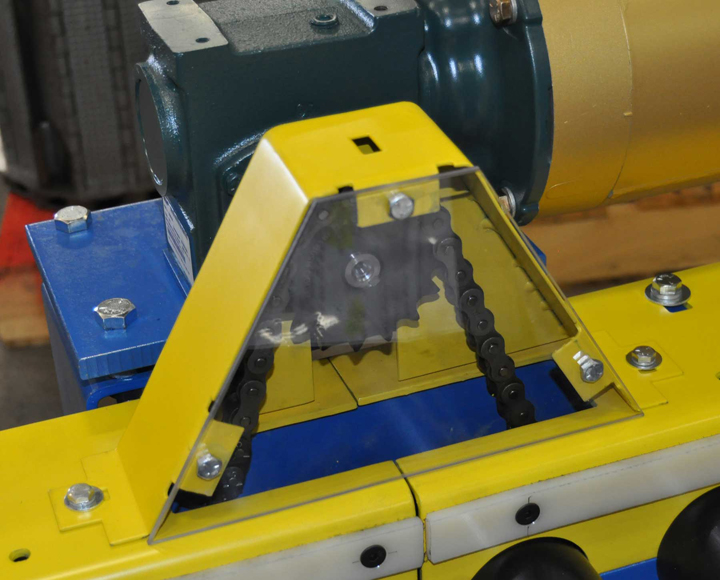

The Model 526 Chain Driven Live Roller conveyor from Titan Conveyors is designed to handle heavy load such as pallets, skids or drum. The unit incorporates a number 50 chain with a roll-to-roll drive. The frame is a heavy formed 7 gauge construction with a one piece chain guard. Rollers are 2-5/8" diameter x 7 gauge (600 lb. capacity) on 2-13/16", 3-7/16", 4-3/8", 5", 5-15/16" and 10" centers. Standard floor supports supplied are adjustable for approximately 30" to the top of roller. The Model 526 comes in lengths to suit with a minimum length of 4' long. Consult the factory for further details.

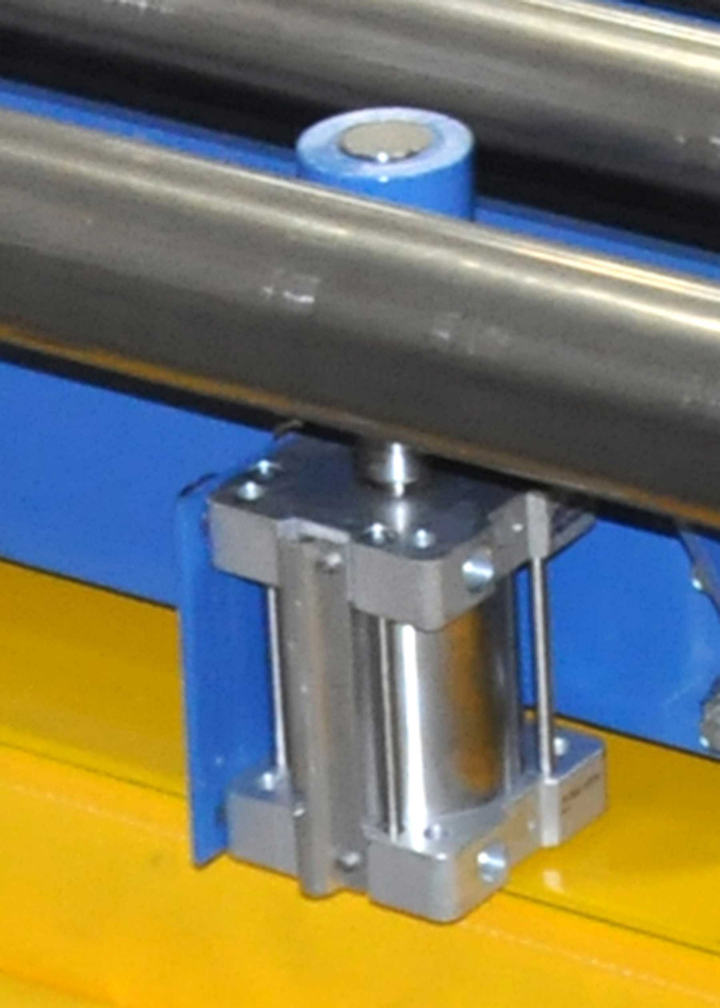

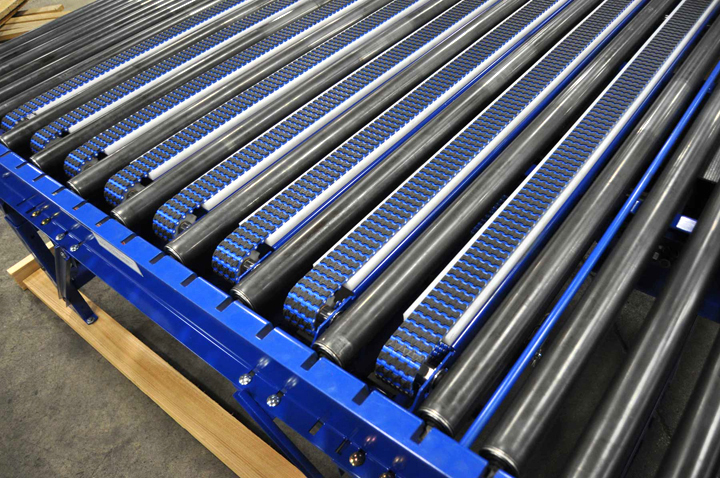

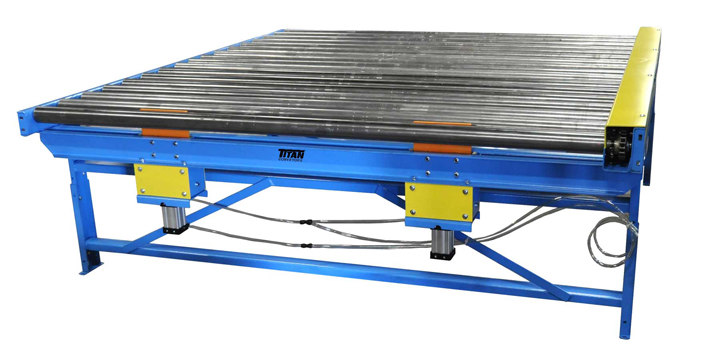

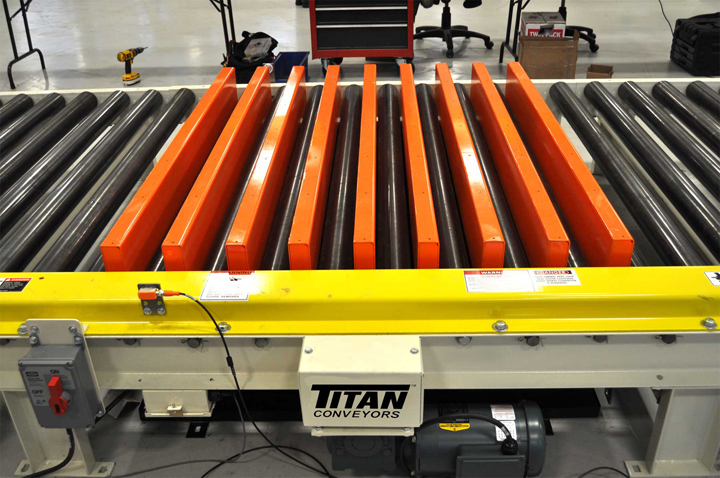

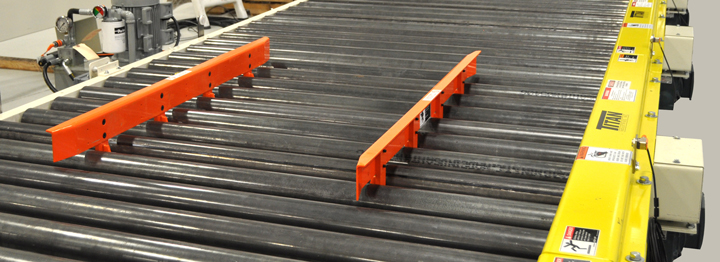

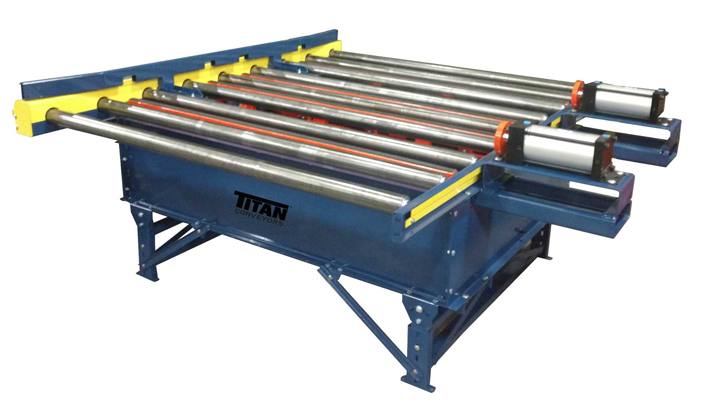

Titan Pop-Up Transfers, Stops, Pallet Centering, Pallet Lifts, Pallet Crowders and Product Rotation  units are designed for integration in Titan roller conveyor systems.

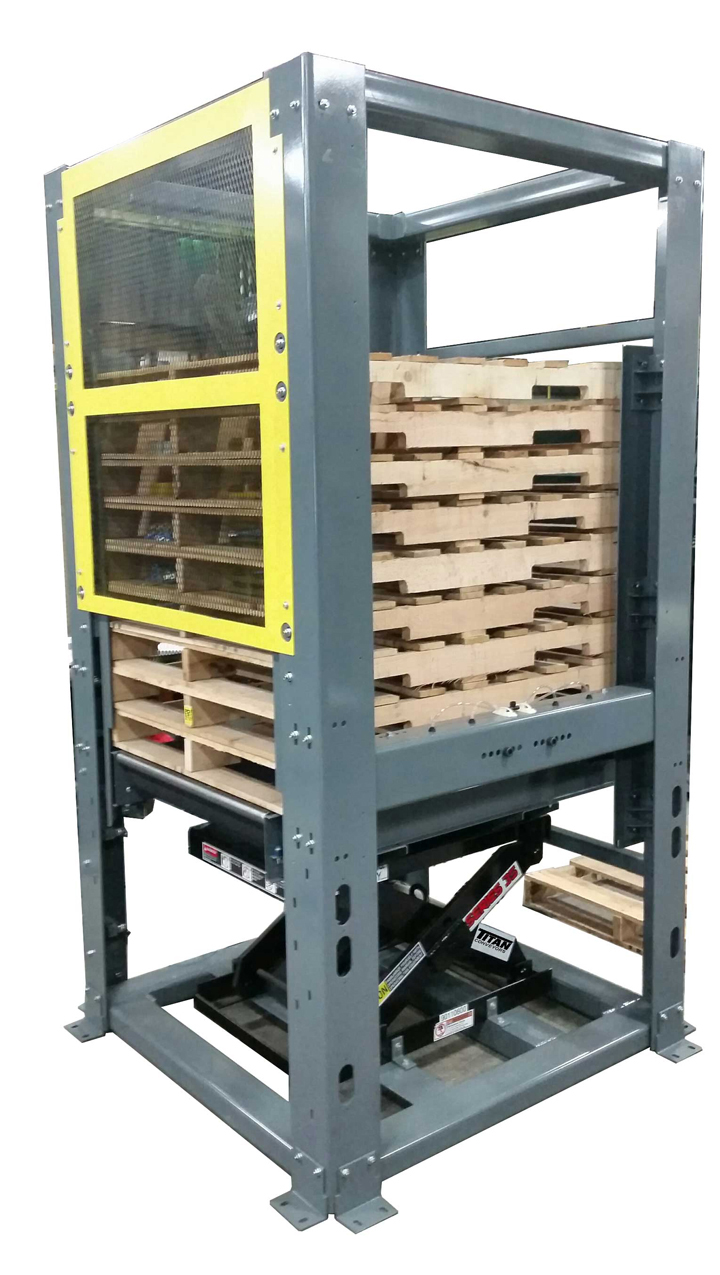

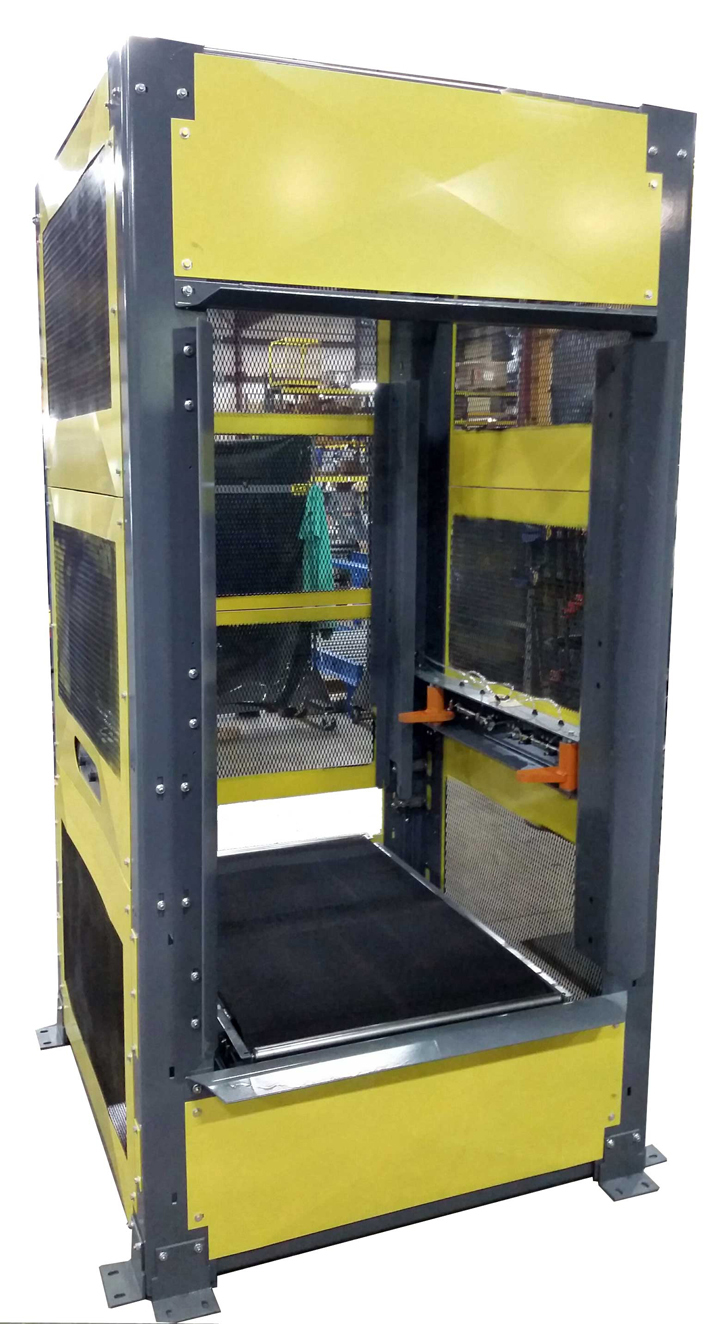

Pallet Destacker - is designed to stack or destack pallets in automated pallet handling systems.  See more details under the Drawings tab below or contact Titan directly to get details on the Pallet Destacker custom designed and built to meet your needs.



Model 526 Chain Driven Live Roller Conveyor:

Effective Widths: 15" to 80"

Bearings: Grease Sealed

Chain: #50 Roll-to-Roll Drive or optional #60 Roll-to-Roll Drive

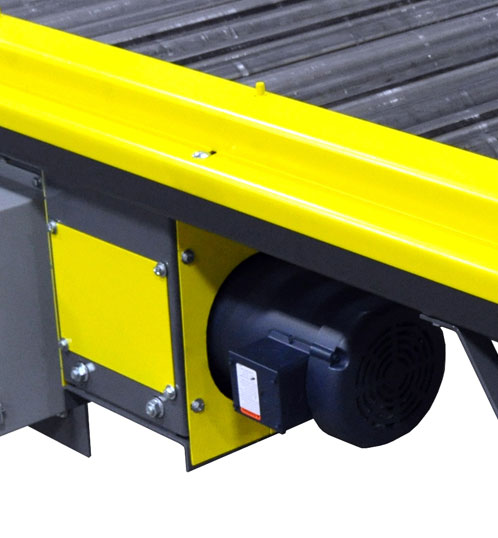

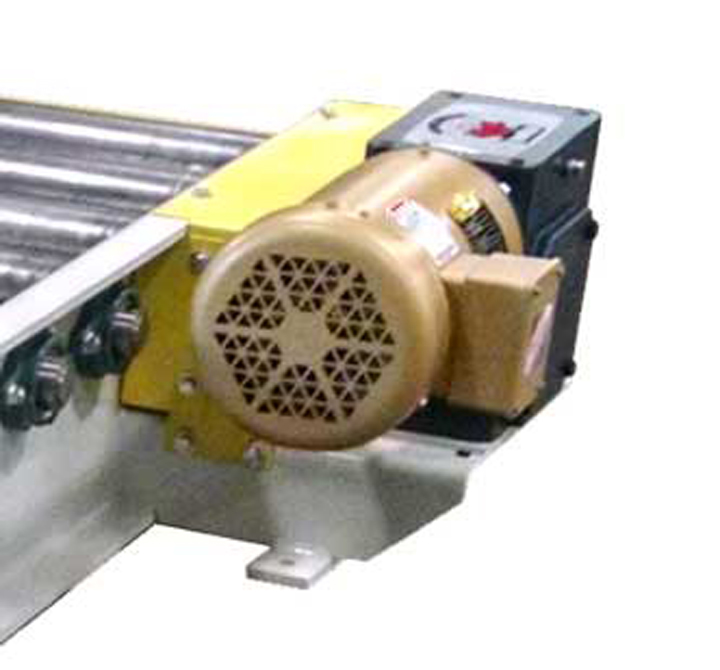

Drive: 3/4 H.P. 230/460/3/60

Frame: Formed 7 Gauge

Paint: One Coat Industrial Enamel

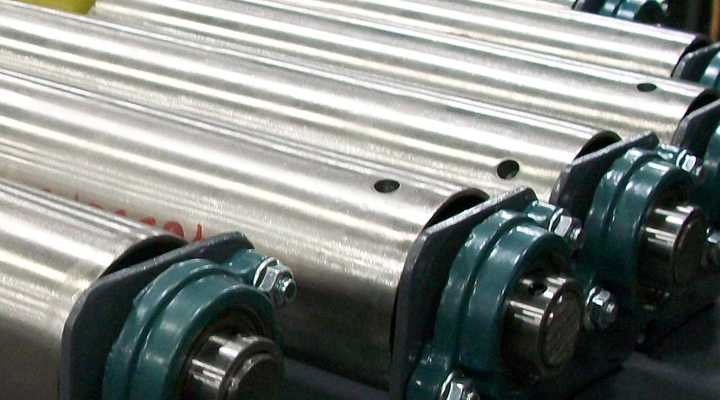

Rollers: 2-5/8" Dia. x 7 Gauge

Speed: 30 F.P.M.

Supports: "H" Type Adjustable
