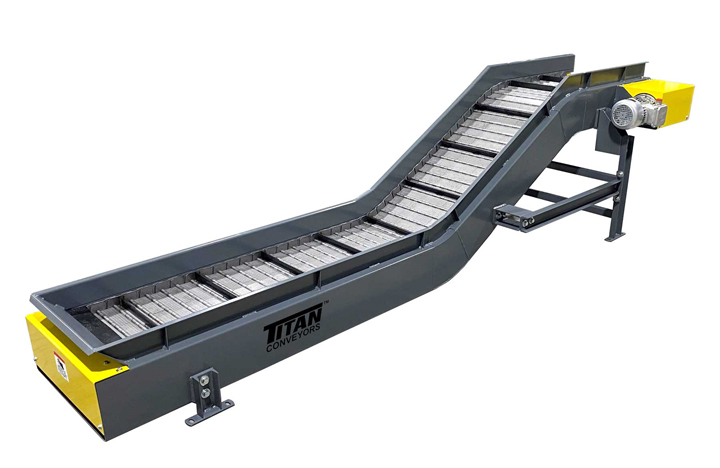

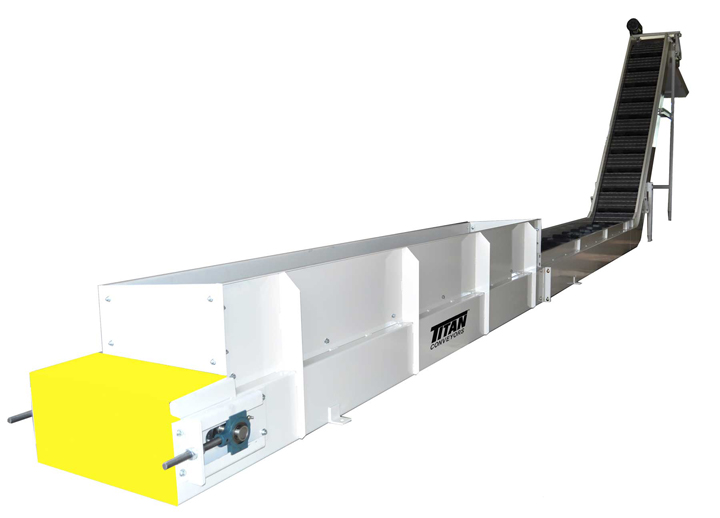

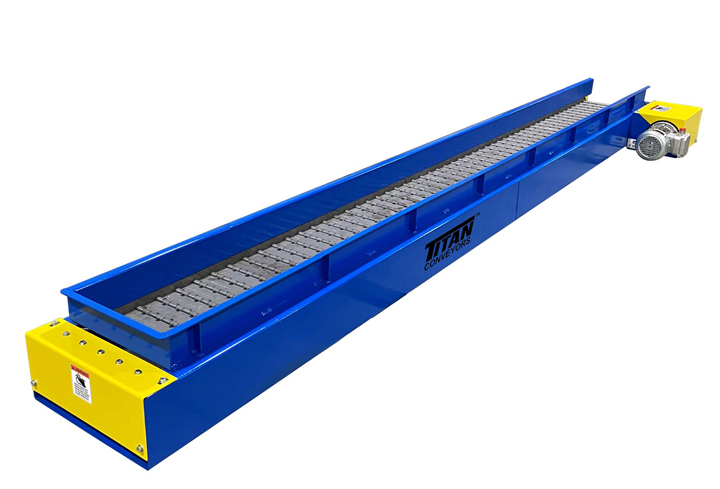

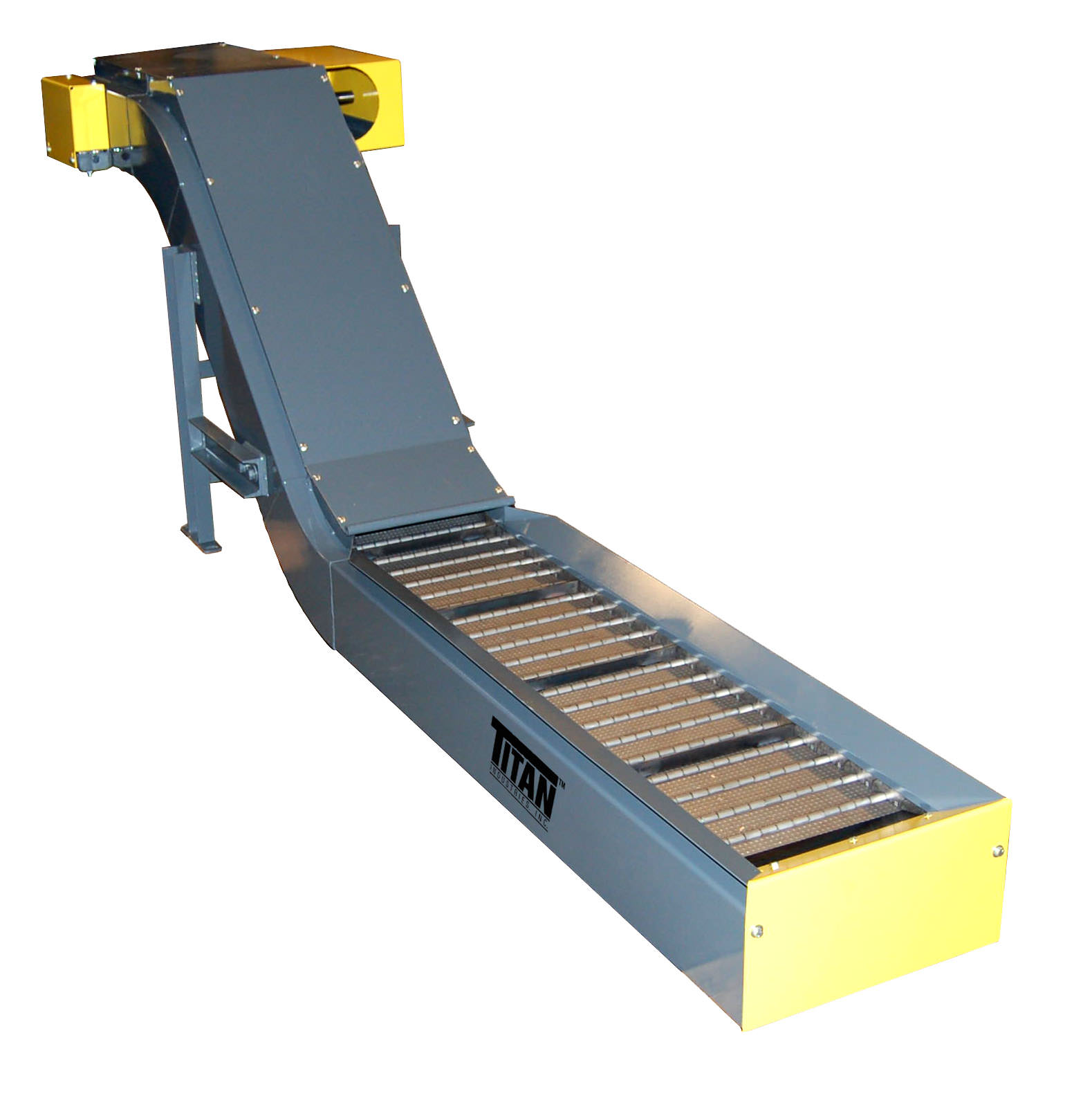

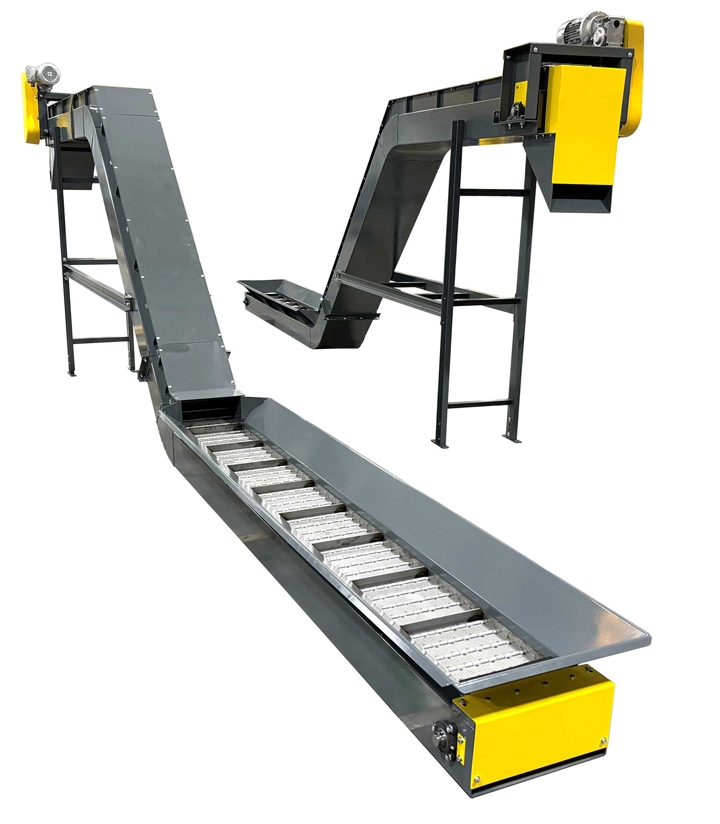

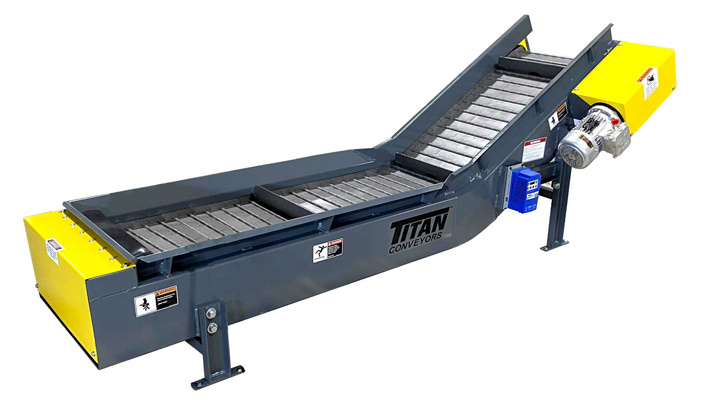

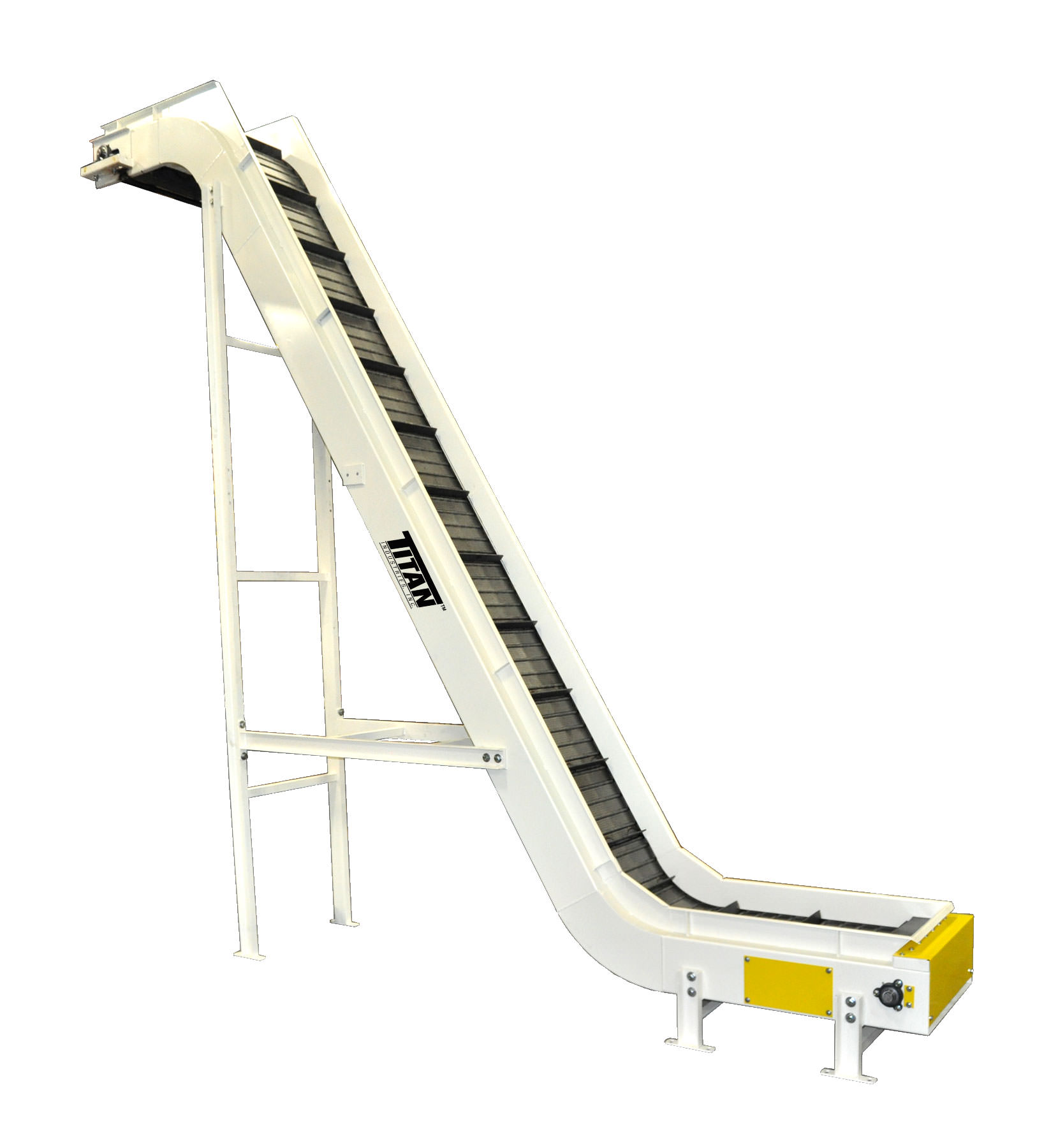

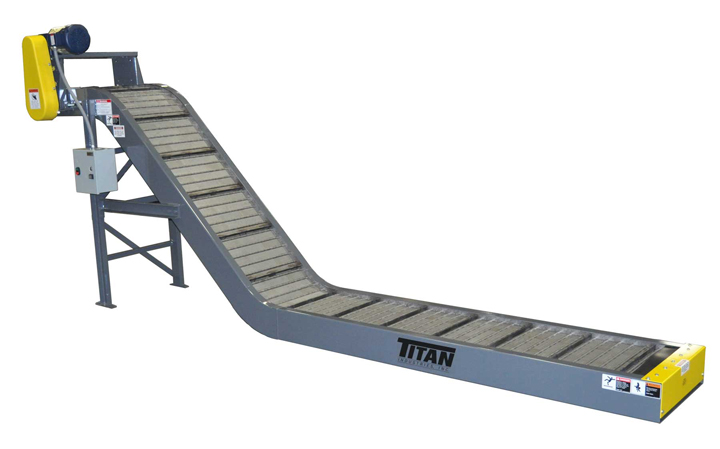

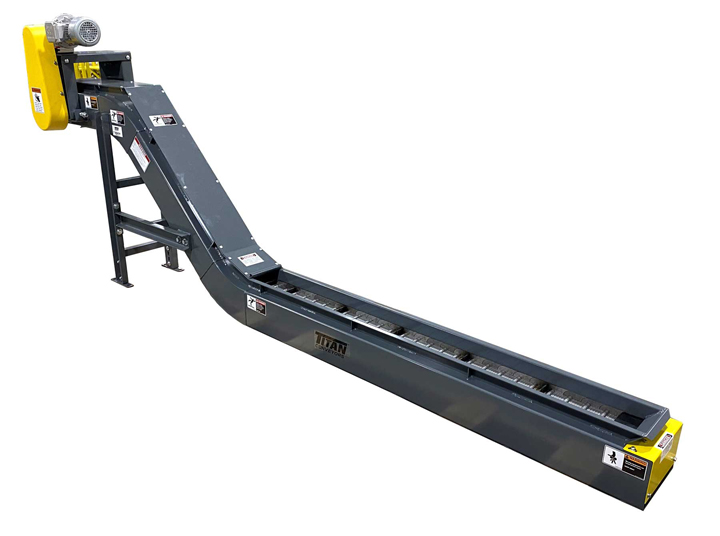

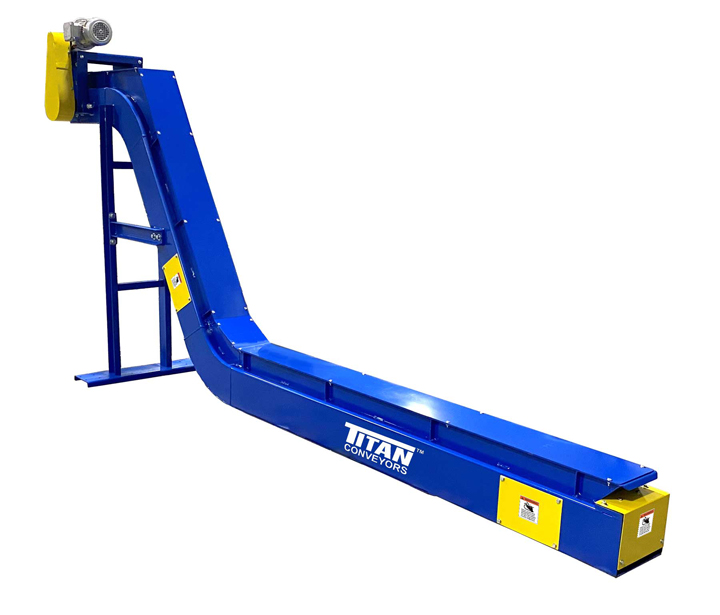

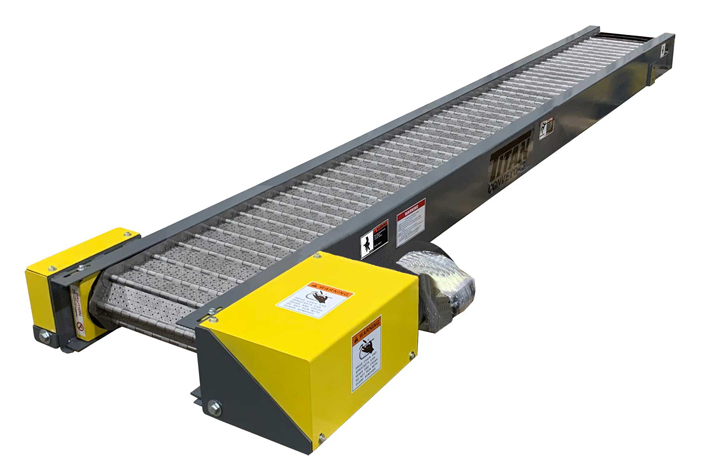

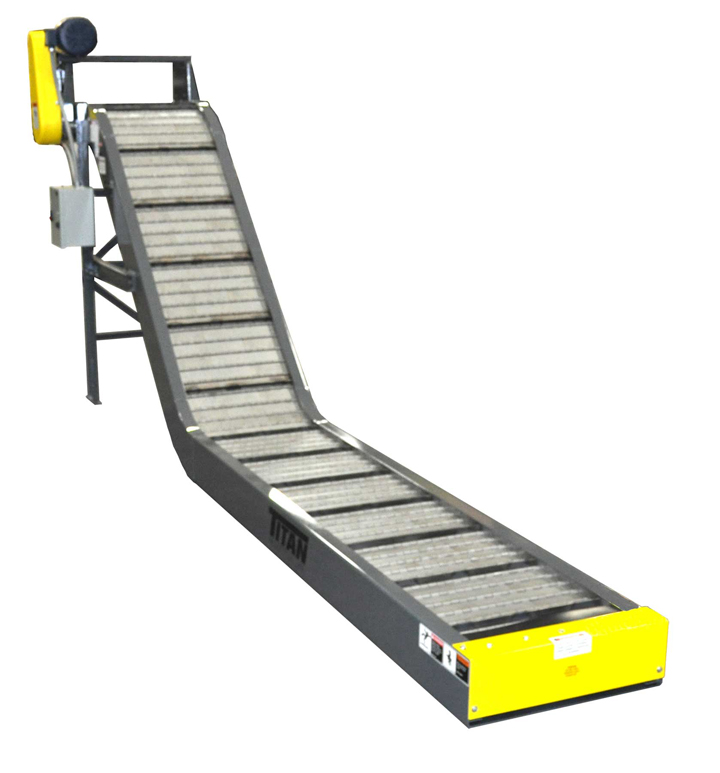

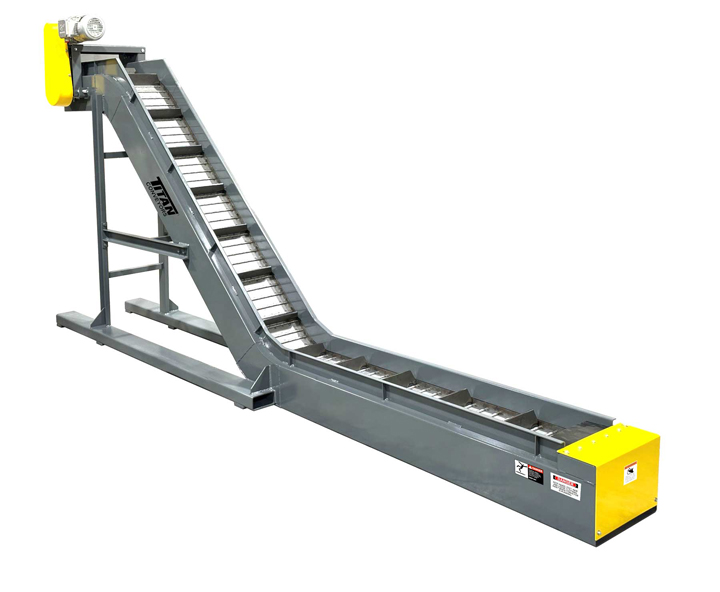

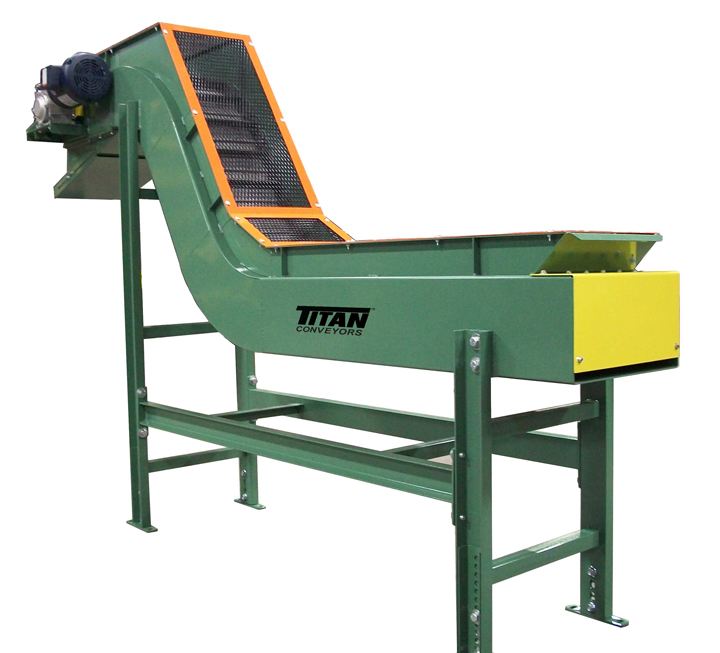

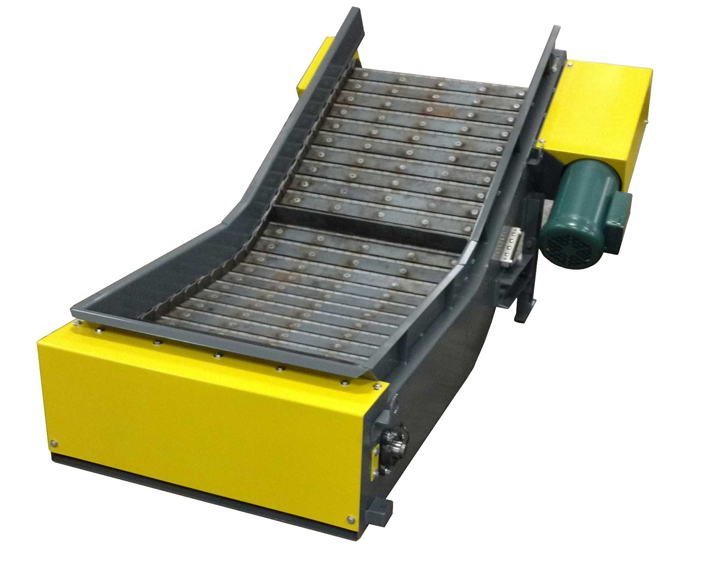

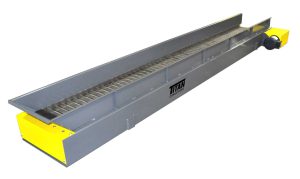

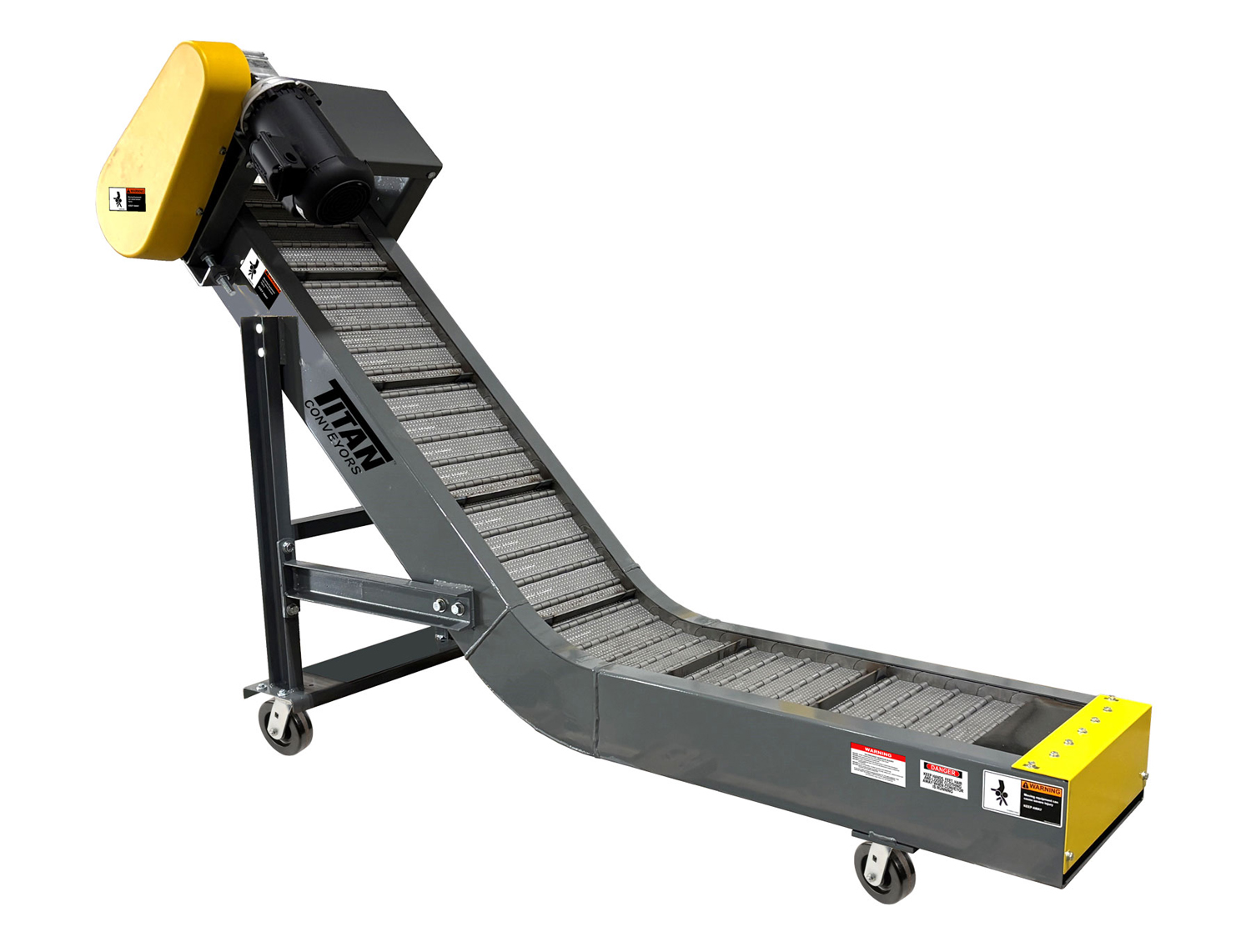

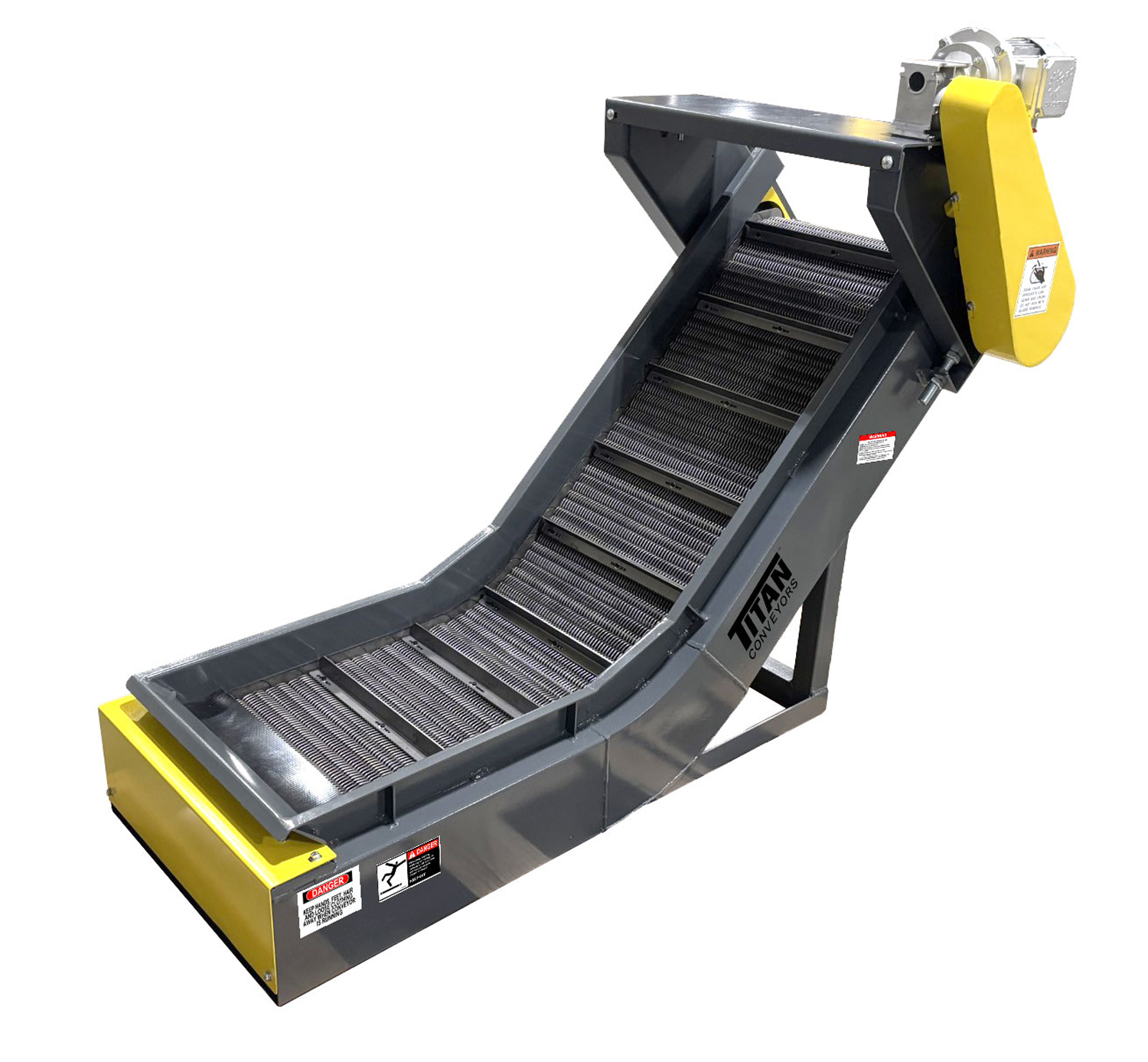

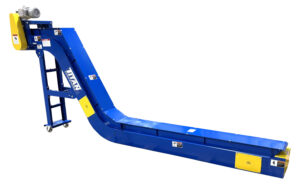

Model 620

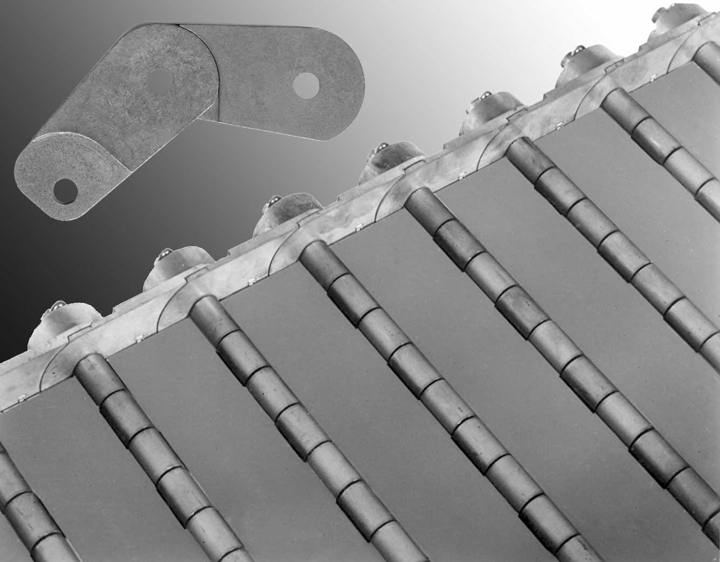

2 1/2" Pitch Hinged Steel Belt Conveyor

Model Description:

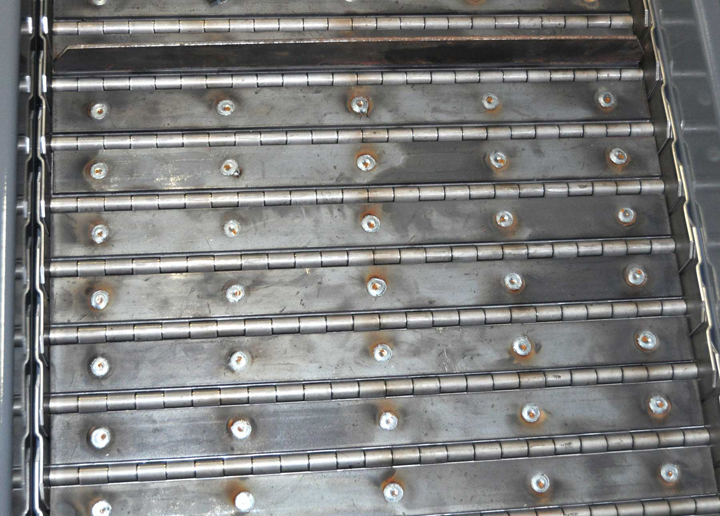

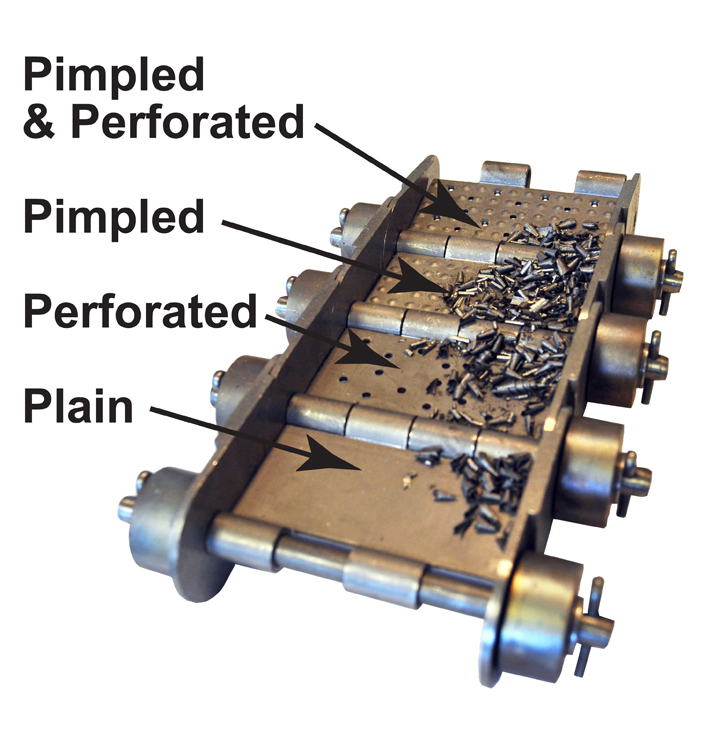

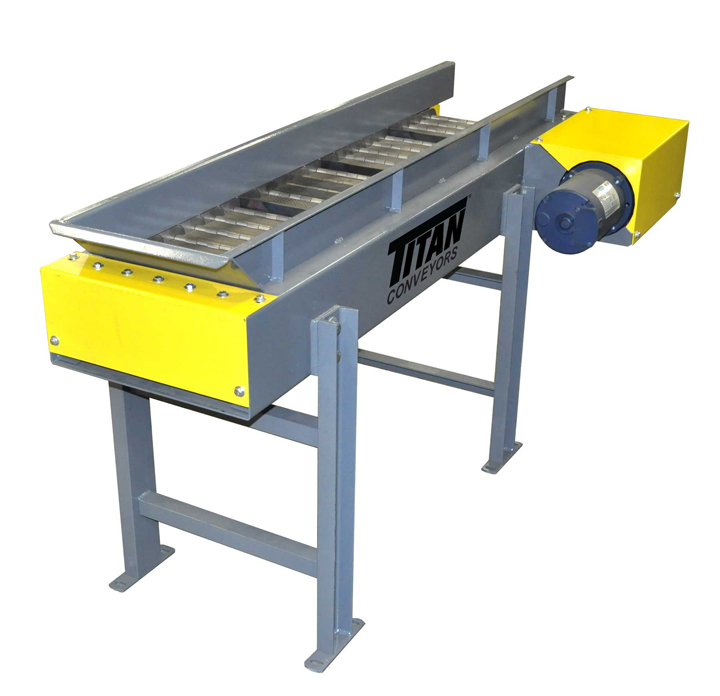

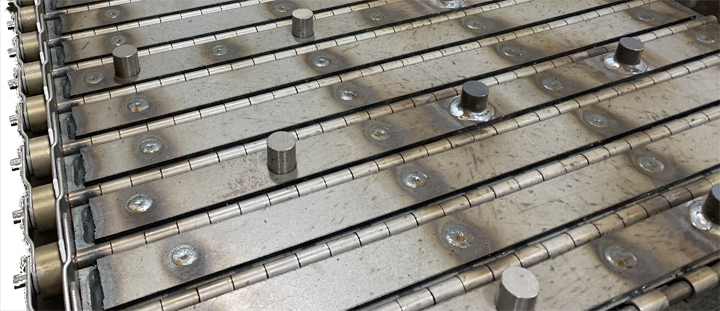

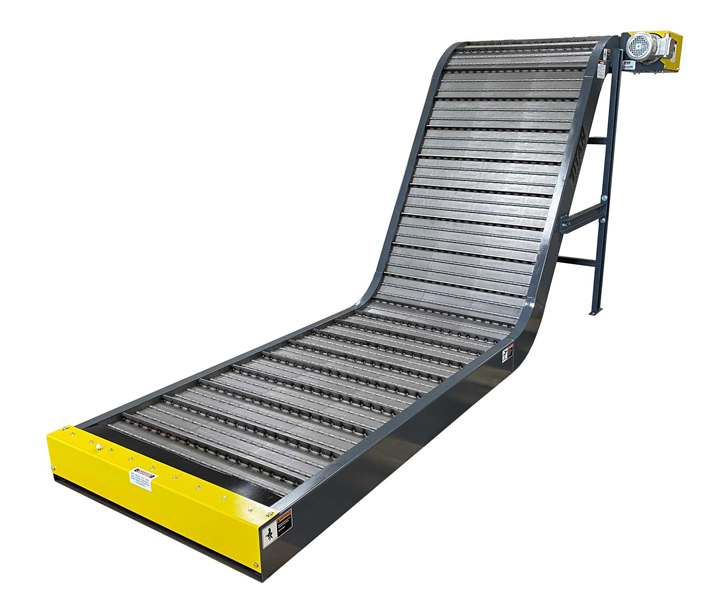

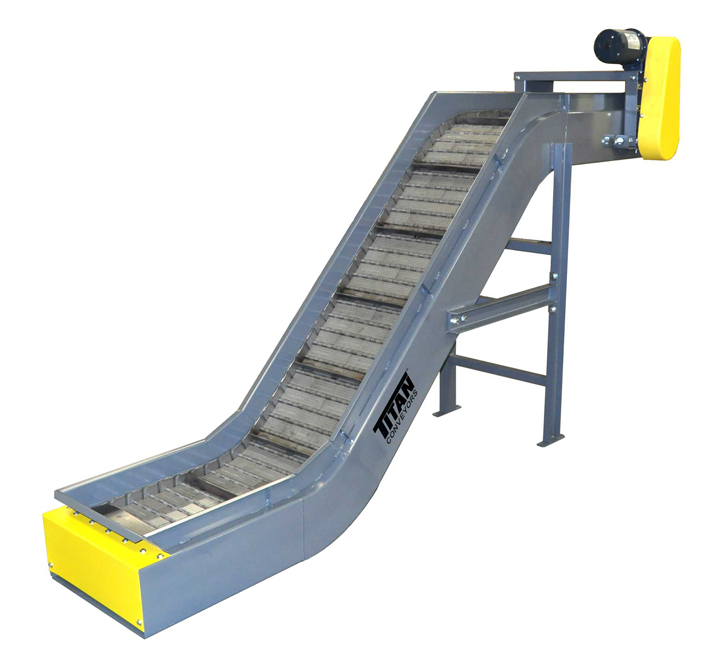

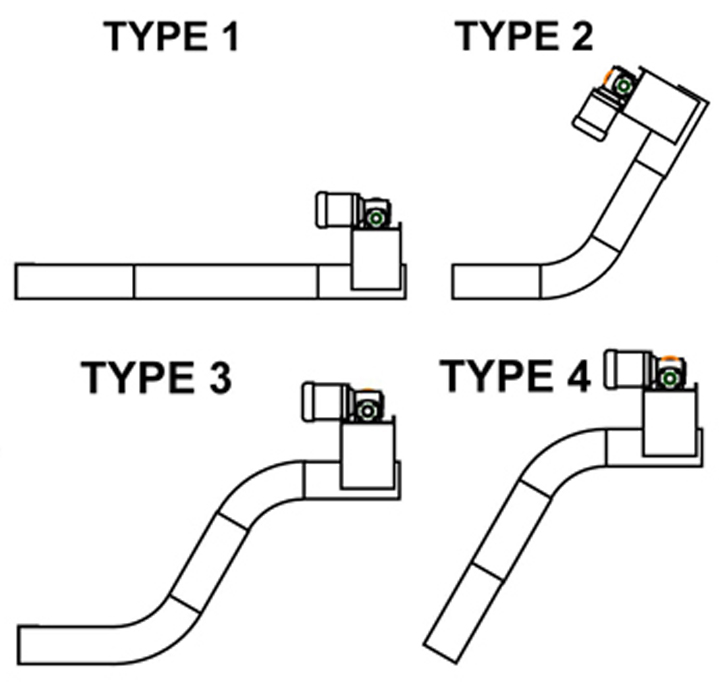

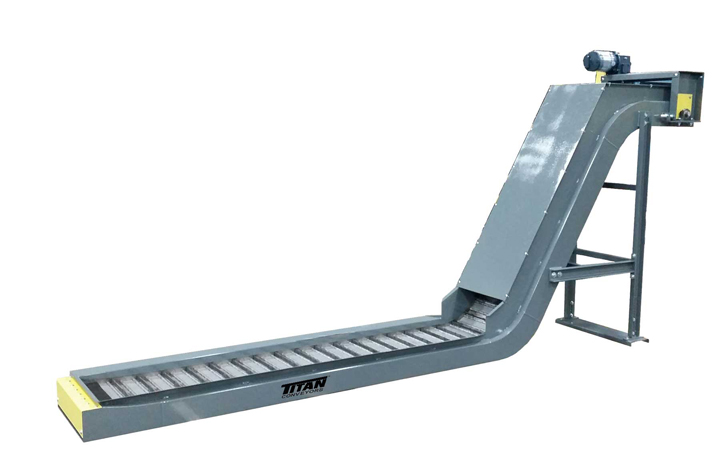

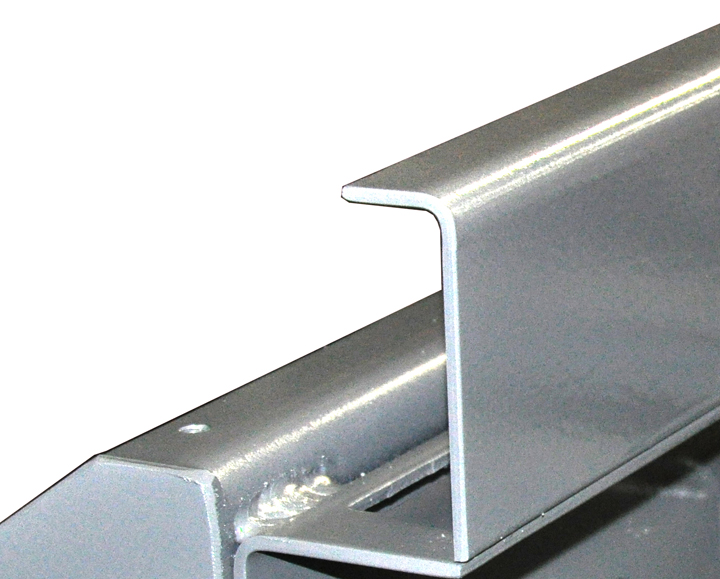

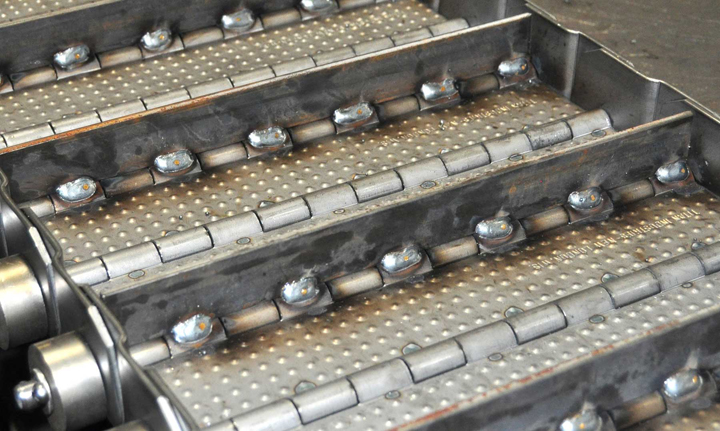

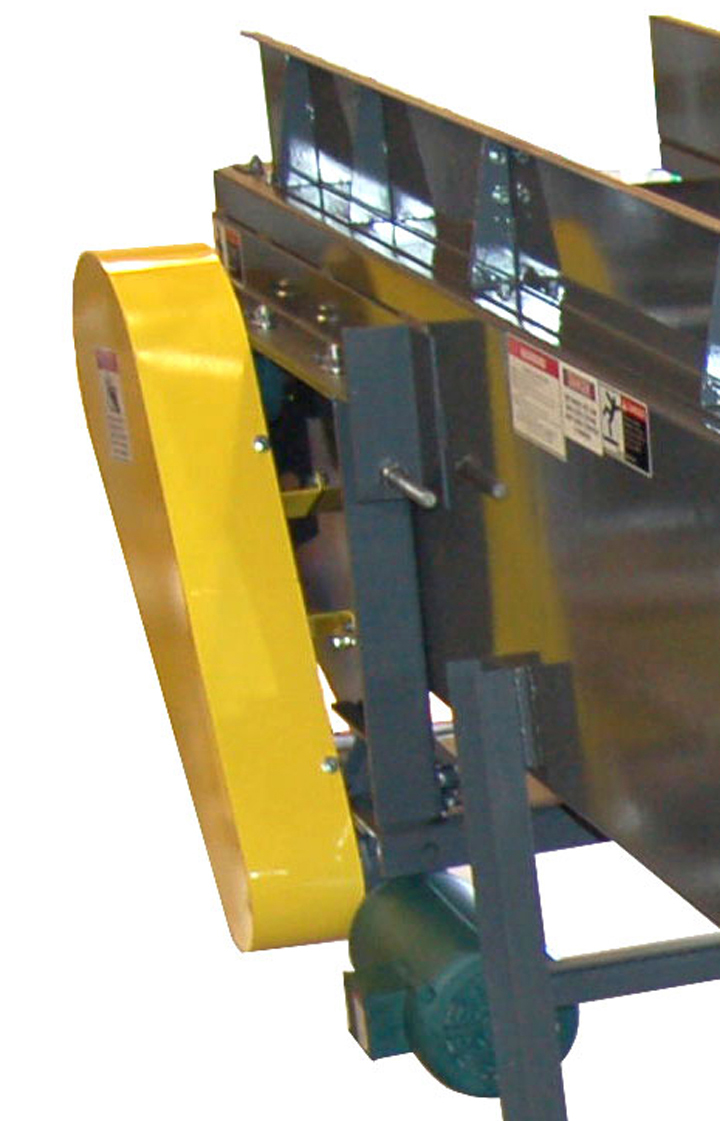

Titan Industries offers the Model 620 hinged steel belt conveyor when an application requires a low profile frame. The Model 620 can be furnished with either stamped low profile sidewings or the exclusive Titan Radial Sidewing which virtually eliminates any gap between the sidewing and apron, thus reducing jamming problems. Standard belt widths are available from 6" to 36". The low profile frame (7" deep) smaller units with optional 3 bolt flange or T-slot bearings available on larger units. The standard unit comes with top mount drive, 30, 45 or 60 degree inclines, structural channel support and a 1/2 H.P. 230/460/3/60 drive package for 30 F.P.M. Belt styles are available in plain, perforated or pimpled aprons to suit the application.

Model 620 - 2 1/2" Pitch Hinged Steel Belt Conveyor Specifications:

Std Belt Widths: 6" to 36"

Bearings: Grease Sealed-Drive End

Drive: 1/2 HP 230/460/3/60

Frame: Formed 10 Gauge

Paint: One Coat Industrial Enamel

Speed: Per Application: 5-50 F.P.M. Typical

Sprockets: 5 Tooth, 4.25" P.D.

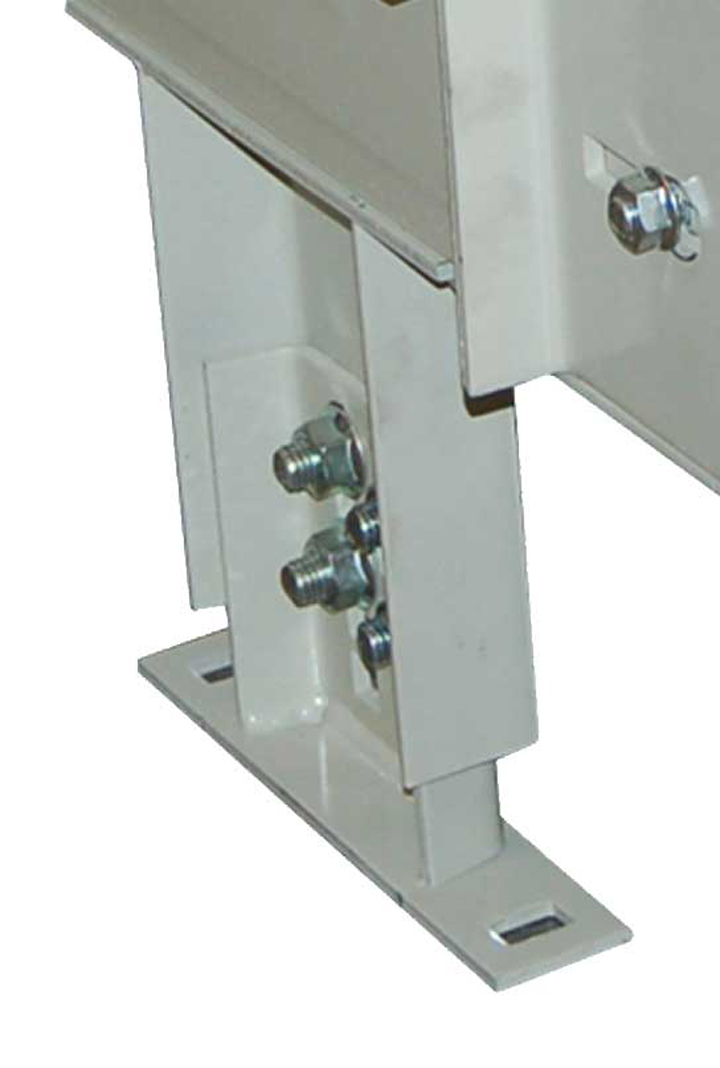

Supports: Structural Channel
