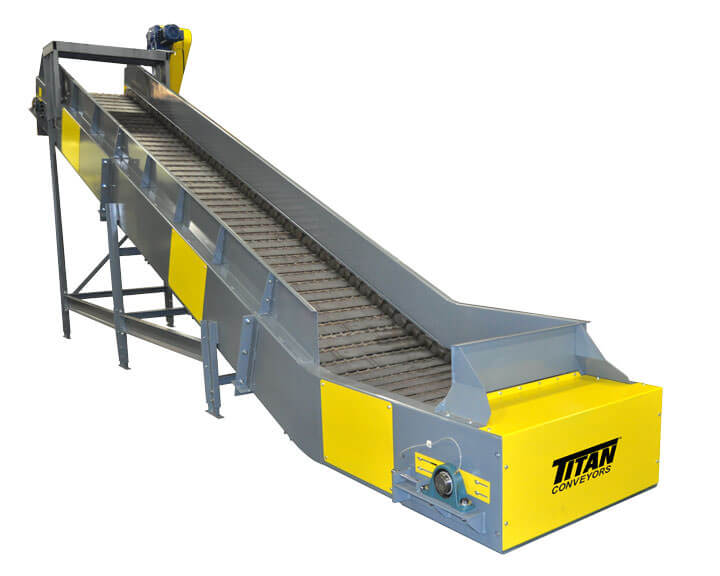

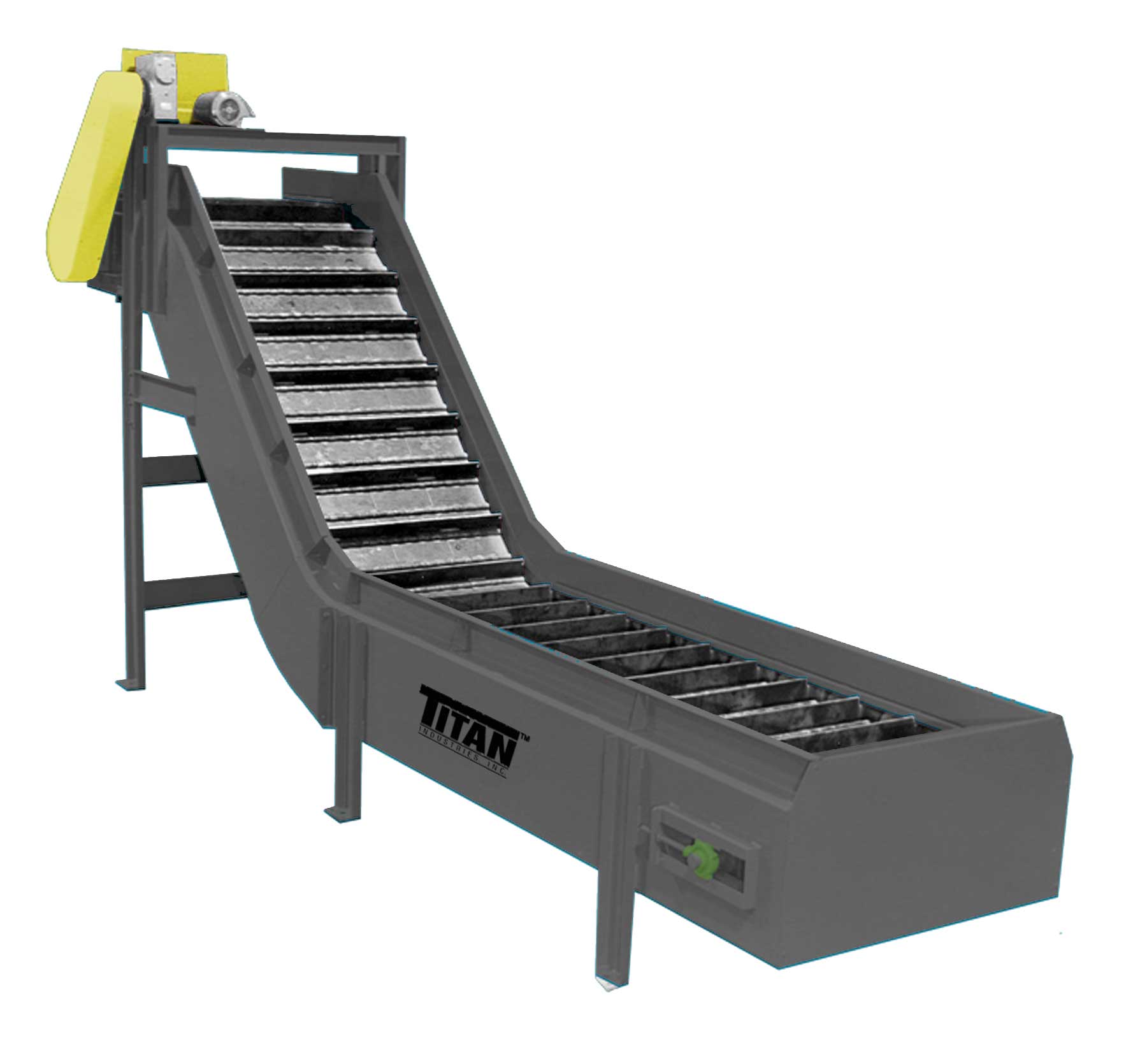

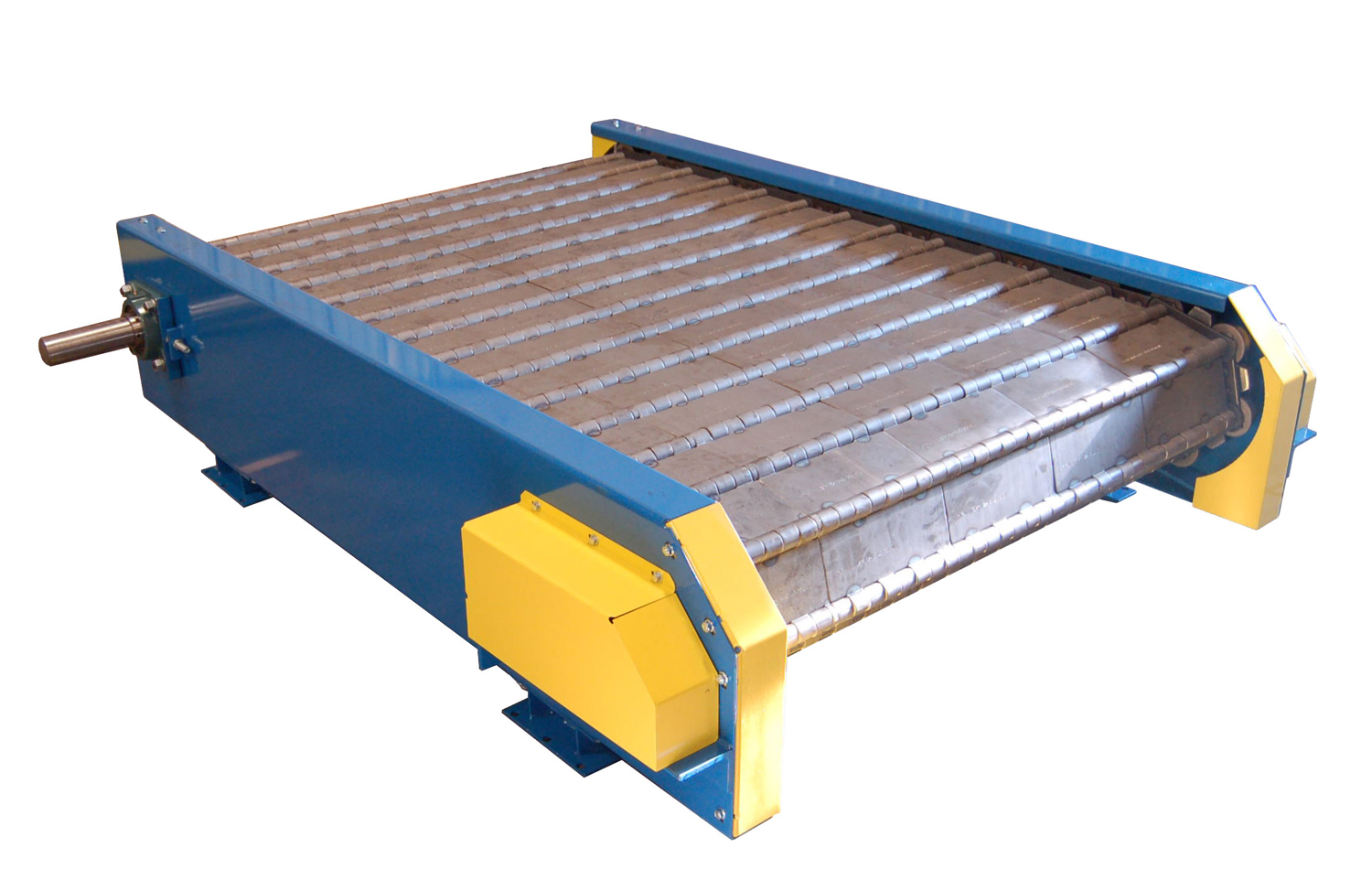

Model 660

6" Pitch Hinged Steel Belt Conveyor

Model Description:

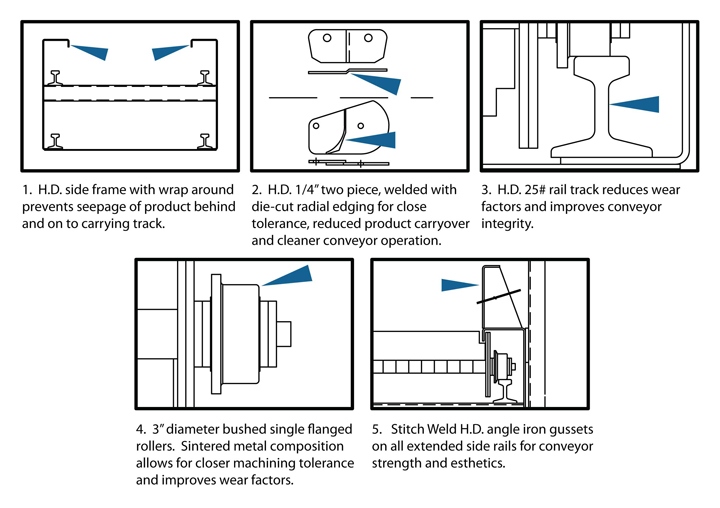

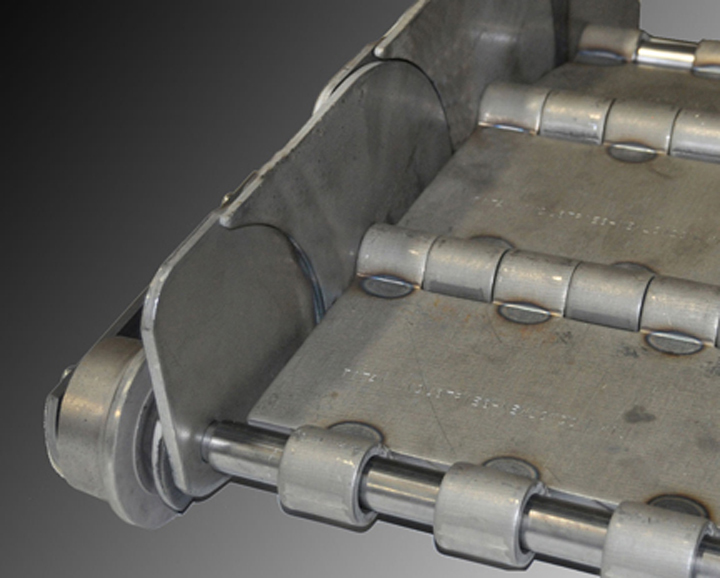

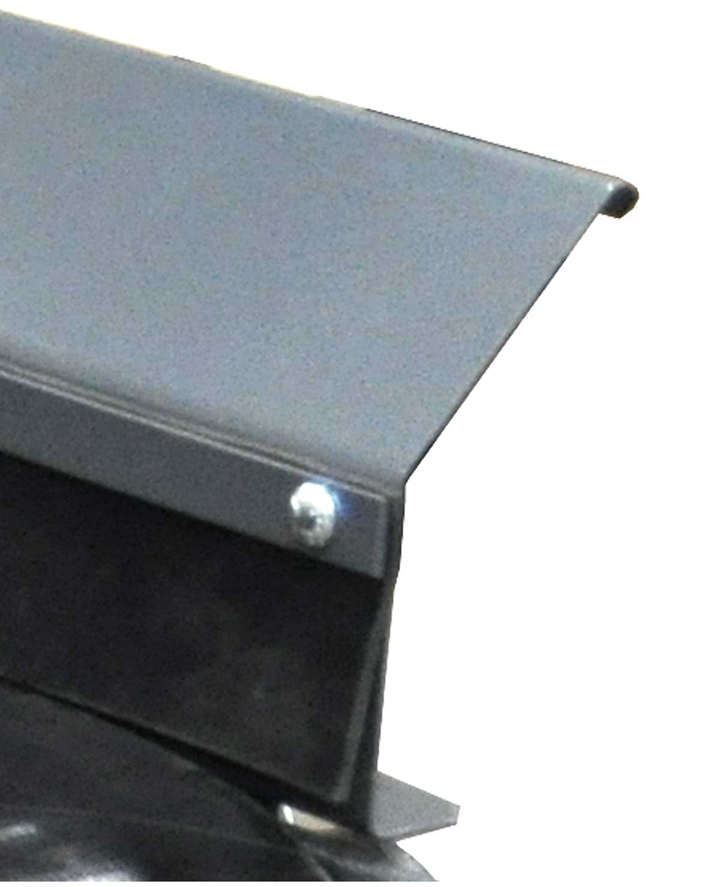

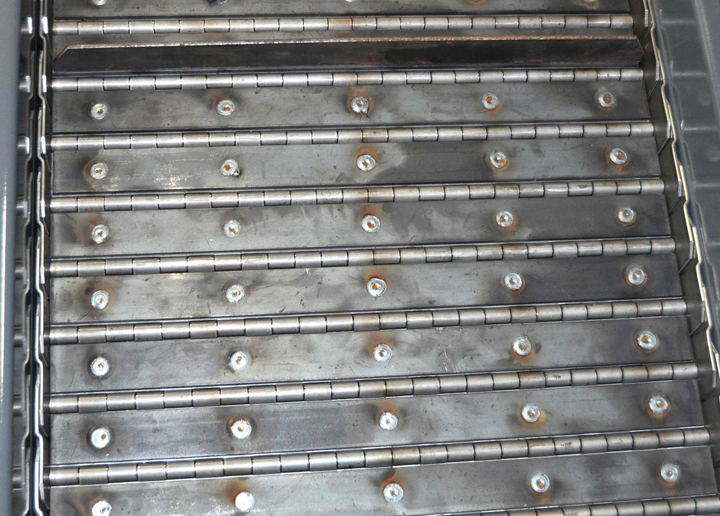

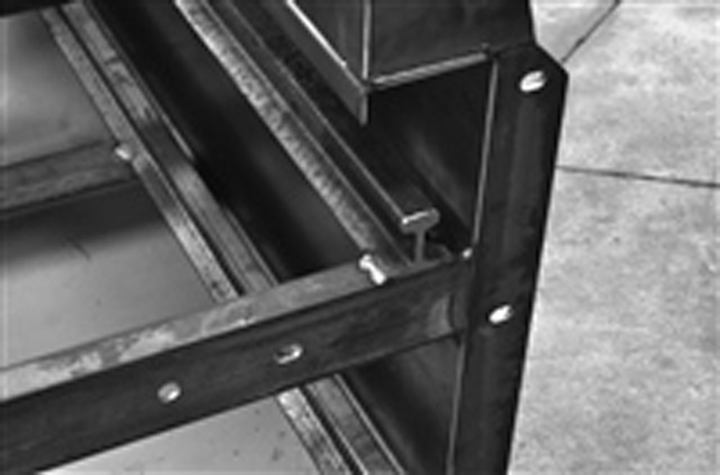

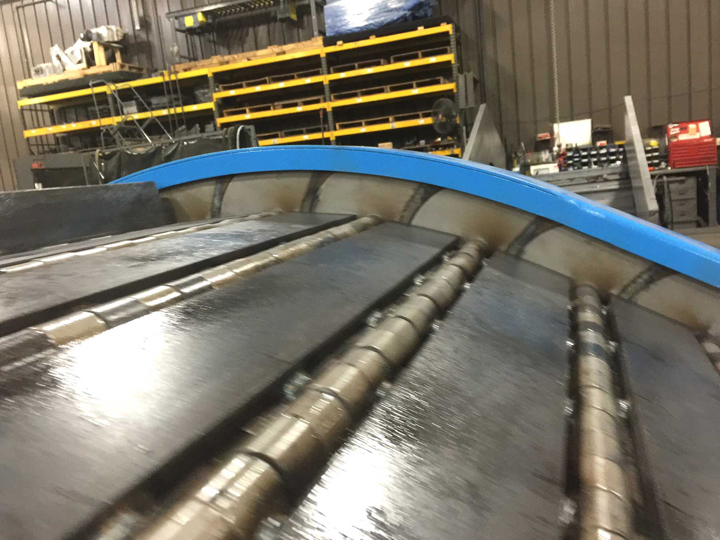

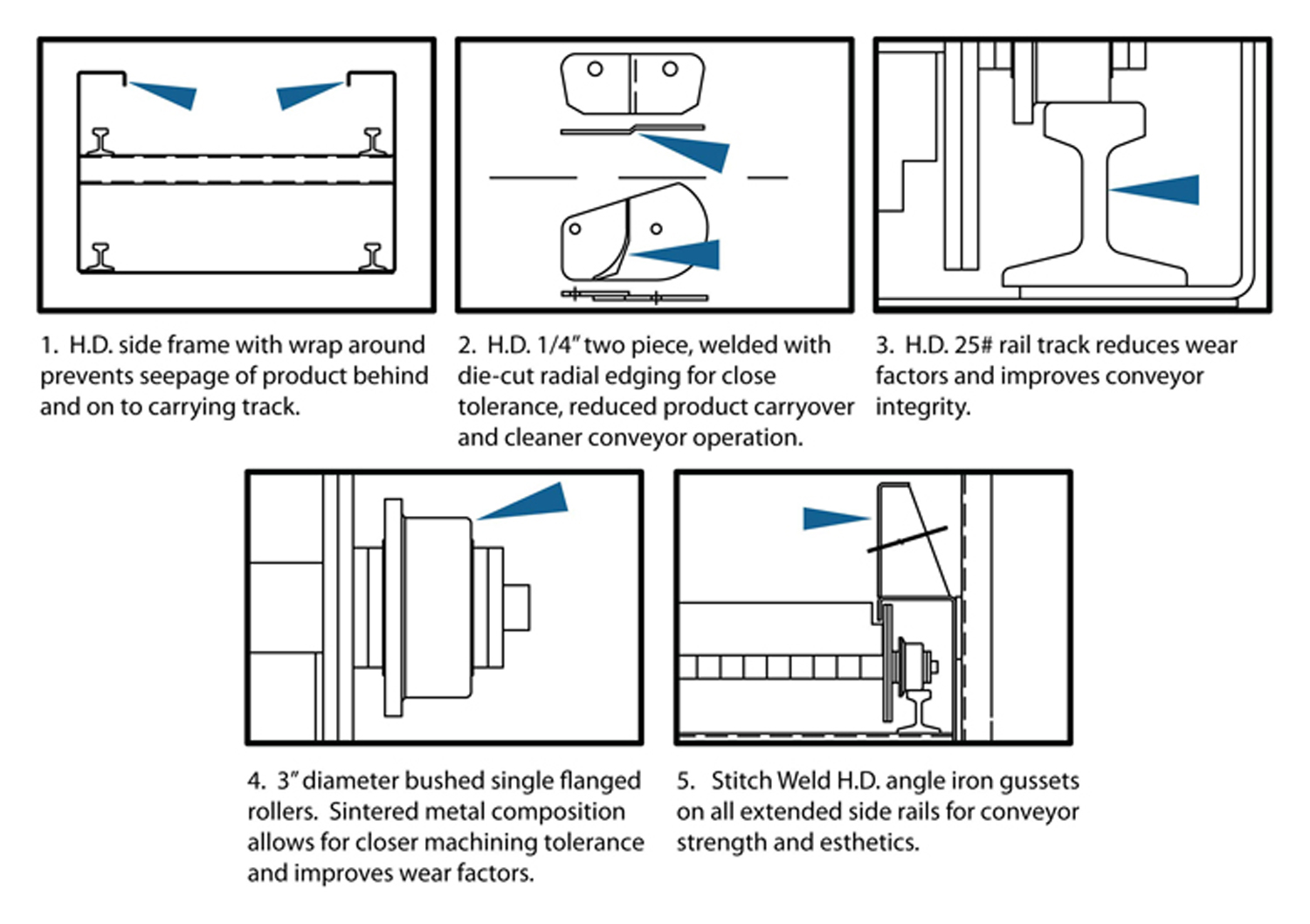

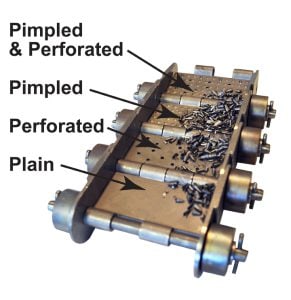

Large scrap handling and recycling systems dictate using a rugged steel belt. Consider the Model 660, 6" pitch Hinged Steel Belt Conveyor. By using the unique Titan 6" pitch belting, the Model 660 will satisfy most heavy-duty scrap handling requirements. Our uniquely designed sidewing reduces the gap between sidewing and apron (eliminating carryover) and yet the rugged (1/4" thick) design compensates for most severe applications. Combine the unique sidewing with a standard 1/4" thick apron, 3" diameter, bushed, single flanged roller, double outside sidebars and a 3/4" thru axle and you have a conveyor that will with stand years of heavy industrial use. Four different configurations are available with standard curves of 30 degrees, 45 degrees and 60 degrees available.

Model 660 - 6" Pitch Hinged Steel Belt Conveyor Specifications:

Bearings: Grease Sealed

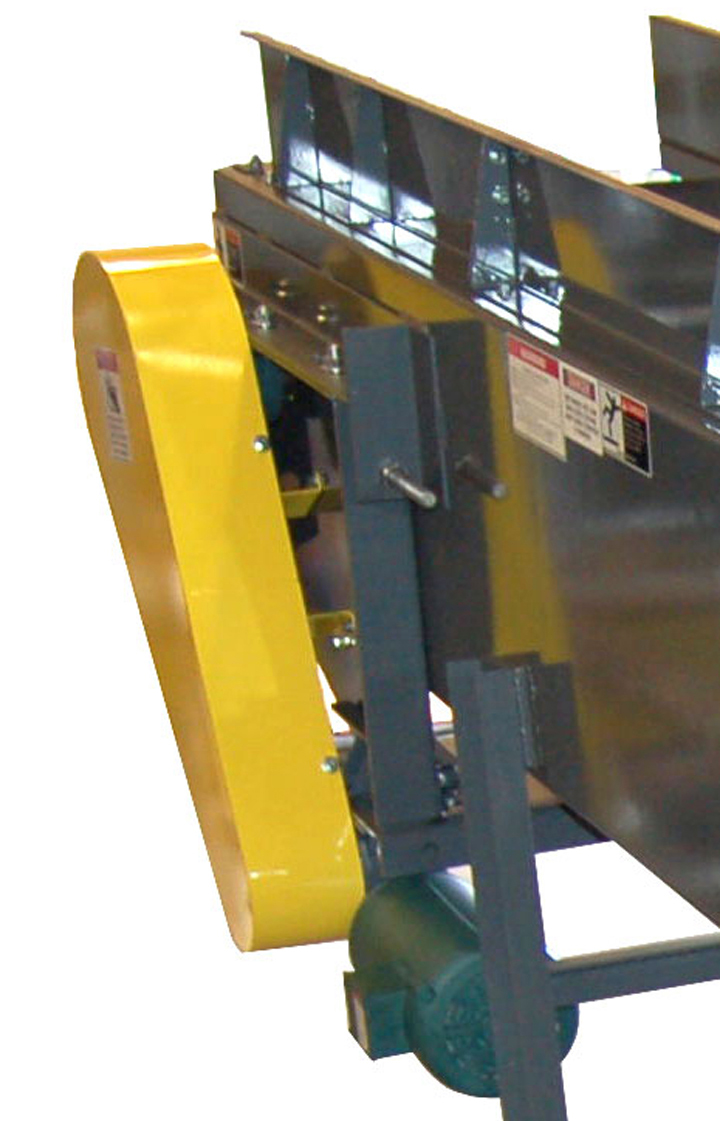

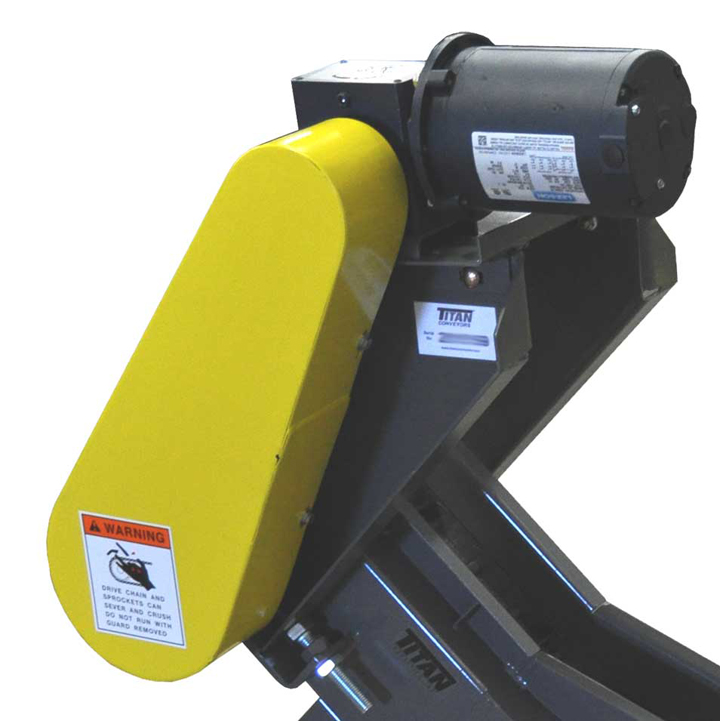

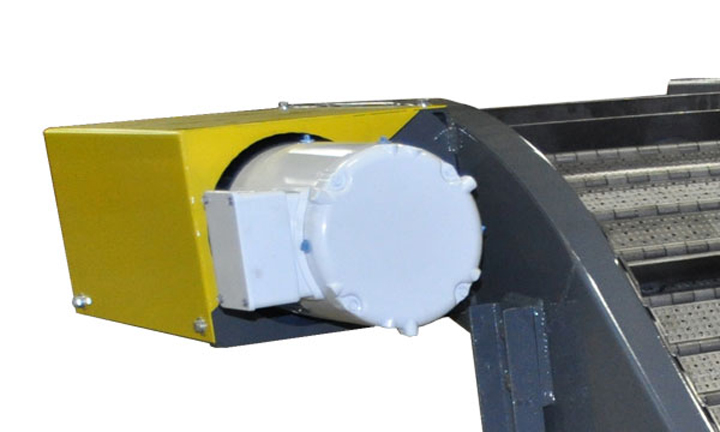

Drive: 3/4 H.P. 230/460/3/60

Frame: Formed 7 Gauge

Paint: One Coat Industrial Enamel

Speed: 5-50 F.P.M. Typical

Sprockets: 6 Tooth, 12" P.D.

Supports: Structural Channel
