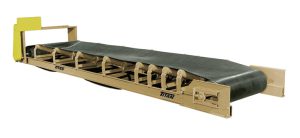

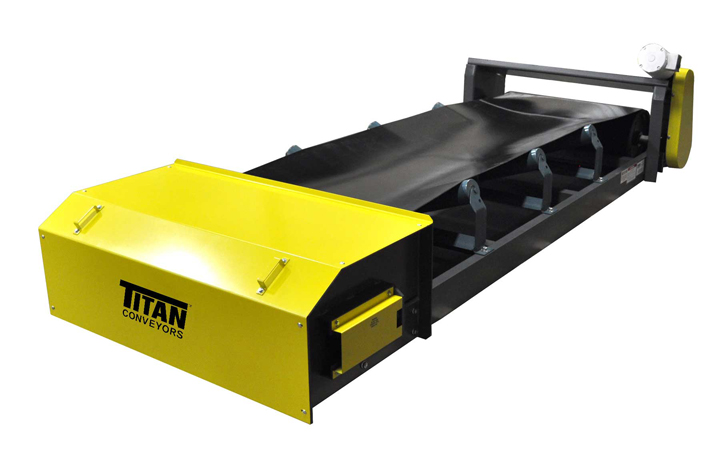

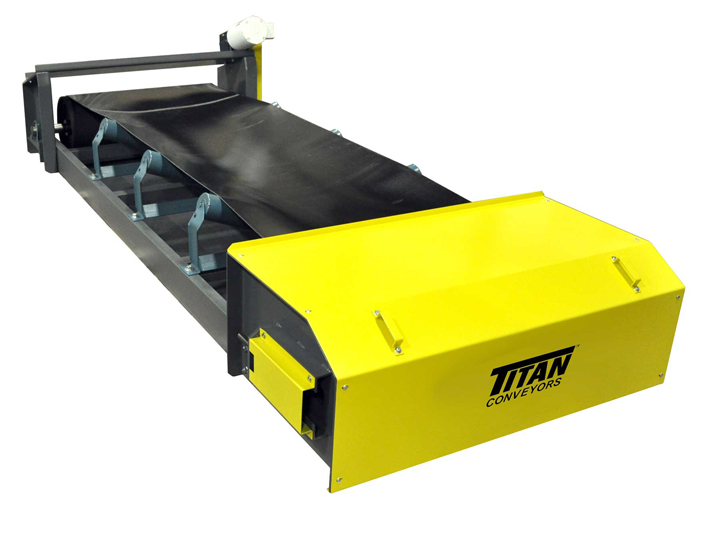

Model 460

Sidewall Conveyor

Model Description:

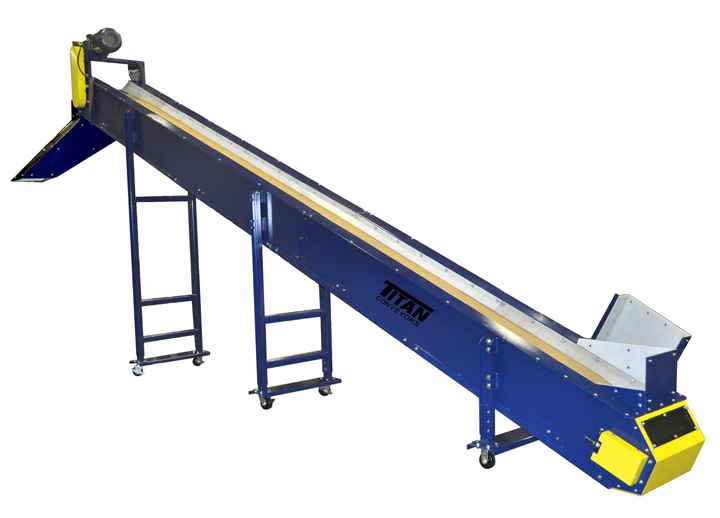

The Model 460 Bulk Handling Conveyor is specifically designed to handle large volumes of heavy, abrasive and granular products at a very reasonable cost. The Model 460’s rugged construction and certified components provide for long runs and outdoor applications. Carrying 3 roll idlers are spaced on 4' centers in the intermediate section and spaced closer at each terminal. Infeed hoppers, skirting, belt scraper and supports are some of the available options.

Model 460 Sidewall Conveyor Specifications:

Belt: 2 Ply Nylon

Belt Speed: 100 F.P.M.

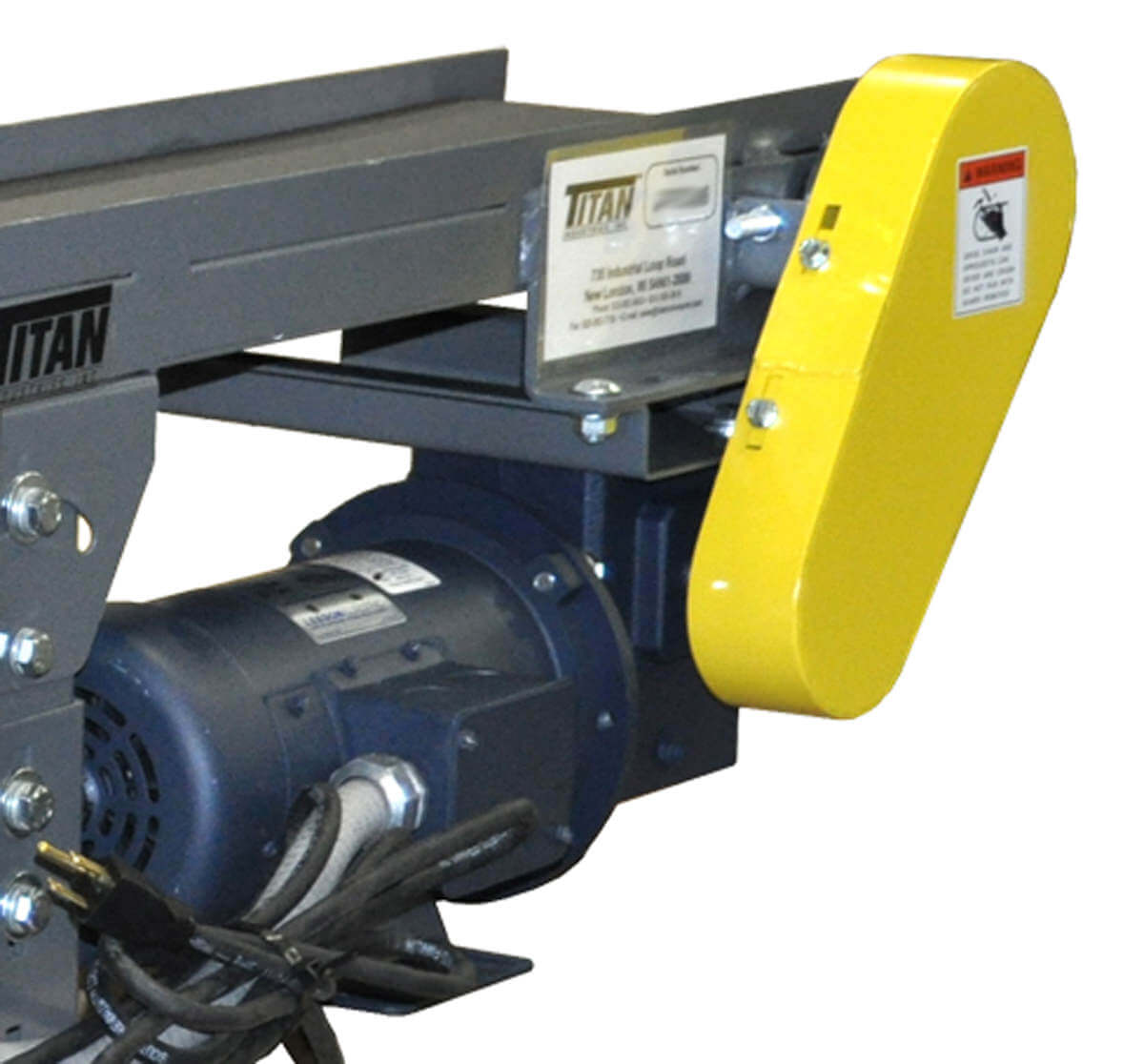

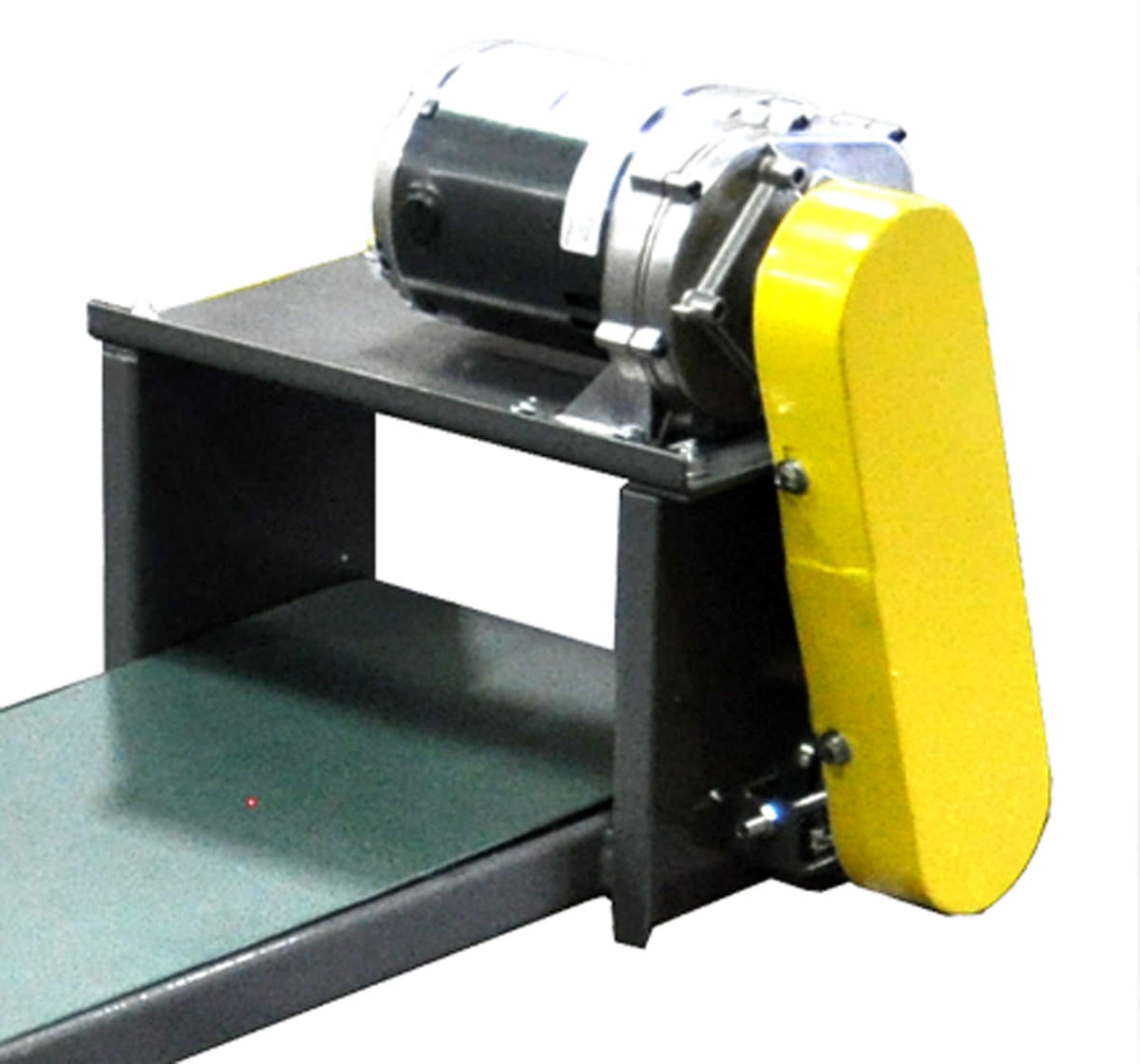

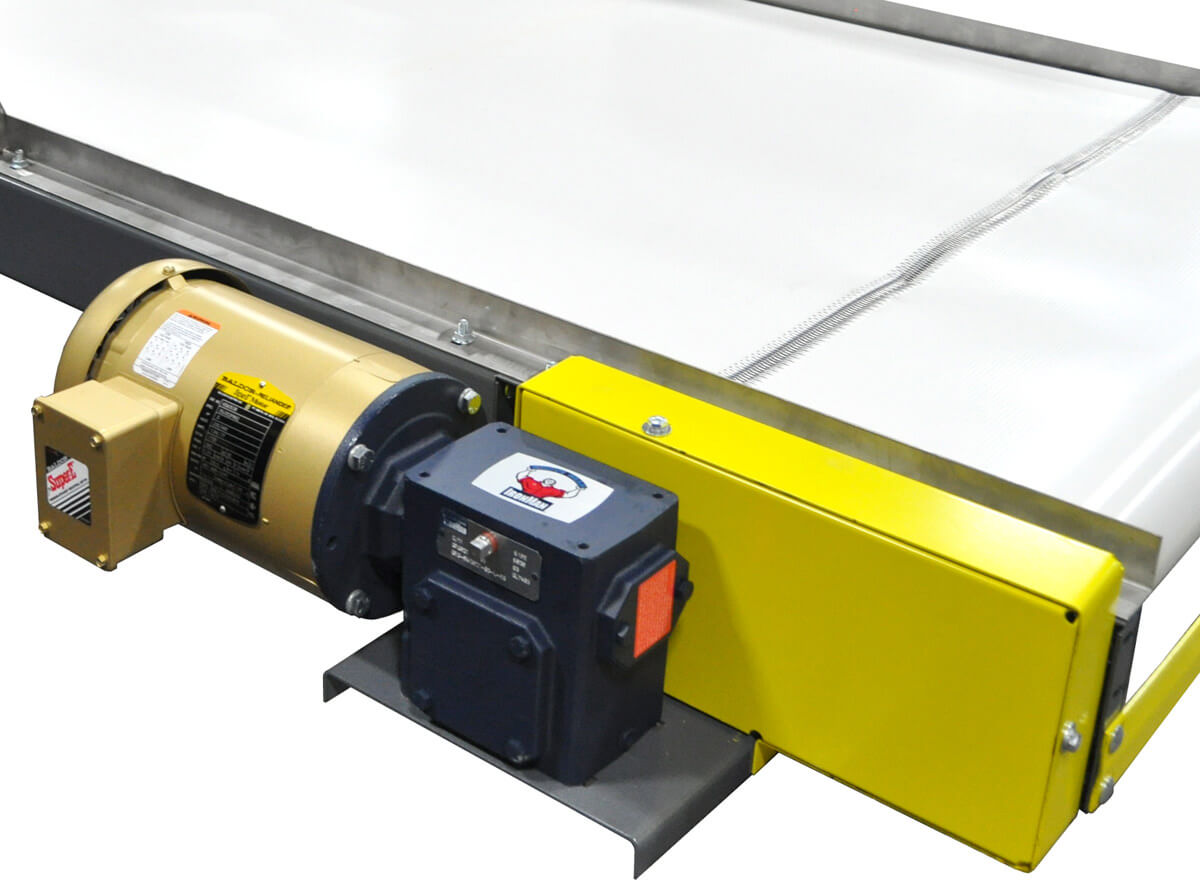

Drive: 1 H.P. 230/460/3/60

Frame: 6" Structural Channel

Paint: One Coat Industrial Enamel

Pulleys: 14" Dia. Crown Face Rubber Lagged Drive, 14" Dia. Crown Face Take-up

Supports: Idlers: 3 Roll CEMA Approved (4" Dia. at 20 degrees)
