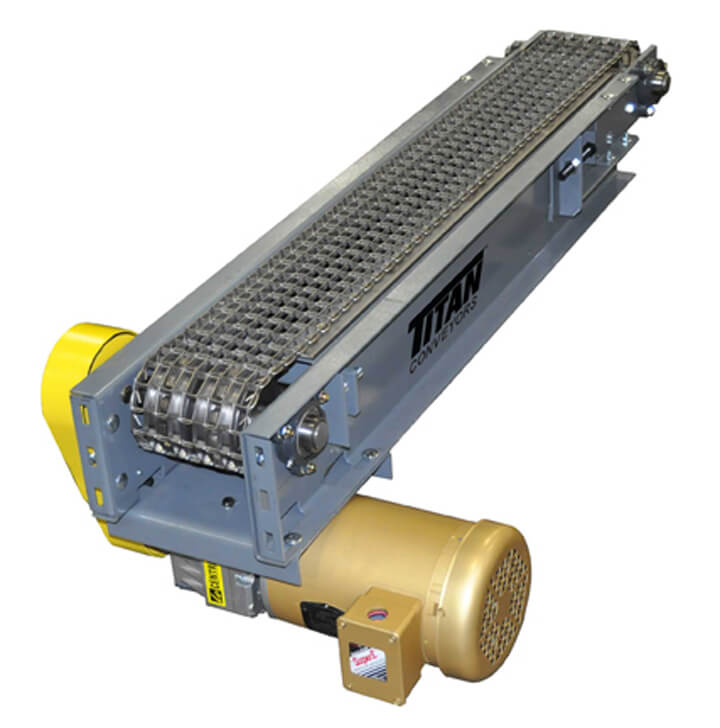

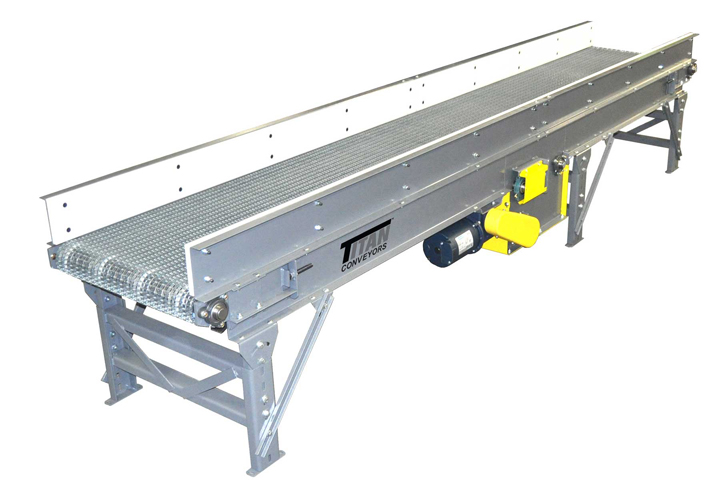

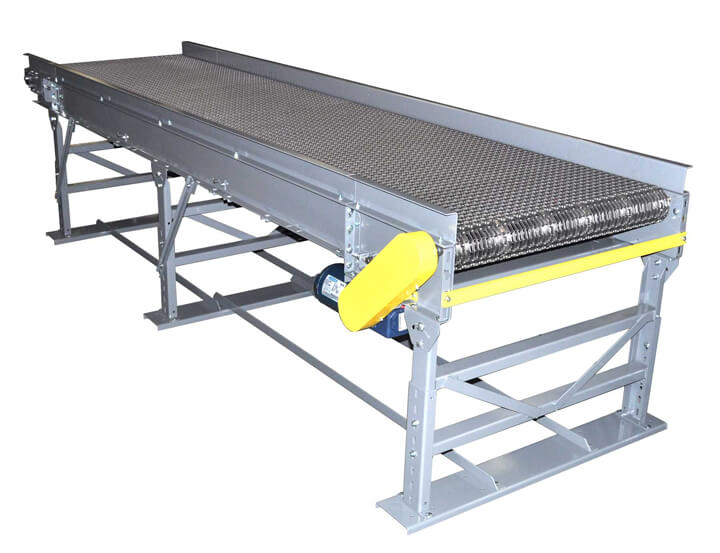

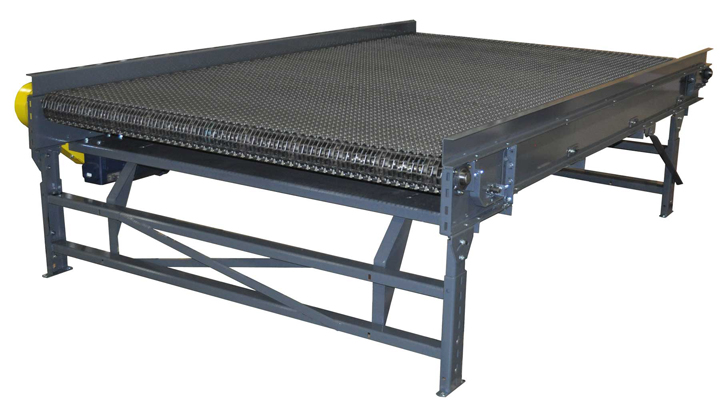

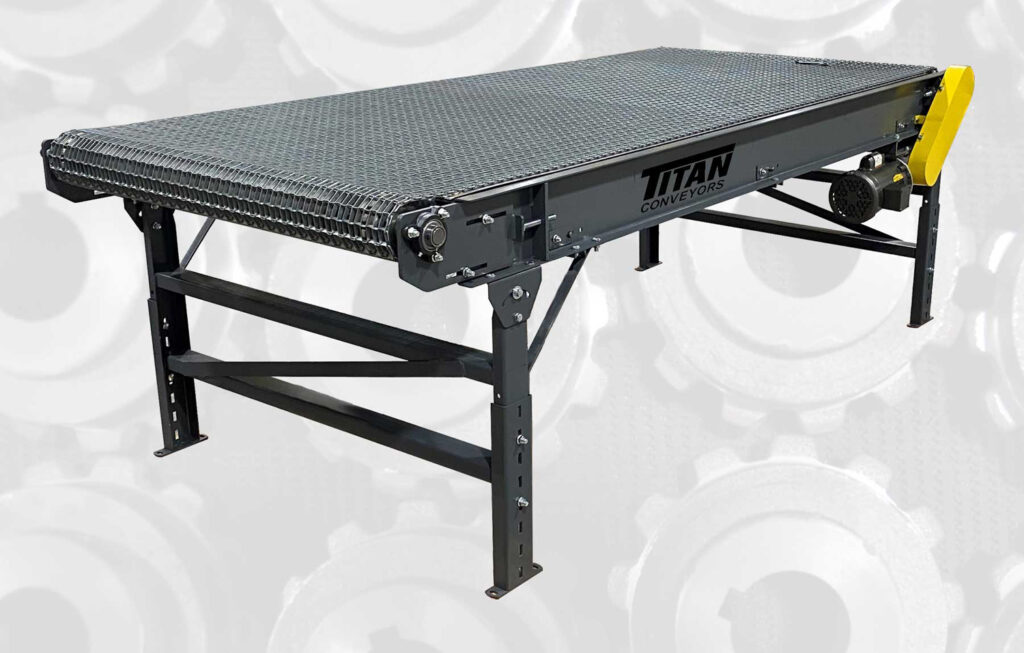

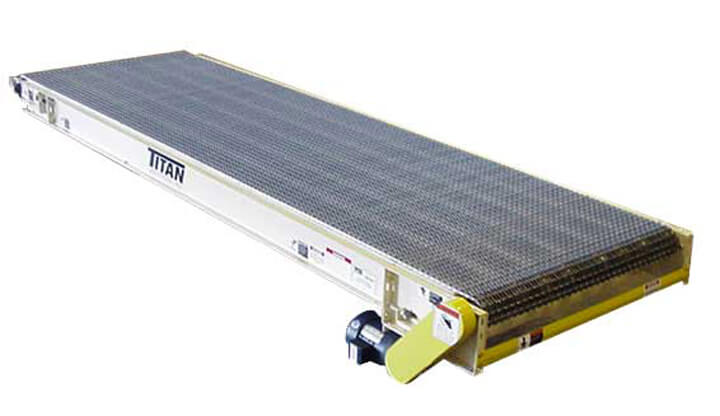

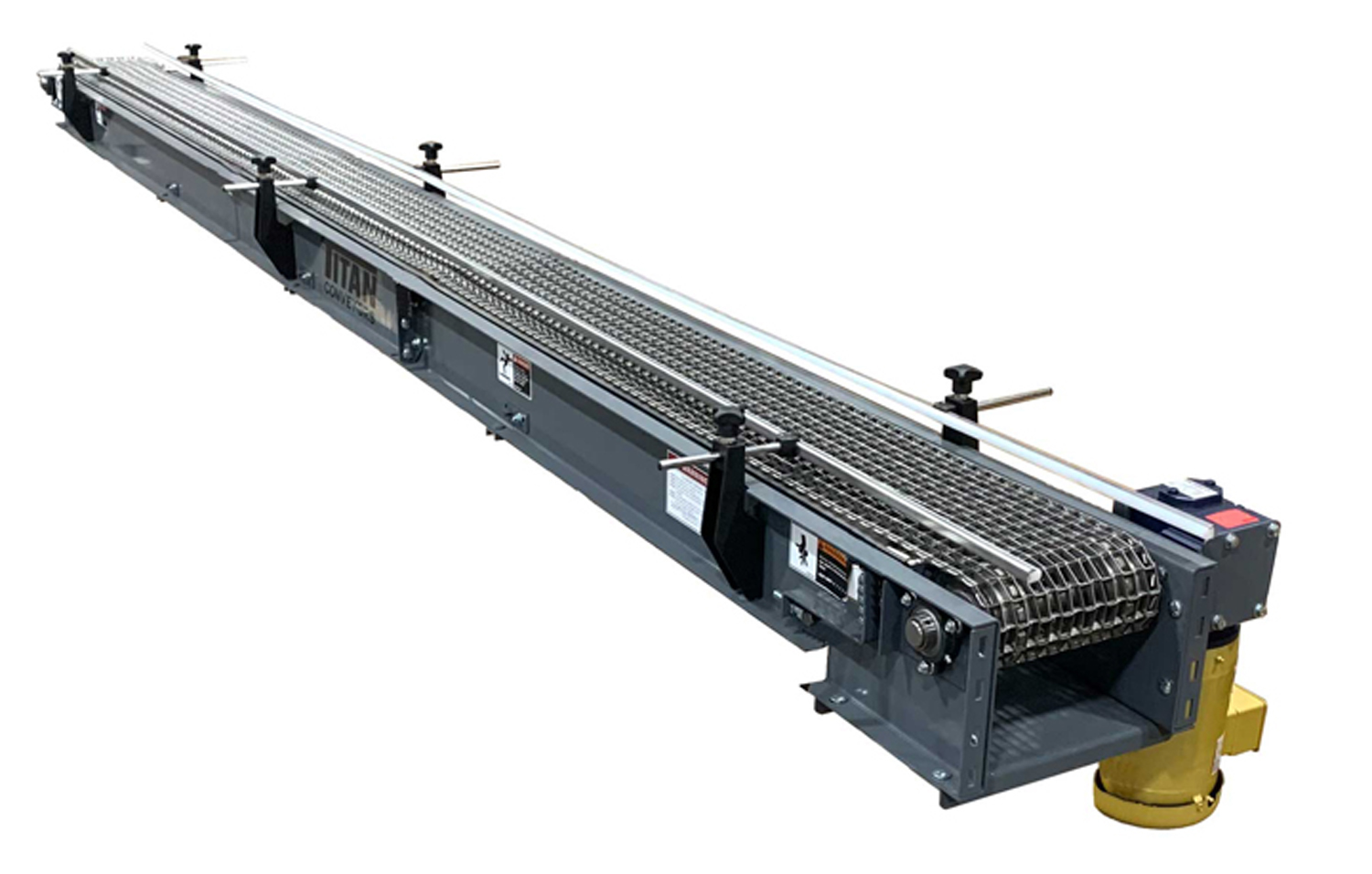

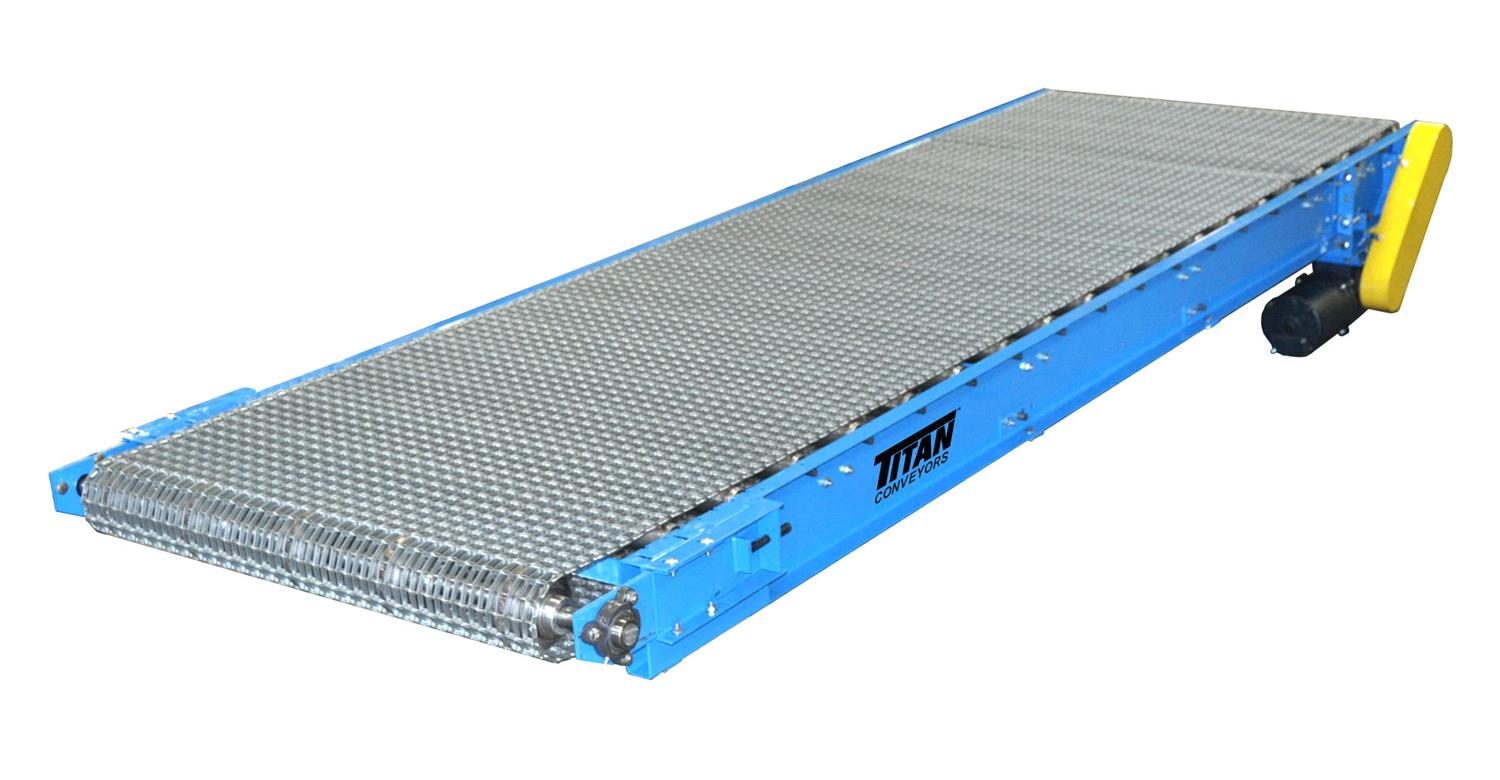

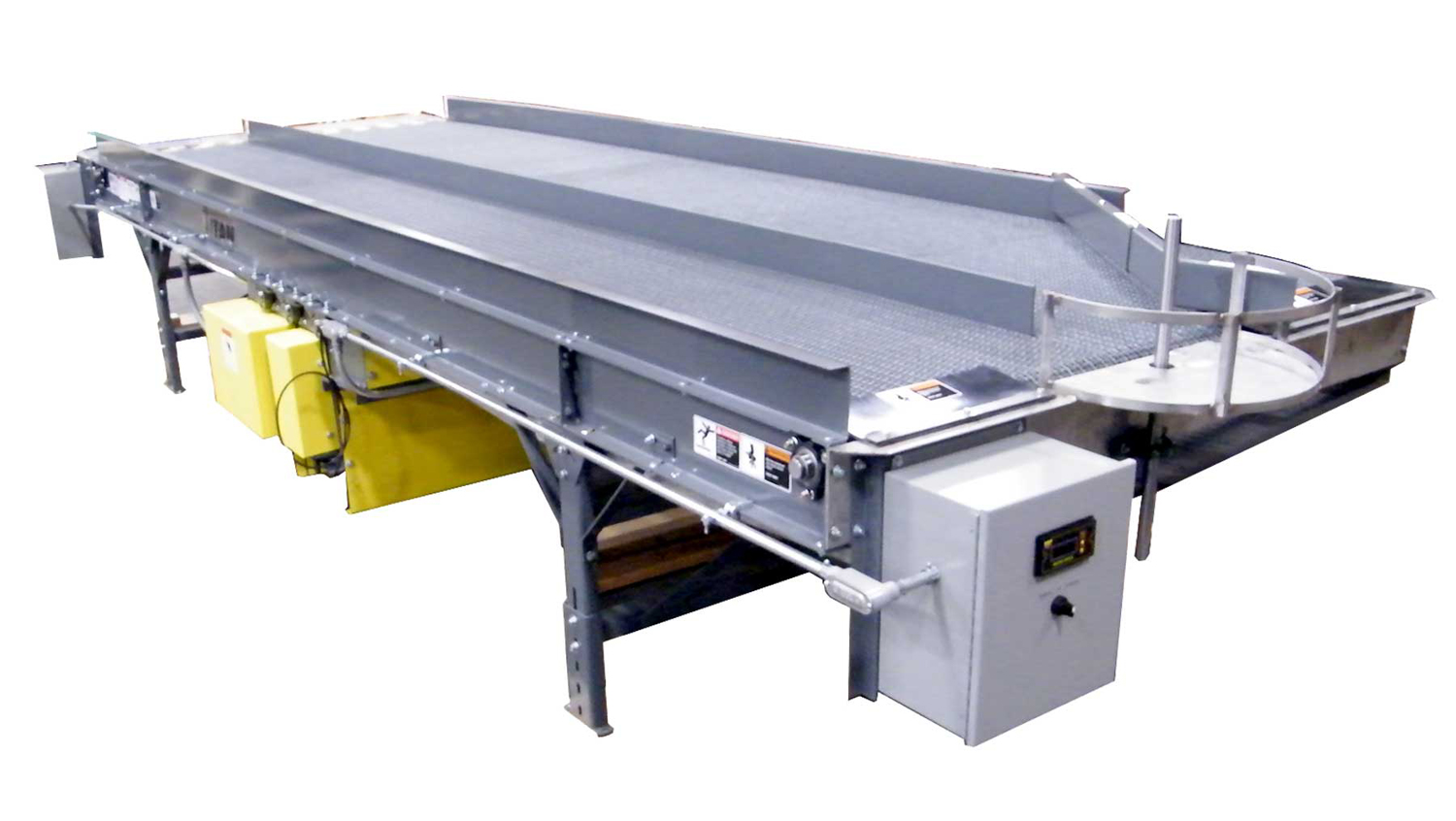

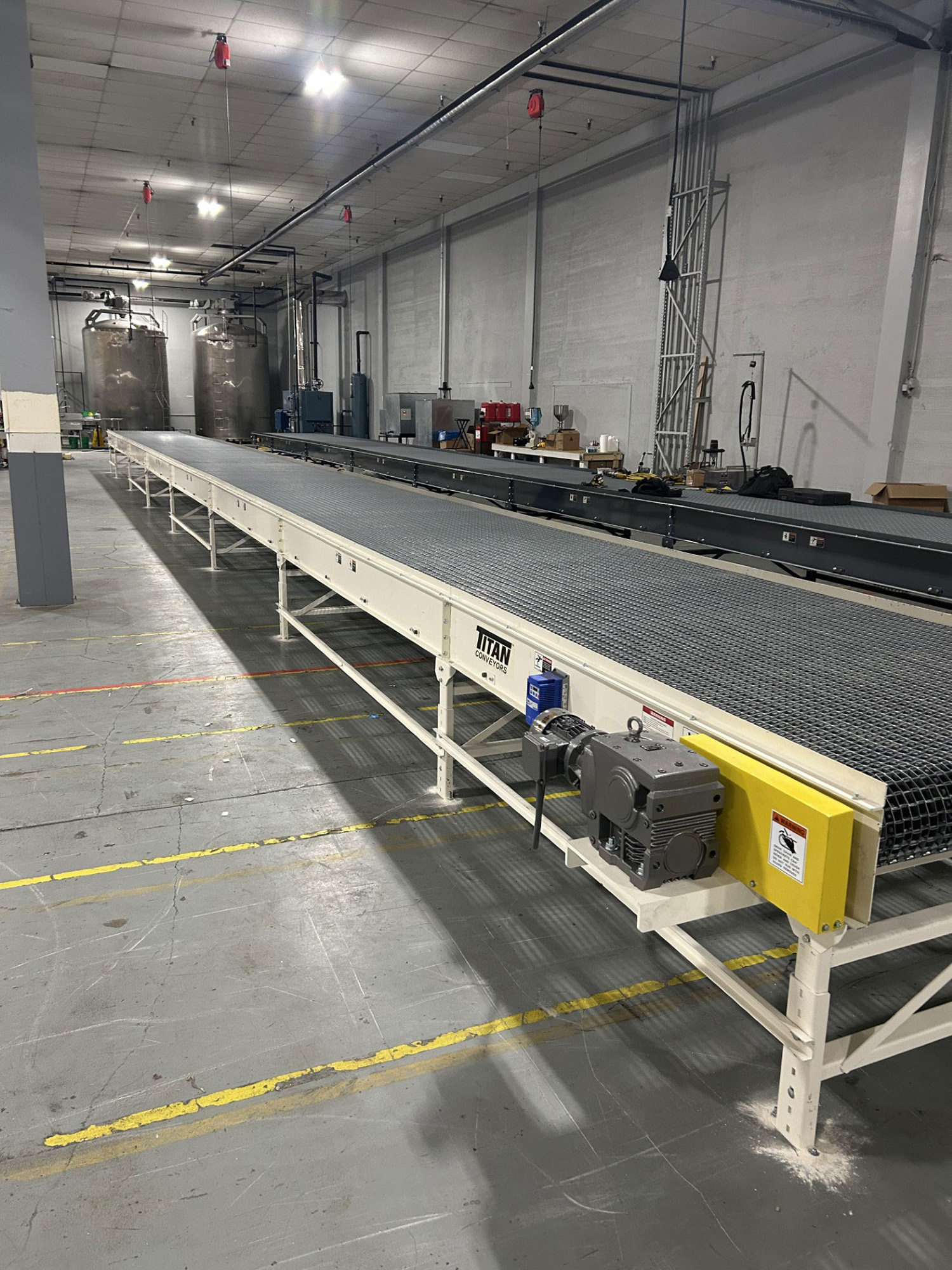

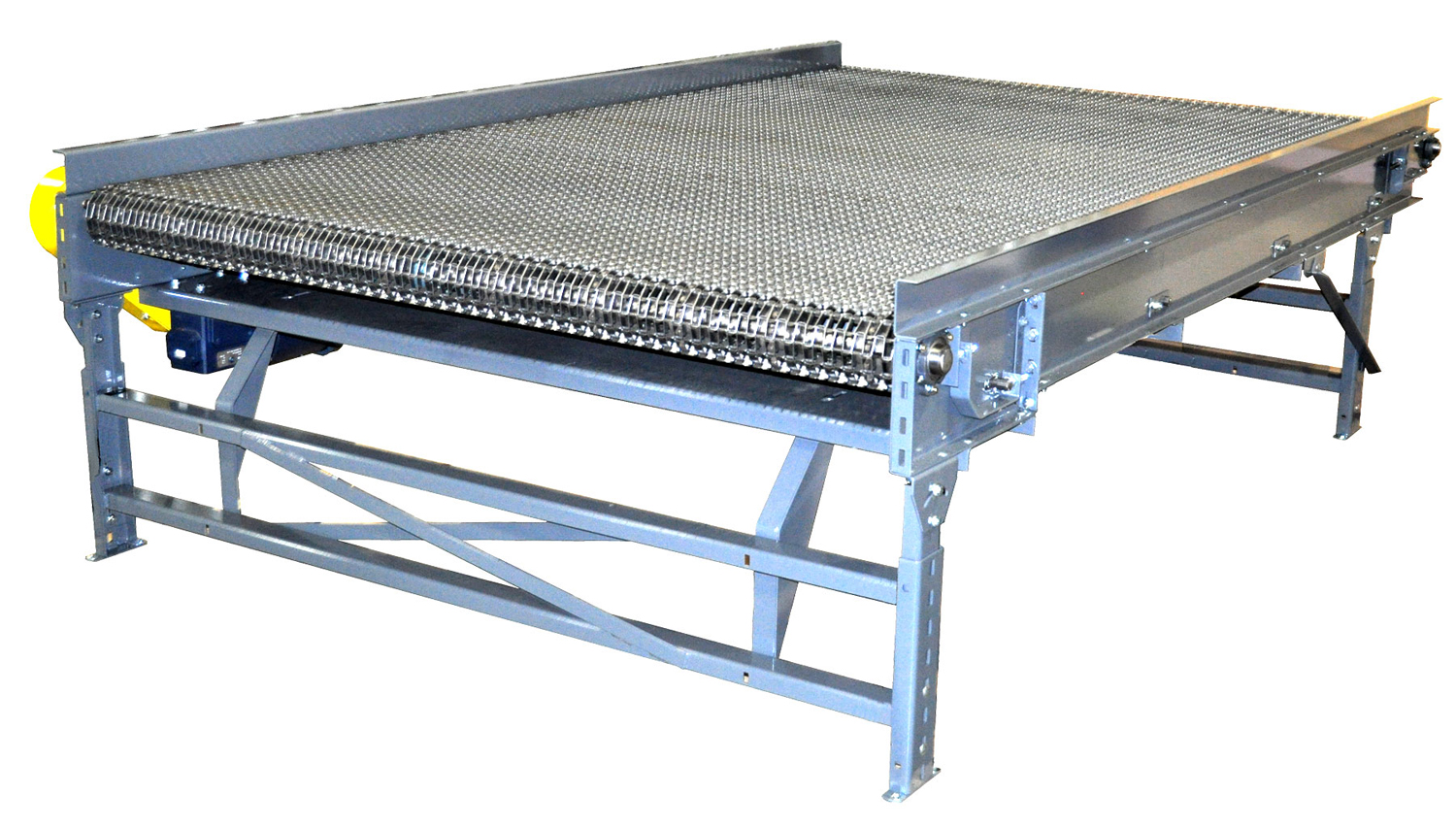

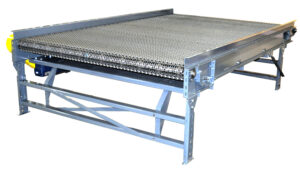

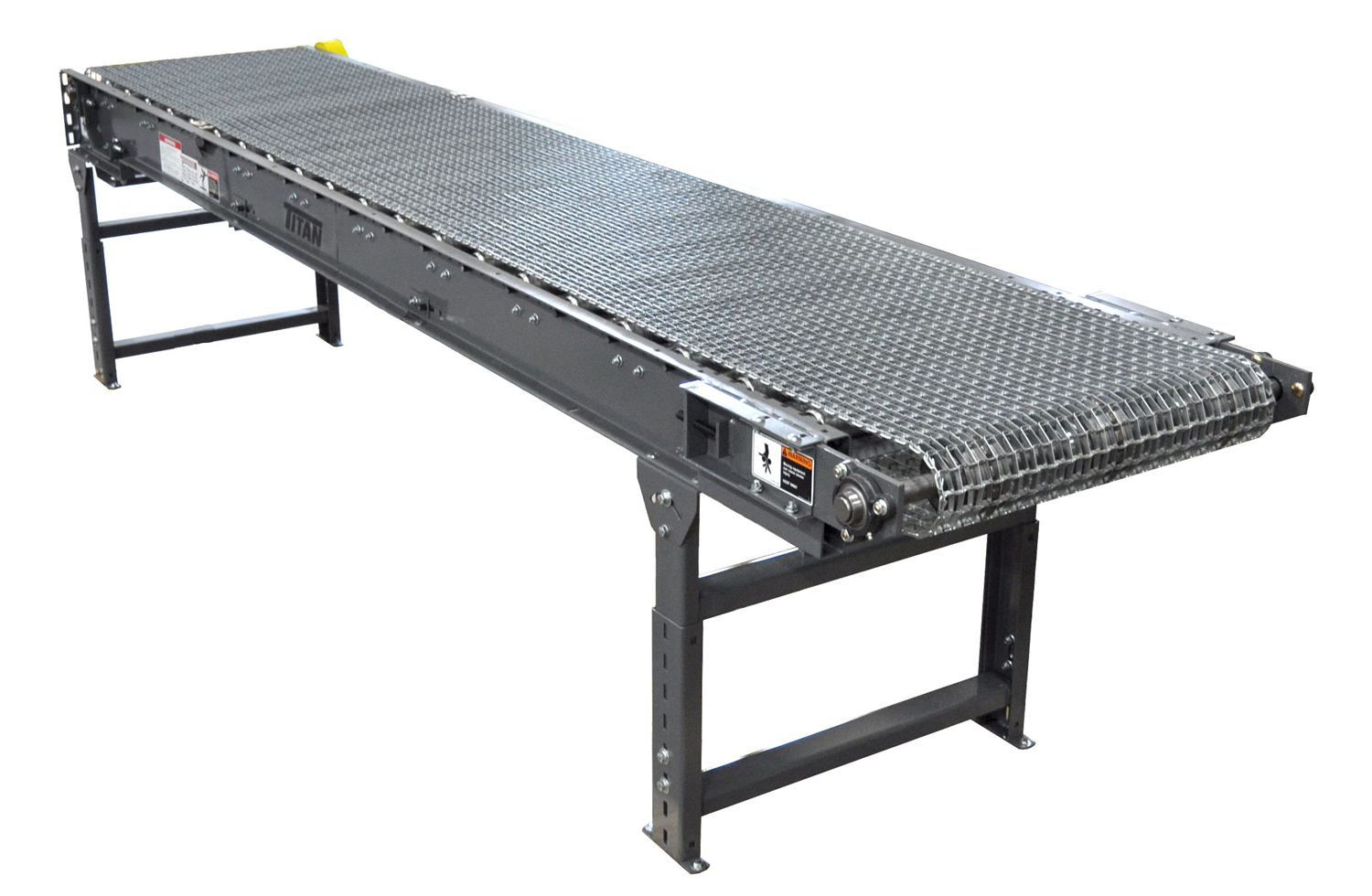

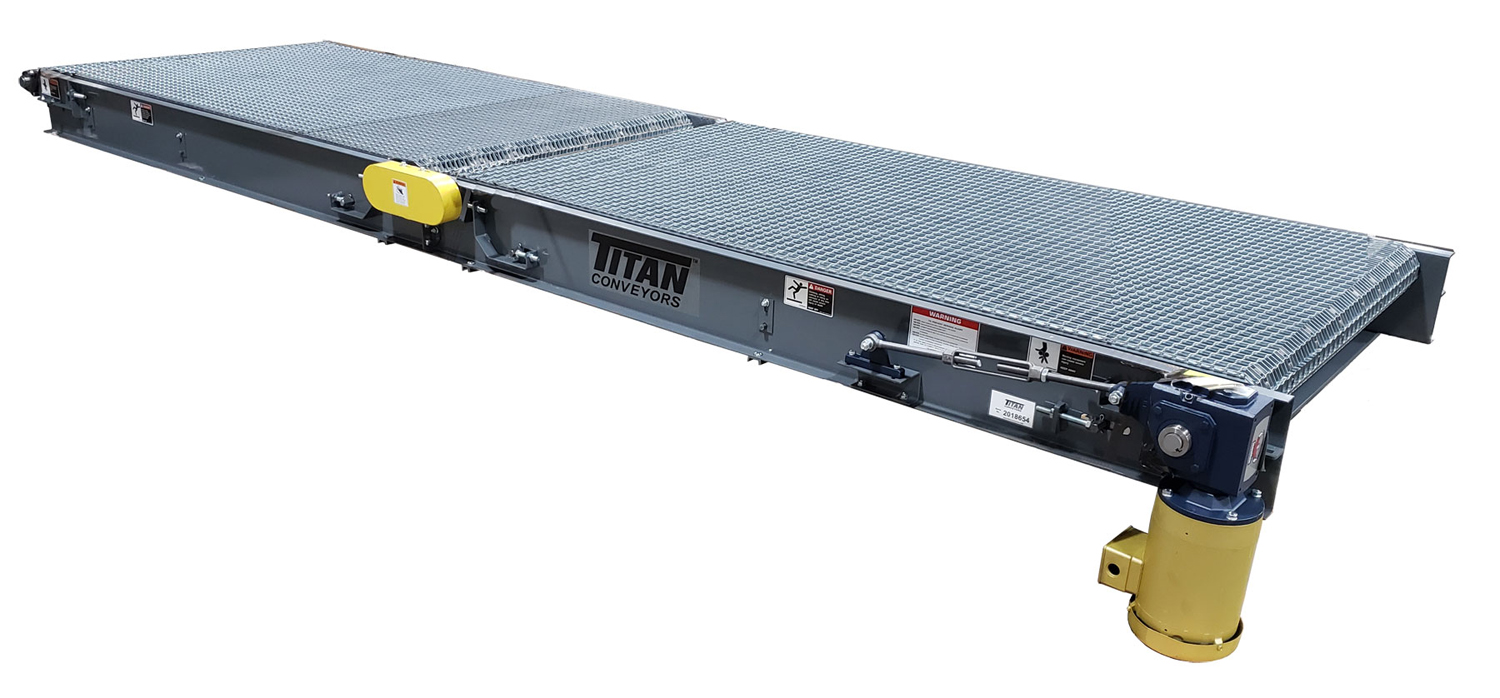

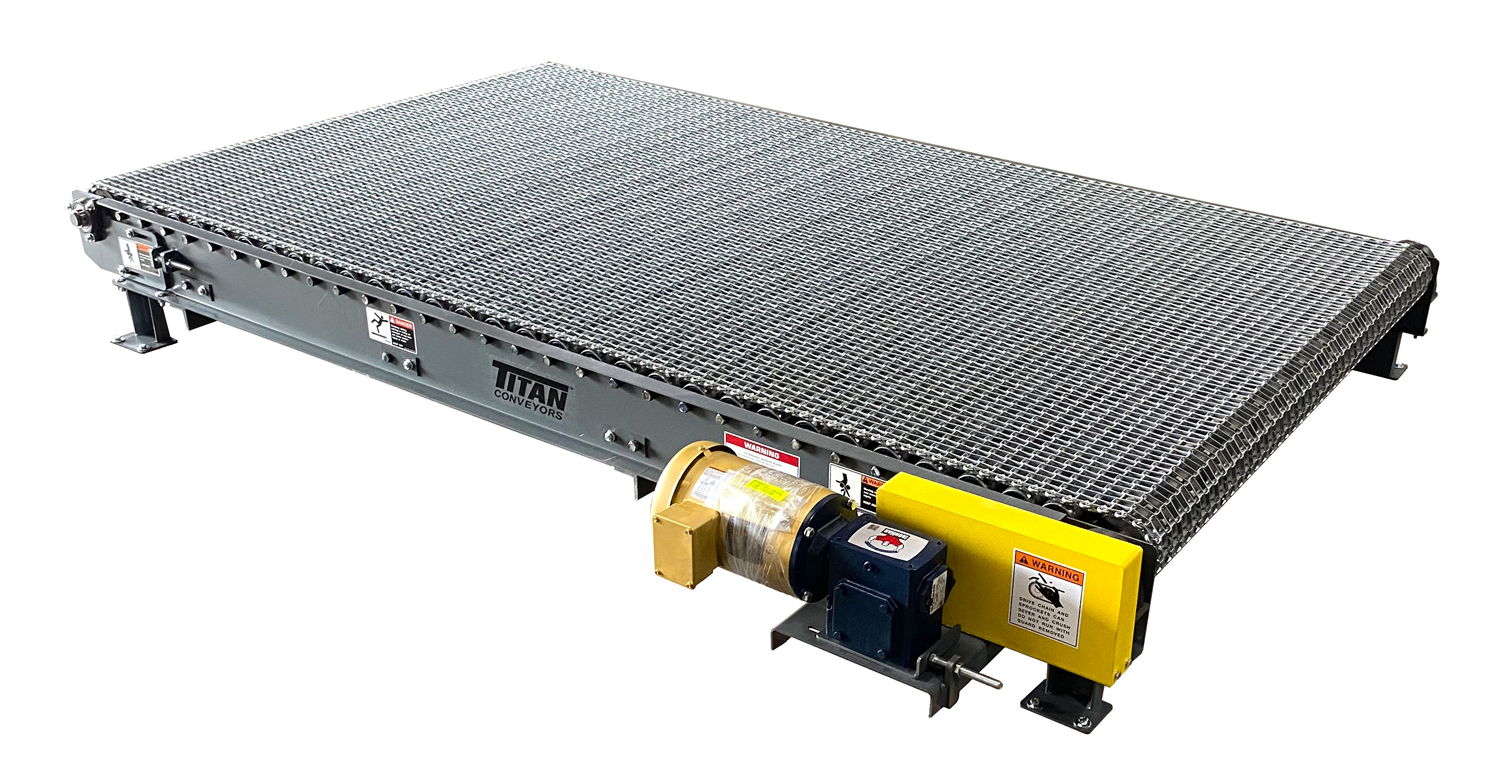

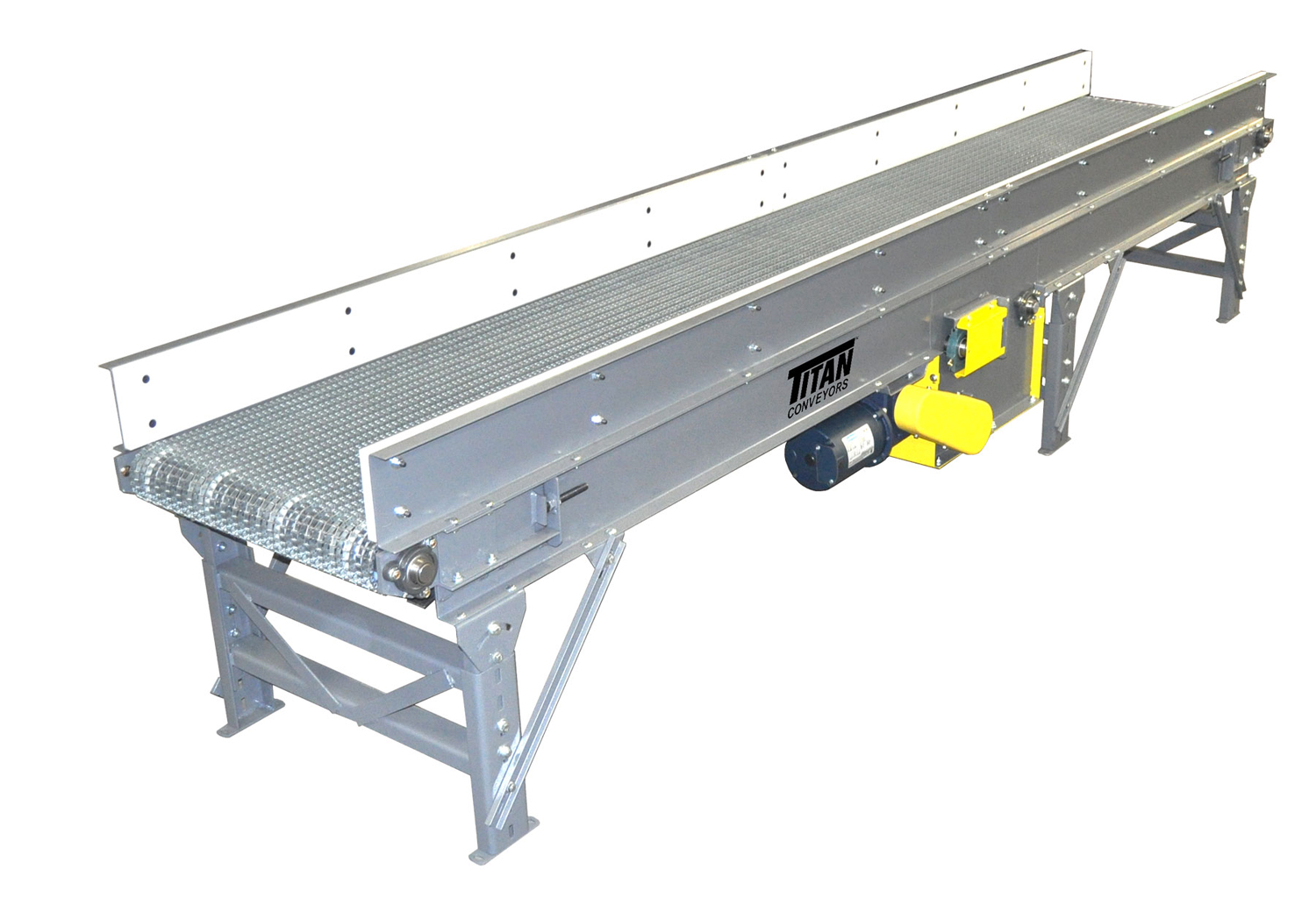

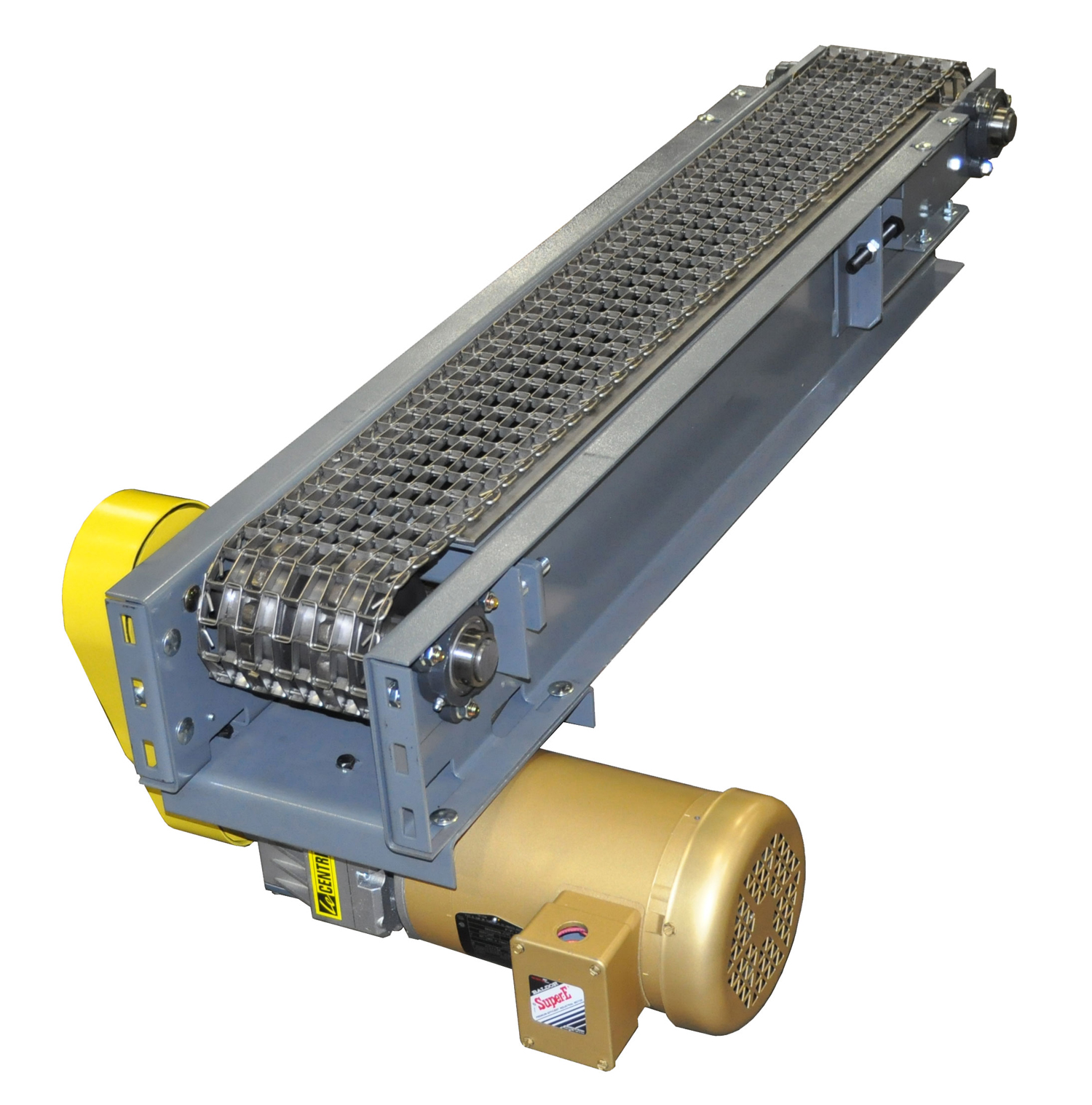

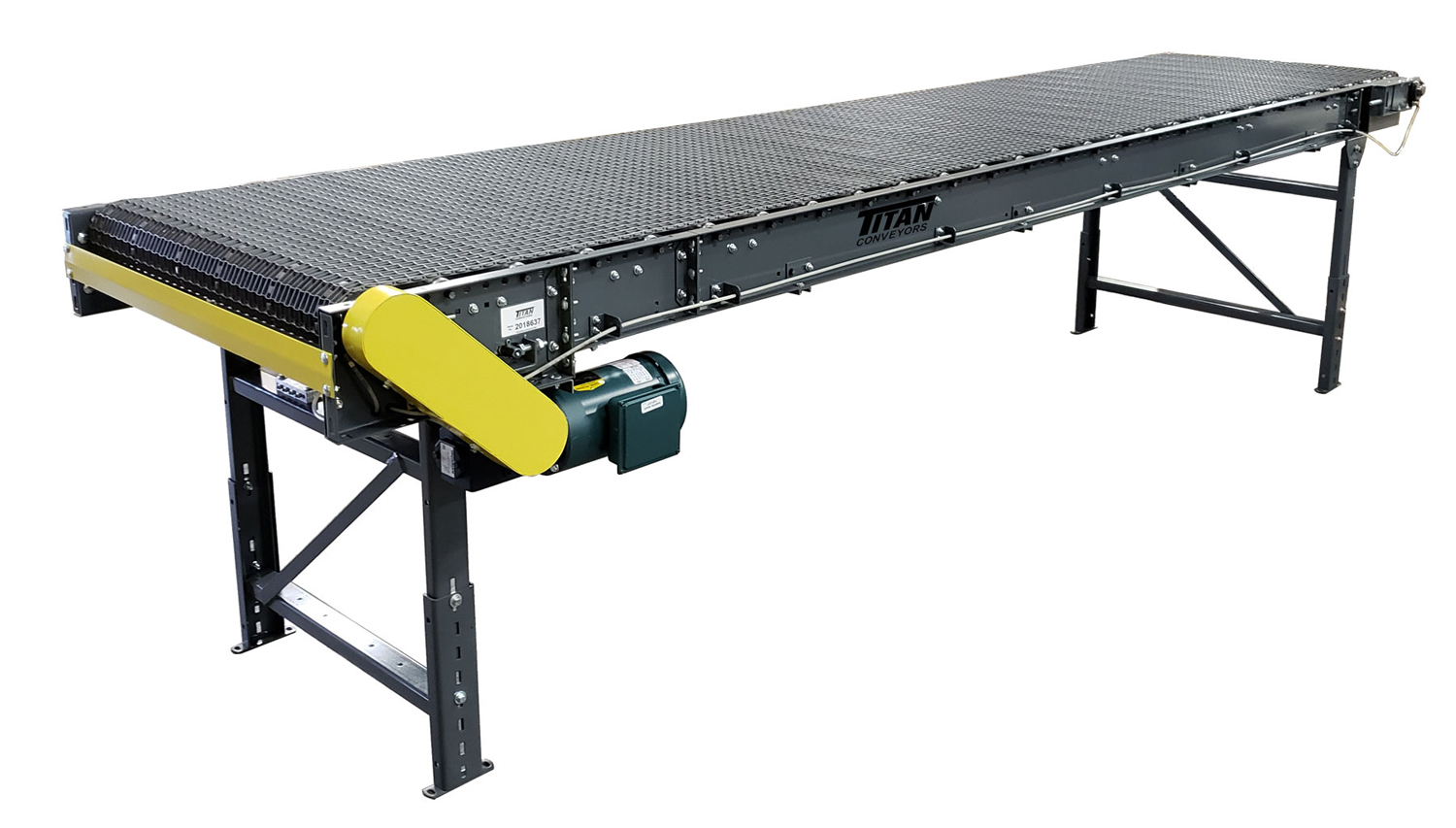

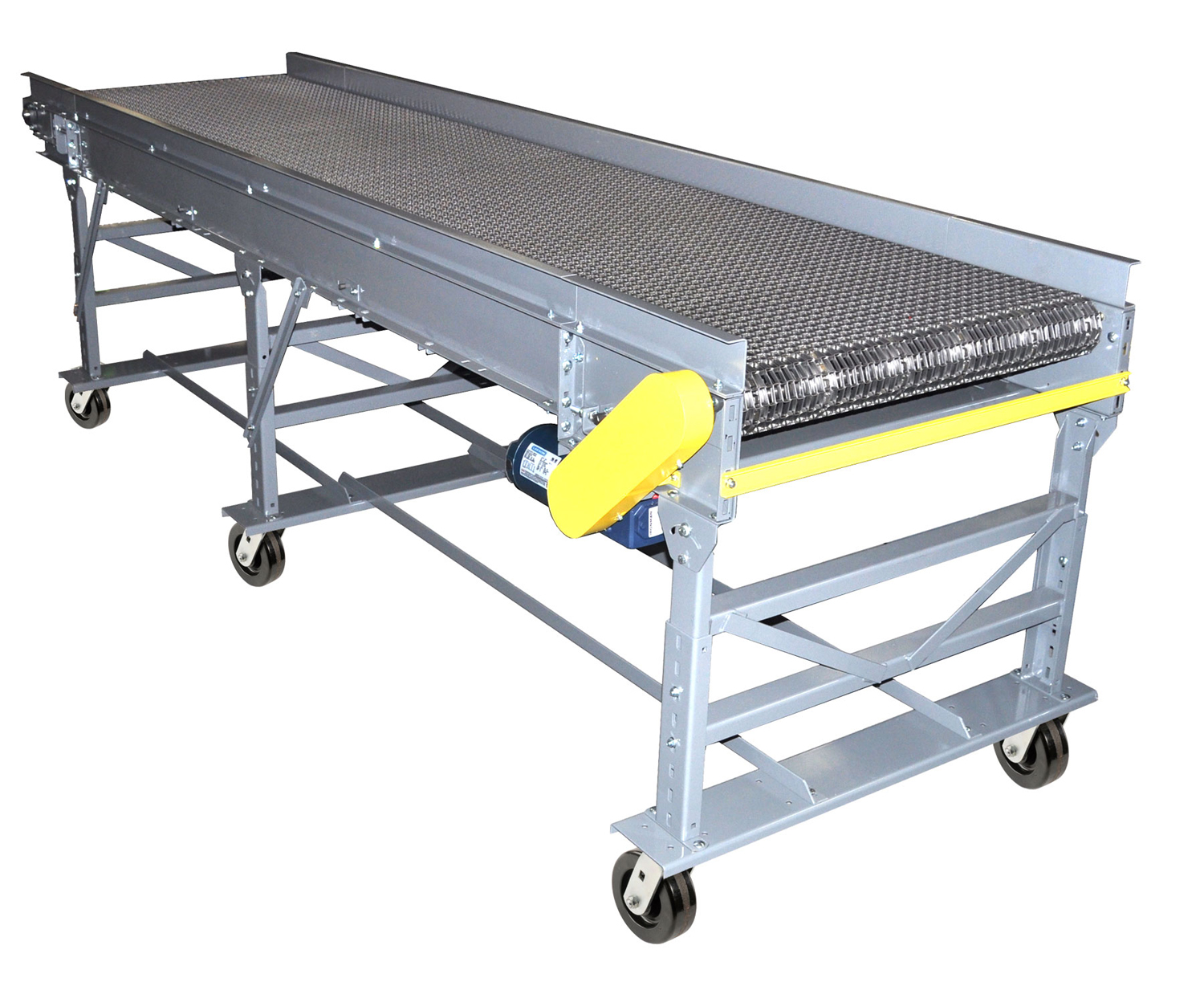

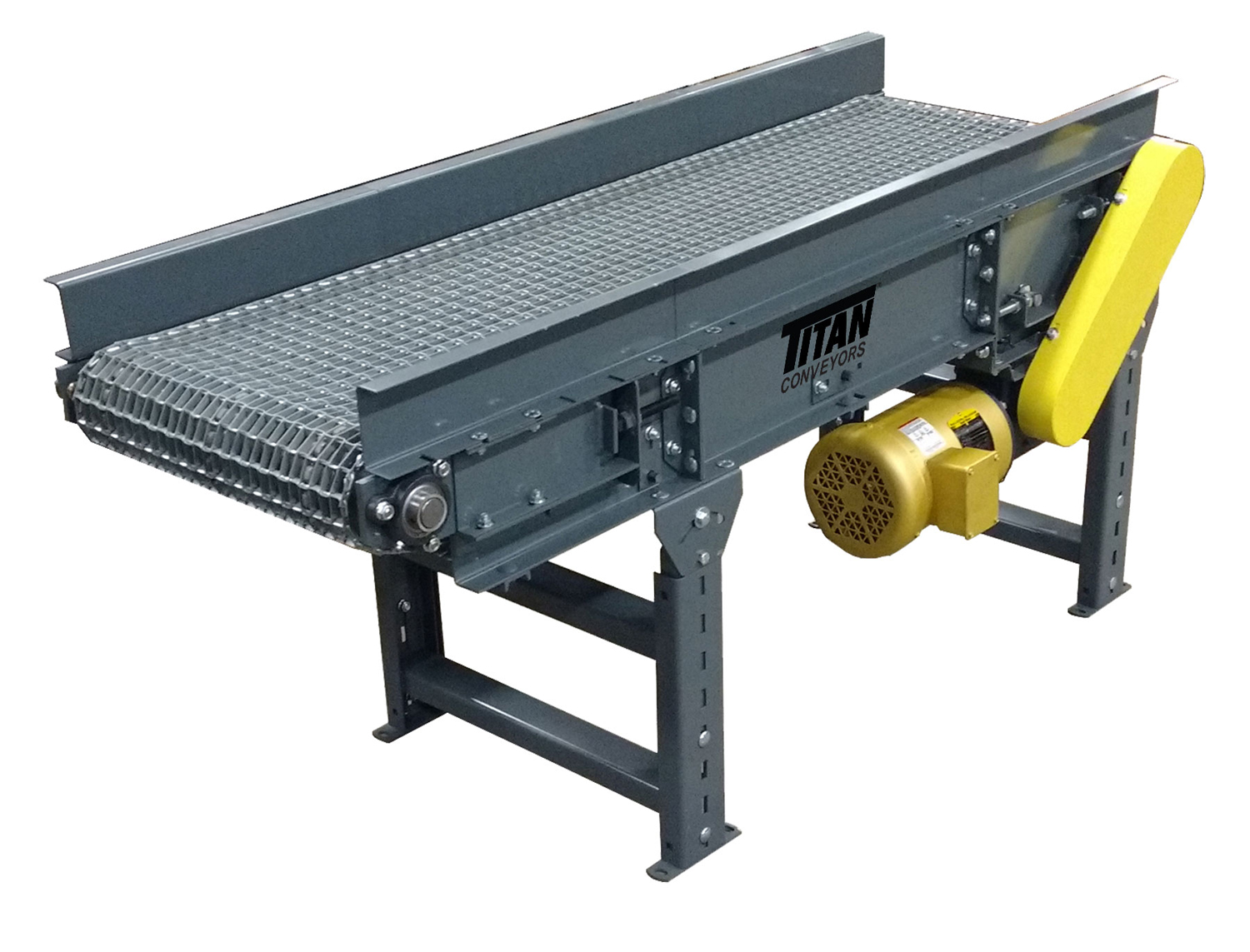

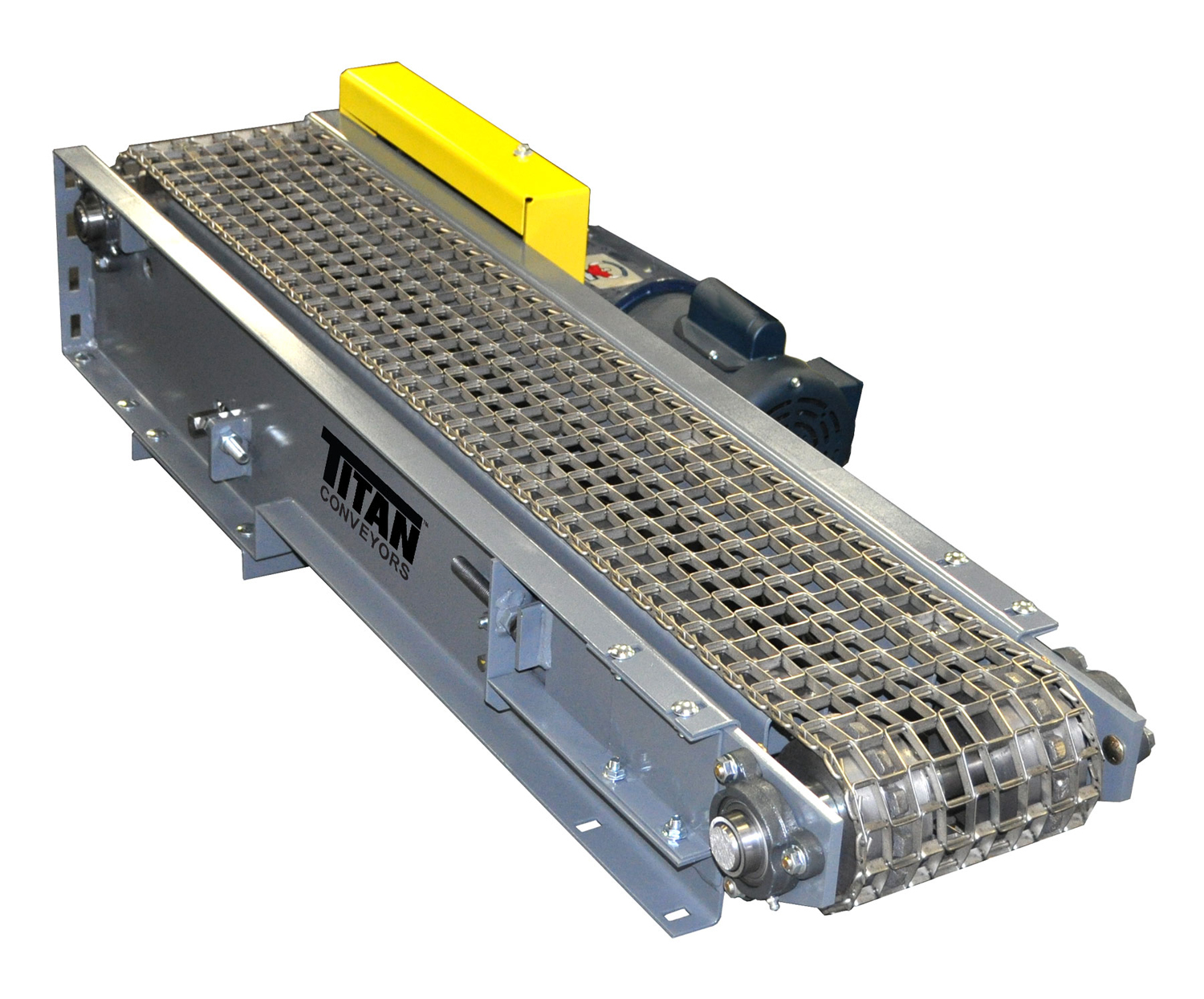

Model 124

Wire Mesh Belt Conveyor

Model Description:

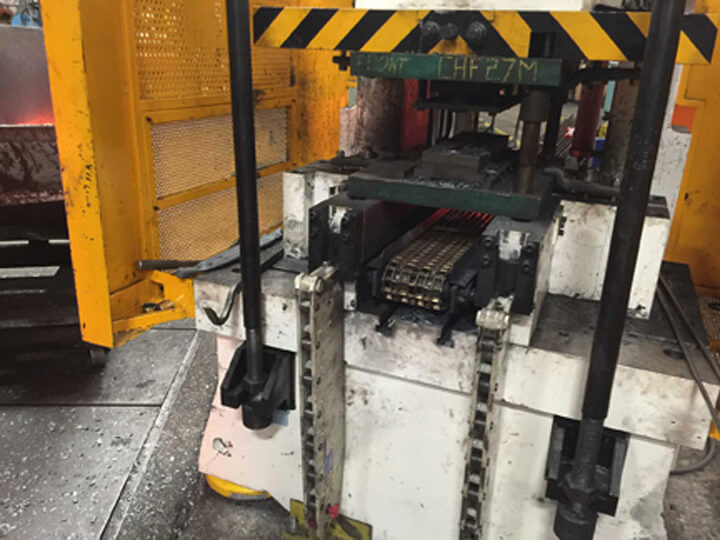

Titan wire mesh belt conveyors can be used in a variety of conditions to conveyor hot, cold, or oily products in oven, cooling, carrying cold items from a freezer, hot food items or other special conditions. A variety of belt types can be used depending on the application. It’s designed to interface with existing conveyor systems and is custom engineered from standard components.

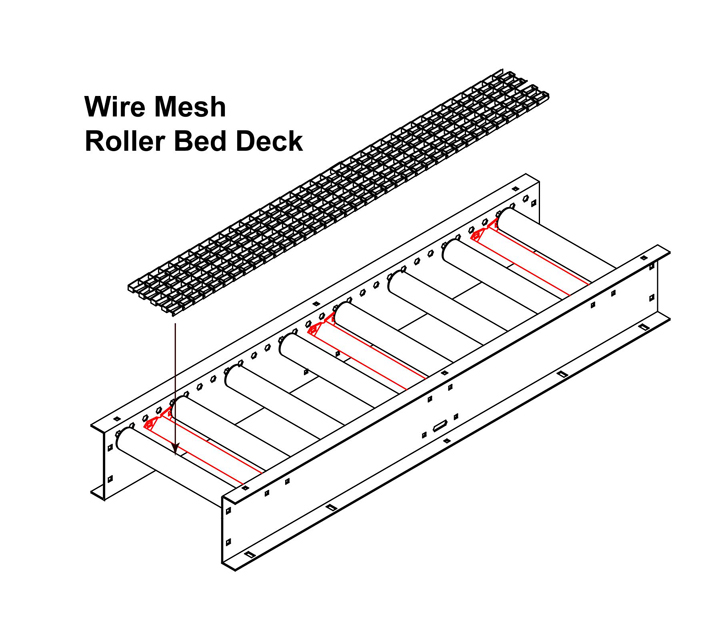

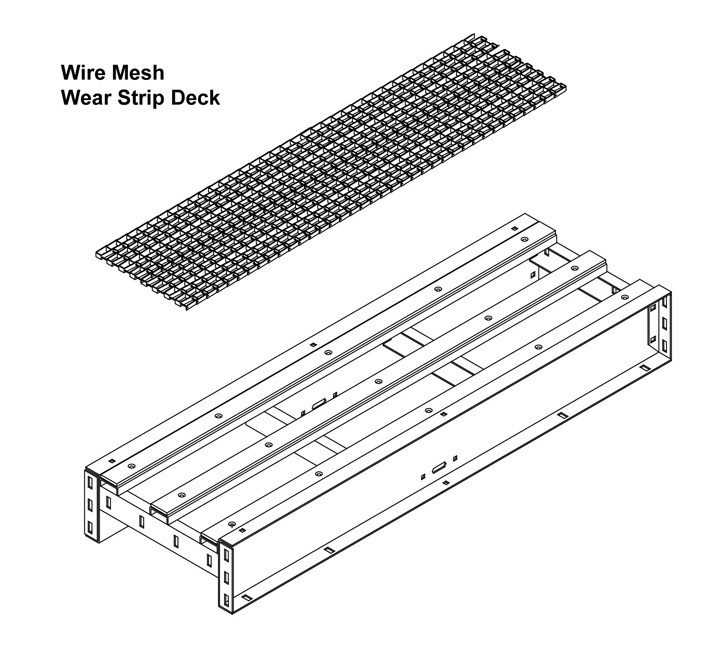

Titan offers the Model 124 Wire Mesh with two styles of deck. The roller bed deck is used for heavy loads over long distances, and the longitudinal deck offers an open style for better air flow. Wear strips are furnished in steel, stainless steel or plastic depending on the application.

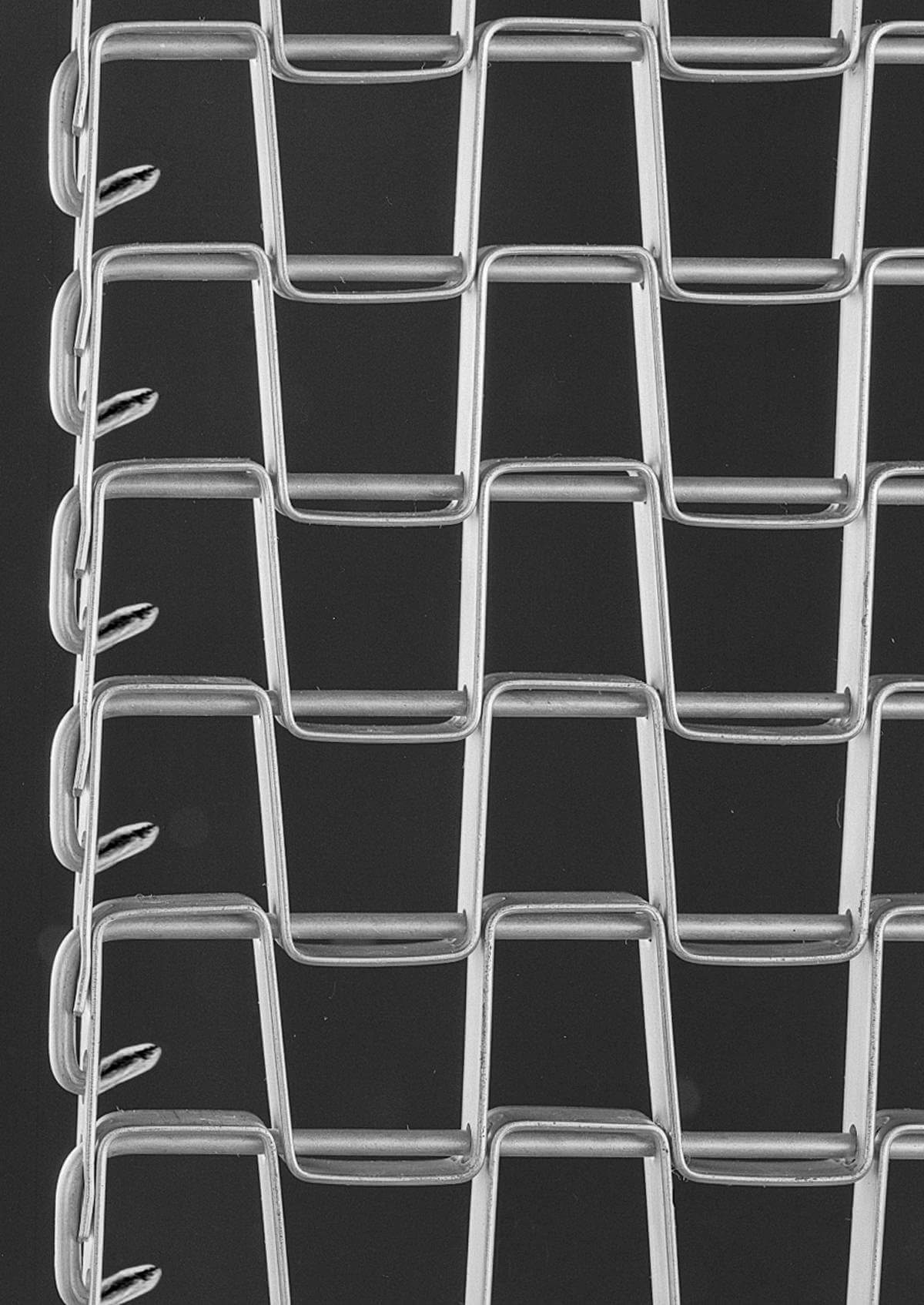

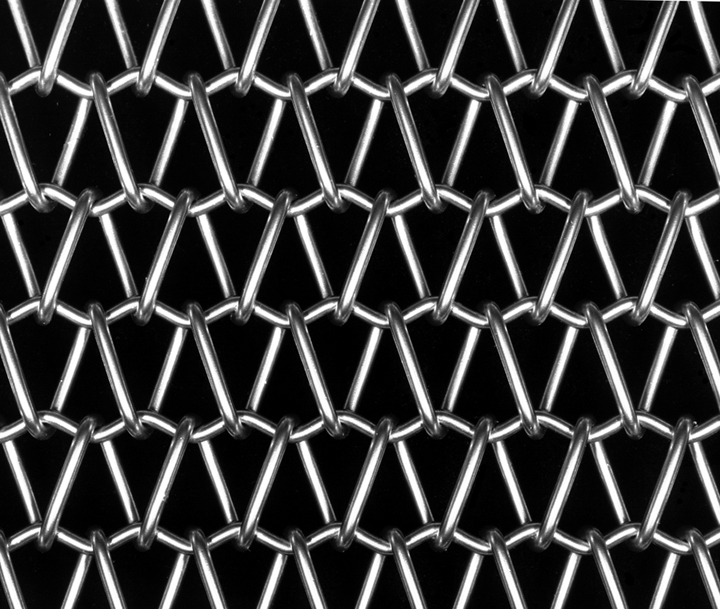

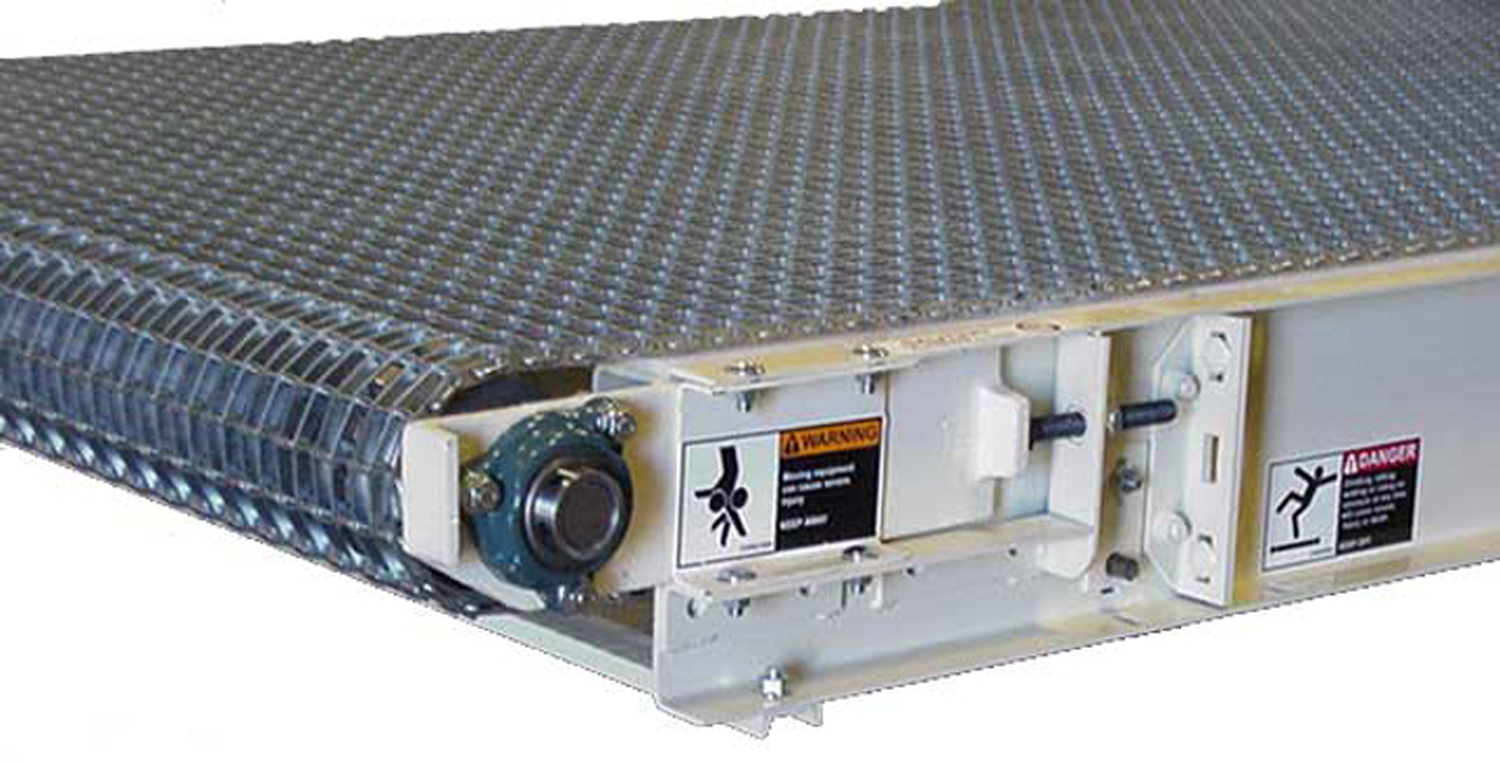

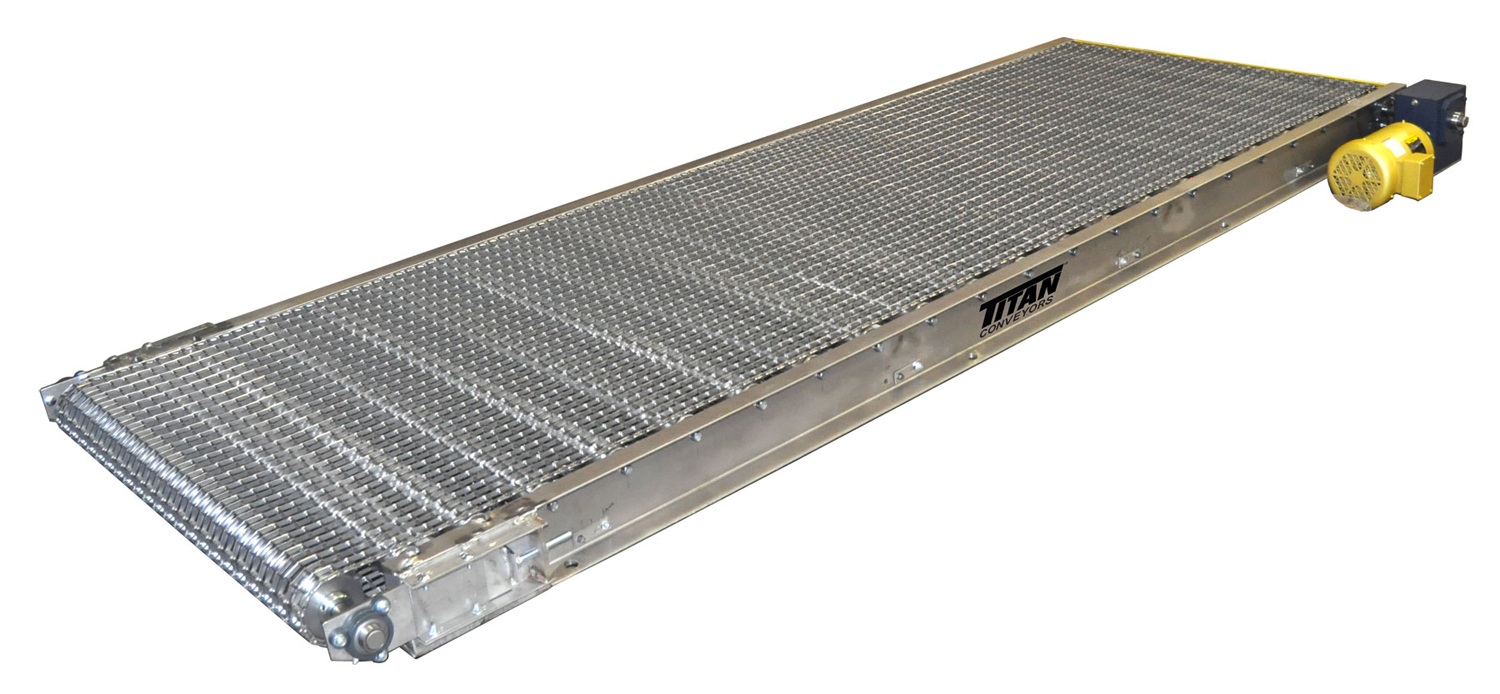

The standard belt is 1/2" x 1" galvanized flat wire mesh with clinched selvage edge. Numerous optional types of belts are available including heavy-duty, stainless steel and balanced spiral. Wire mesh belting is ideal for handling parts that are hot, have to be washed down, dried or cleaned. Belt widths of 12", 18", 24", 30", 36" are supplied as standard.

Model 124 Wire Mesh Belt Conveyor Specifications:

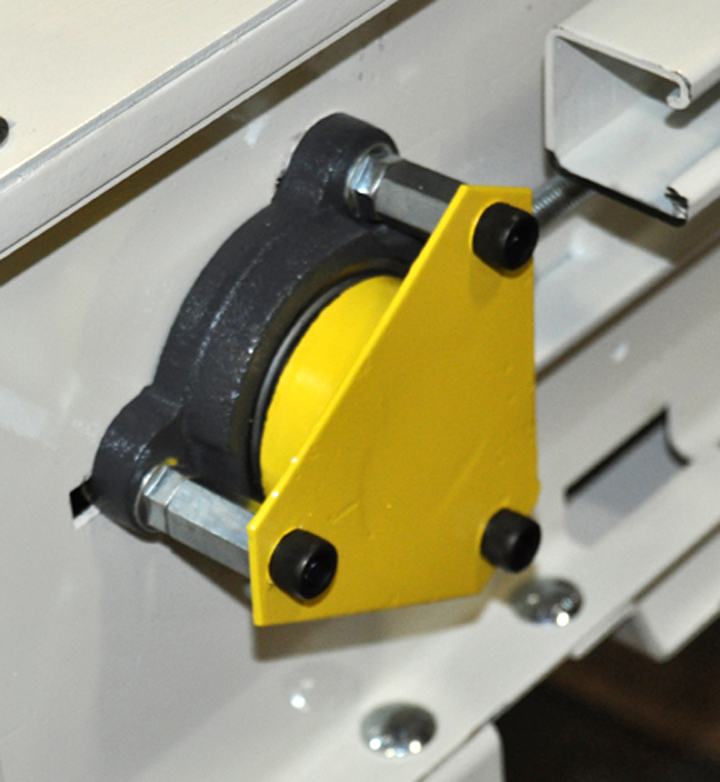

Bearings: Grease Sealed

Belt: 1/2" x 1" Galvanized Flat Wire Mesh

Belt Speed: 60 F.P.M.

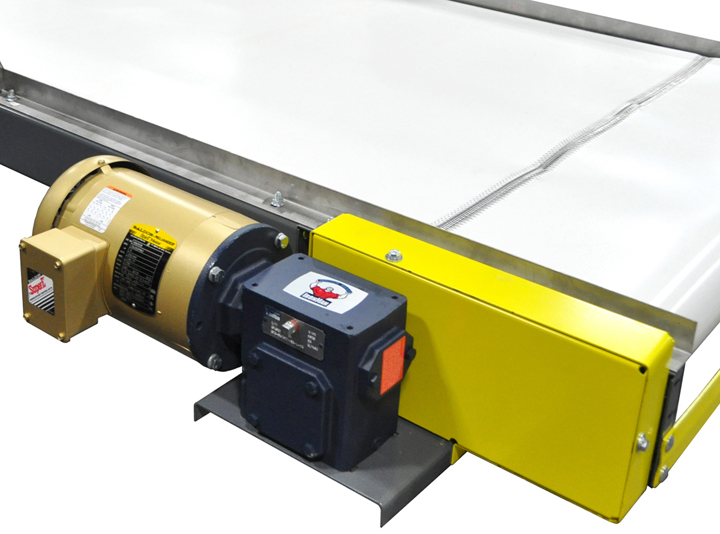

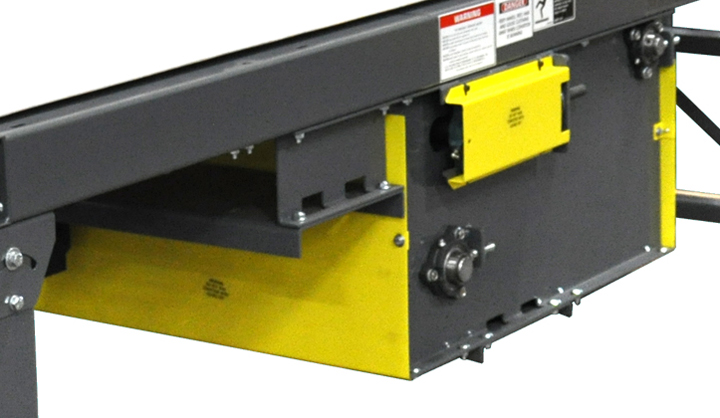

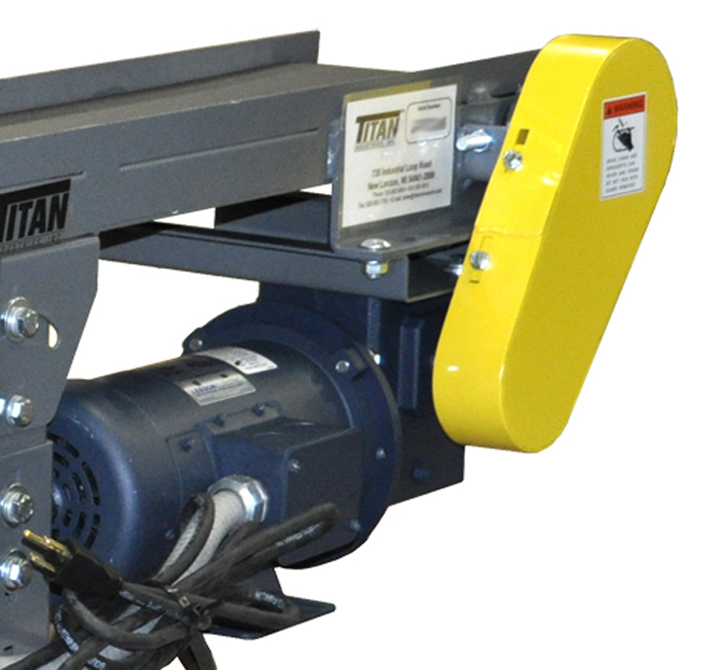

Drive: 1/2 H.P. 230/460/3/60

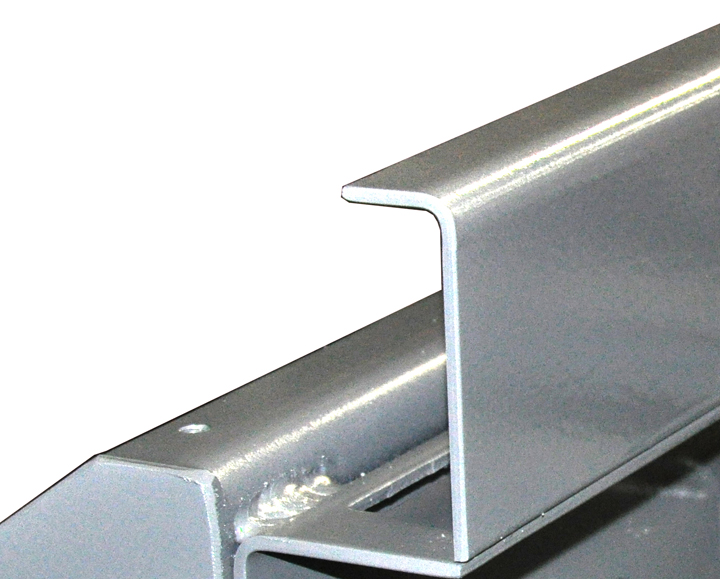

Frame: Formed 10 Gauge

Paint: One Coat Industrial Enamel

Rollers: 1.9 Diameter x 16 Gauge

Speed: 60 F.P.M.

Sprockets: 13 Tooth, 4.4" P.D.

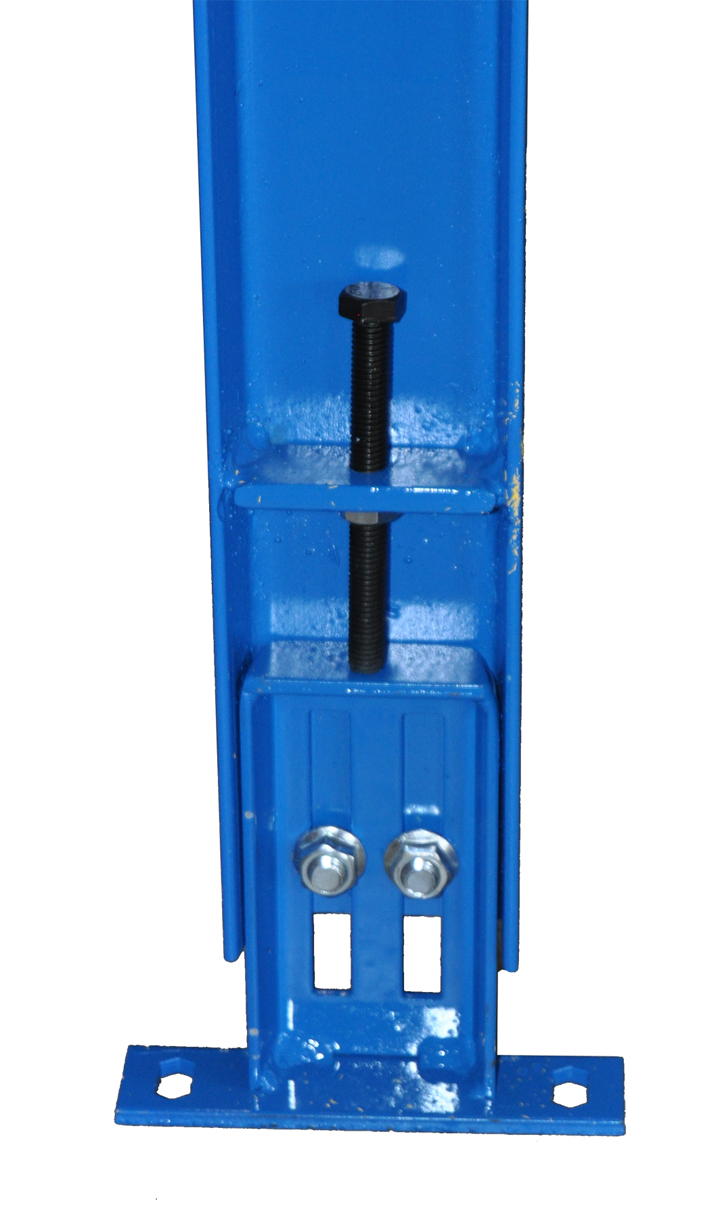

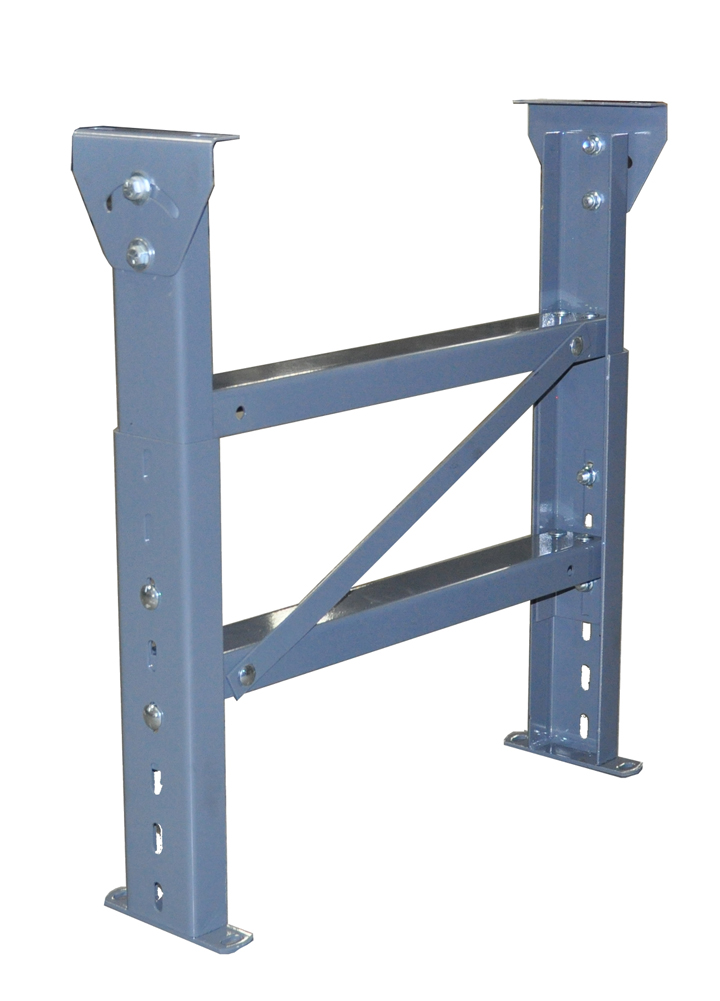

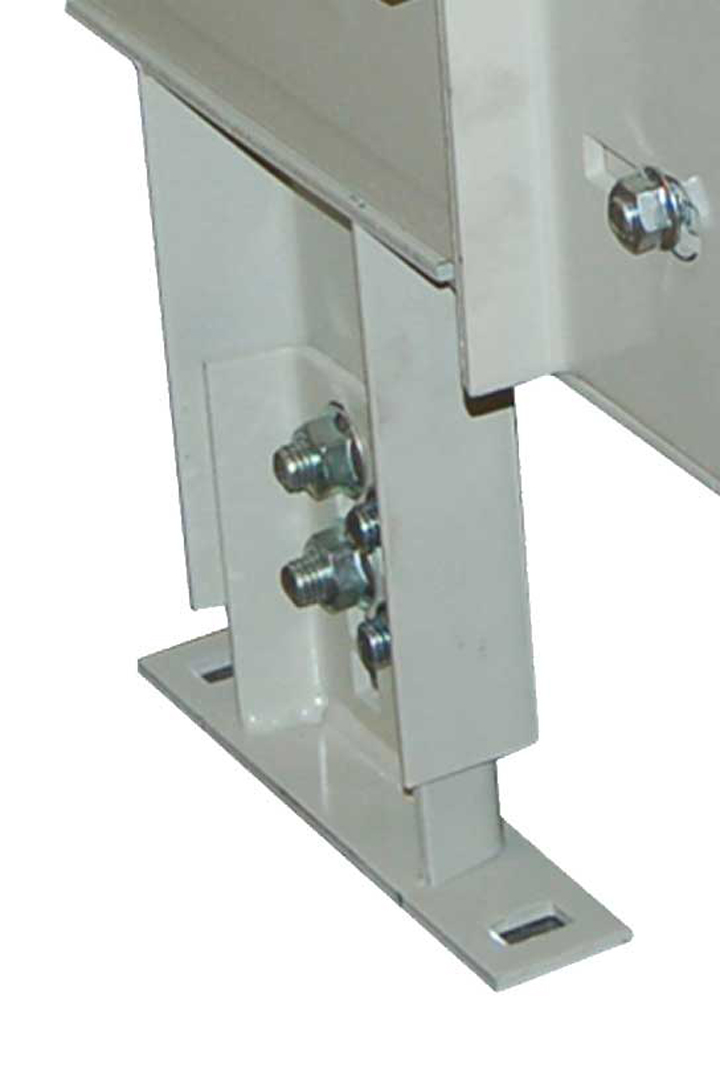

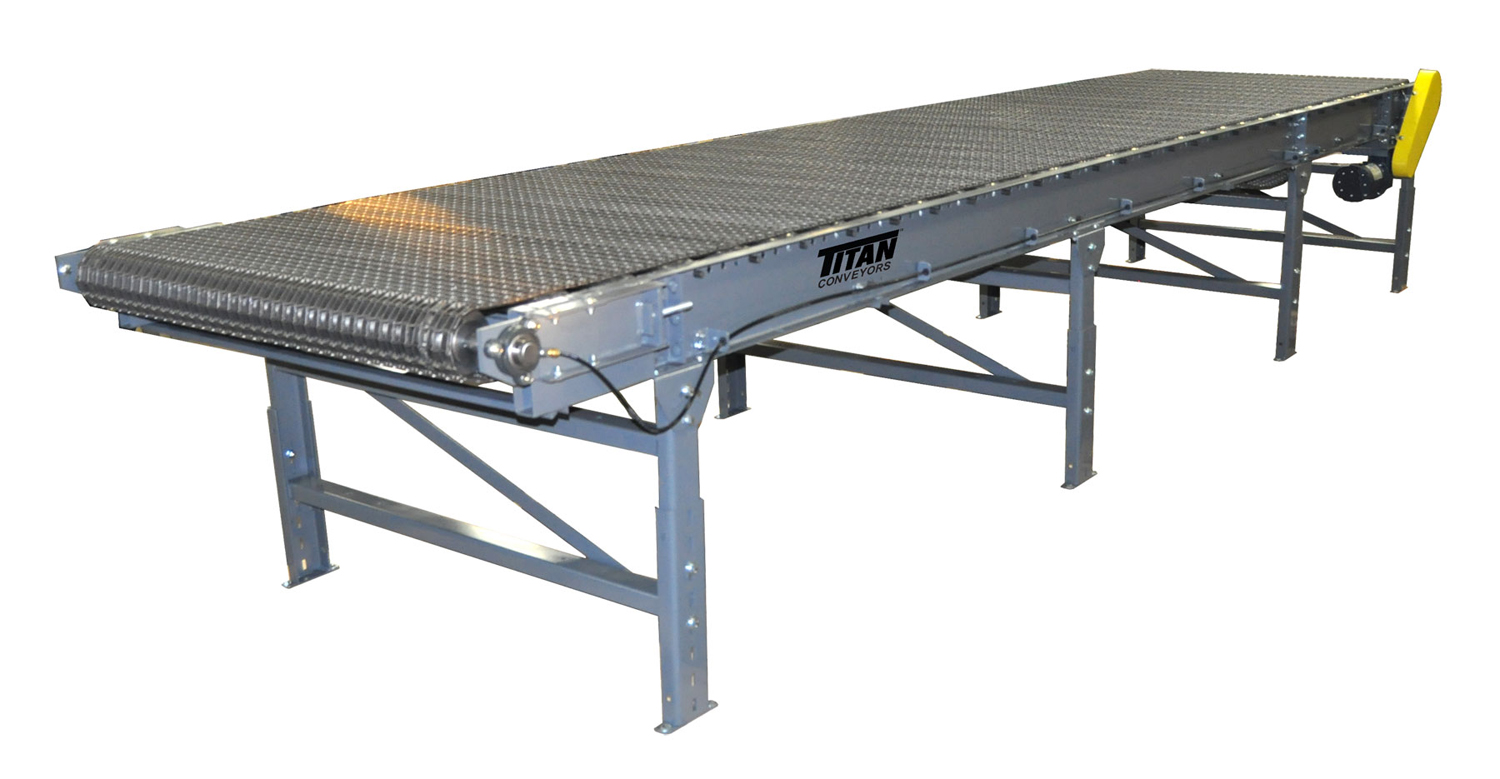

Supports: "H" Type Adjustable for 30" Elevation
