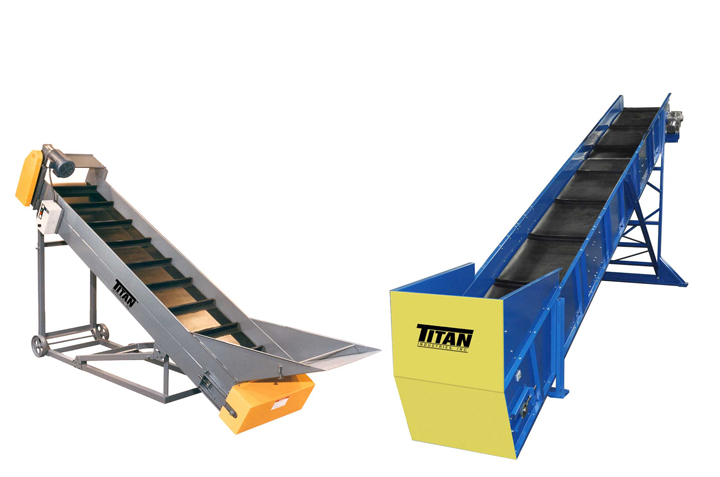

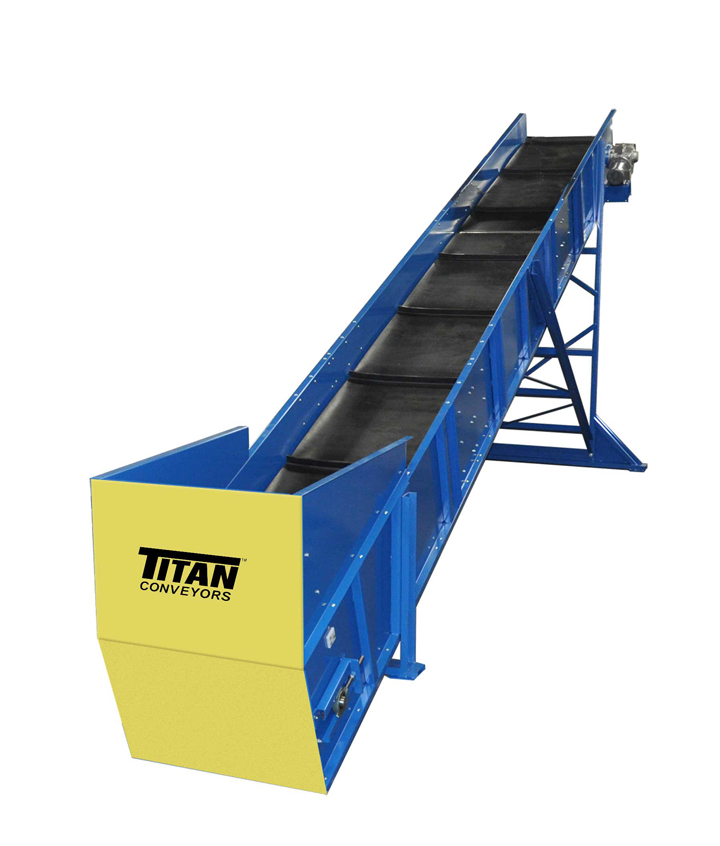

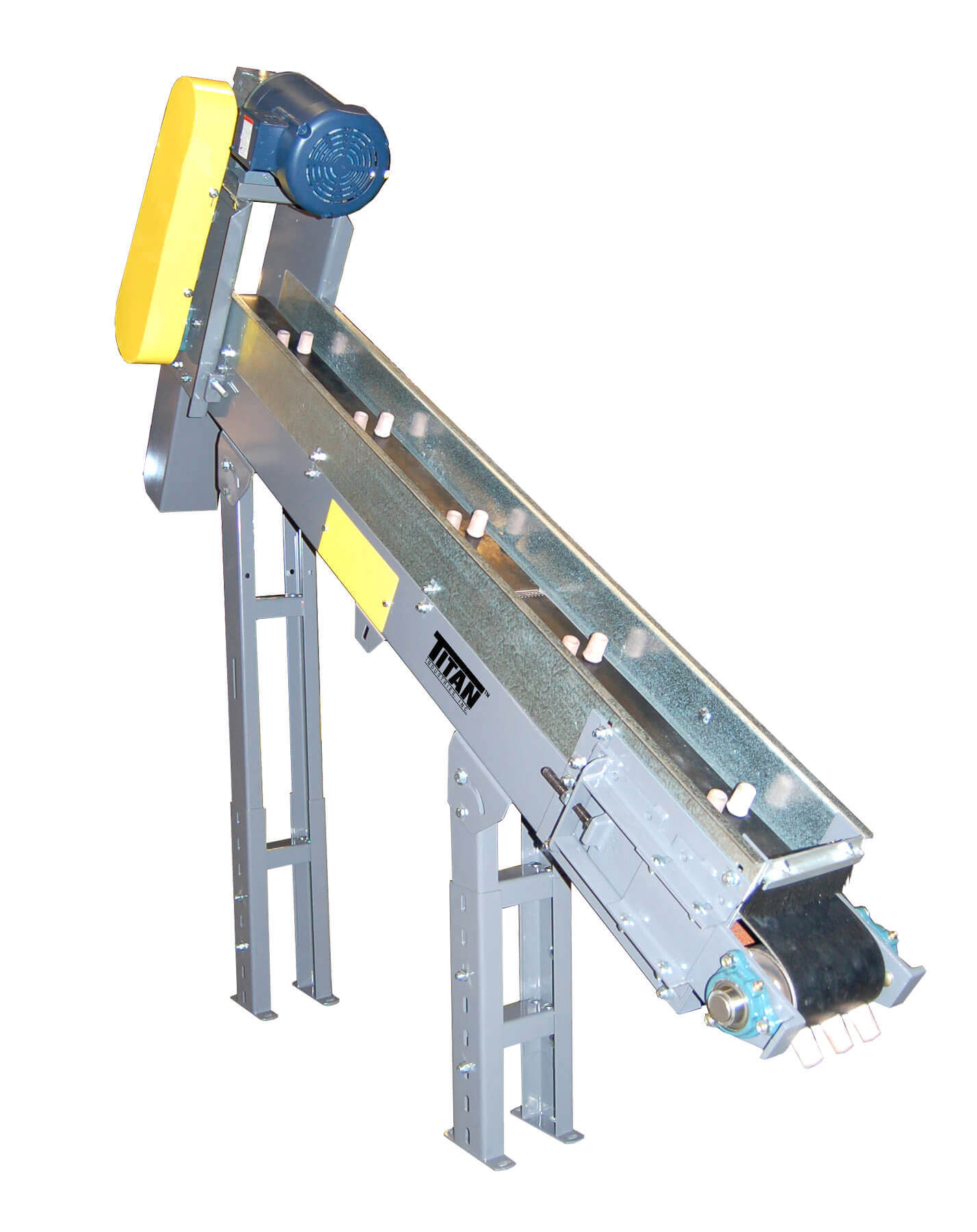

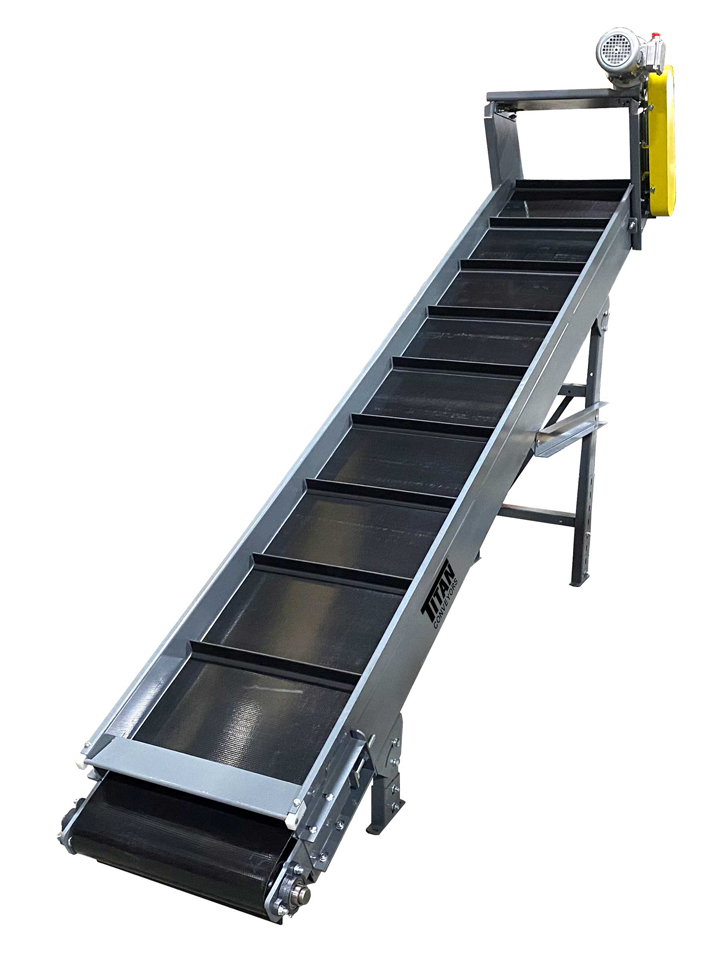

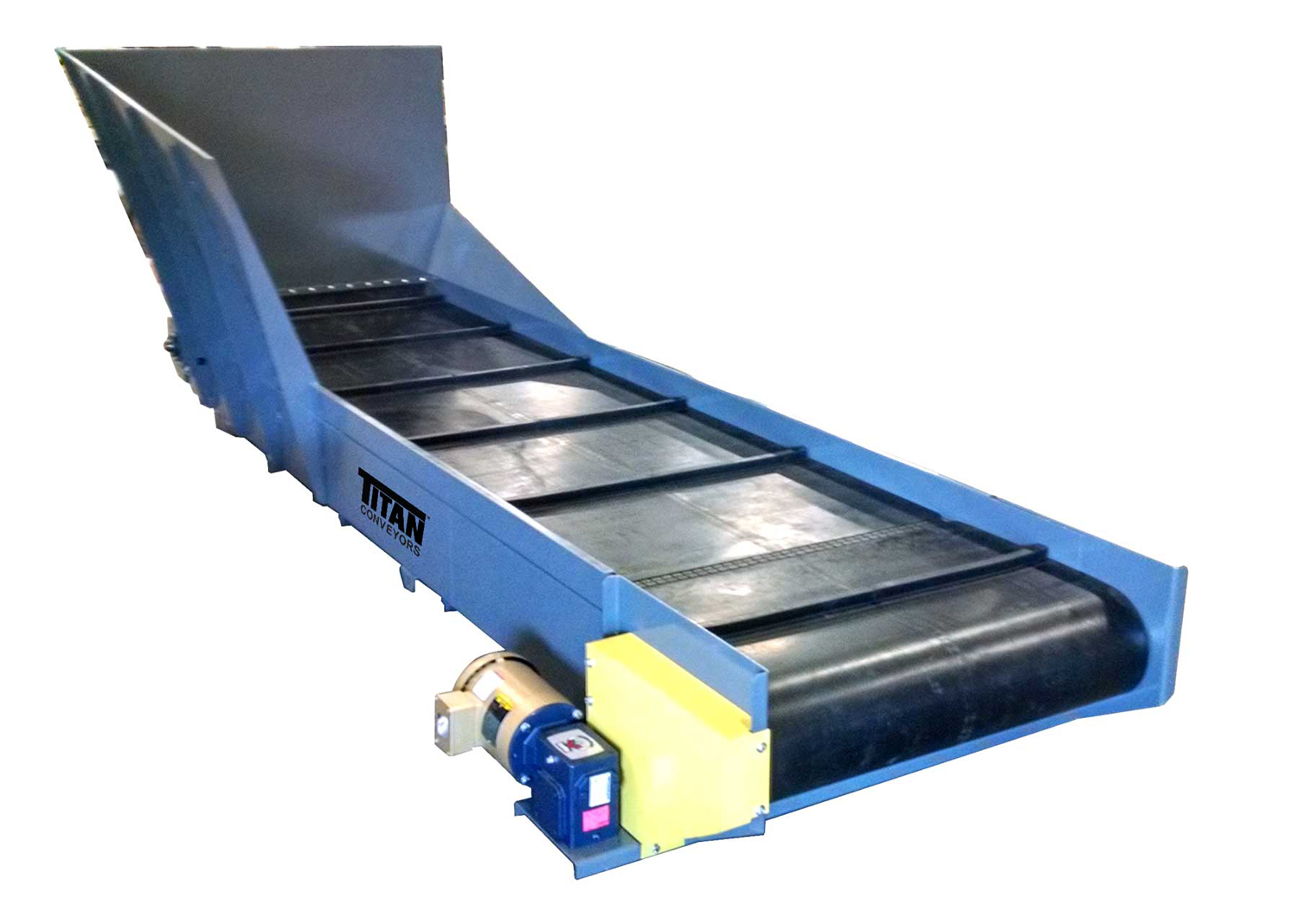

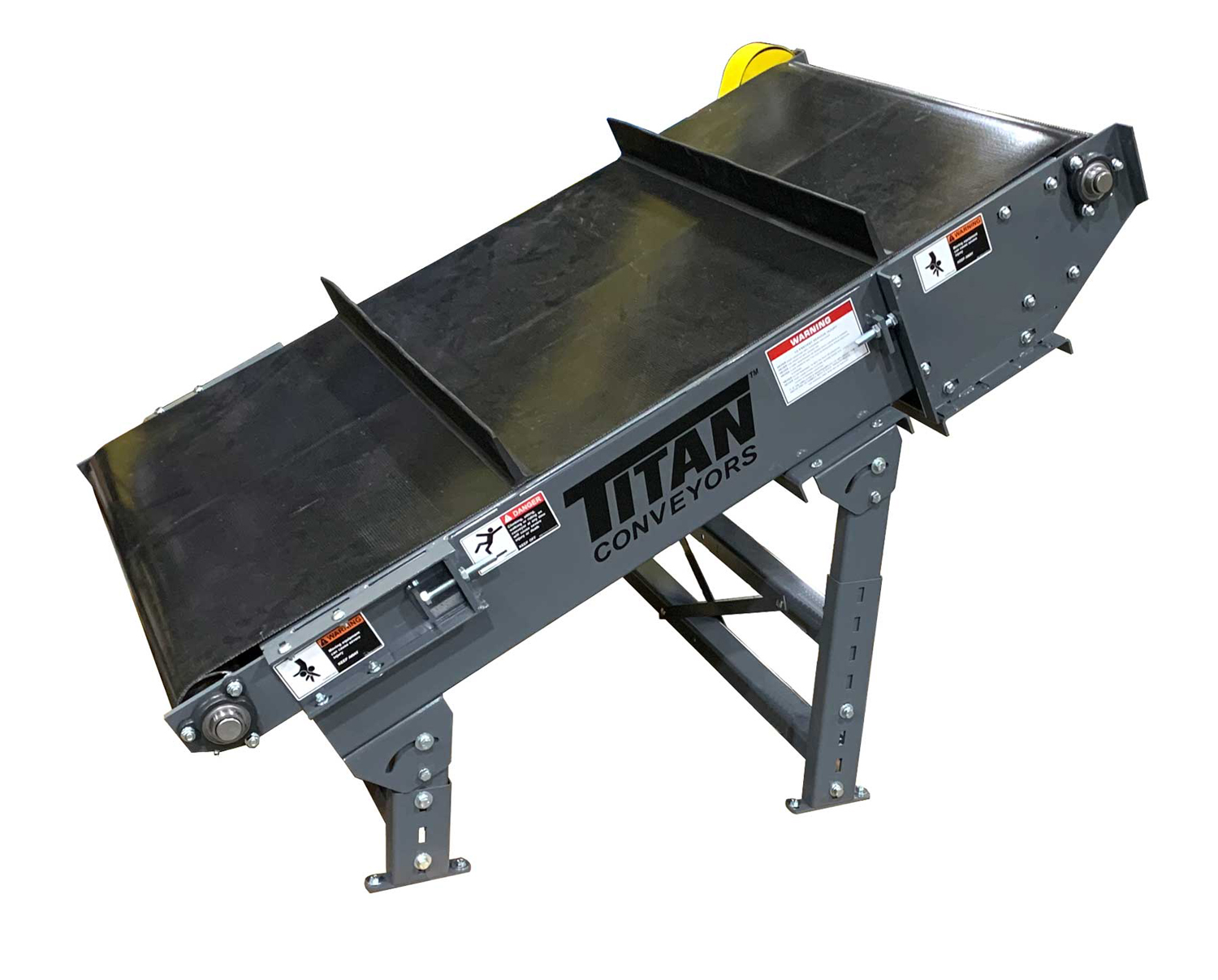

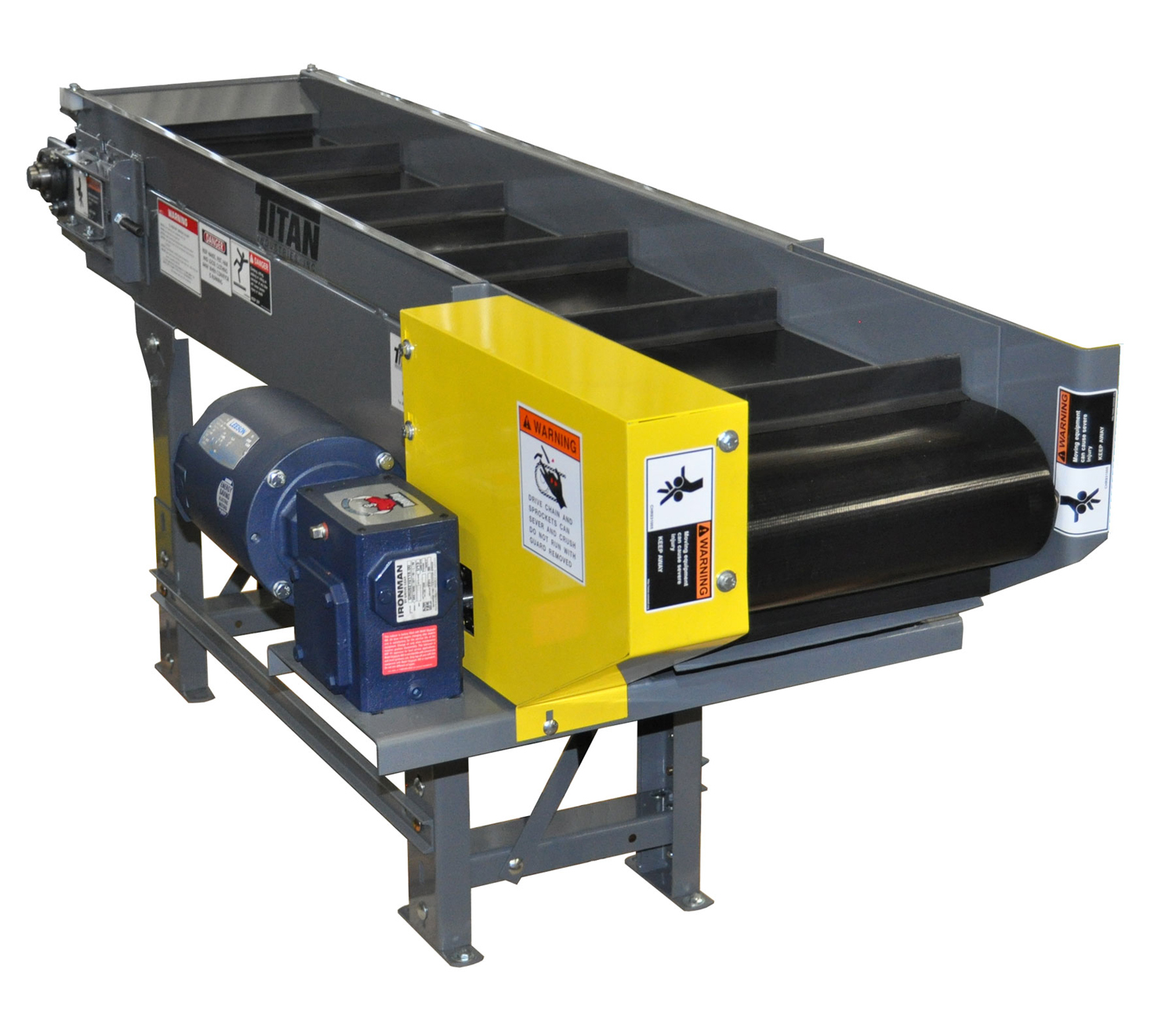

Model 304

Cleated Belt Conveyor

Model Description:

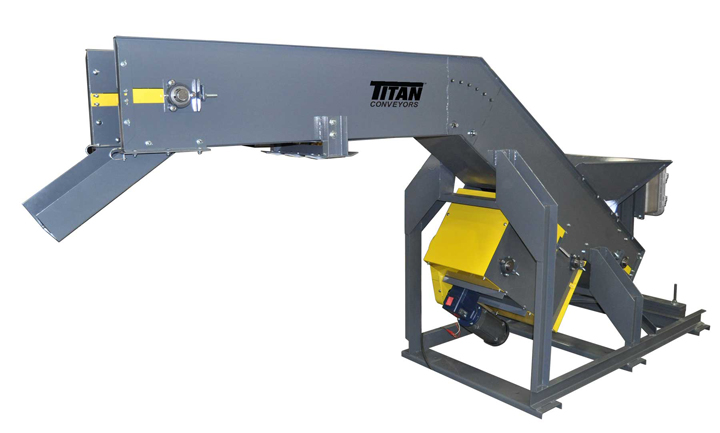

The rugged Model 304 Titan Parts Conveyor is designed to handle many various types of products. The Model 304 allows you to convey and elevate product from one machine to another. The Model 304 is offered in seven belt widths with standard units up to twelve feet long. The standard frame design incorporates 3-1/2" high side rails and an enclosed bottom pan for the belt return. The adjustable undercarriage allows for a variety of adjustments at both the infeed and discharge. Options such as infeed hopper, adjustable fixed supports add to the flexibility of this unit. An available adjustable undercarriage features eight inch diameter steel wheels for easy handling over rough surfaces.

Standard Specs
Options
Gallery
Drawing

Model 304 Cleated Belt Conveyor Specifications:

Bearings: Grease Sealed

Belt: 2 Ply Black Neoprene With 1-1/2" High Cleats on 12" Centers

Belt Speed: 60 F.P.M.

Drive: 1/2 H.P. 230/460/3/60

Frame: 6-1/2" Deep Formed 12 Gauge

Paint: One Coat Industrial Enamel

Pulleys: 4" Diameter Crown Face Rubber Lagged Drive 4" Diameter Crown Face Take-Up

Speed: 60 F.P.M.

Supports: Adjustable Undercarriage With 8" Diameter Steel Wheels

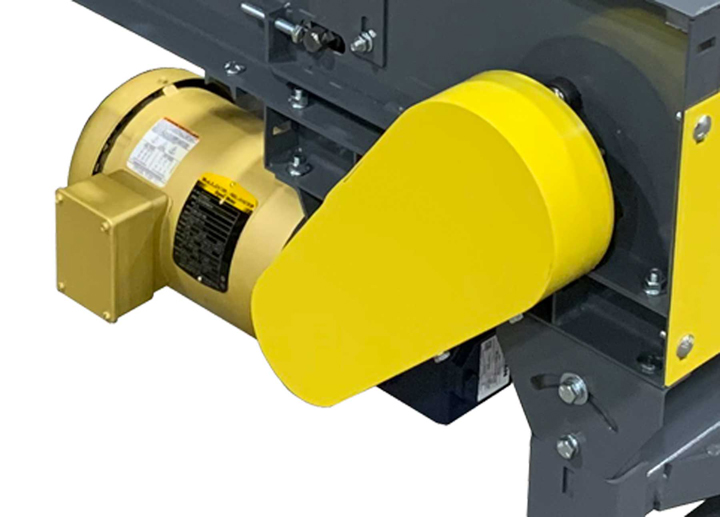

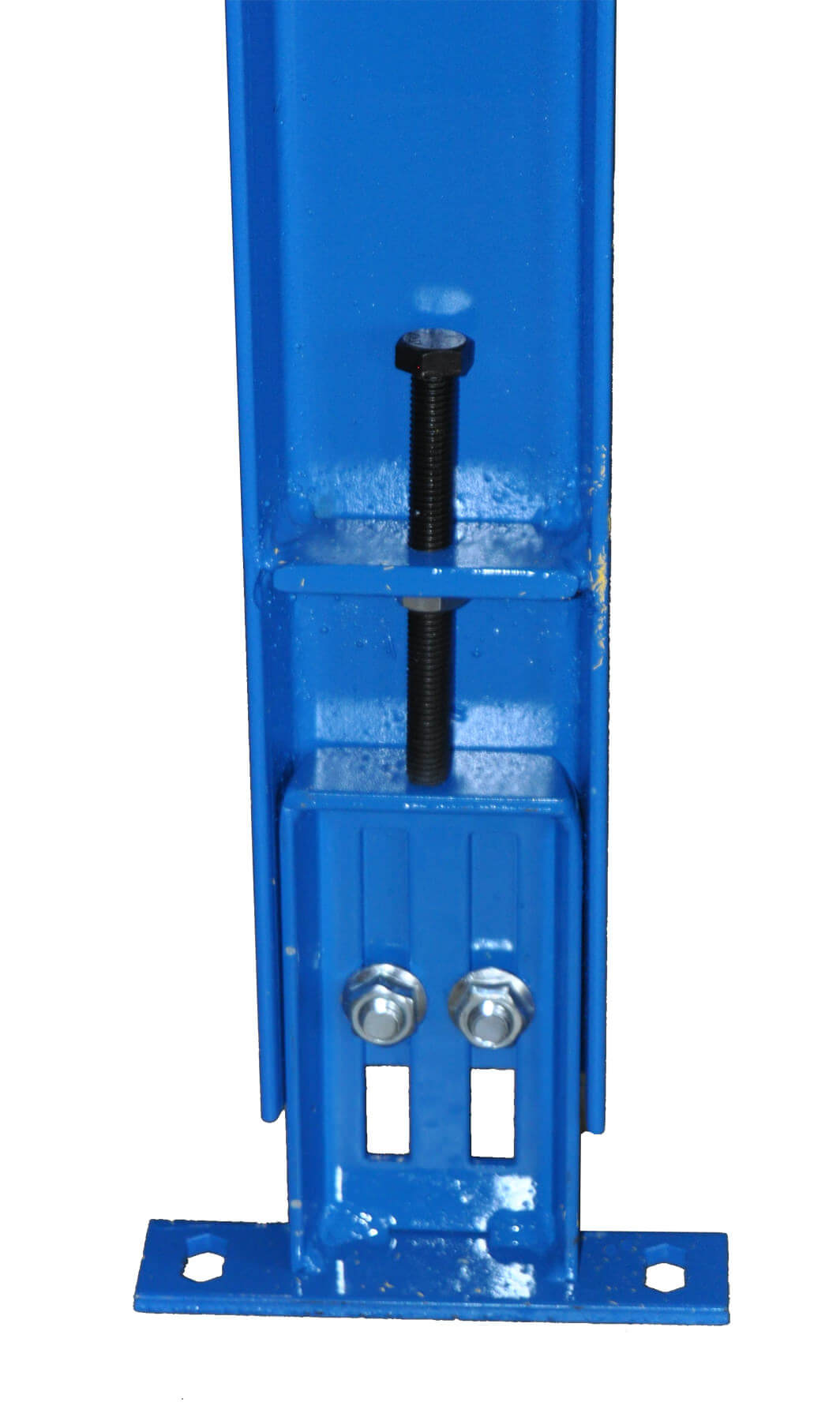

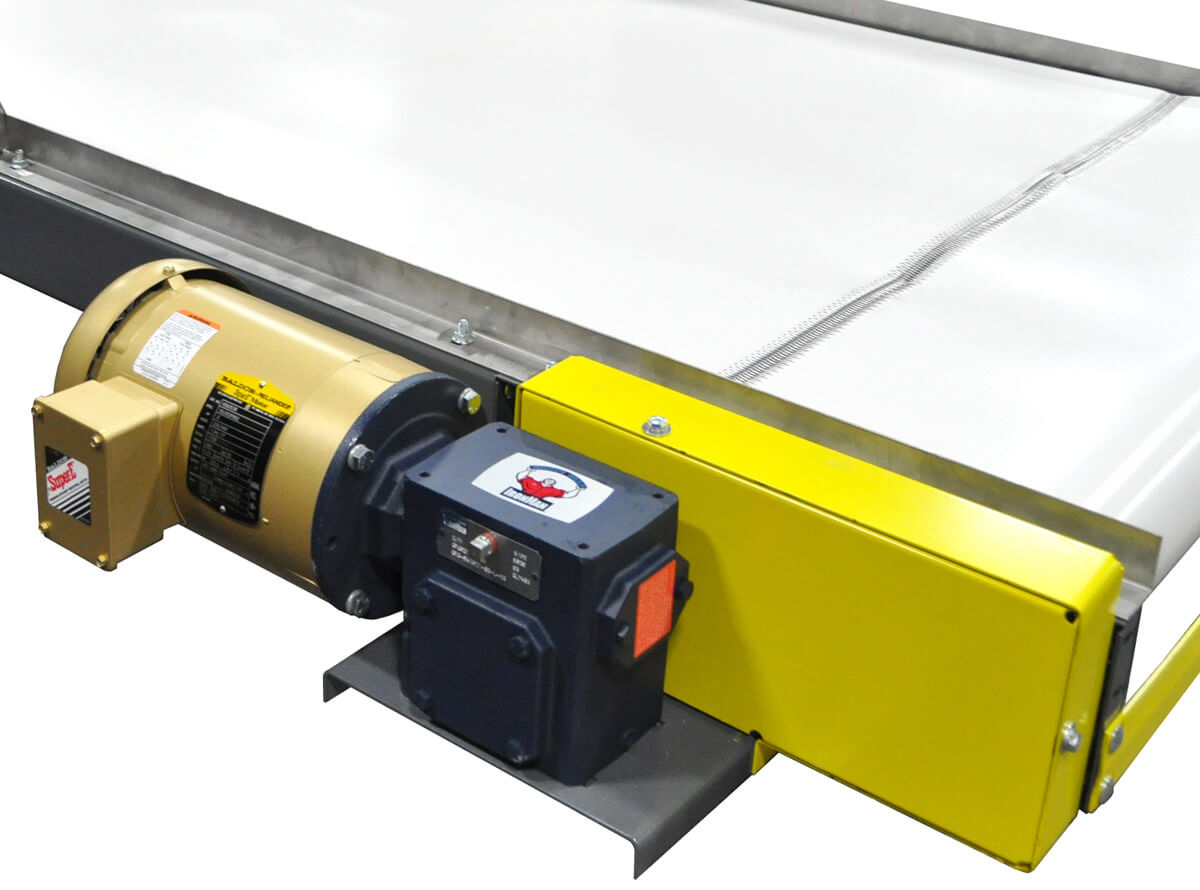

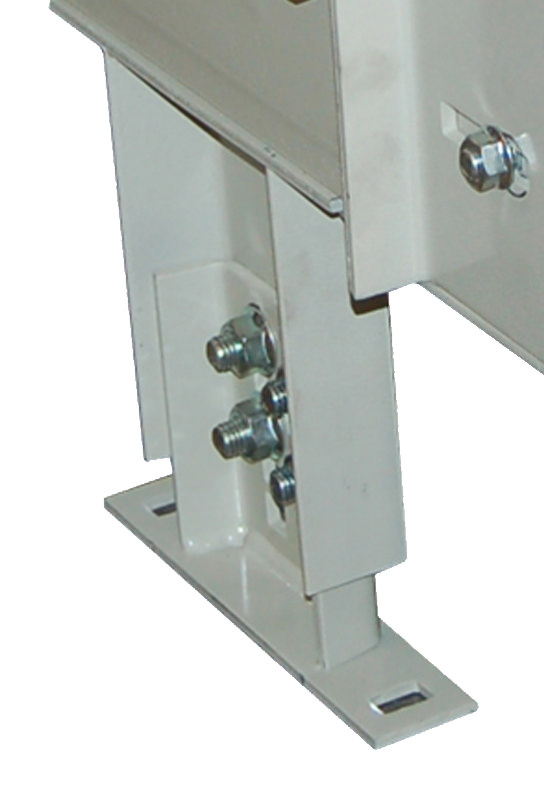

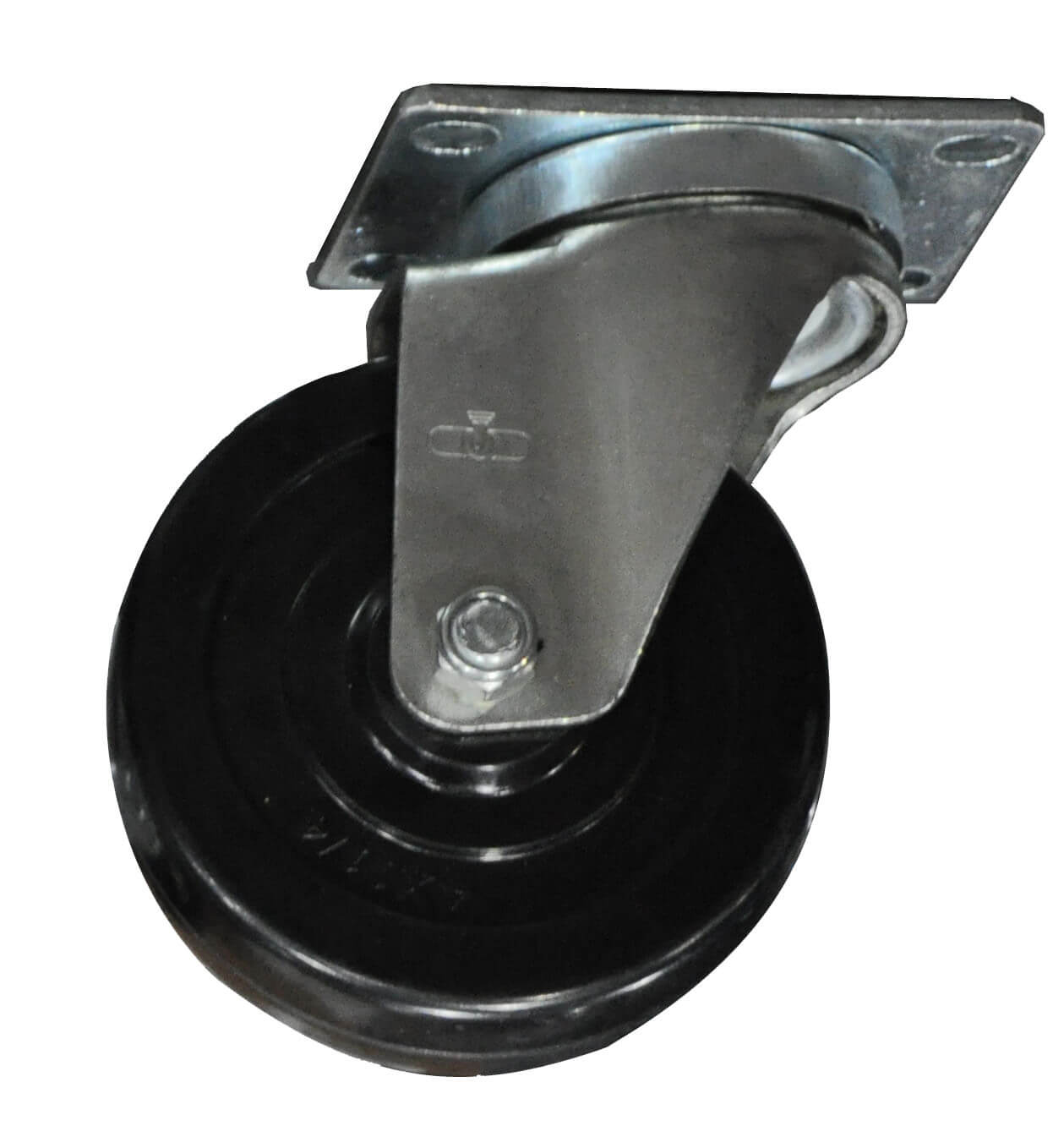

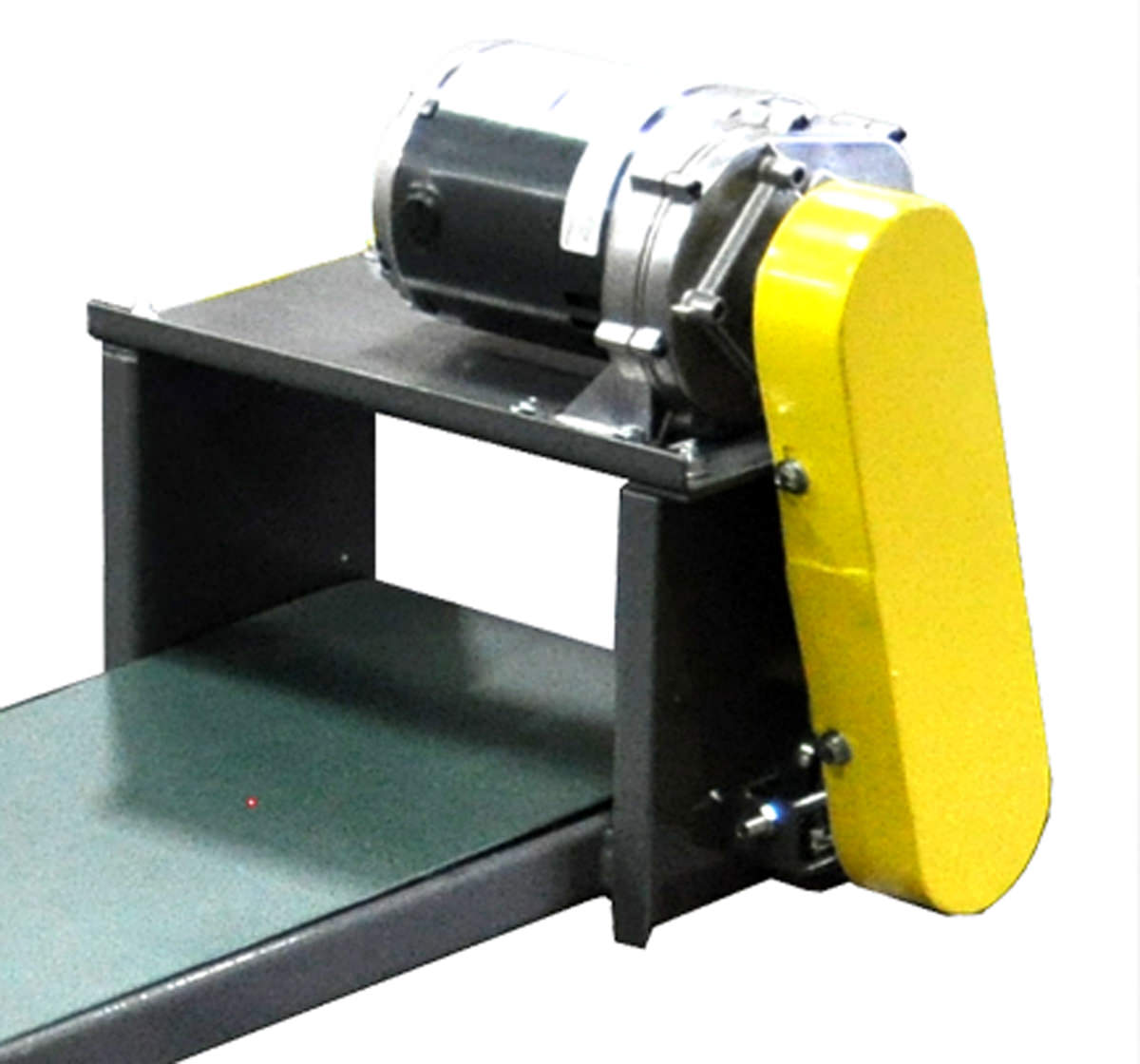

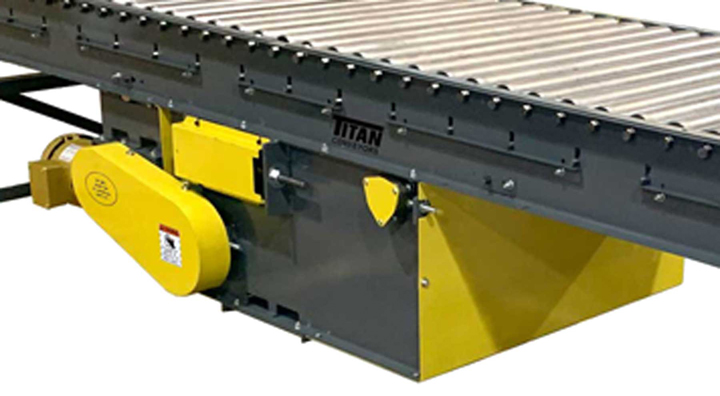

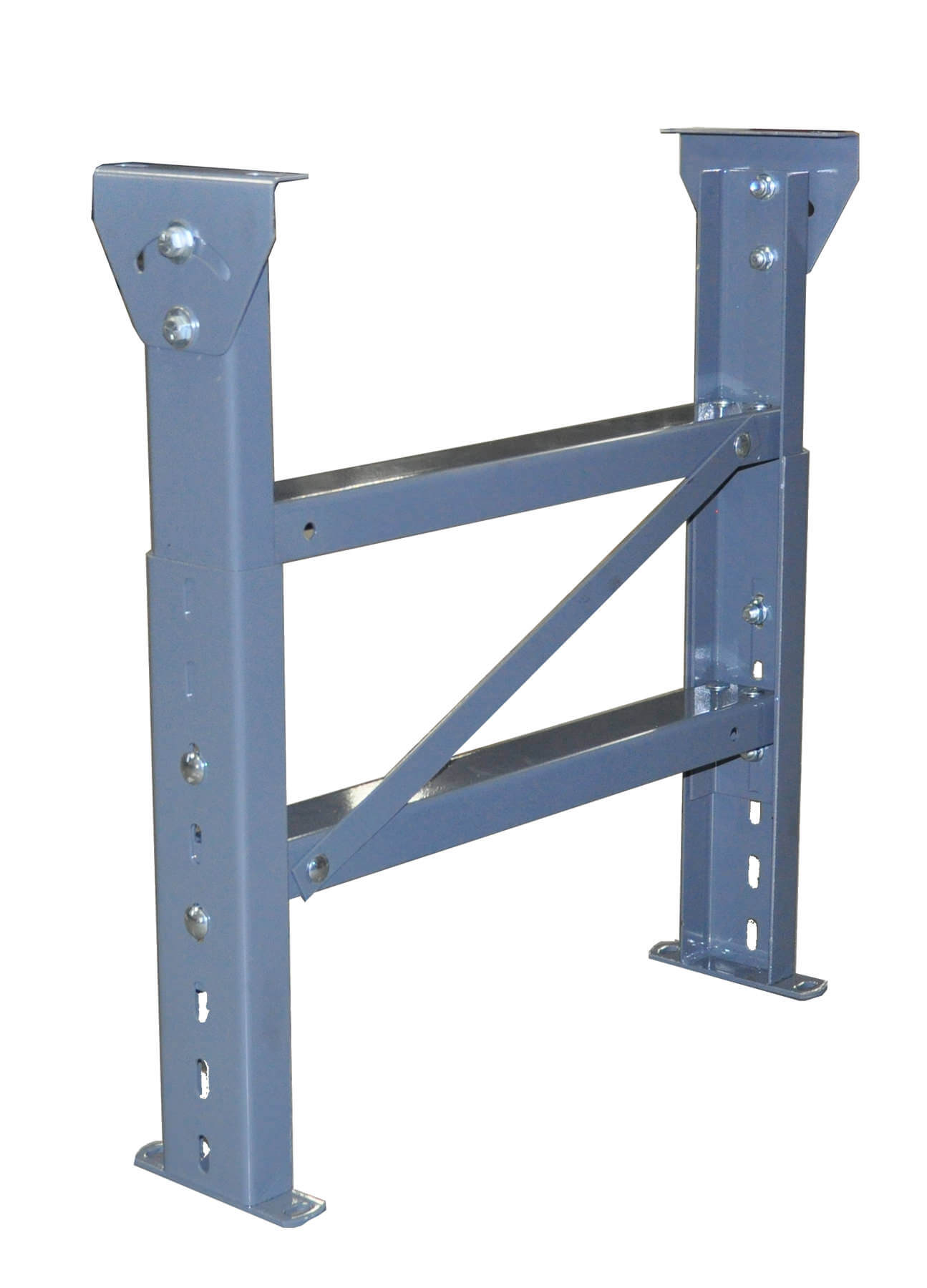

Bottom Mount Drive	Side Mount Drive	Center Drive Take Up	Top Mount Drive	Standard Supports	Micro Adjust Supports	Structural Support	Casters

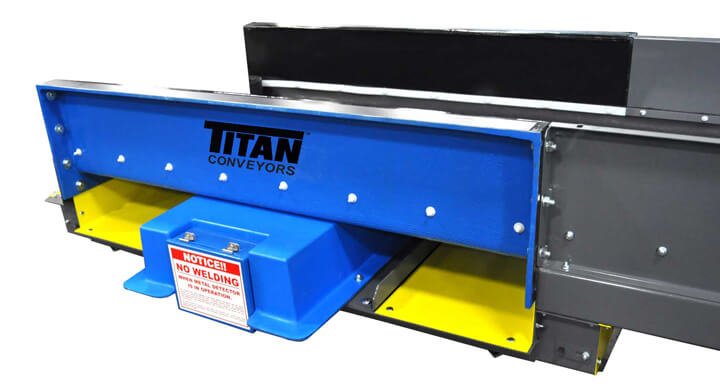

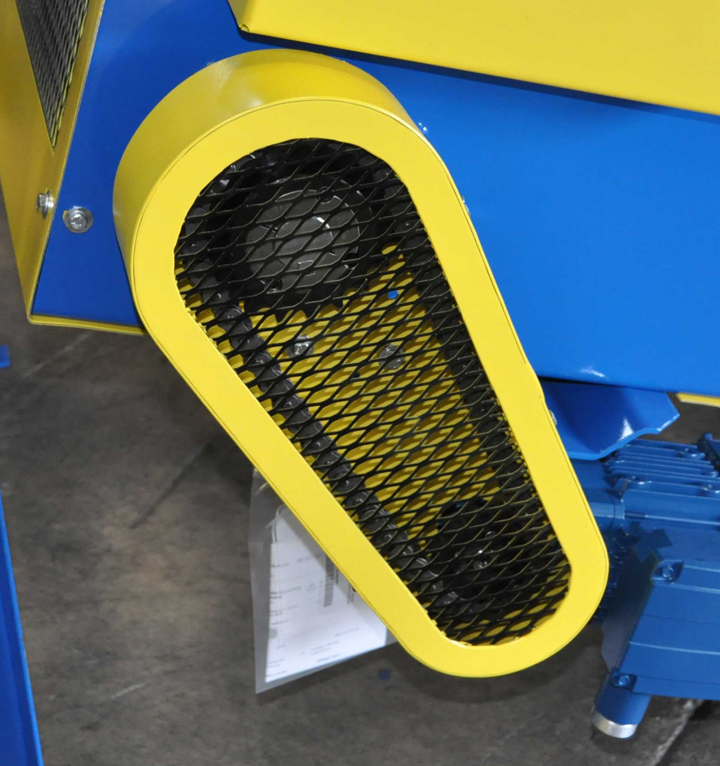

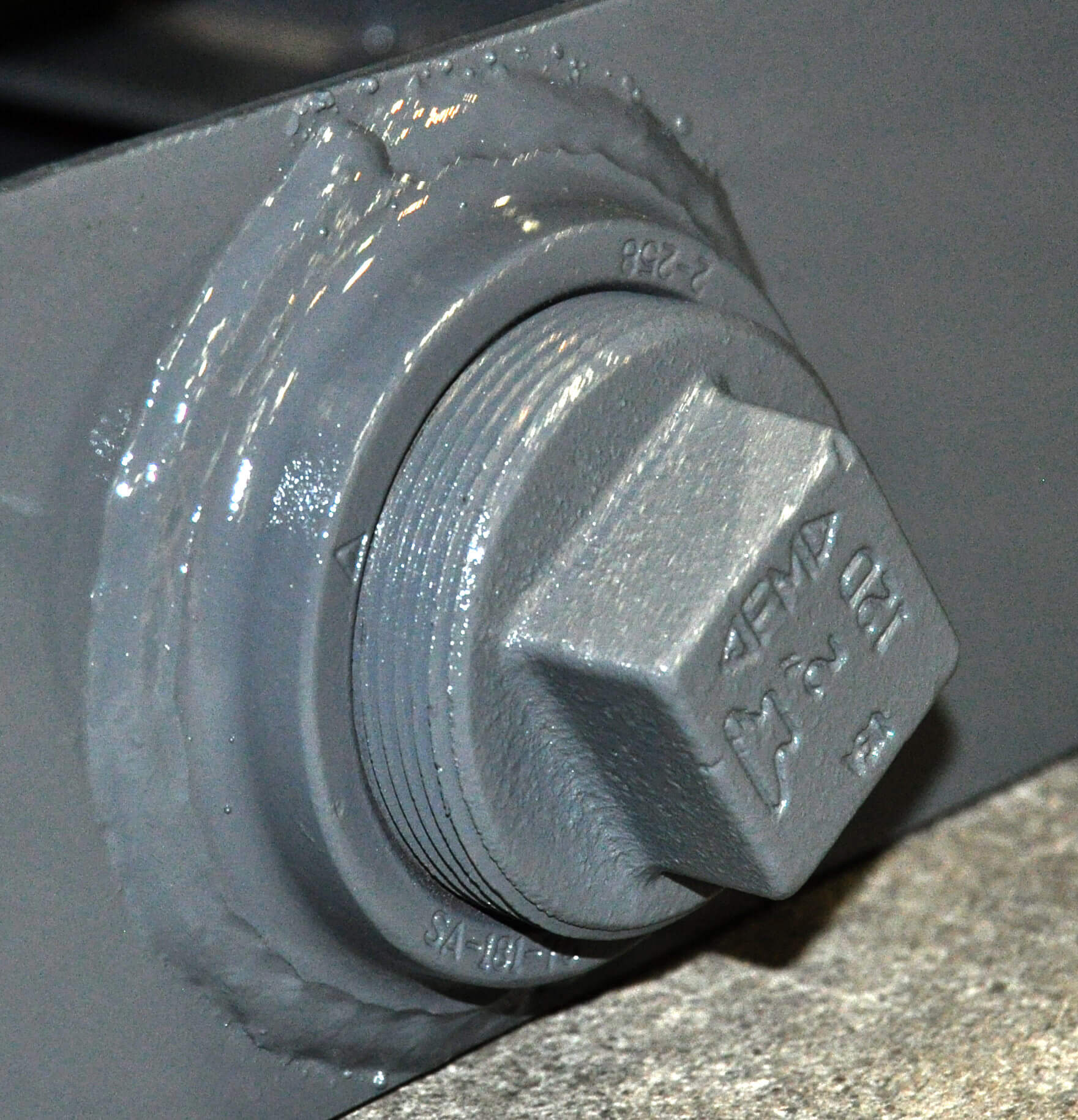

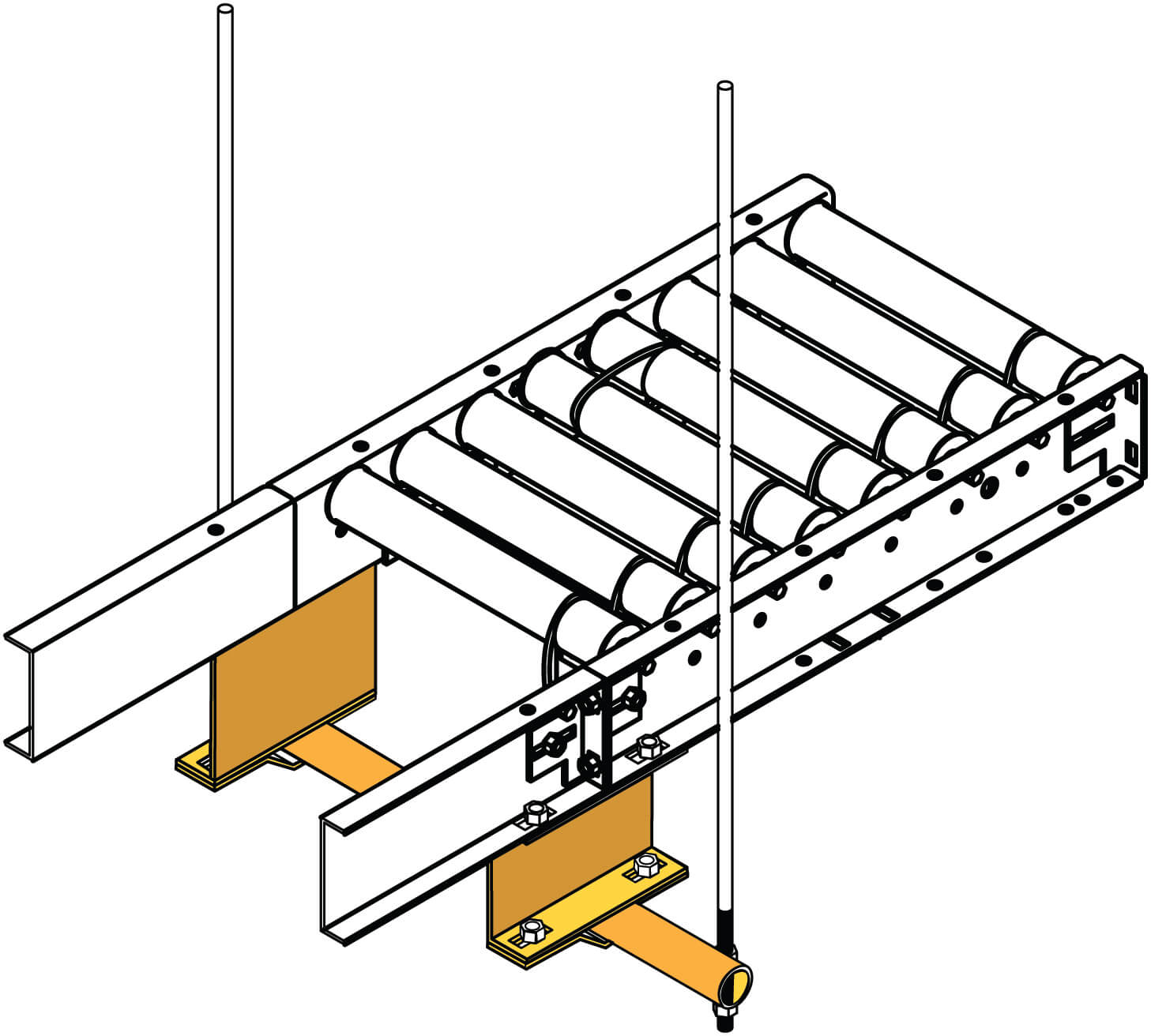

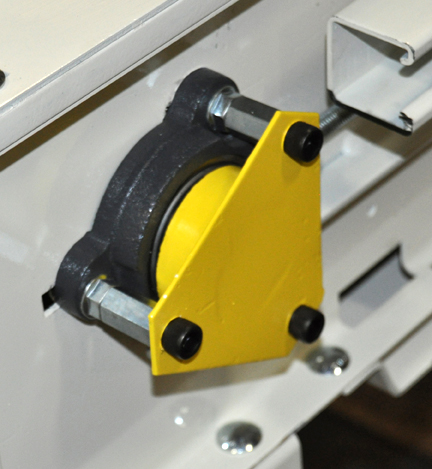

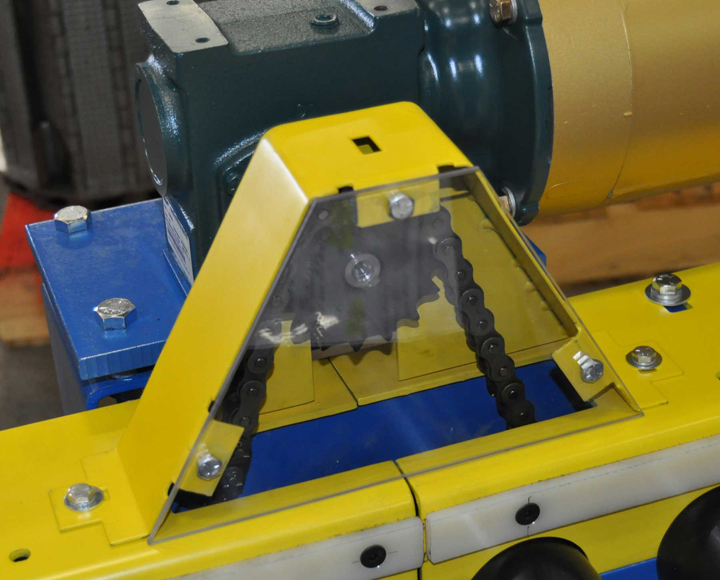

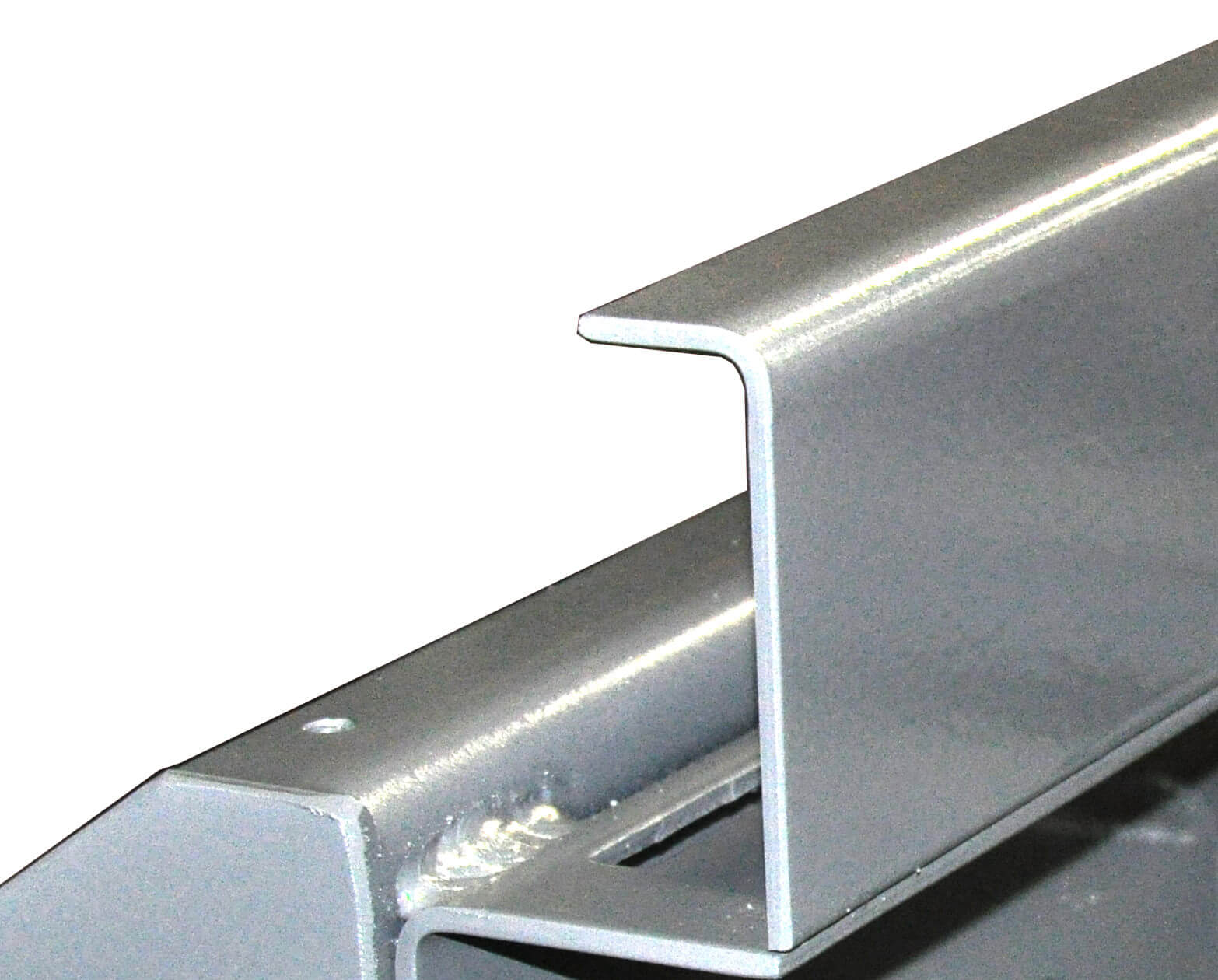

Metal Detector Unit	Ceiling Hangers	Fixed Siderails	Drain Plug	Top Covers	Bearing Guard	Expanded Metal Guard Cover	Plexiglas Guard Cover

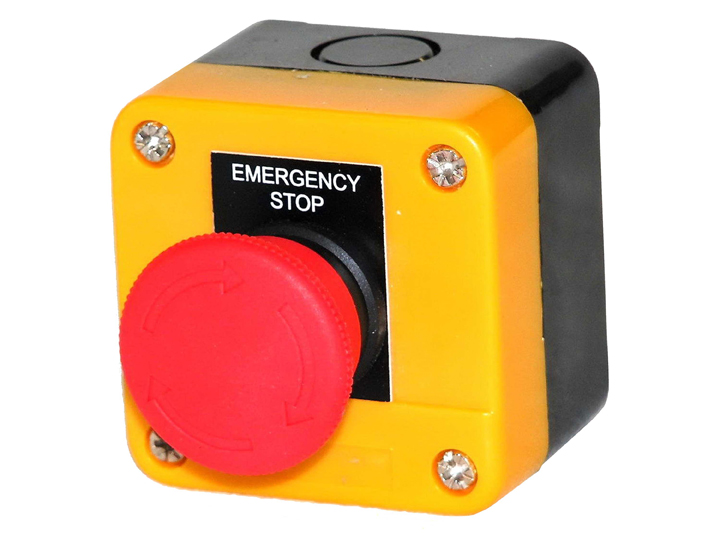

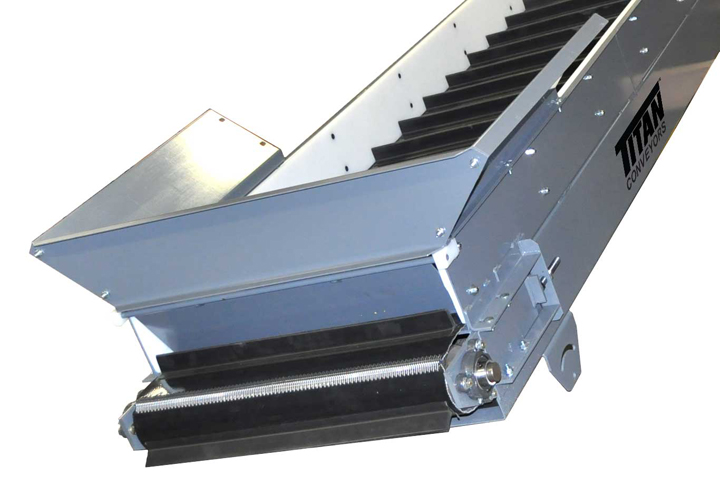

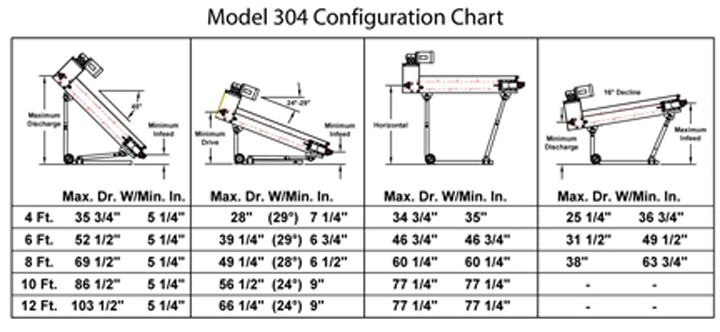

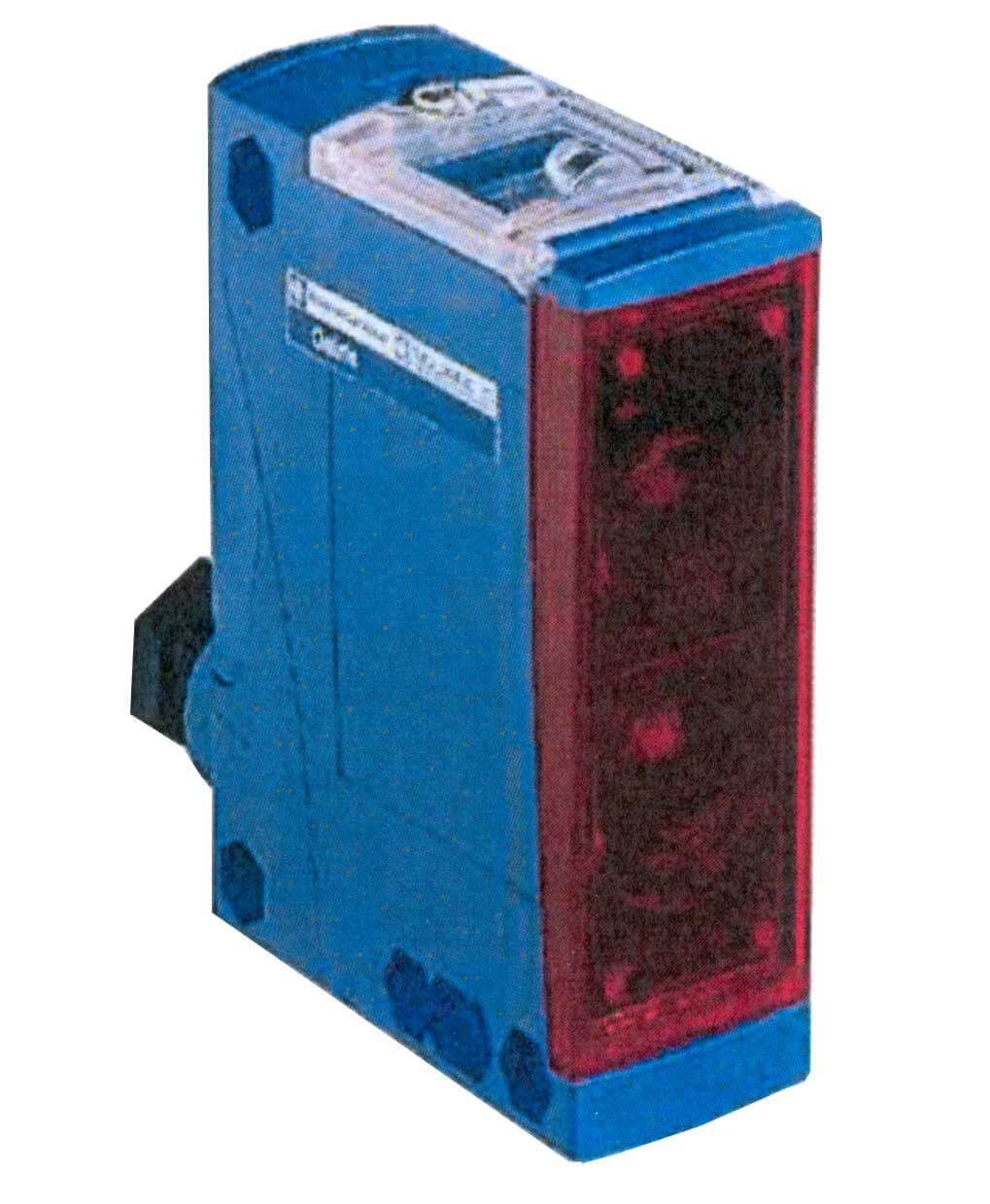

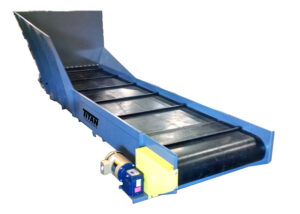

standard hopper on cleated belt conveyor	optional adjustable undercarriage chart	Photo Eye	Emergency Stop	VFD Control	Color Choice
