Titan 2-1/2″ Pitch Hinged Steel Belting

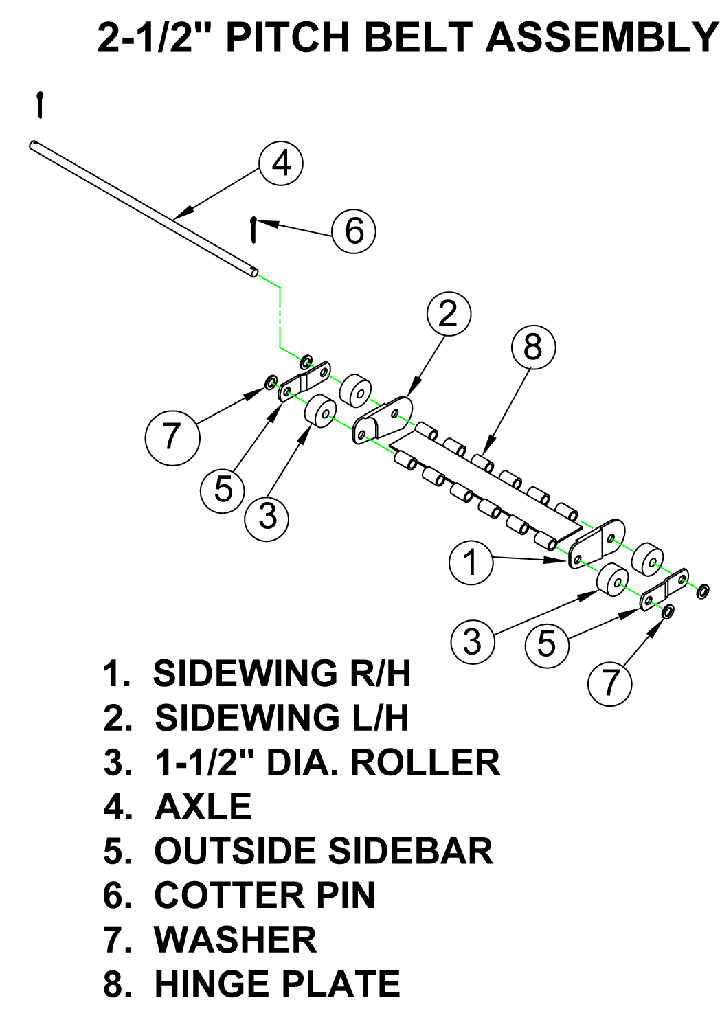

Diagram of Titan 2.5 inch pitch parts

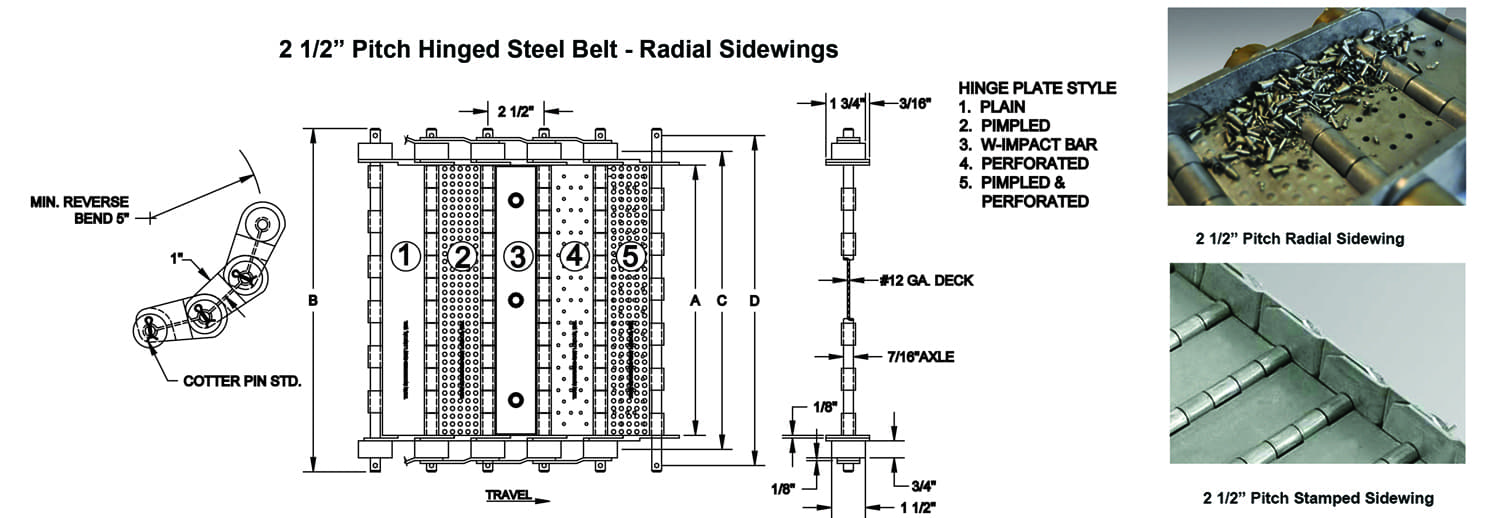

With exclusive Titan Radial Side Wings, the opening between side wings and apron is greatly reduced. Tight tolerance is maintained regardless of direction of belt flex. Titan’s hinged steel belts were developed to handle stampings, metal scrap, paper scrap, chips turnings, castings and parts, plus numerous other materials. The standard 2 1/2″ pitch belt is interchangeable with other conveyor or belt manufacturers. All parts on standard belts are available from stock. Standard profile and low profile side wings are available.

Replacement Parts

First Name(Required)

Last Name(Required)

Company(Required)

Address(Required)

Street Address City State/Province Zip Country

Phone(Required)

Email(Required)

Titan Conveyor Serial Number(Required)

Enter Quantities

Sidewing-Right Hand

Sidewing-Left Hand

1-1/2” Diameter Roller

Axle

Outside Sidebar

Cotter Pin

Washer

Hinge Plate

Hinge Plate Type

Cut Hinge Plate (Less Than 12") Specify Length and Type

26196
