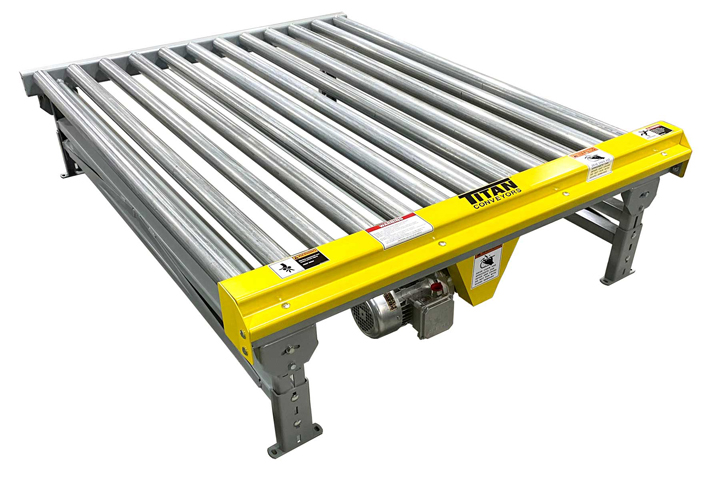

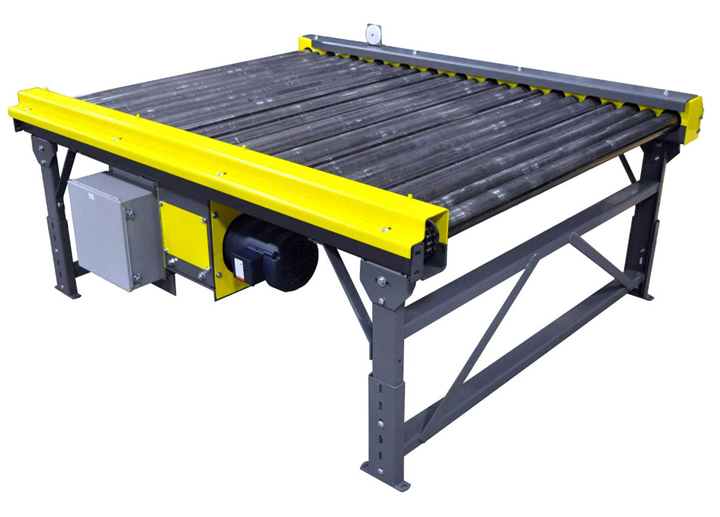

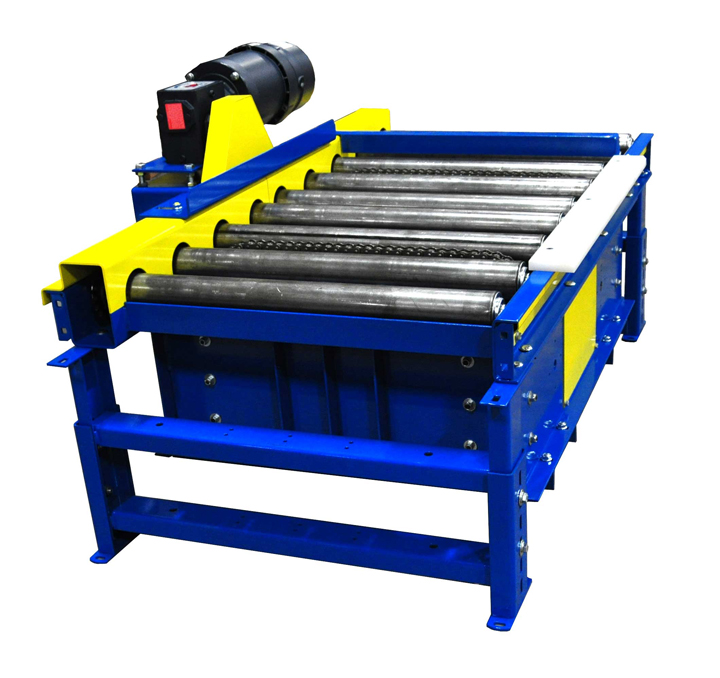

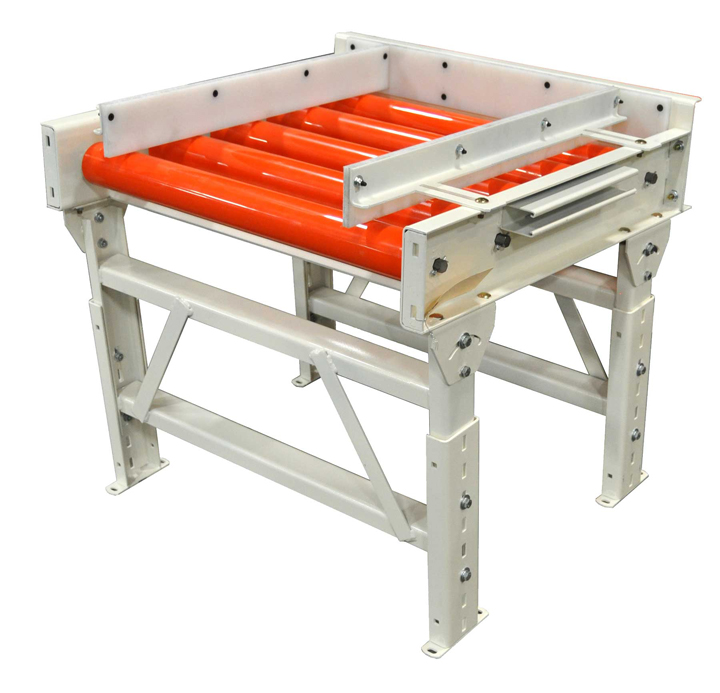

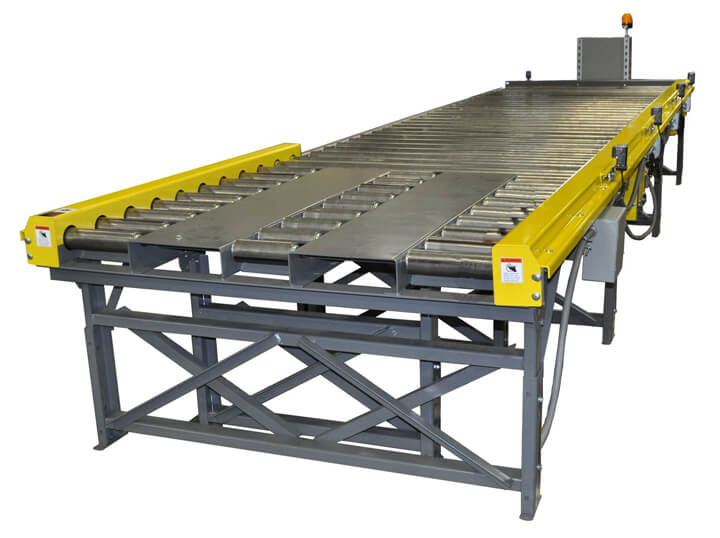

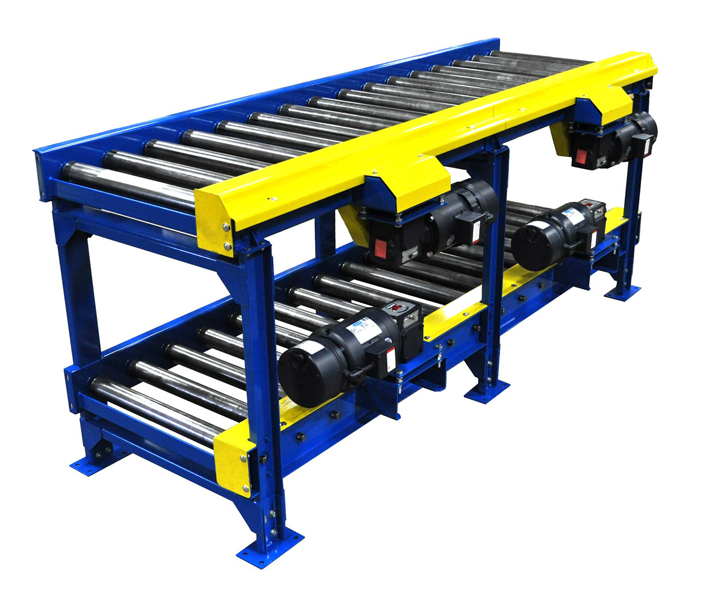

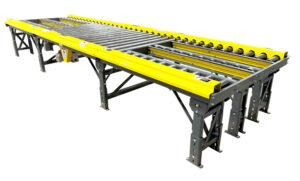

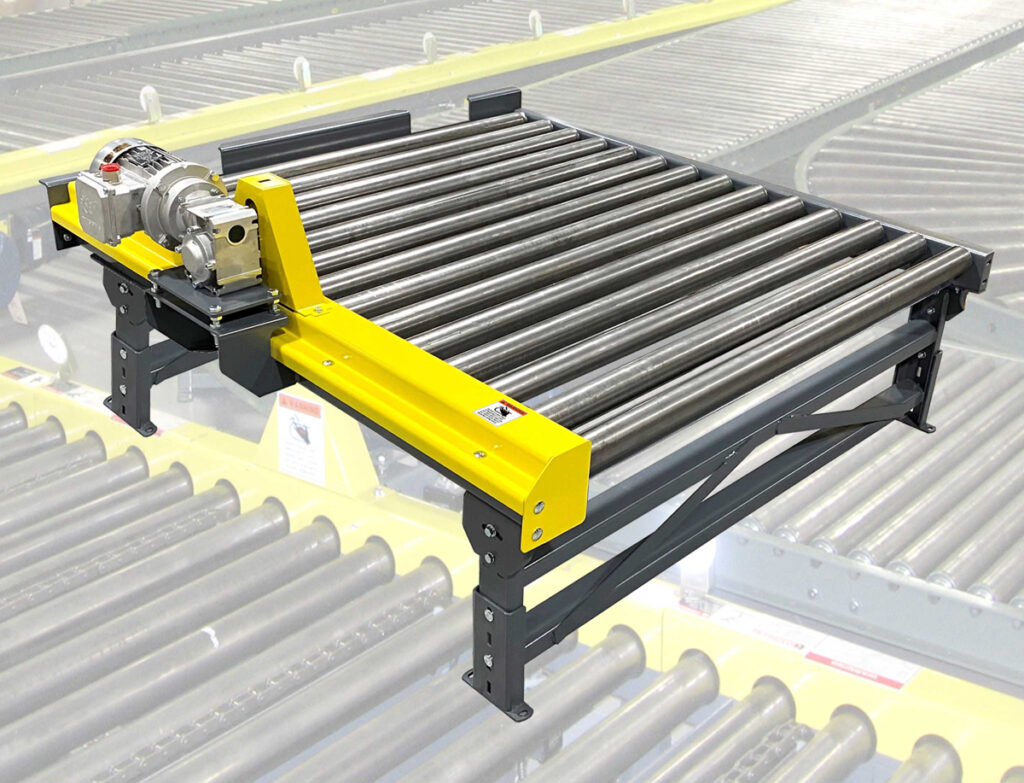

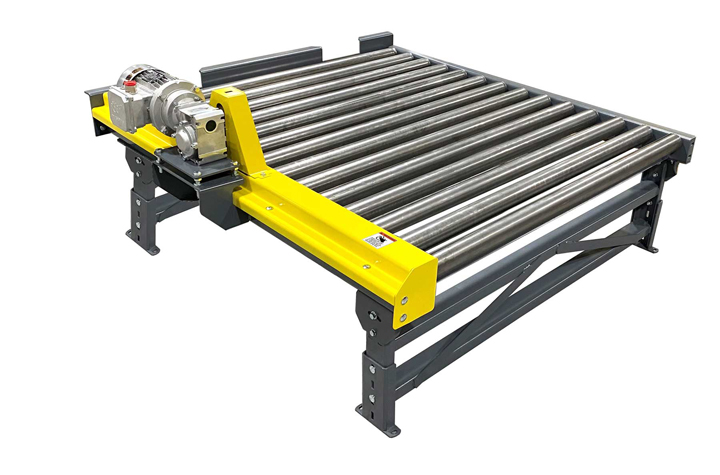

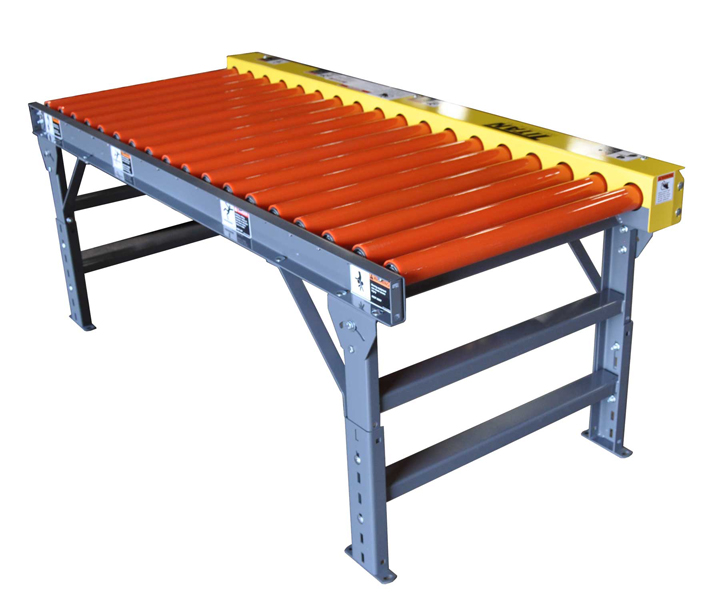

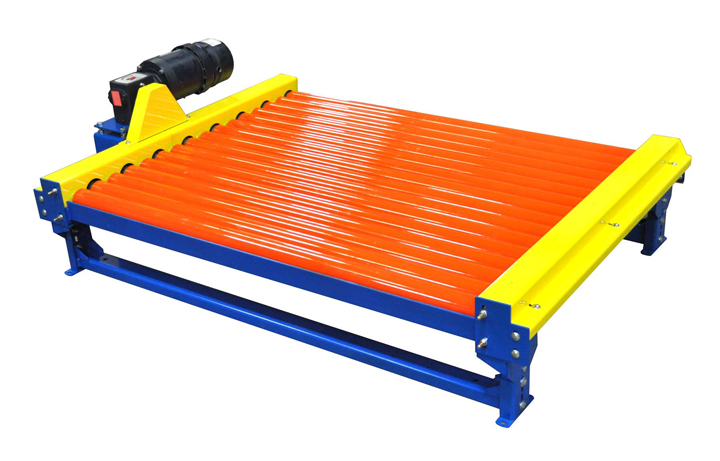

Model 525

Chain Driven Live Roller Conveyor

Model Description:

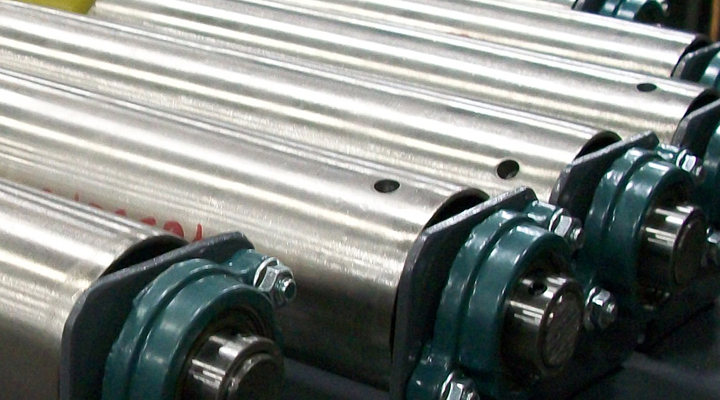

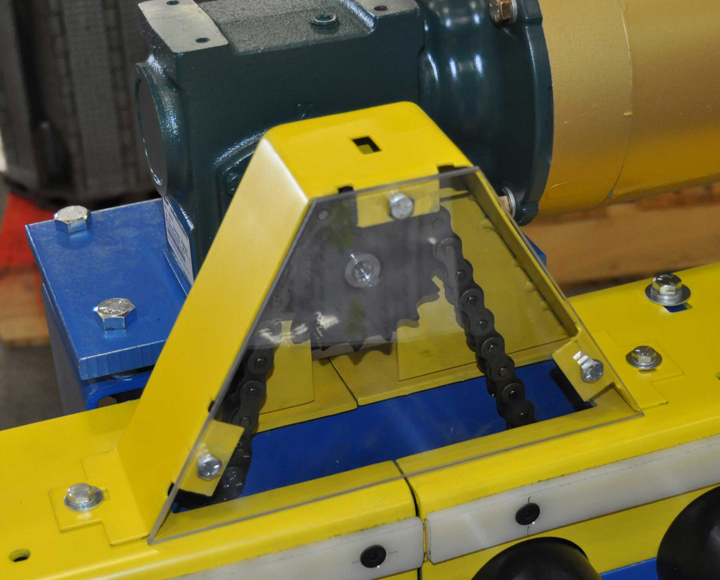

The Model 525 is designed to handle heavy loads including skids, drums, and pallets. This unit incorporates a number 50 chain with a roll-to-roll drive. The frame is a heavy formed 7 gauge construction with a one piece chain guard. Rollers are 2-1/2" diameter x 11 gauge (580 lb. capacity) centers are 2-13/16", 3-7/16", 4-3/8", 5", 5-15/16" and 10".

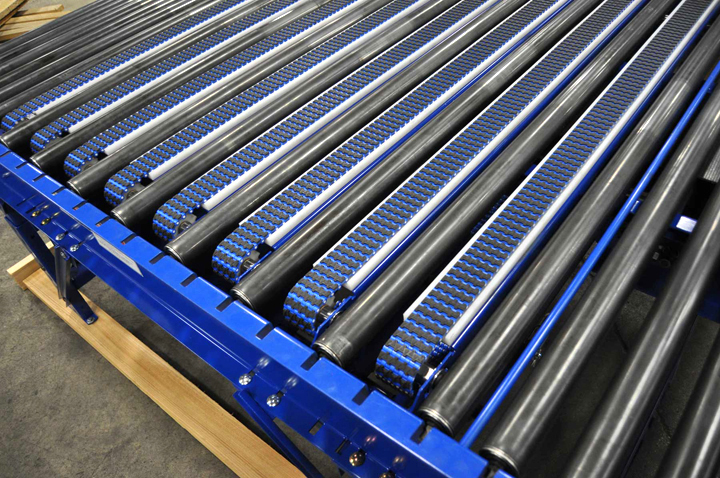

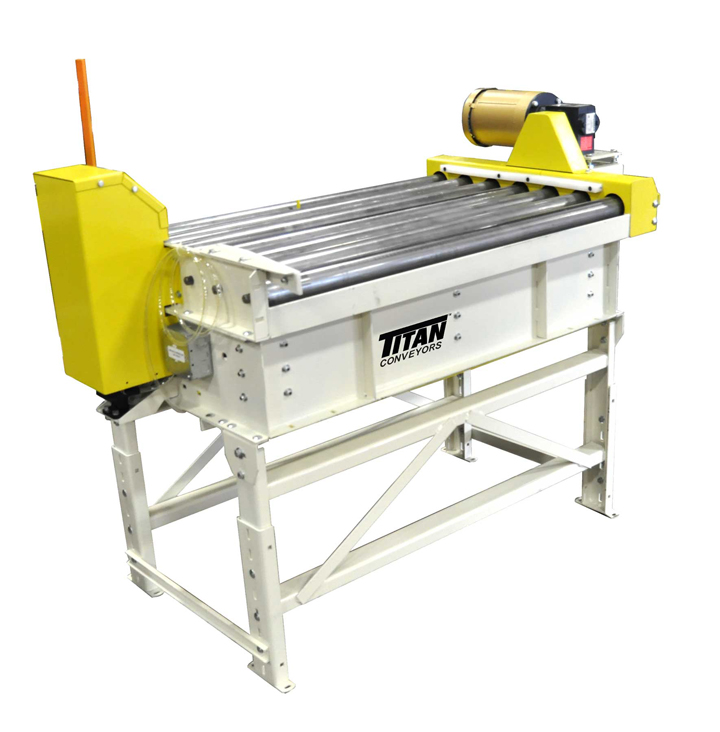

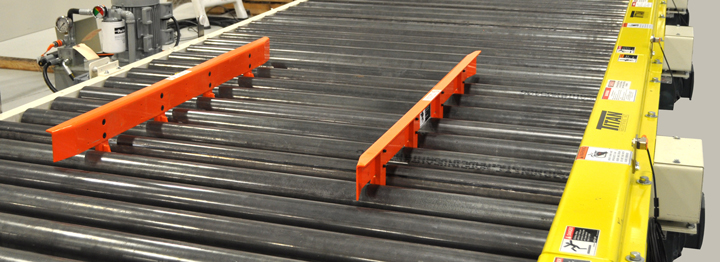

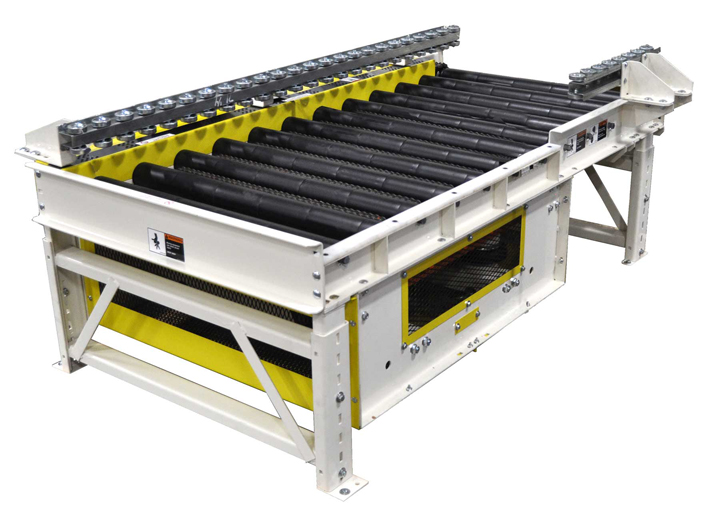

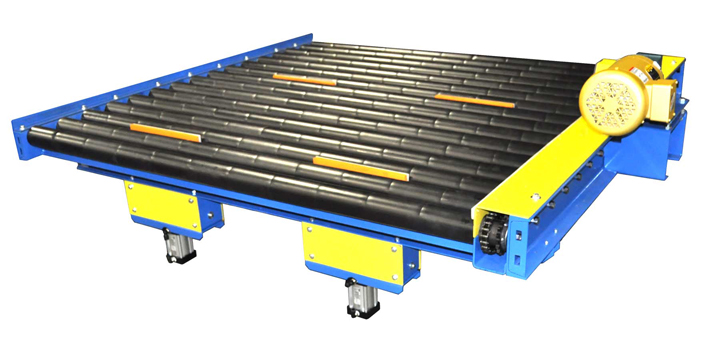

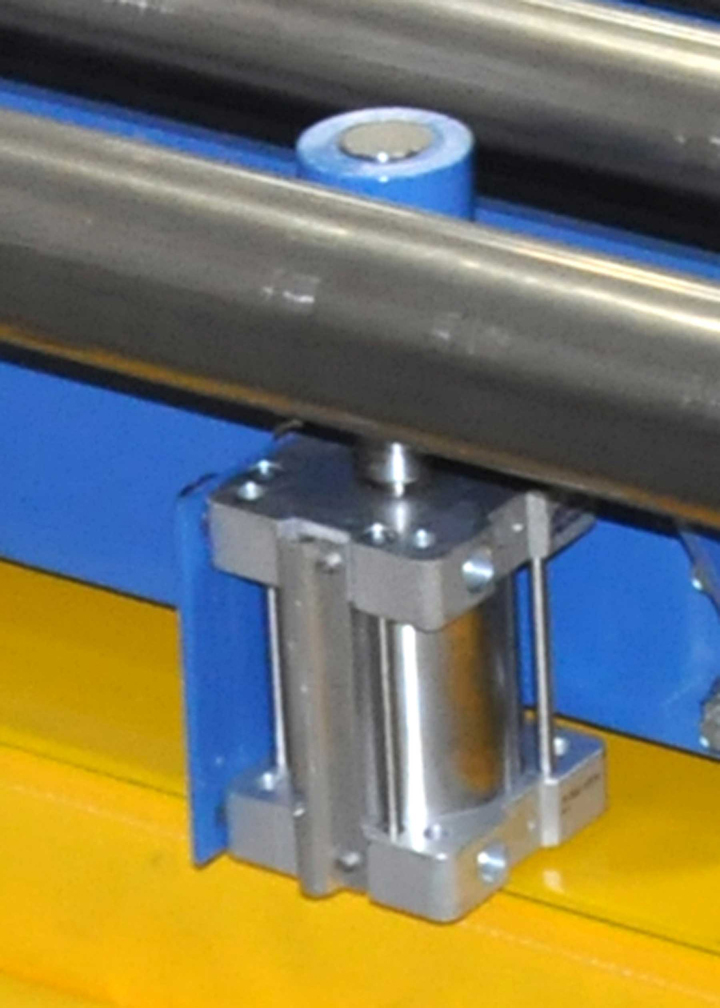

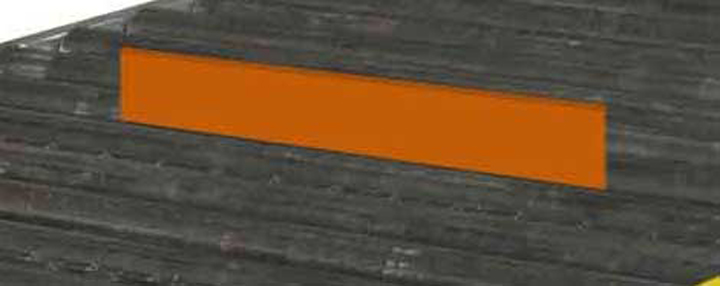

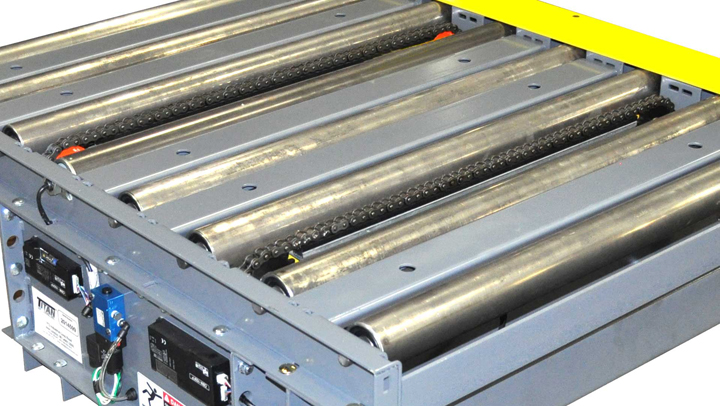

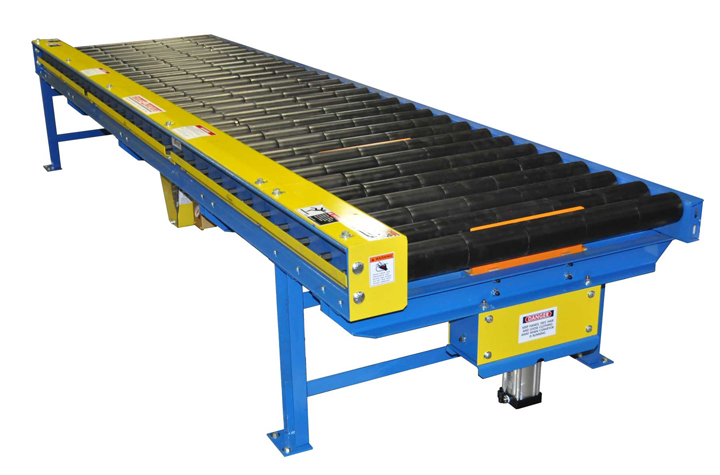

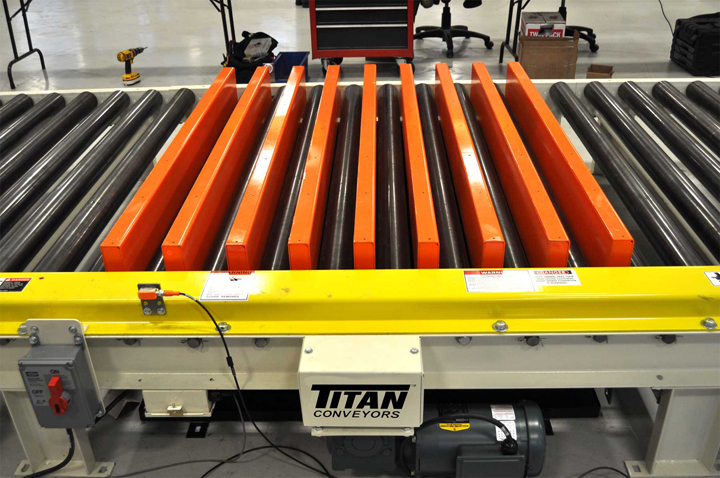

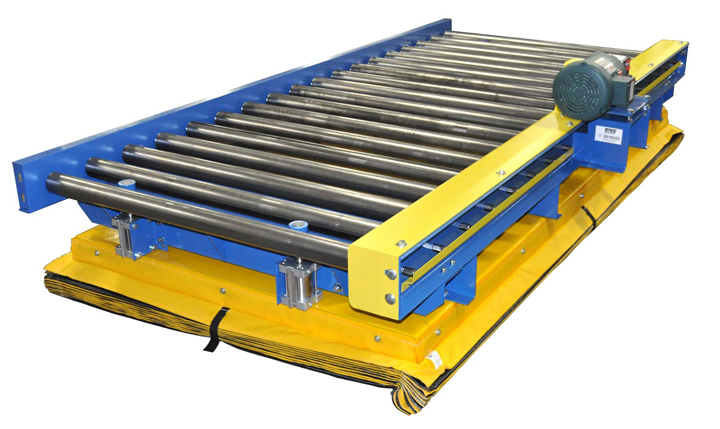

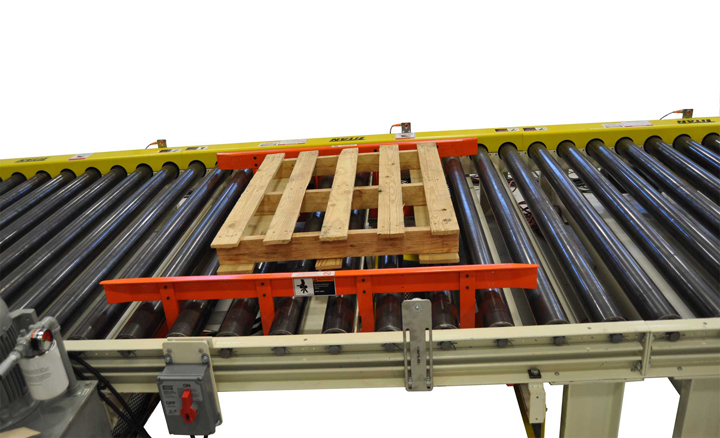

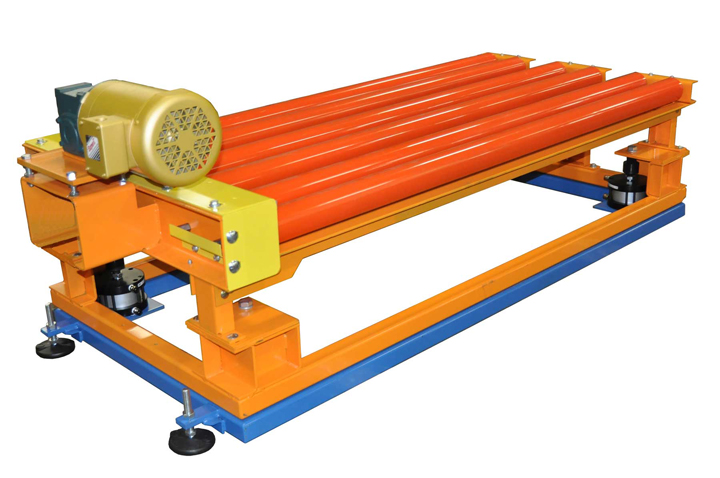

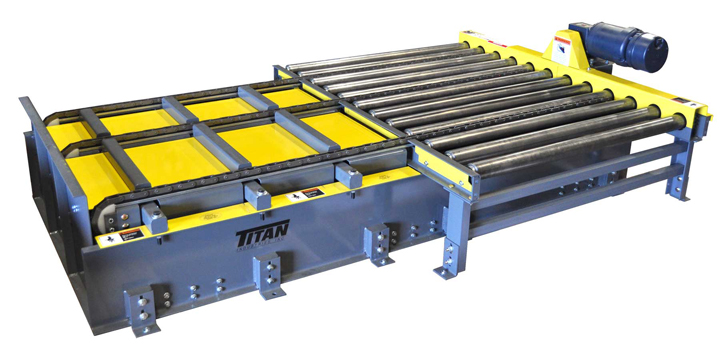

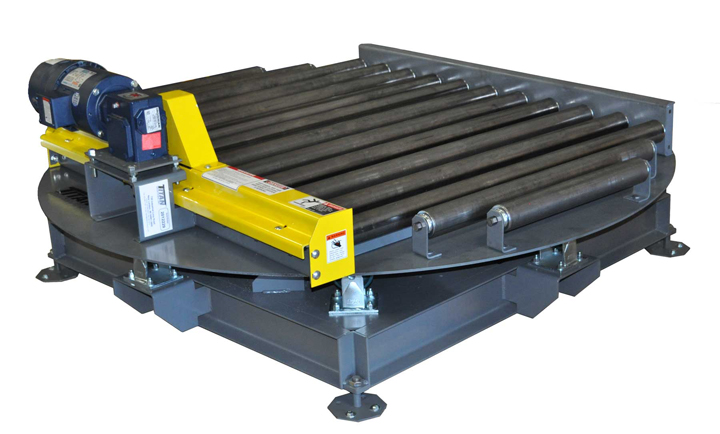

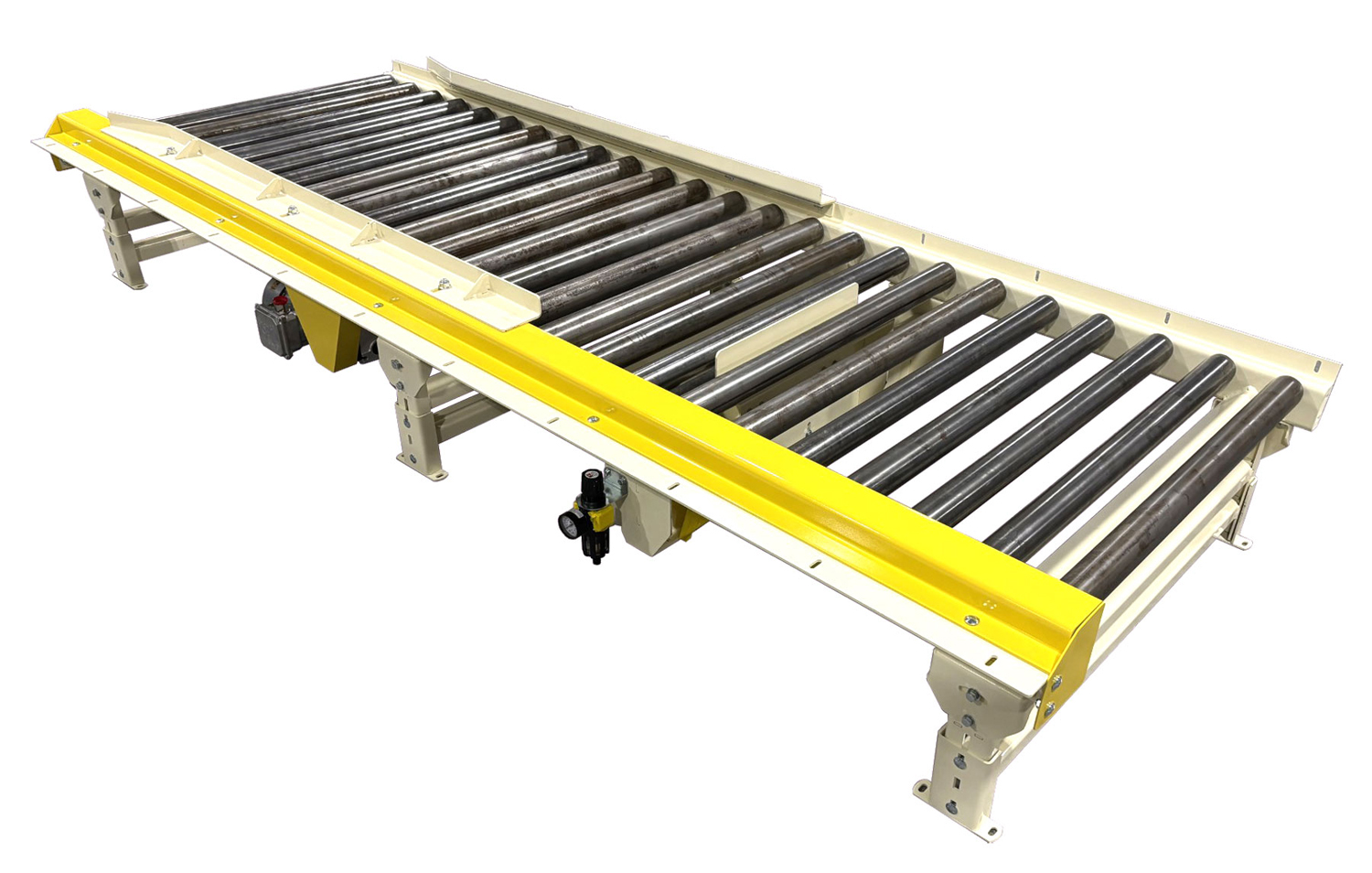

Titan Pop-Up Transfers, Stops, Pallet Centering, Pallet Lifts, Pallet Crowders and Product Rotation units are designed for integration in Titan roller conveyor systems.

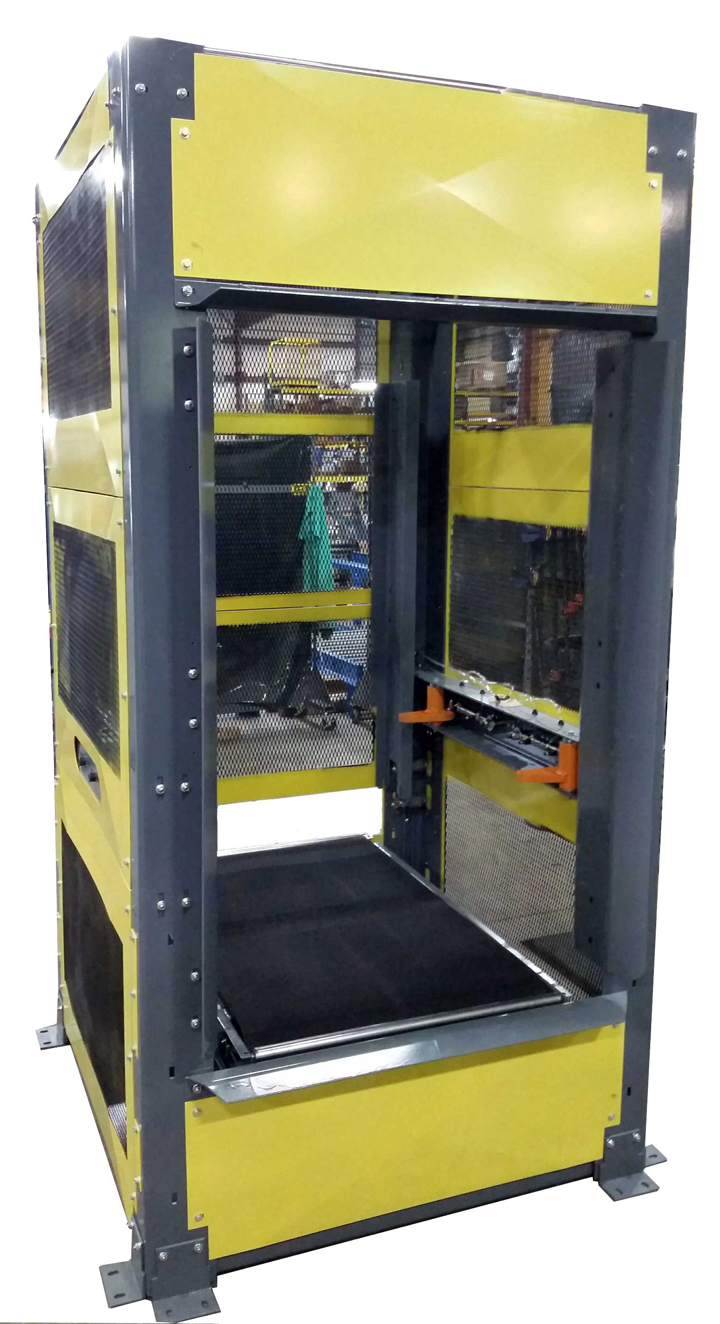

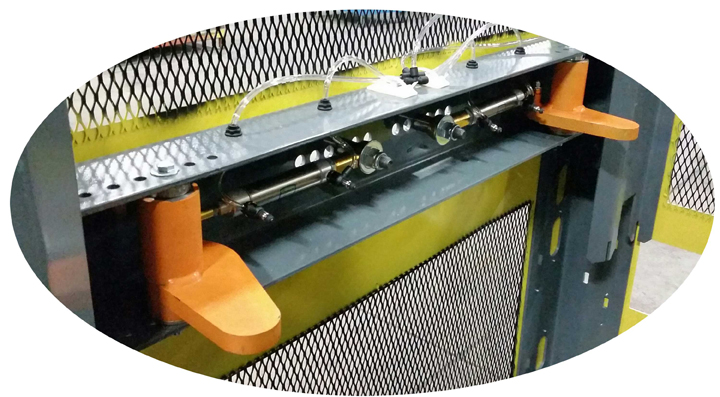

Pallet Destacker - is designed to stack or destack pallets in automated pallet handling systems.  See more details under the Drawings tab below or contact Titan directly to get details on the Pallet Destacker custom designed and built to meet your needs.

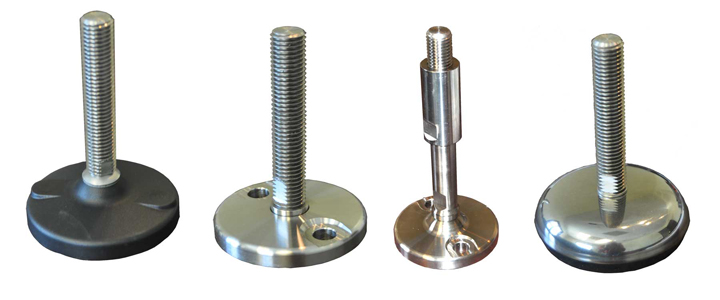

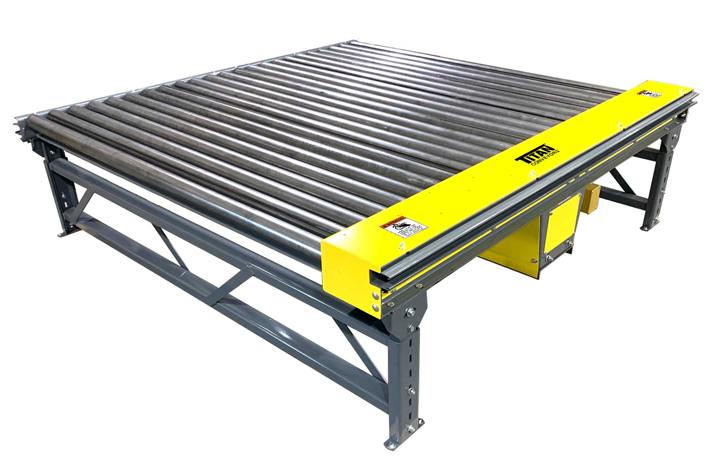

Standard floor supports supplied are adjustable. This model is available in lengths to meet your needs (min length: 4-1/2"). Consult the factory for further details.

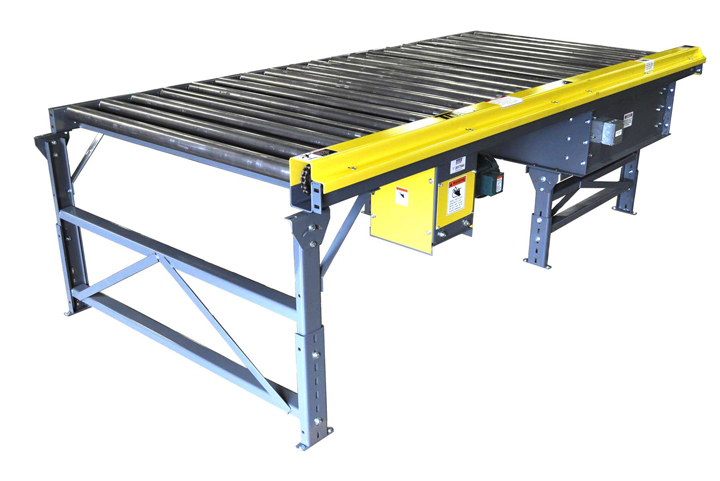

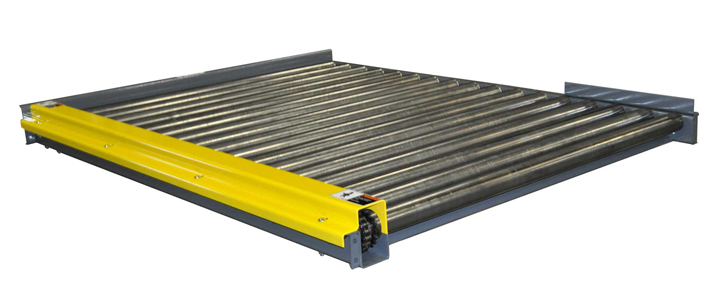

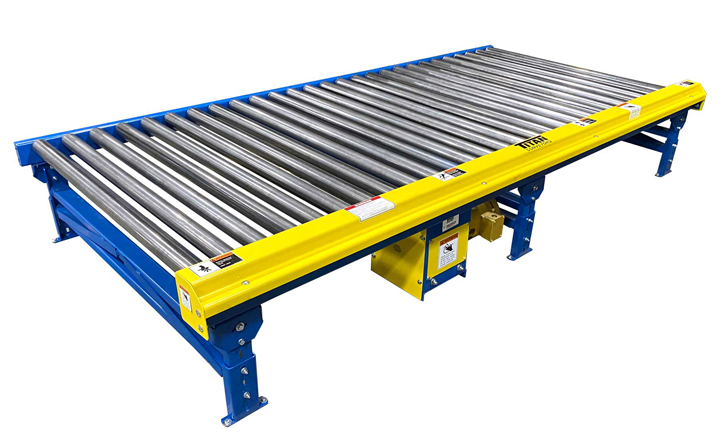

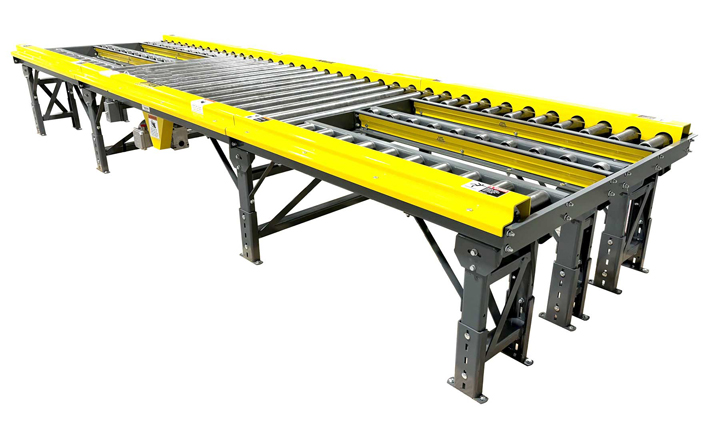

Model 525 Chain Driven Live Roller Conveyor:

Effective Widths: 15" to 72"

Bearings: Grease Sealed

Chain: #50 Roll-to-Roll Drive

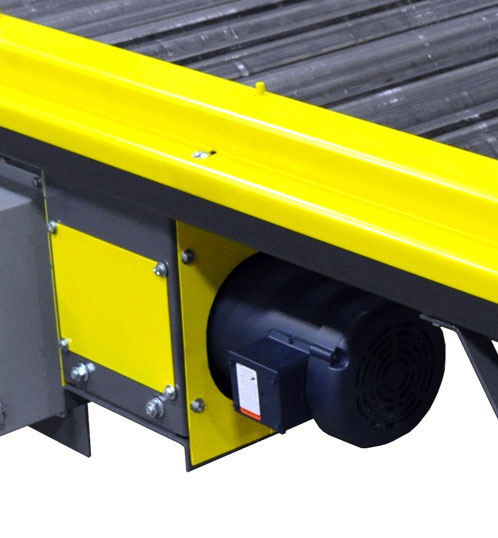

Drive: 3/4 H.P. 230/460/3/60

Frame: Formed 7 Gauge

Paint: One Coat Industrial Enamel

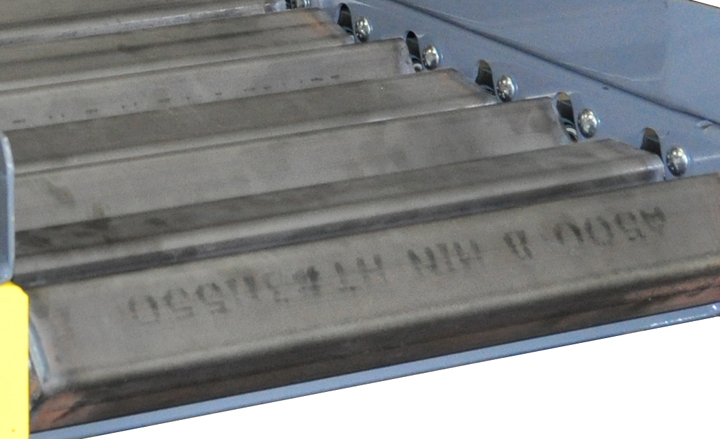

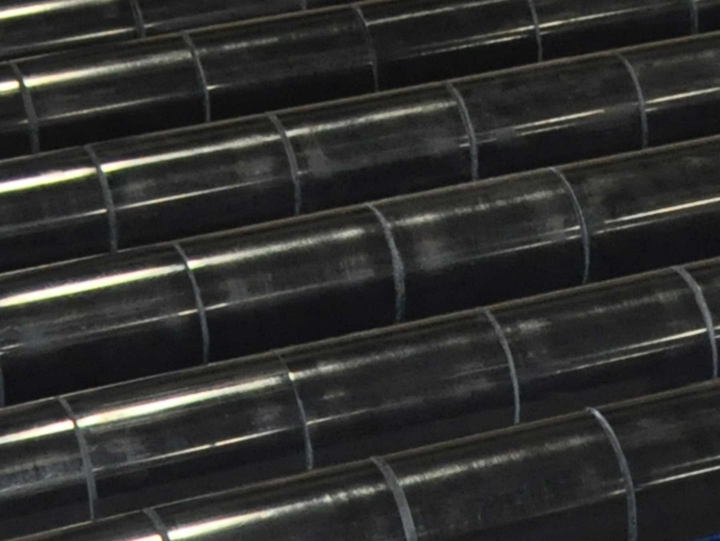

Rollers: 2-1/2" dia. X ga. Or 2-5/8/" dia. X 7 ga.

Speed: 30 F.P.M.

Supports: "H" Type Adjustable
