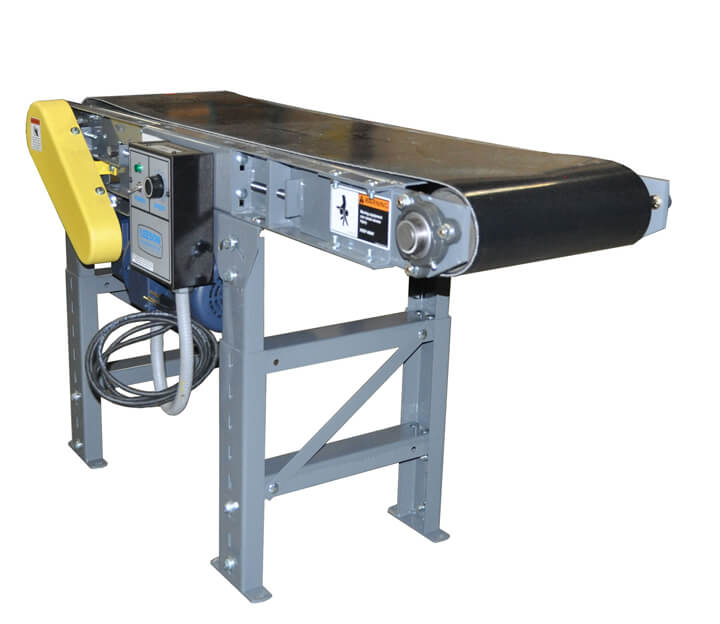

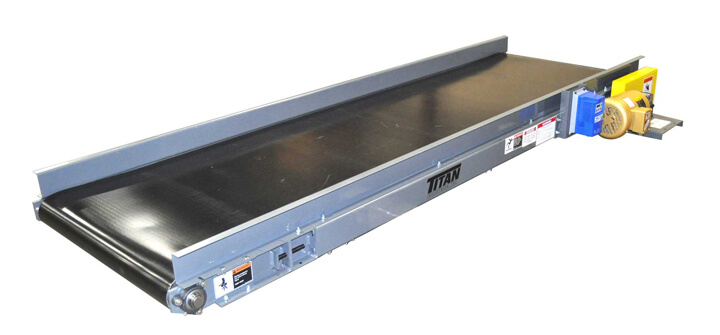

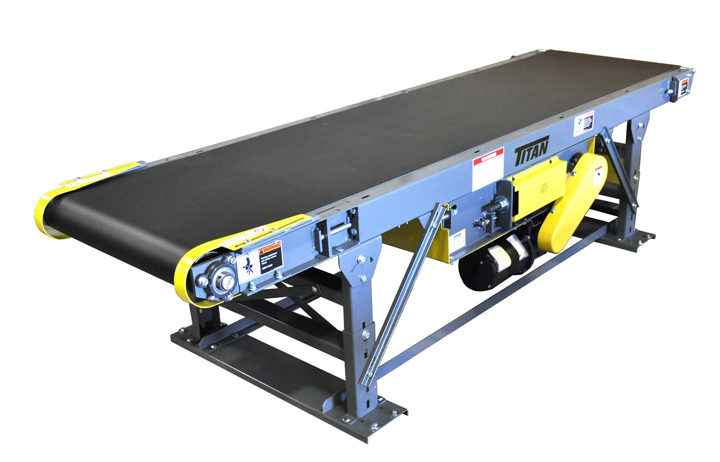

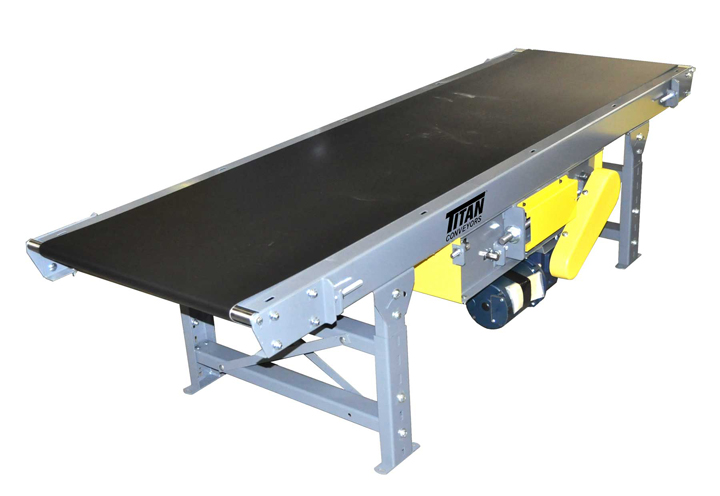

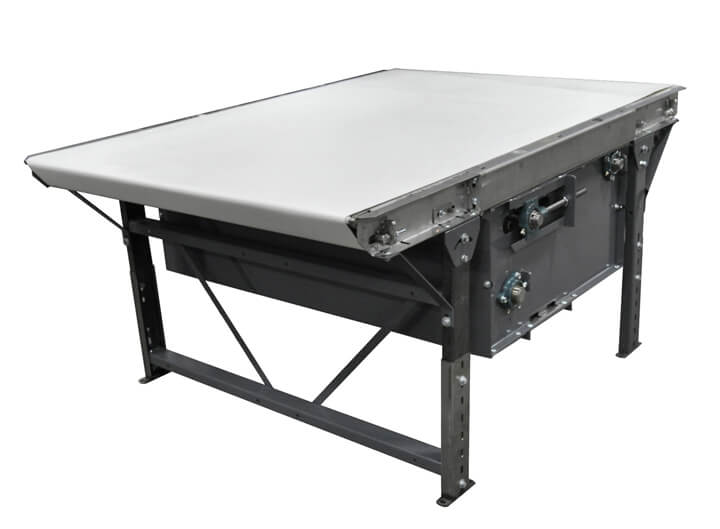

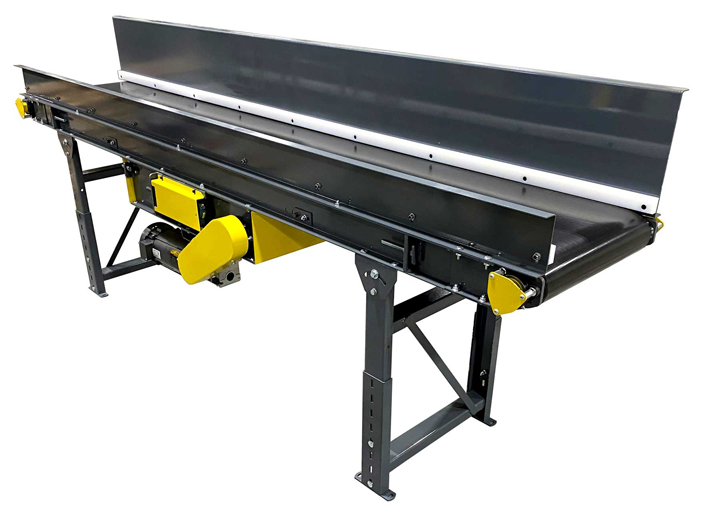

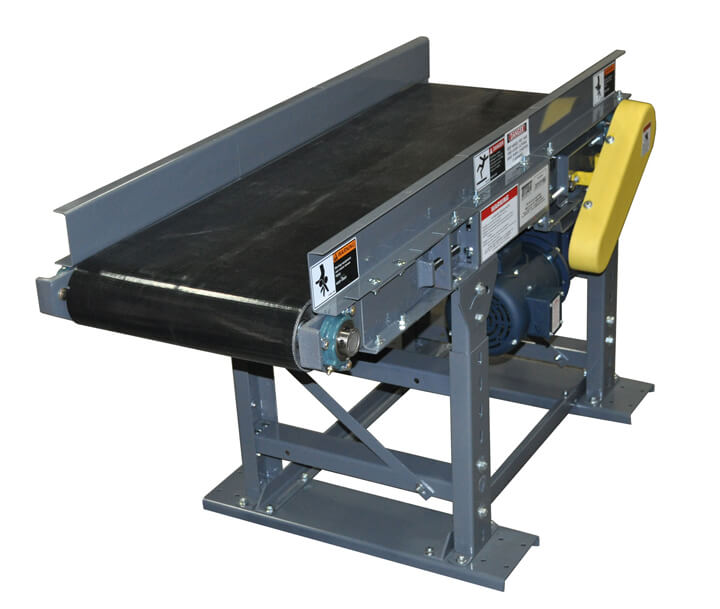

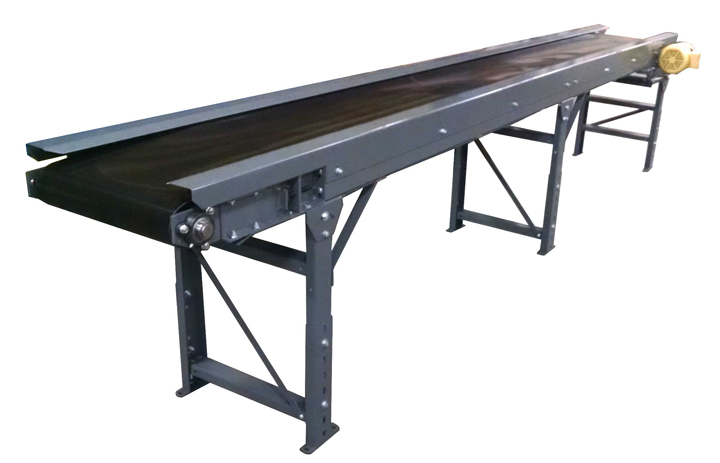

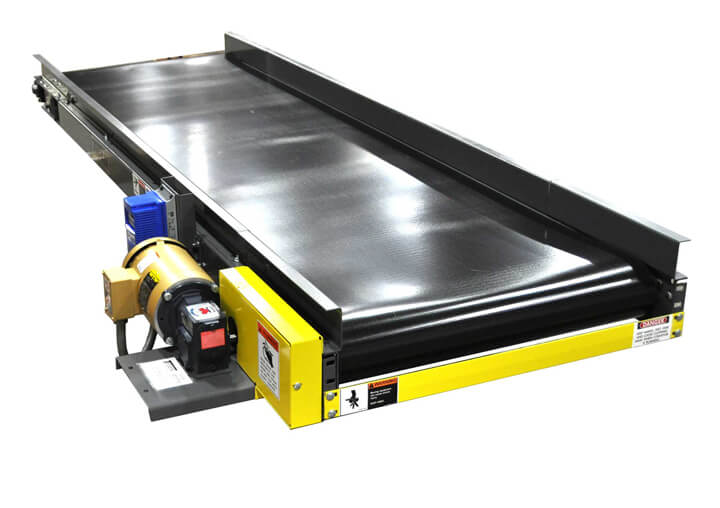

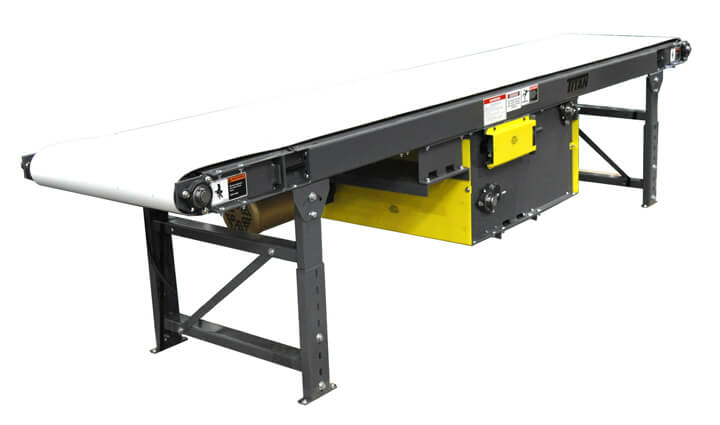

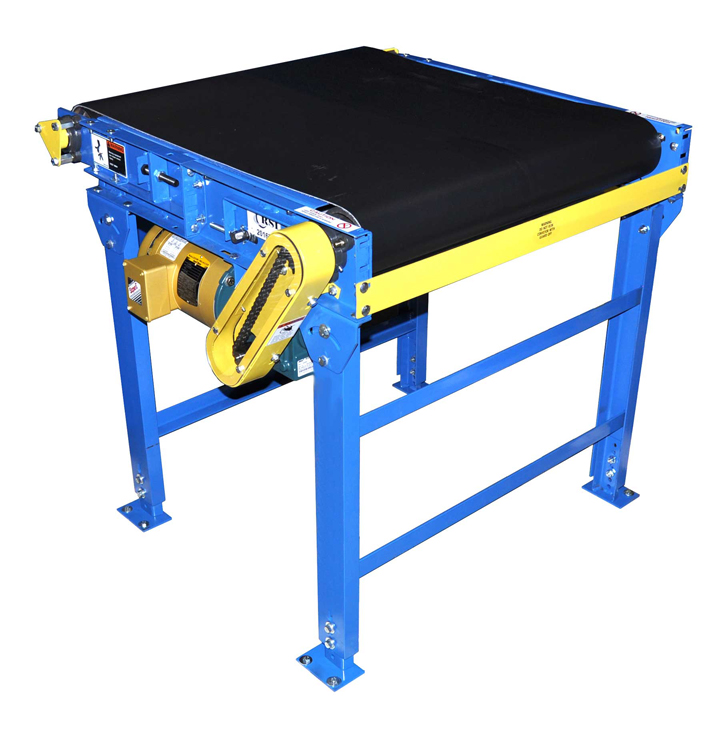

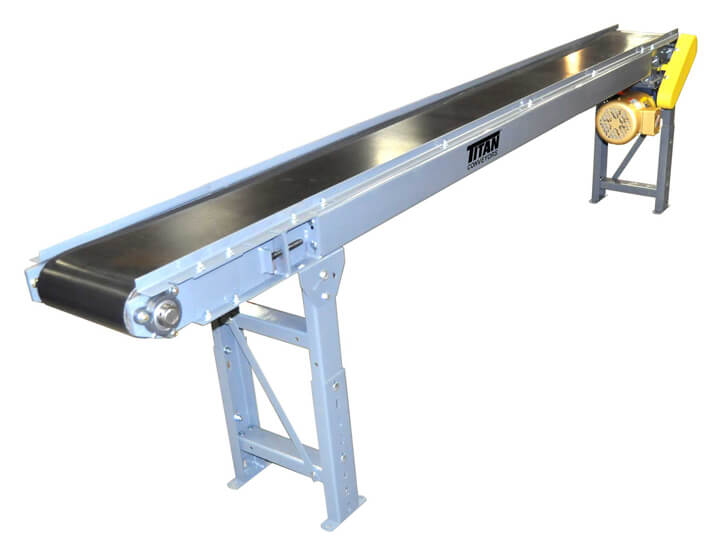

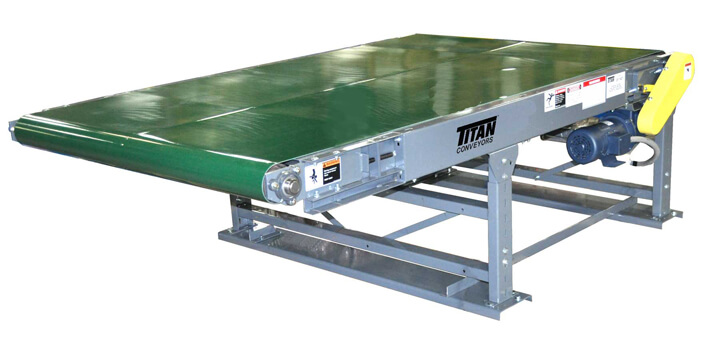

Model 104

Slider Bed Belt Conveyors

Model Description:

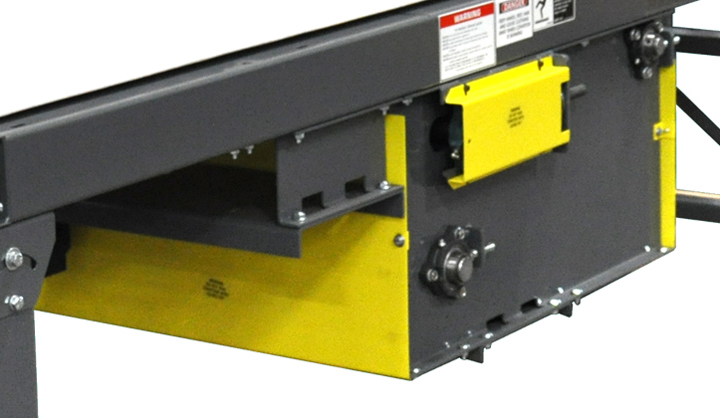

The Model 104 Slider Bed Belt is designed with the systems approach in mind.  The square head and tail end terminals and the standard 4" deep formed frame allow you the flexibility to combine this unit with other Titan models to assure a continuous flow of material. This is our most popular slider bed conveyor and is suitable for most applications requiring a basic belt conveyor to move material from point A to point B.  Screw type take-ups and 4" diameter crown face pulleys are some of the standard design features.  Modular design allows you the flexibility to add additional sections if required.  As with all Titan Conveyors, there is an endless list of options to customize your conveyor.

Model 104 Slider Bed Belt Specifications:

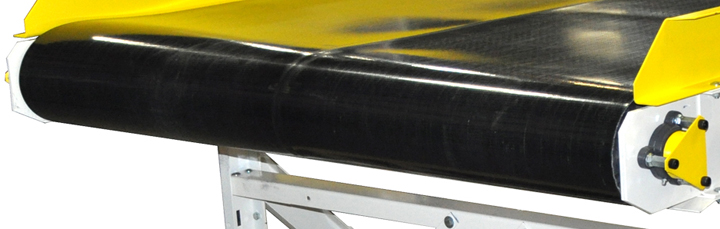

Belt Width: 4" to 48"

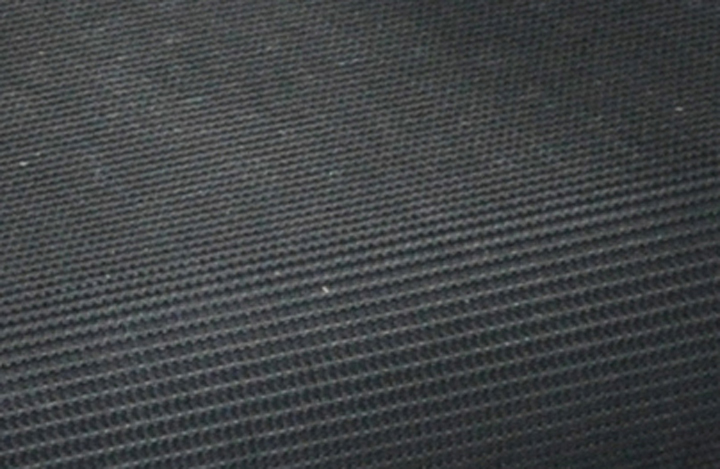

Belt: Black P.V.C.

Belt Speed: Various

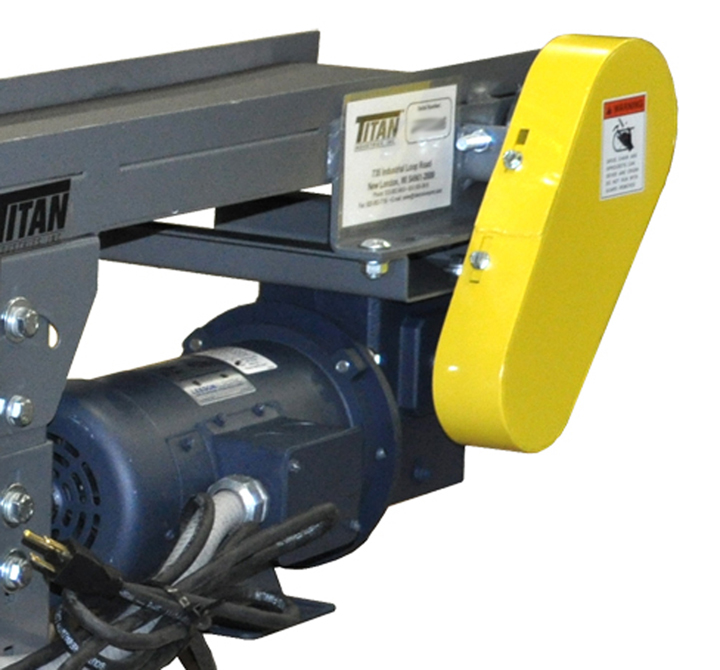

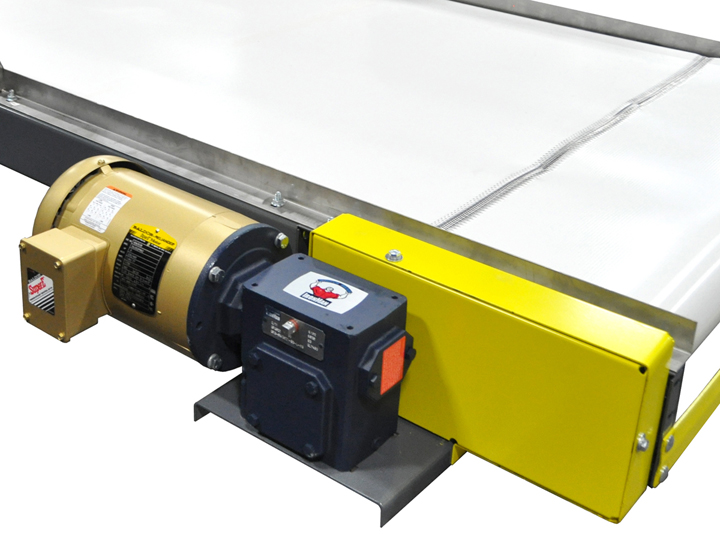

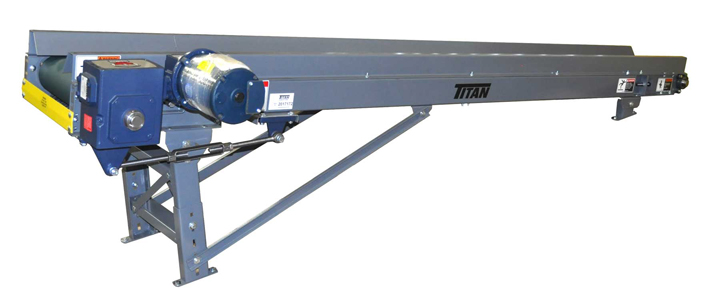

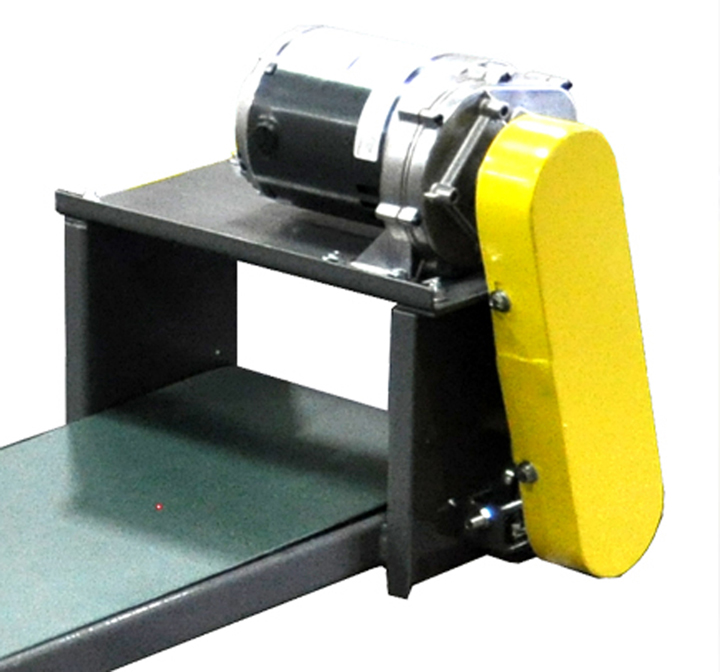

Drive: 1/2 H.P. 230/460/3/60

Bearings: Grease Sealed

Frame: 4" Deep Formed 12 Gauge

Paint: One Coat Industrial Enamel

Pulleys: 4" Dia. Crown Face Rubber Lagged Drive; 4" Dia. Crown Face Take-Up

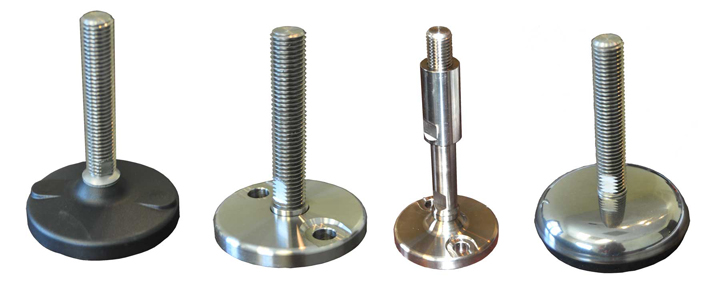

Supports: "H" Type Adjustable
