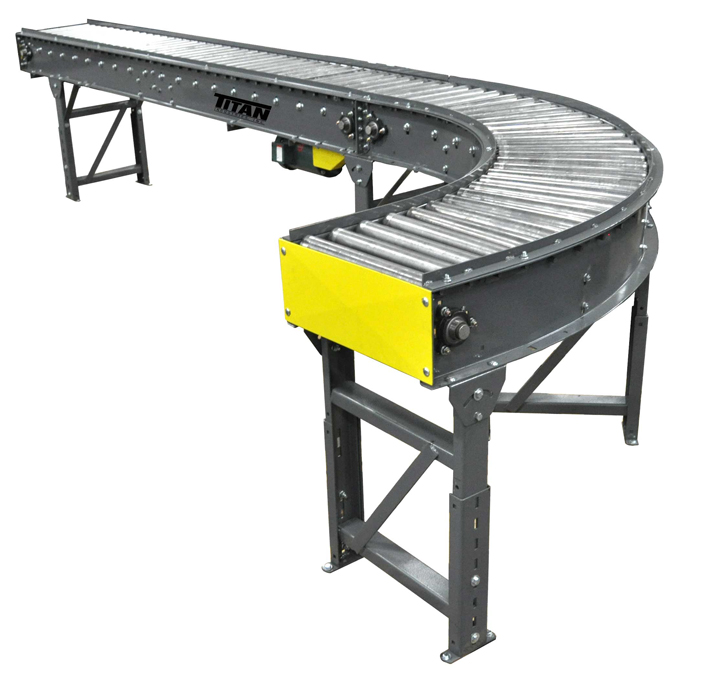

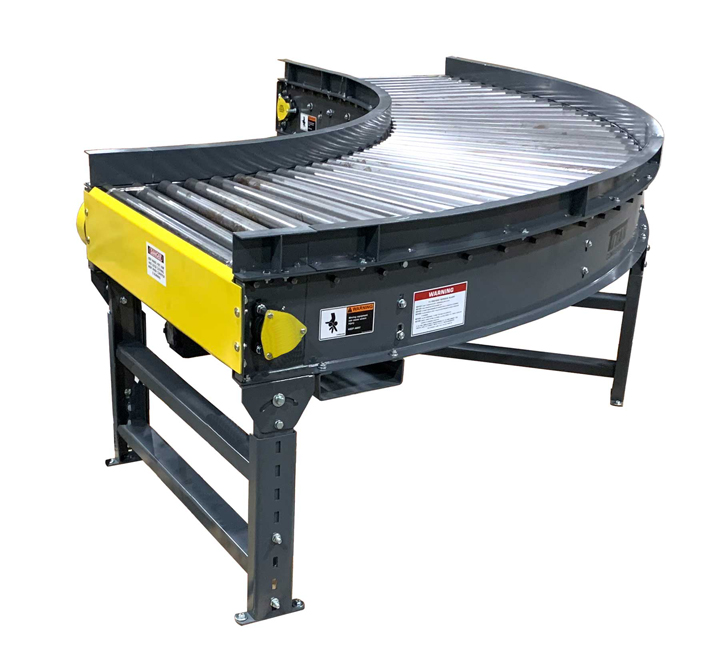

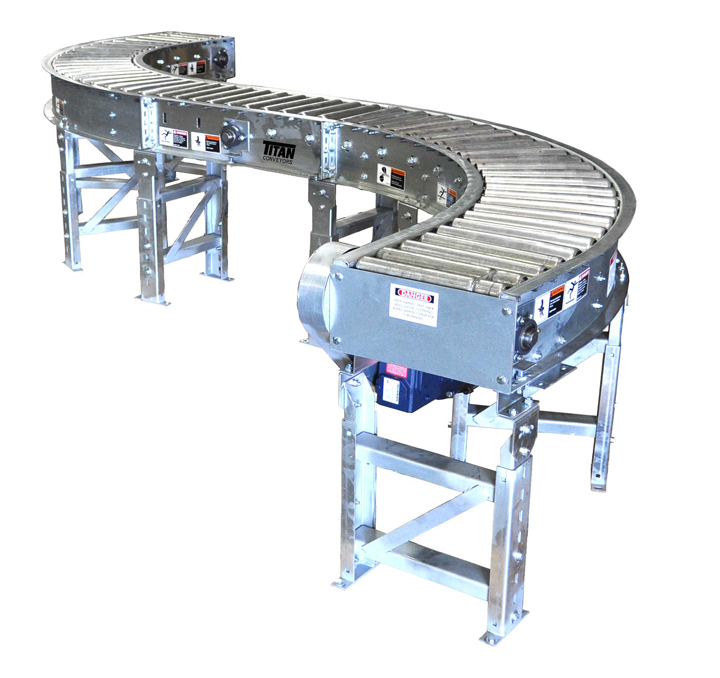

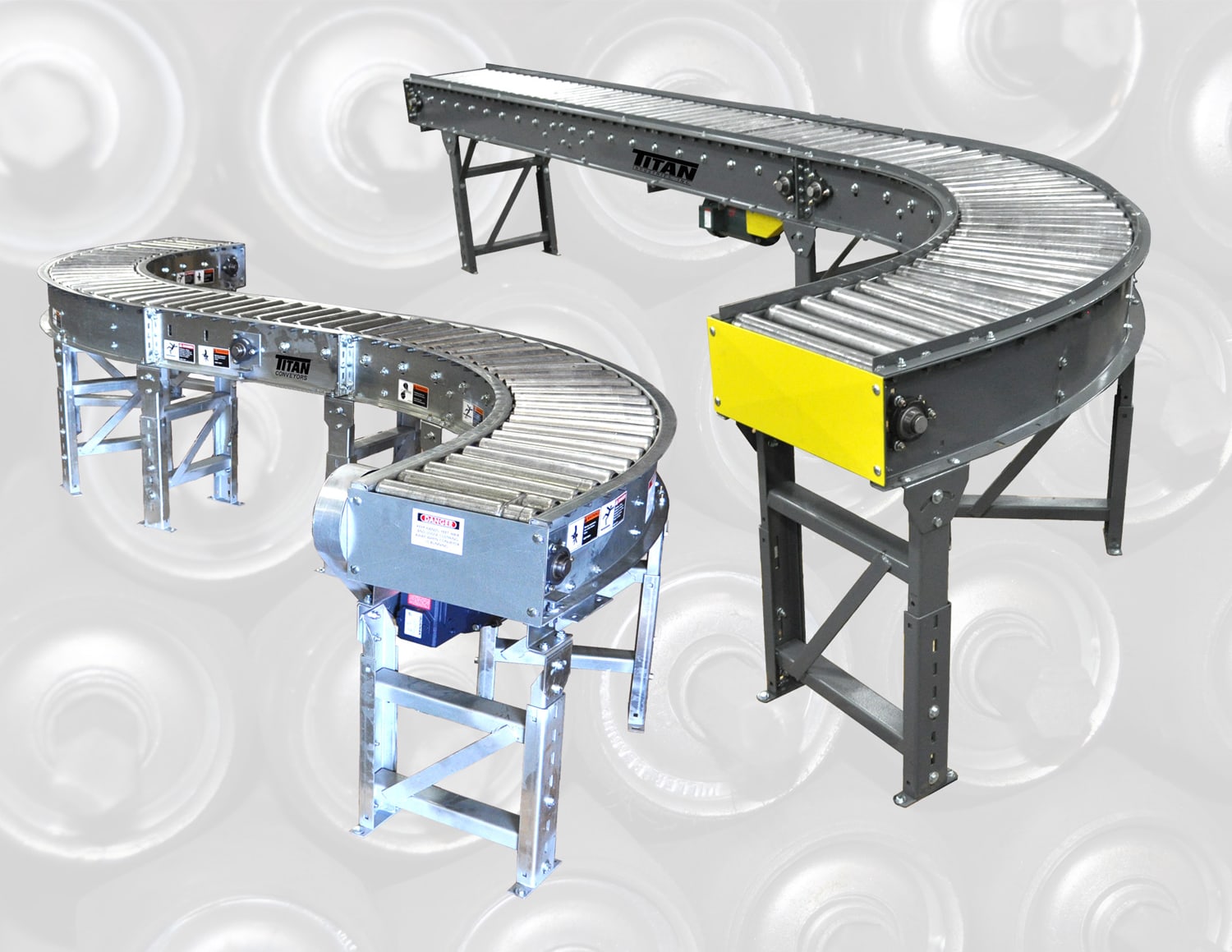

V-Belt Driven Live Roller Conveyor

Model Description:

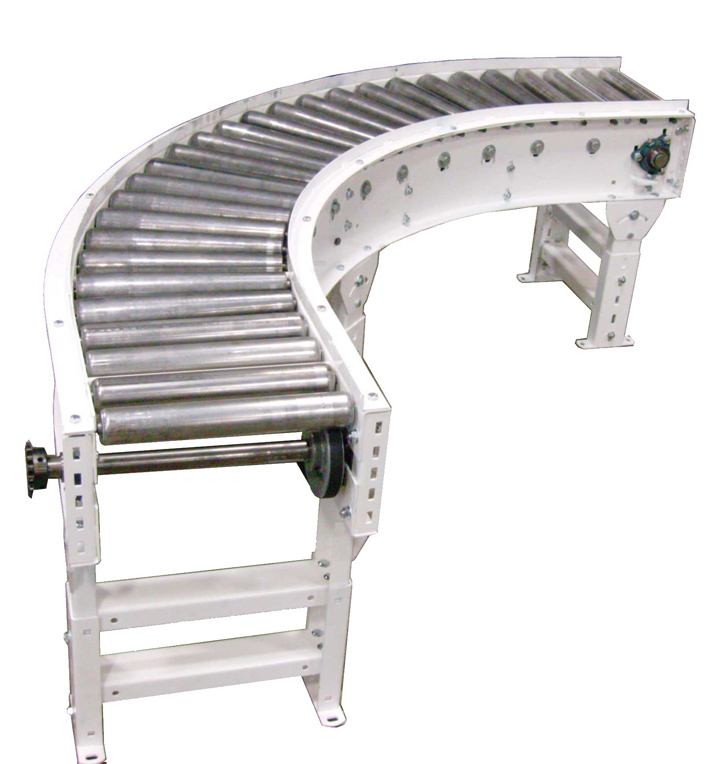

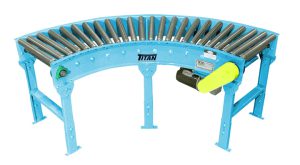

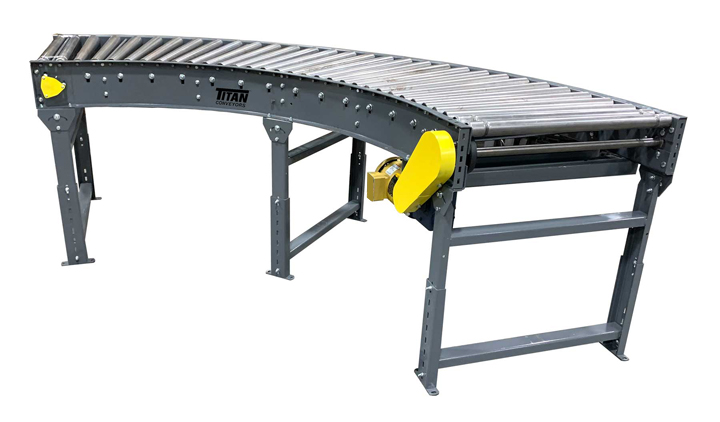

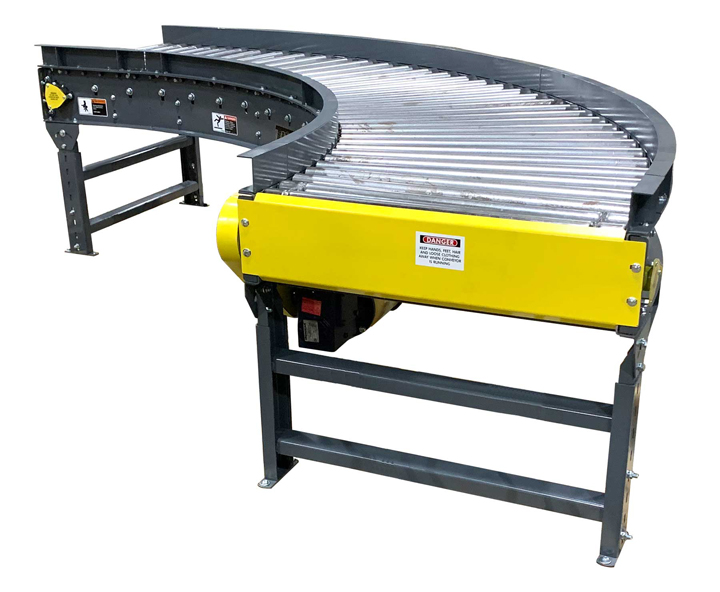

When your conveyor system requires an economical 90 degrees curve, you should specify the Titan Model 490 V-Belt Driven Live Roller Curve. The Model 490 utilizes a rugged, industrial continuous v-belt to transmit power to the drive rollers. Straight 1.9" diameter x 16 gauge rollers are furnished as standard. A formed 12 gauge frame that is compatible with other Titan units give you that additional flexibility needed to customize your material handling system. The drive base is fabricated from uni-strut which allows proper and positive belt tensioning. The Model 490 is available in numerous between frame widths. Tapered rollers are also available.

Model 490 V-Belt Driven Live Roller Conveyor Specifications:

Between Frame Widths: 9", 10", 13", 16", 18", 19", 22", 25", 28", 31", 34", 37", 40", 42"

Bearings: Grease Packed

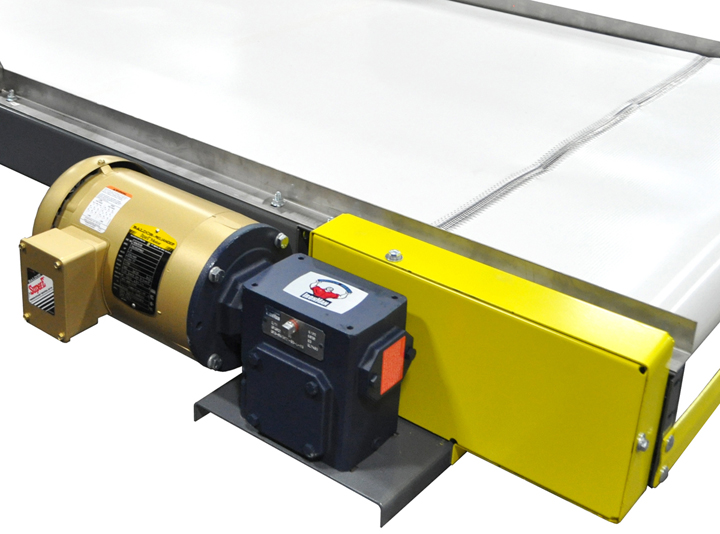

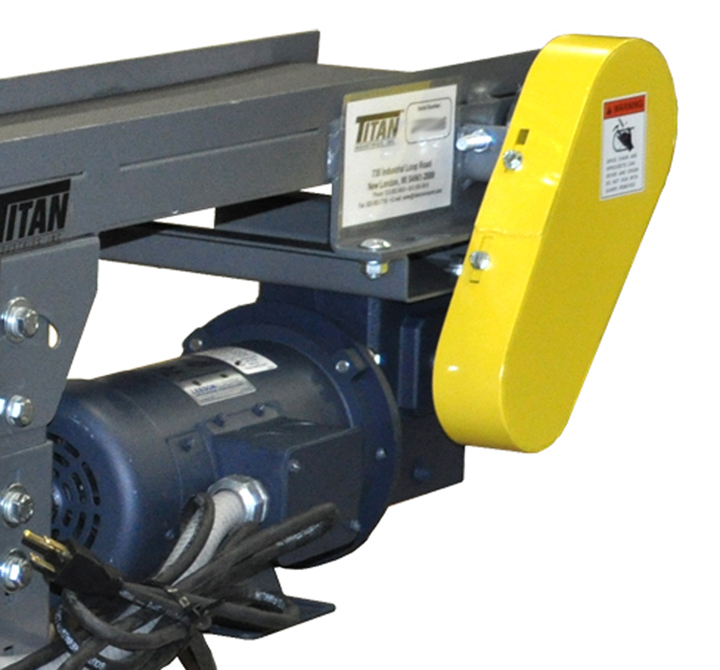

Drive: 1/2 H.P. 230/460/3/60

Frame: Formed 12 Gauge

Paint: One Coat Industrial Enamel

Rollers: 1.9 Dia. x 16 Gauge

Speed: Various available

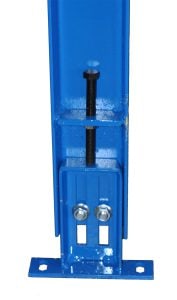

Supports: "H" Type Adjustable
