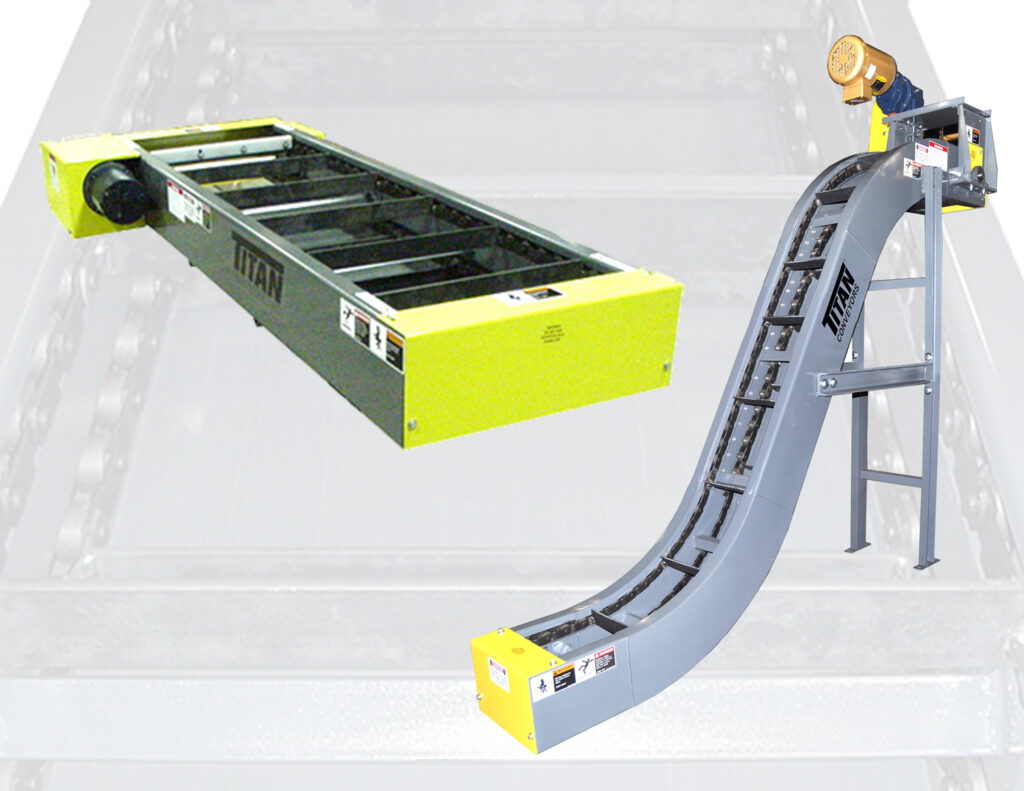

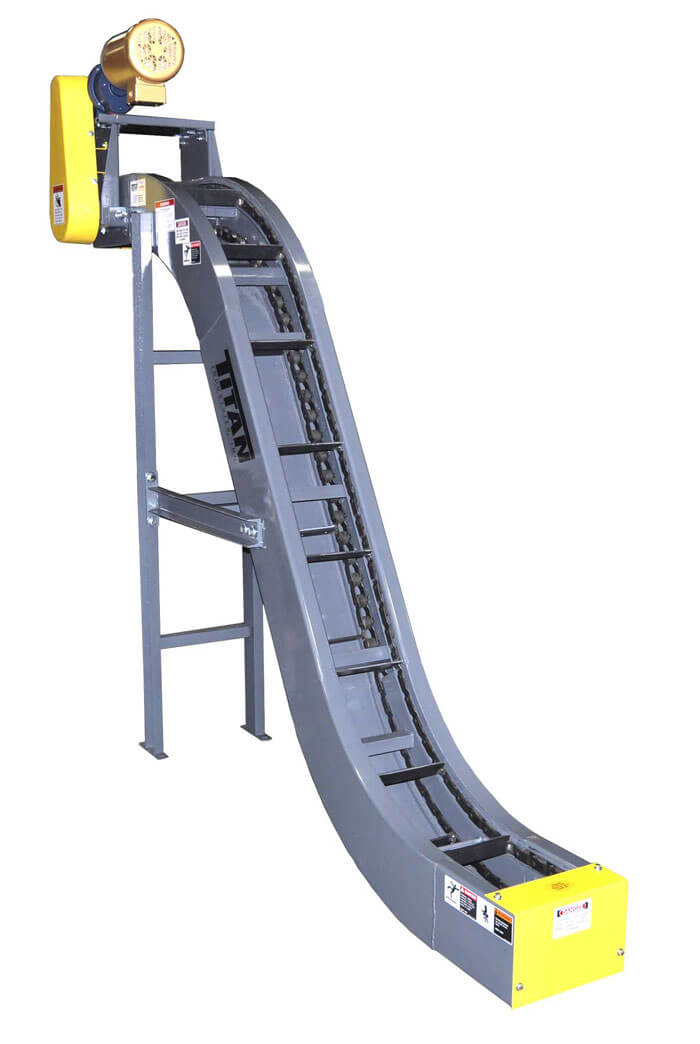

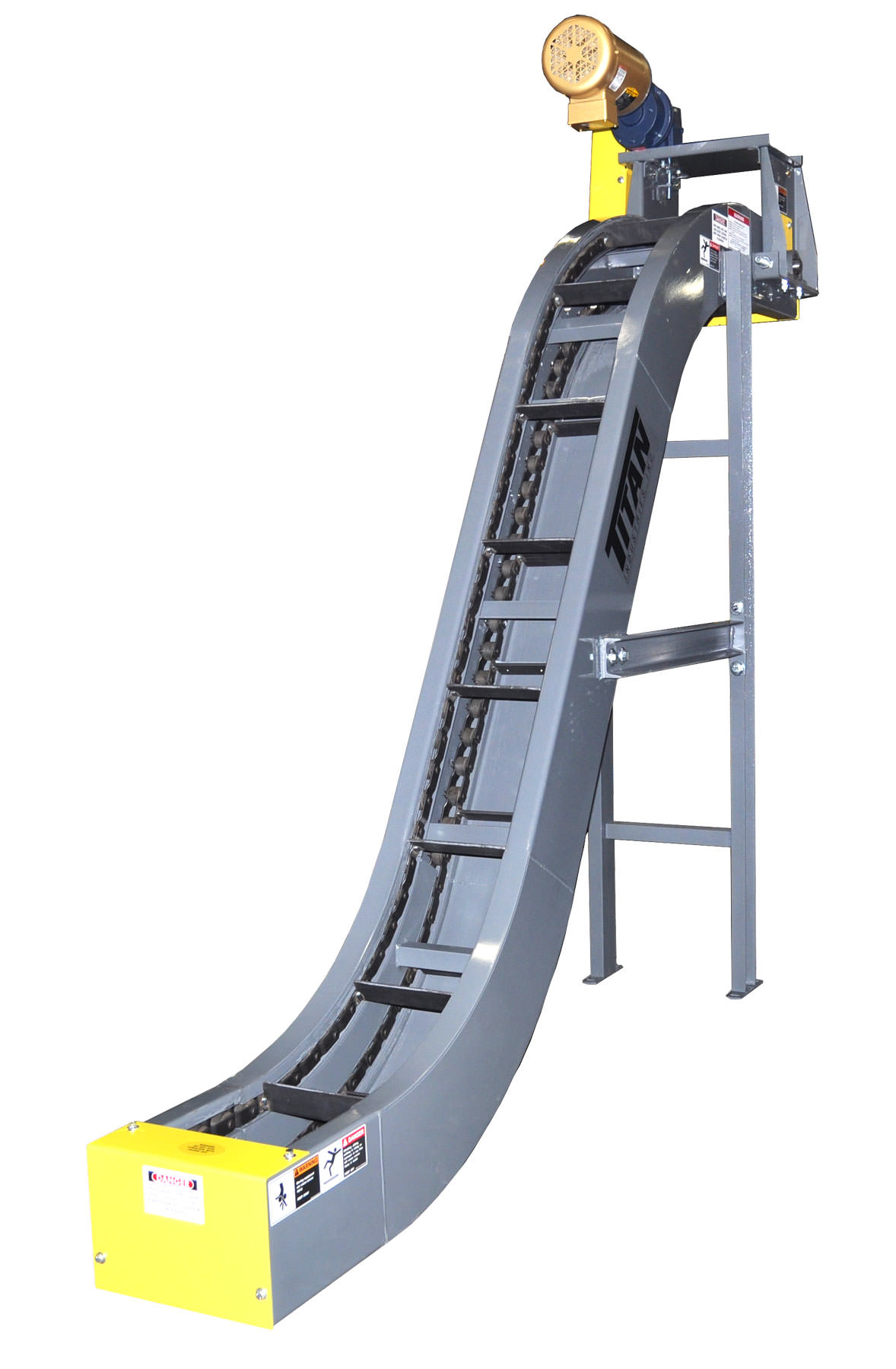

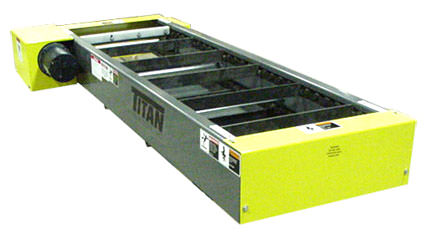

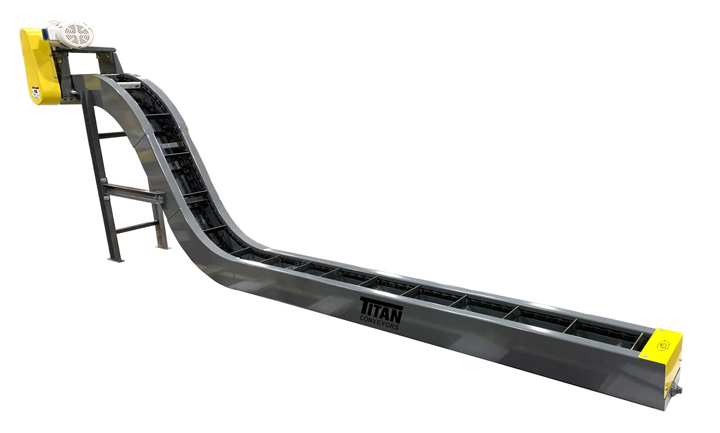

Drag Chain Conveyor / Incline Conveyor

Model 670


Model Description:

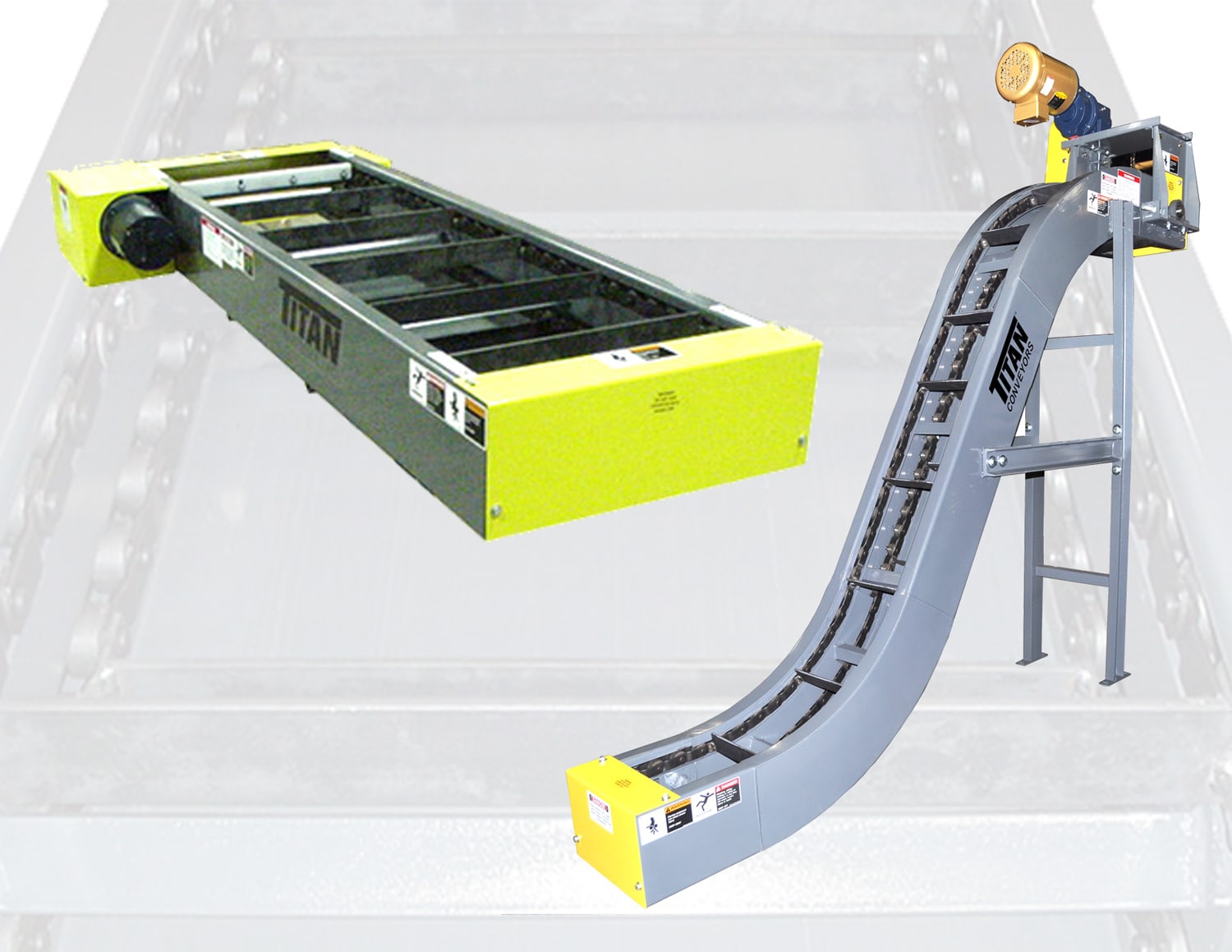

The Model 670 Drag Conveyor is ideal for handling cast iron, fine chips, scrap or sludge that would cause a Hinged Belt unit to jam.

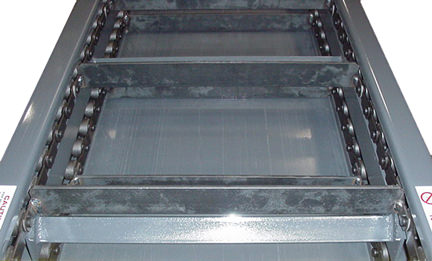

The heavy duty, Model 670 is available in standard belt widths ranging from 4″ to 24″, with additional 30″, 36″, and 42″ options as well. The 2-1/2″ pitch chain has drag flights welded on 12-1/2″ centers, and is offered with 30, 45, and 60 degree curves.

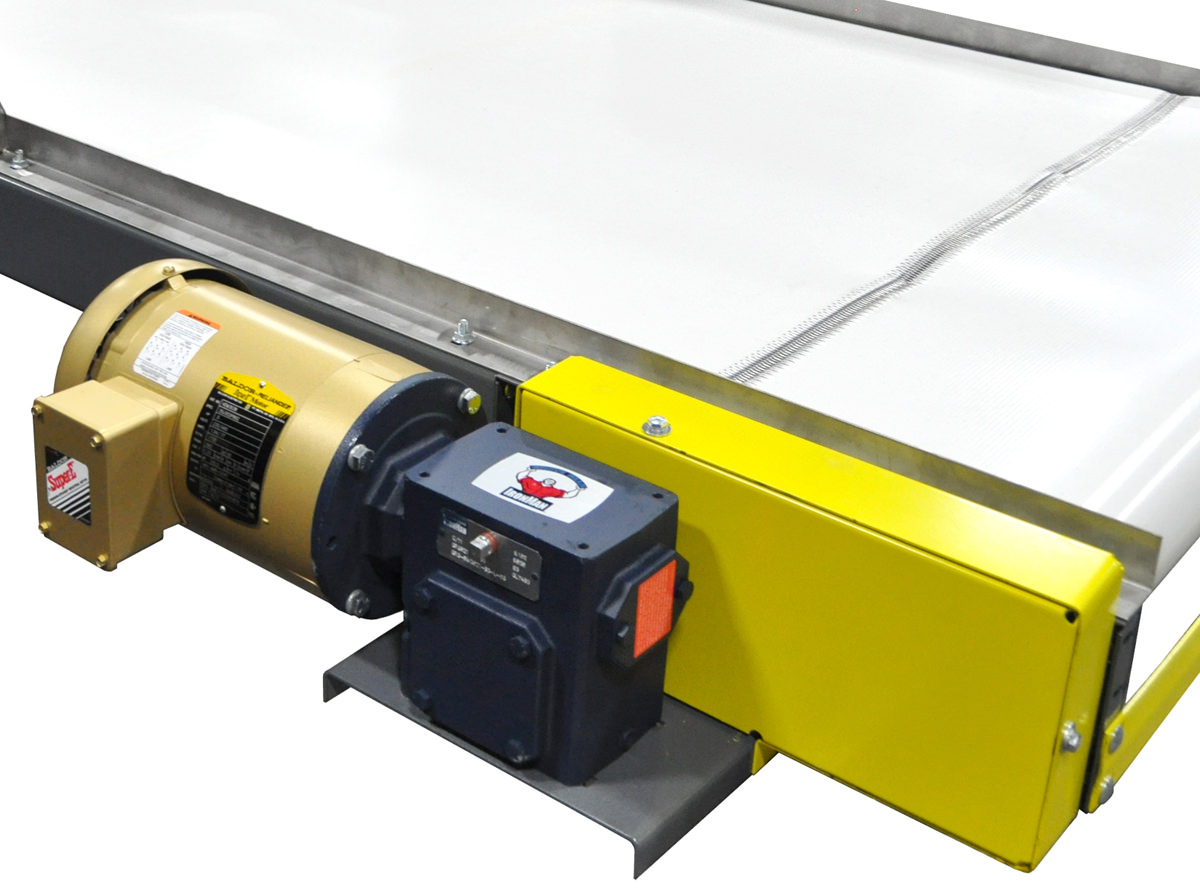

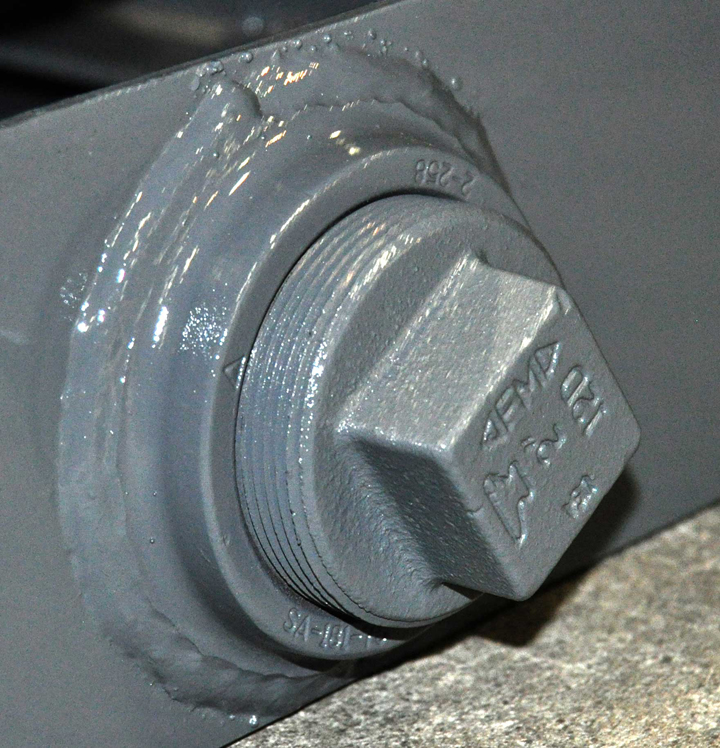

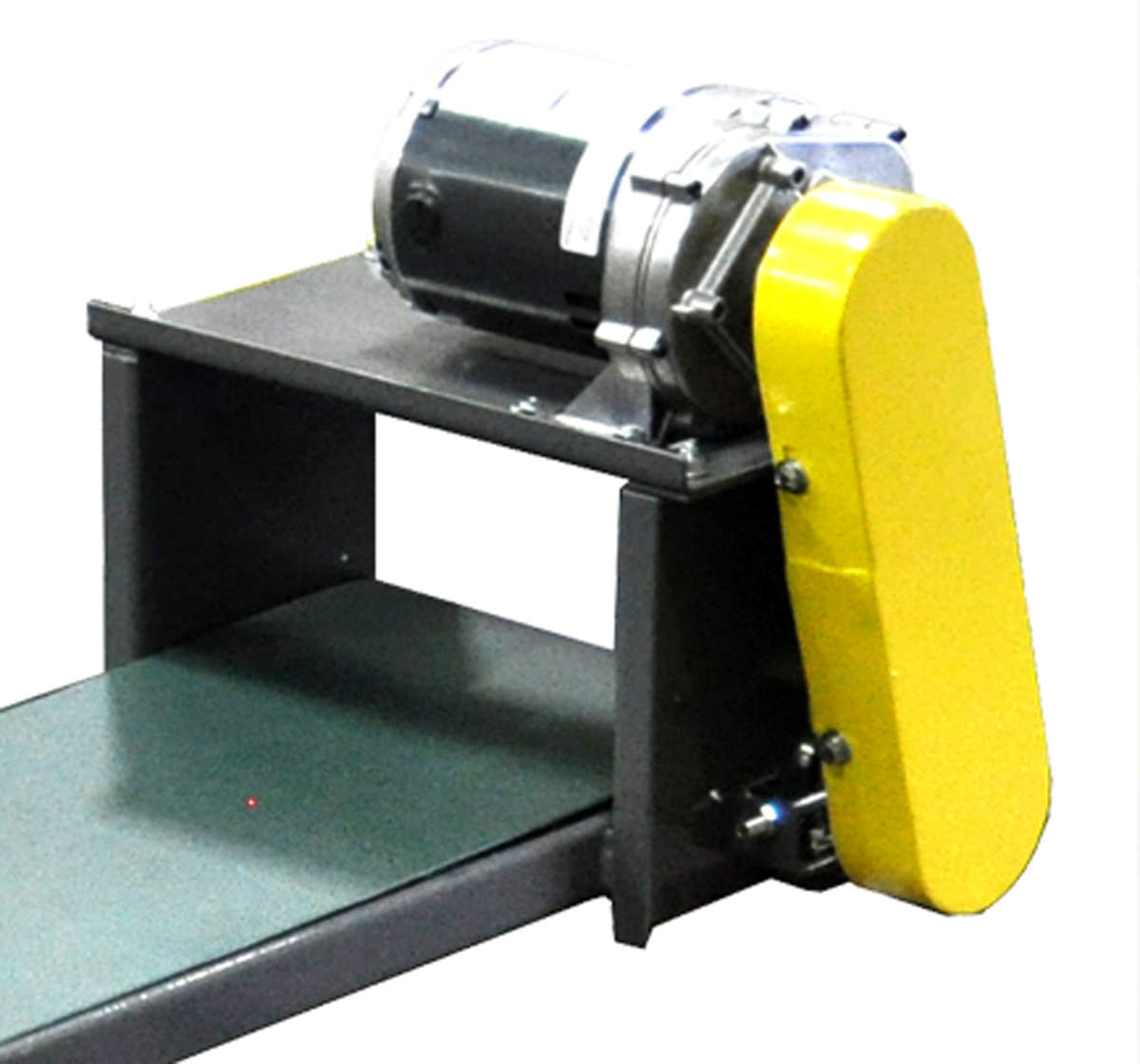

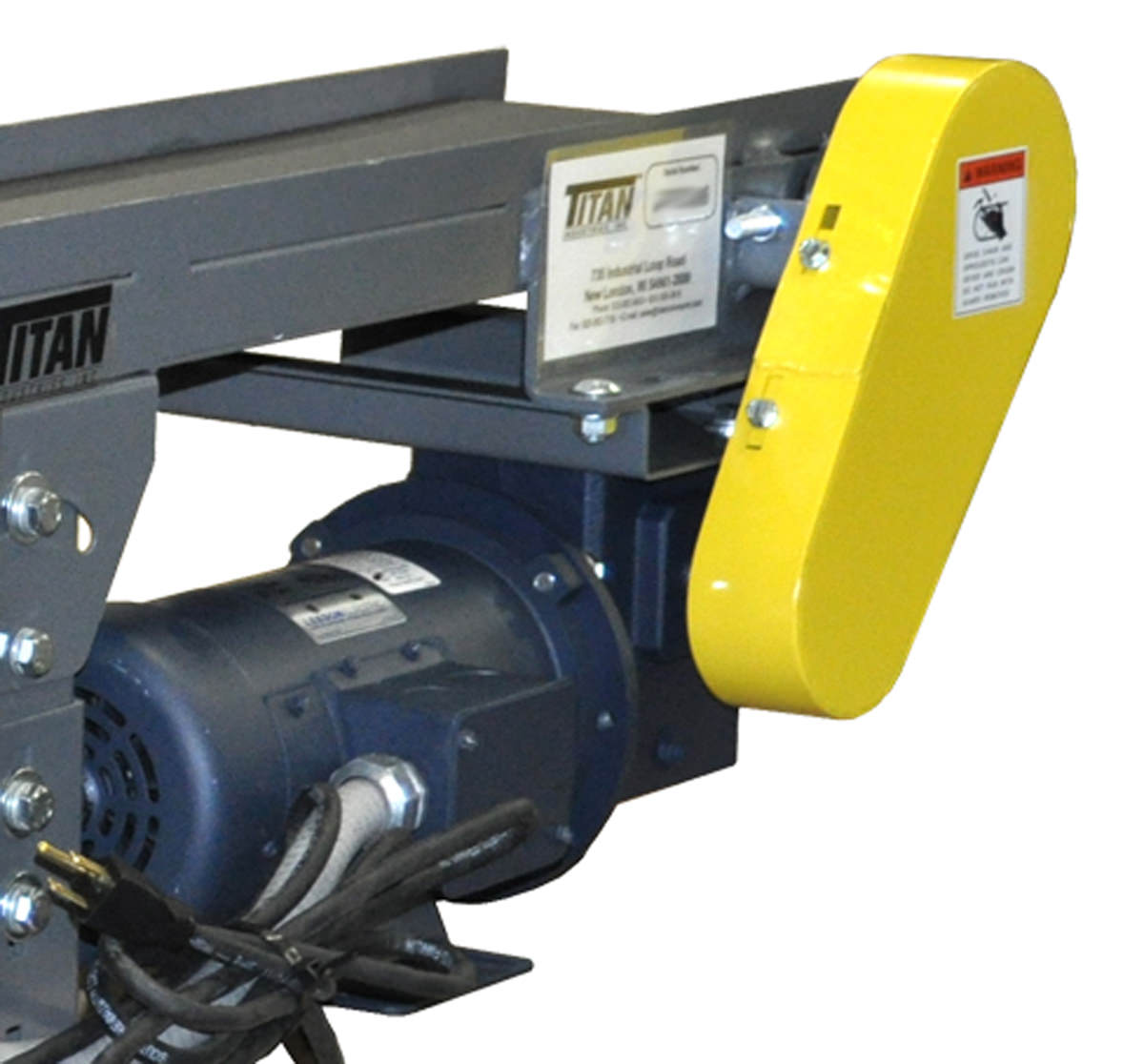

The drive location, horsepower, fixed and variable chain speed controls, paint scheme, and supports can also be customized to suit your bulk material handling needs. Other optional tanks, chutes, top covers, chip suppressors, casters, and liquid tight bottom pans can also be added to meet your factory standards or specific handling applications.

Let our experienced and responsive sales engineers provide you with the creative solutions to your unique challenges.

Be sure to speak with one of our friendly and knowledgeable factory representatives to learn more about the various configurations, lengths, belt widths, and other options available for the Model 670 Conveyor. We’re ready to support you with cost effective material handling and utilization of space.
