Model Description:

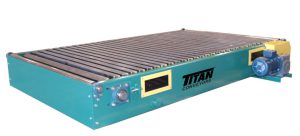

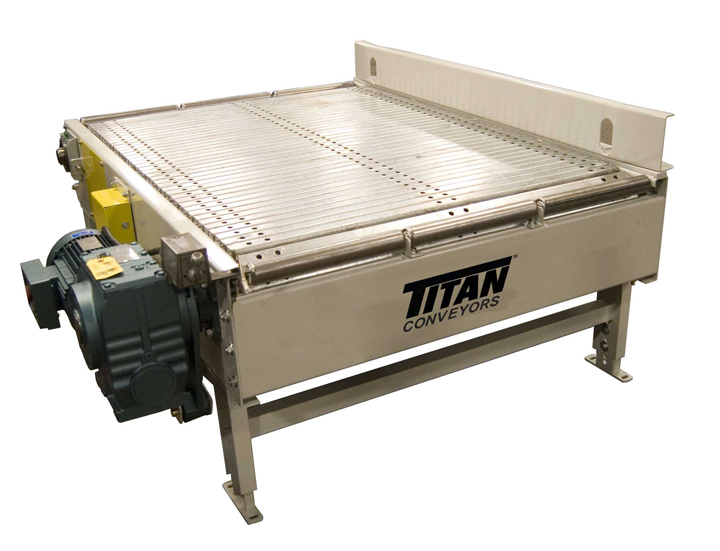

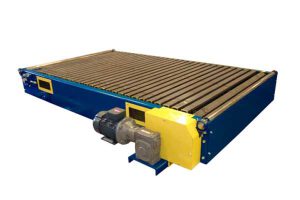

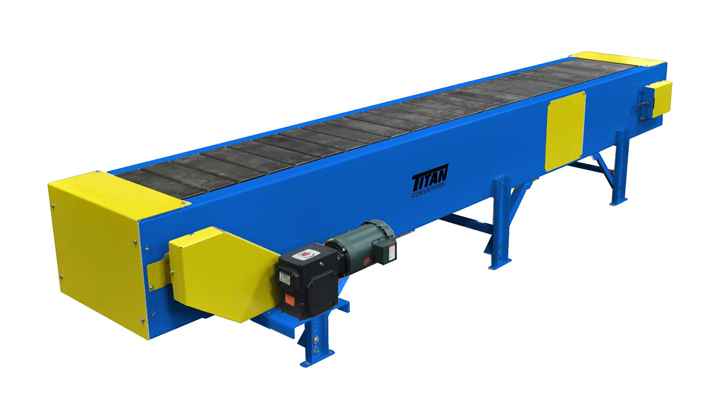

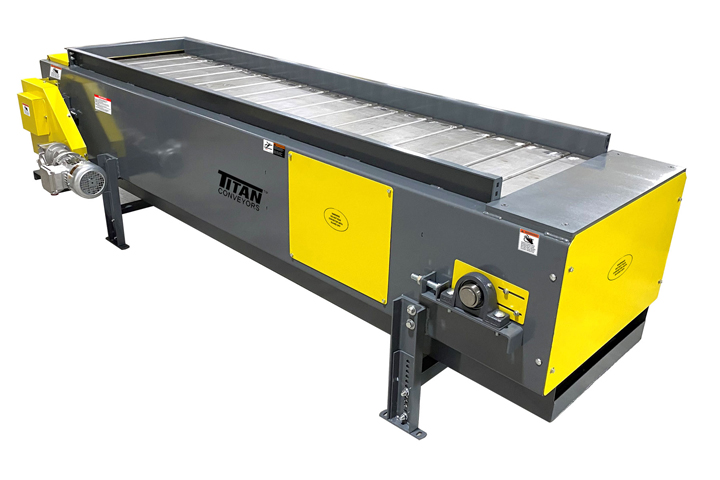

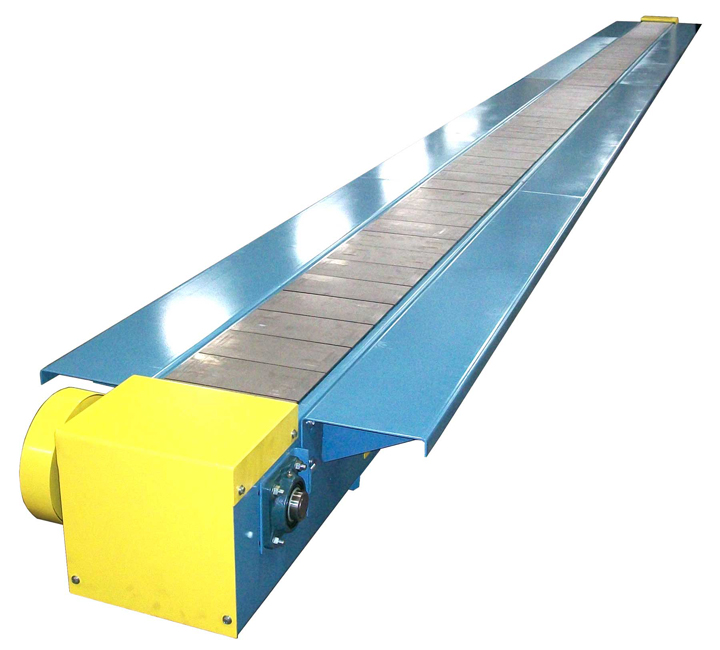

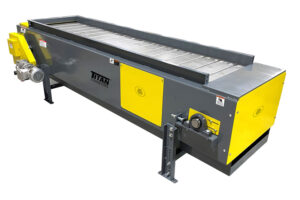

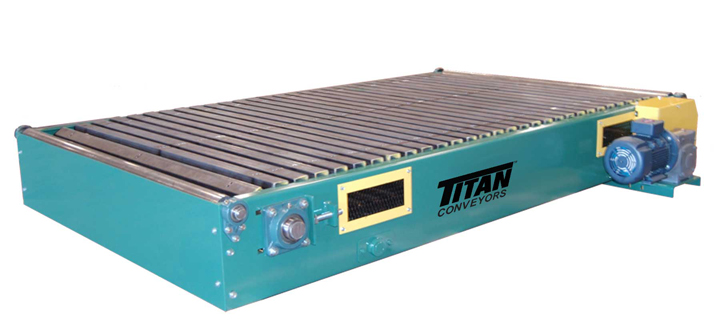

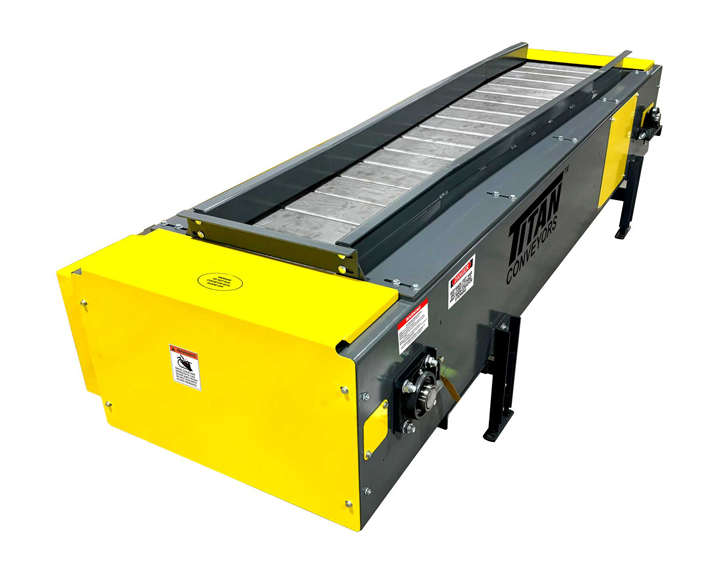

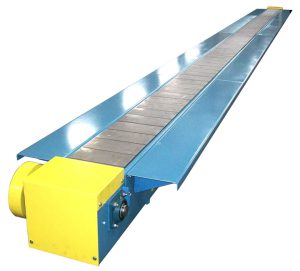

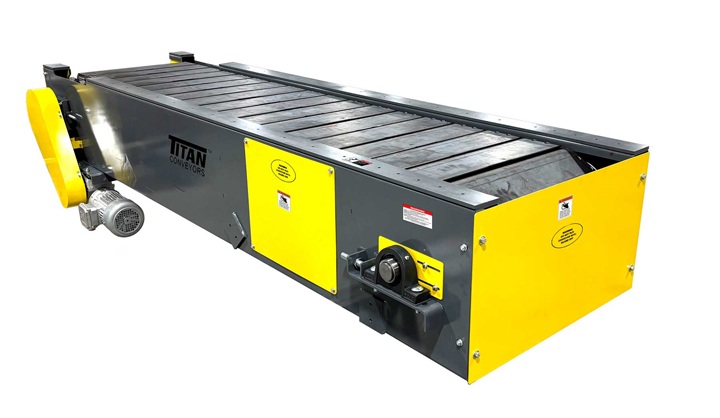

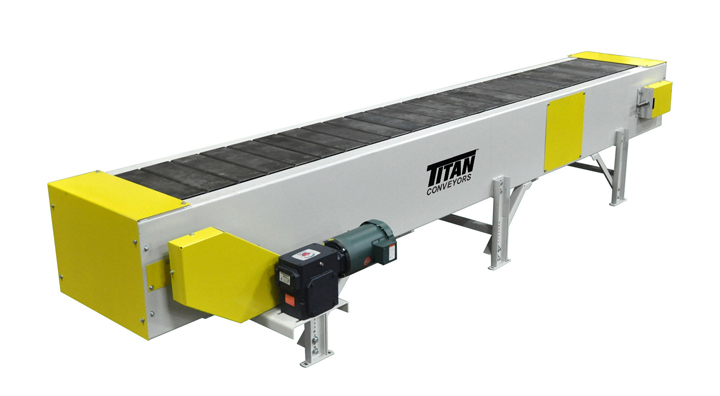

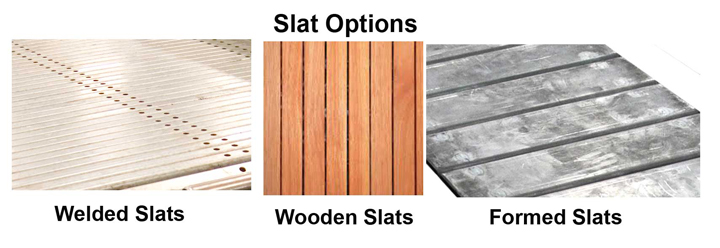

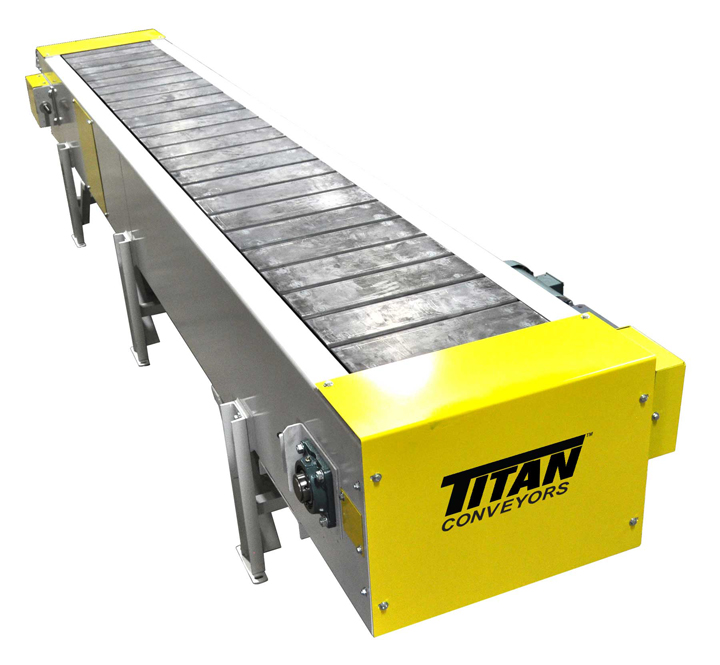

When your material handling requirements call for a unique solution, Titan Model 696 Slat Conveyors should be considered. Standard construction (a 7 gauge frame) is extremely heavy-duty to exceed the most demanding requirements for industrial usage. Units can be supplied with 4″ pitch or 6″ pitch heavy-duty slat conveyor chain with attachments every pitch. Slats come in standard formed 7 gauge design, but can also be furnished in other designs such as formed V, heavy flat plate, attachments for lugs or fixtures or even different materials such as wood. The Model 696 comes with over load protection, screw type take-ups and structural cross members as standard equipment. Slat conveyors can be used for transportation, accumulation, assembly, side loading and unloading and frequent stop/start applications. Titan can modify the standard unit or custom design a unit to meet your requirements.

Titan can modify this standard unit or custom design one to meet your specifications.

Call Titan Industries toll free at 800-558-3616 for more information or individual model specifications.

Model 696 Slat Conveyor Specifications:

Bearings: Industrial Relube

Belt: 7 ga., Formed V,Flat Plate, Wood

Chain: Heavy-Duty 6″ Pitch

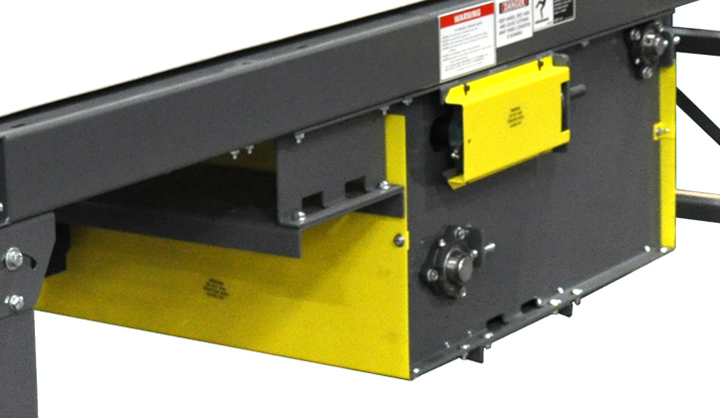

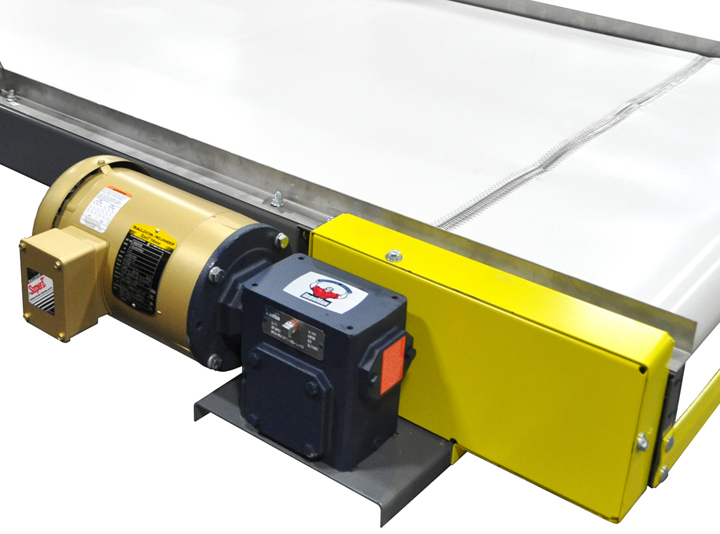

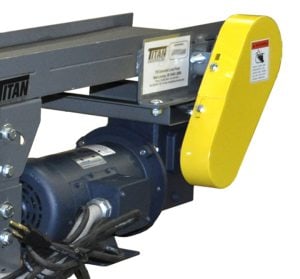

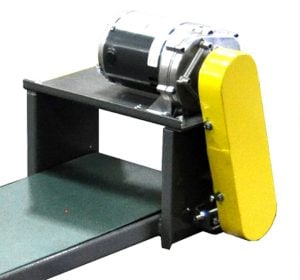

Drive: H.P. To Suit Application

Frame: Formed 7 Gauge

Paint: One Coat Industrial Enamel

Slats: Formed 7 Gauge

Speed: 30 F.P.M.

Sprockets: 6 Tooth, 12″ P.D.
