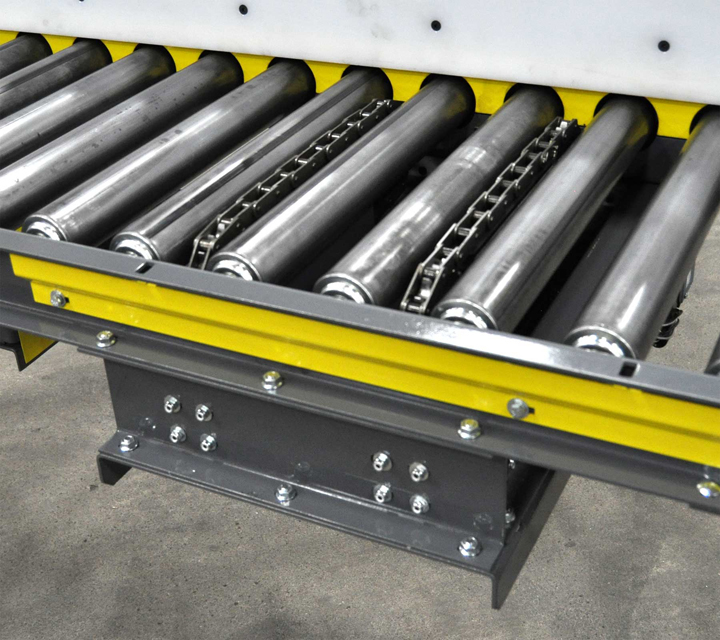

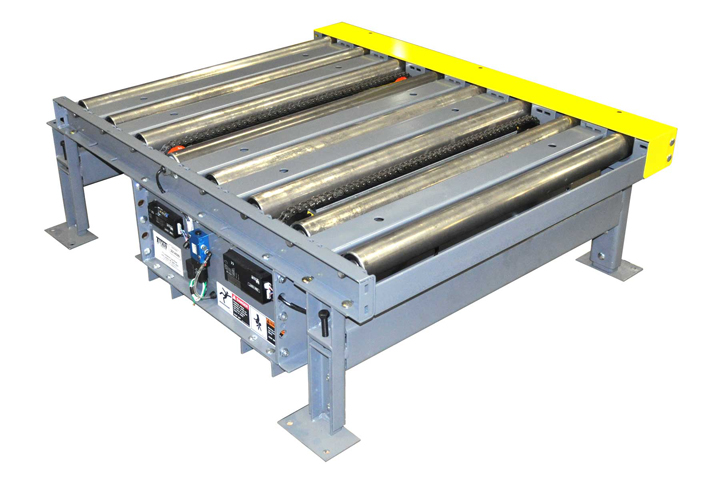

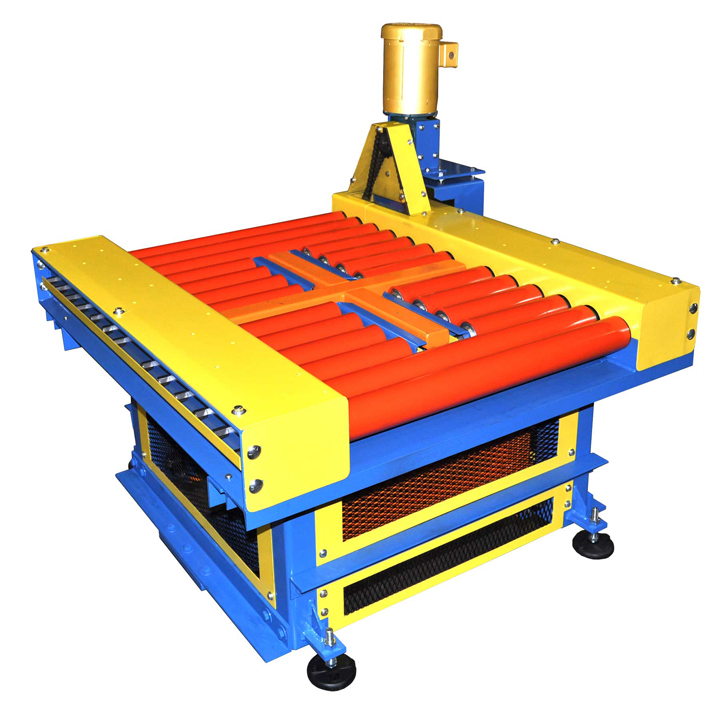

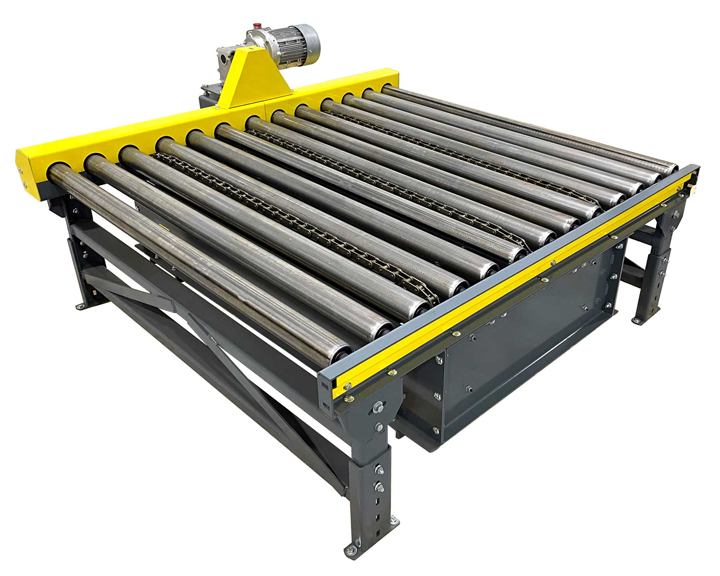

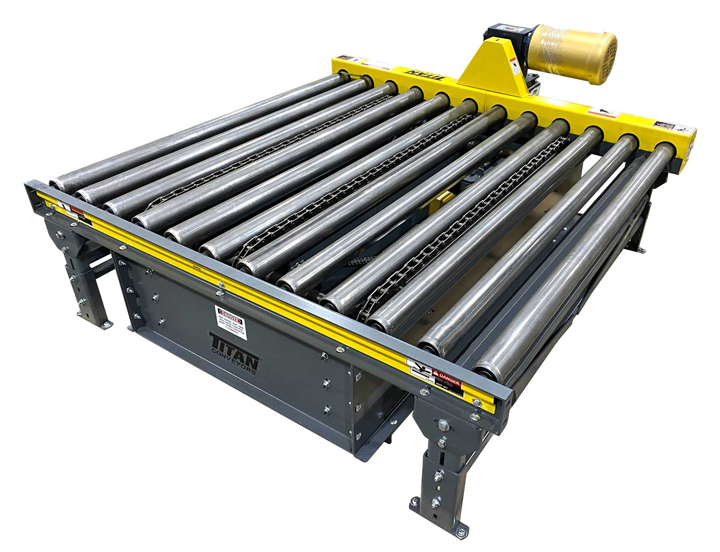

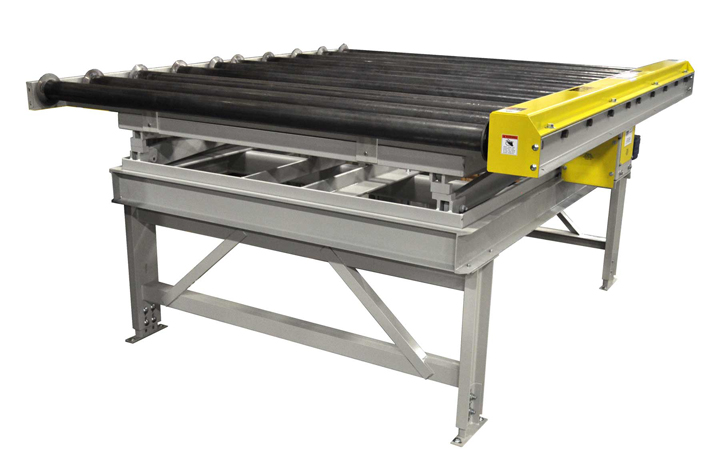

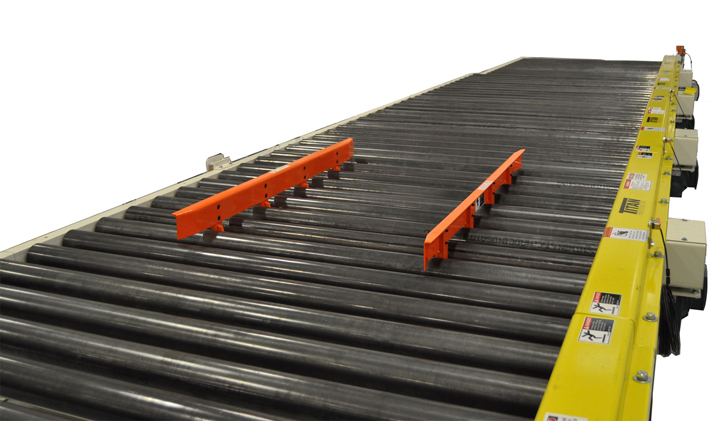

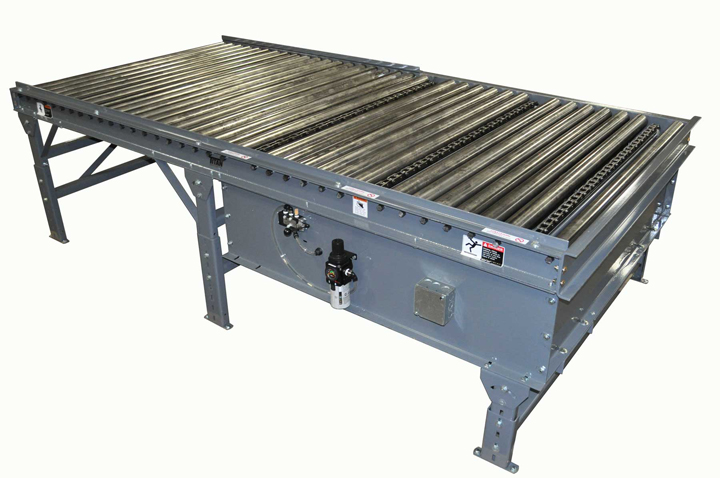

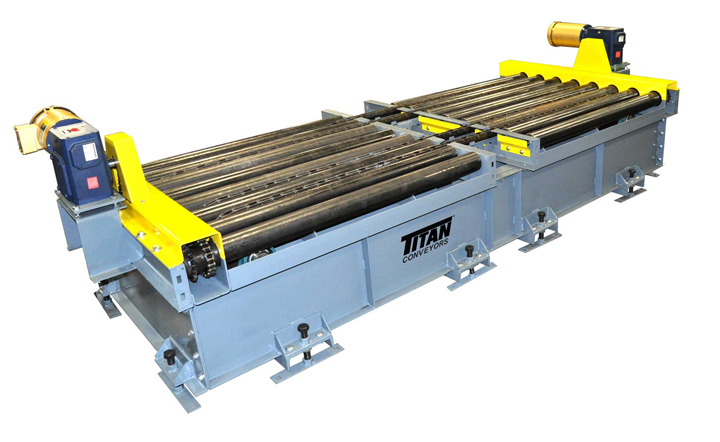

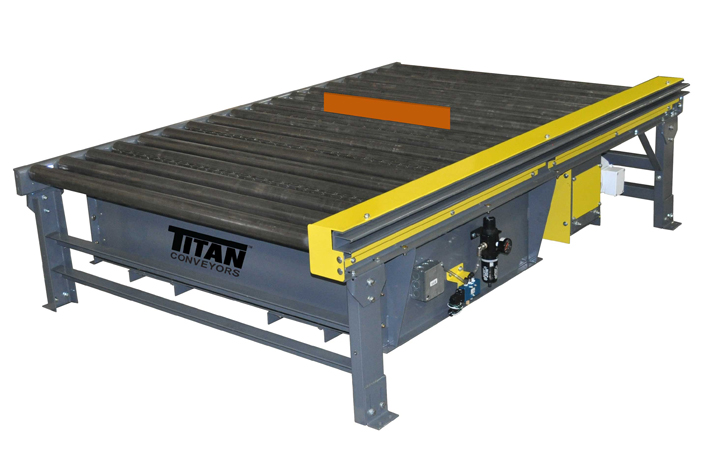

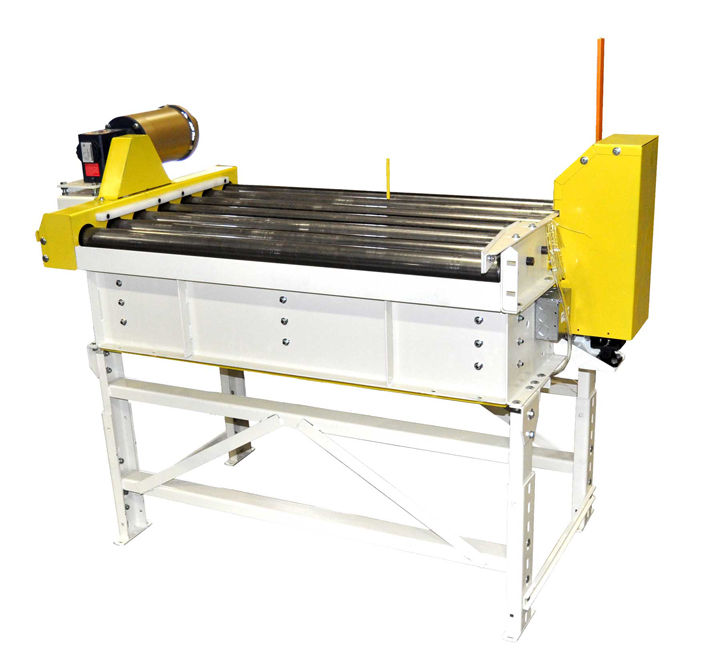

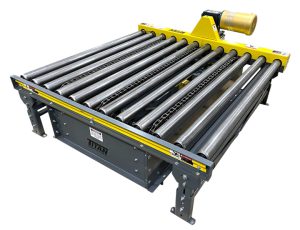

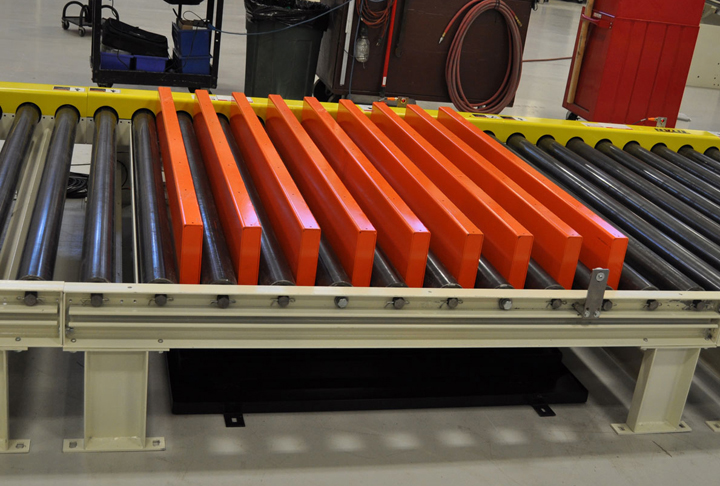

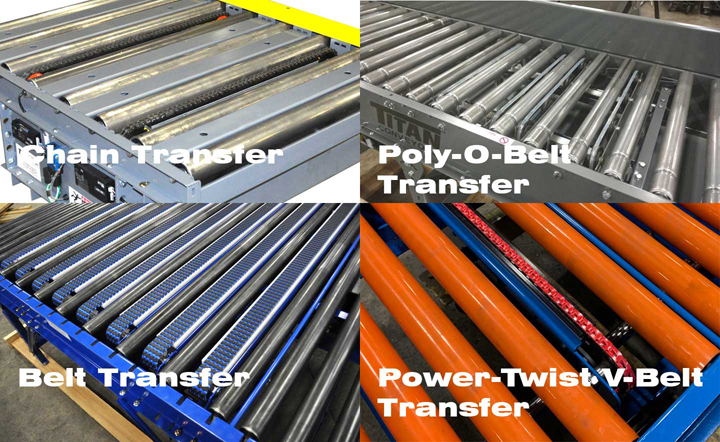

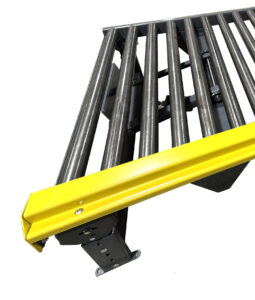

Pop-Up Transfer, Stops, Pallet Centering, Pallet Lifts and Pallet Crowder

Model Description:

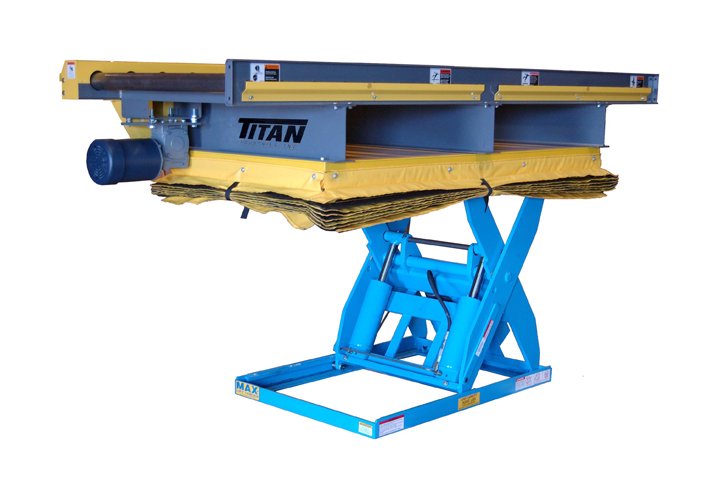

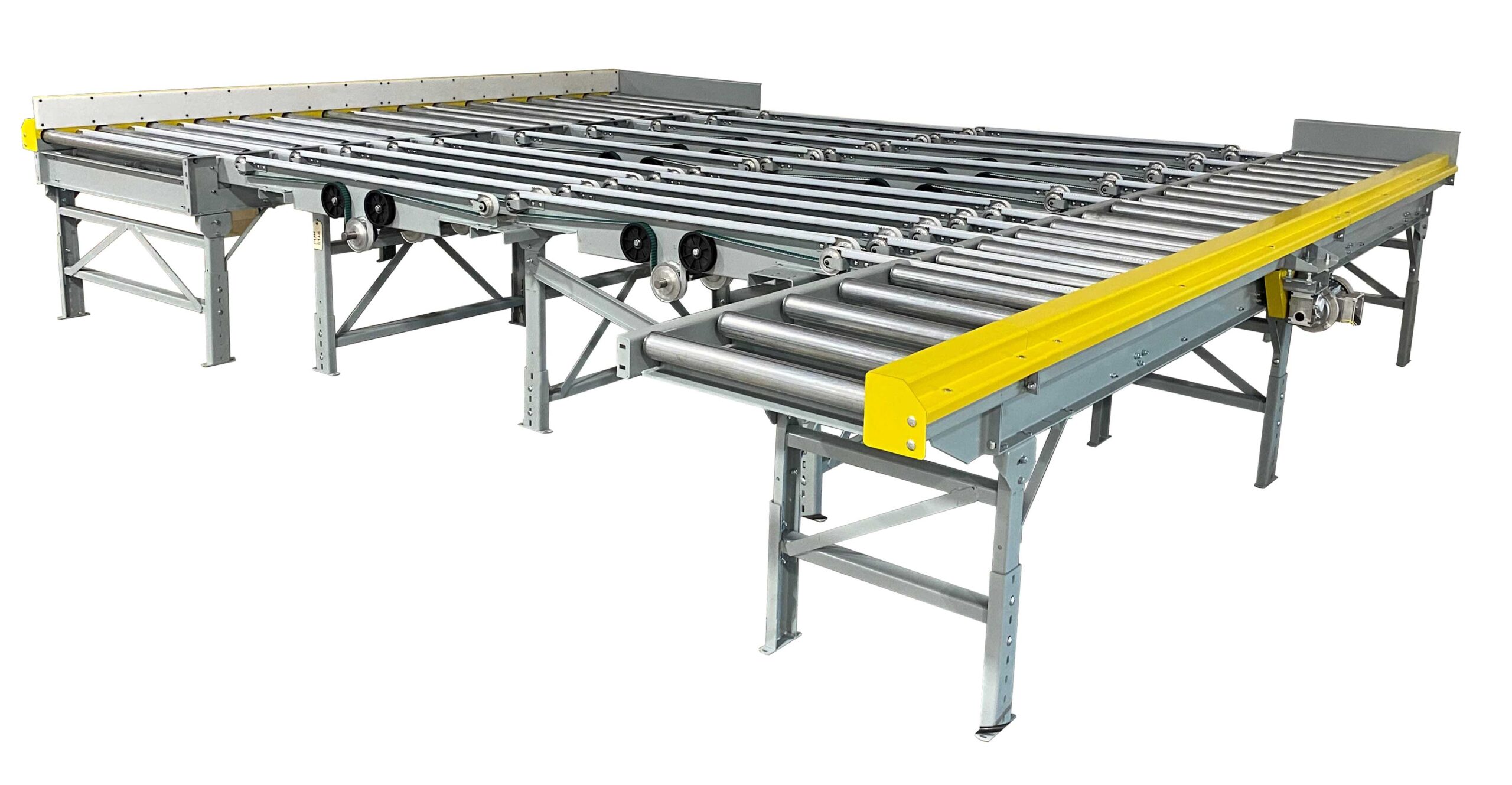

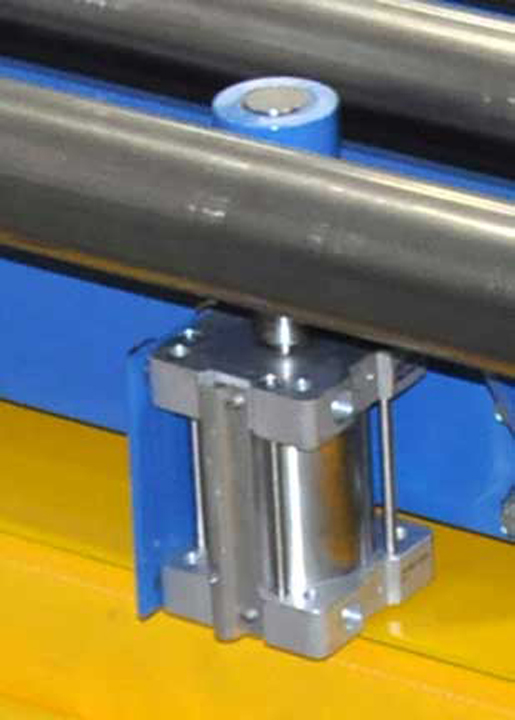

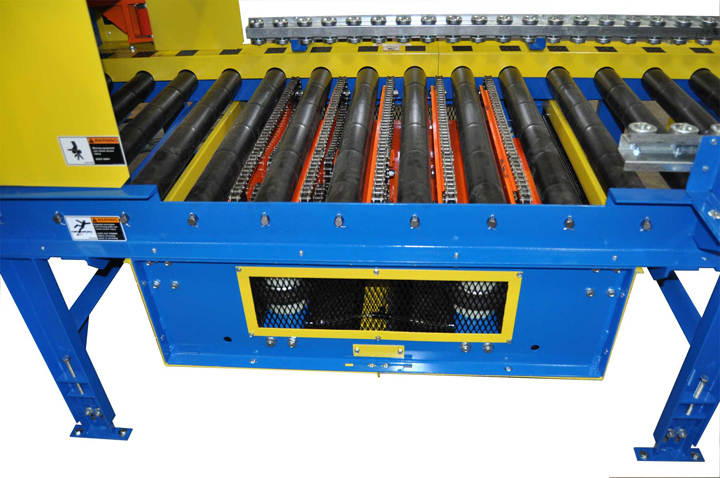

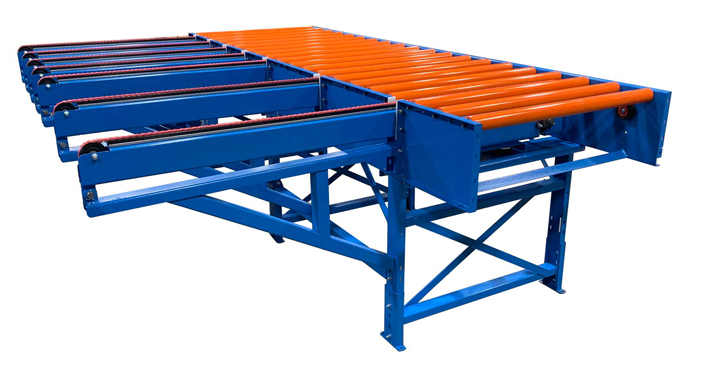

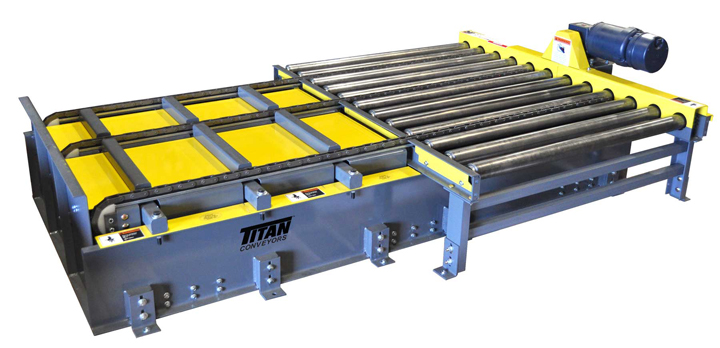

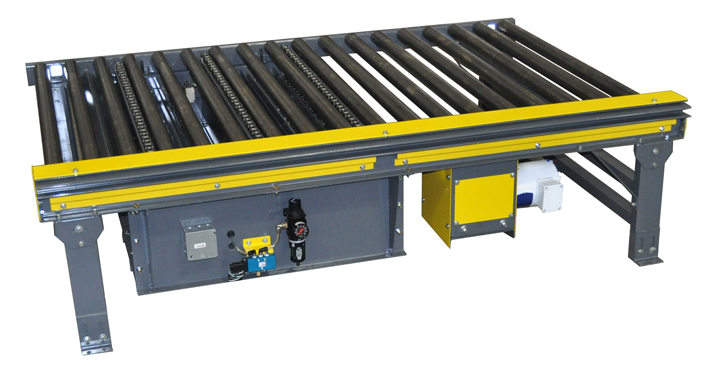

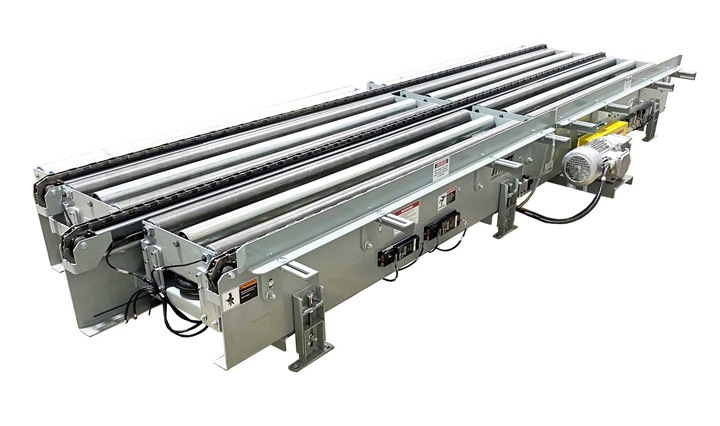

Titan Pop-Up Transfers, Stops, Pallet Centering, Pallet Lifts and Pallet Crowders are designed for integration into Titan roller conveyor systems. Heavy duty construction with #50 roll-to-roll drive chain. (#60 chain optional.) Standard rollers are 2 1/2″ diameter x #11 gauge or 2 5/8″ diameter x #7 gauge. Standard roller centers are 5″. Supports are 4″ structural with adjustable feet.

Pop-Up Transfer, Stops, Pallet Centering, Pallet Lifts and Pallet Crowder Specifications:

Bearings: Grease Sealed

Chain: #50 Roll to Roll Drive

Drive: 3/4 H.P. to 2 H.P. 230/460/3/60

Frame: Formed 7 ga. or 6″ C structural

Rollers: 2-1/2′ dia. X 11 ga. or 2-5/8″ dia. X 7 ga.

Speed: 30 F.P.M.

Supports: “H” type adjustable
