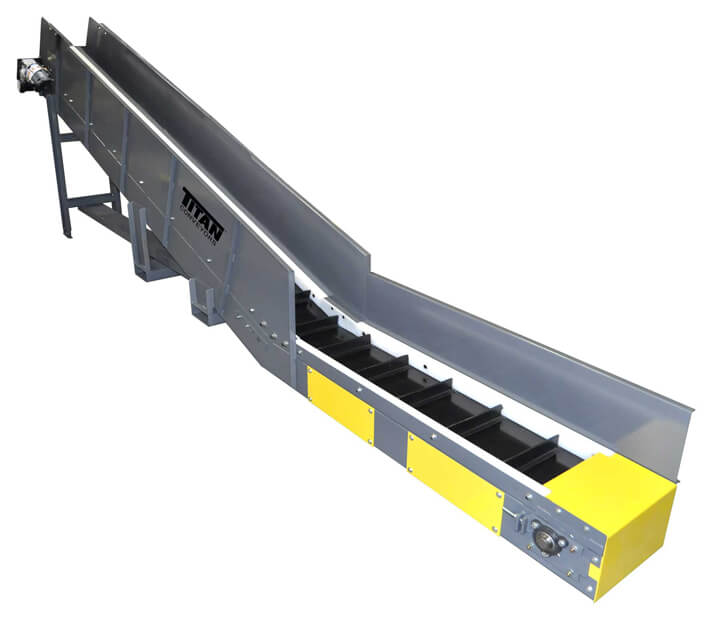

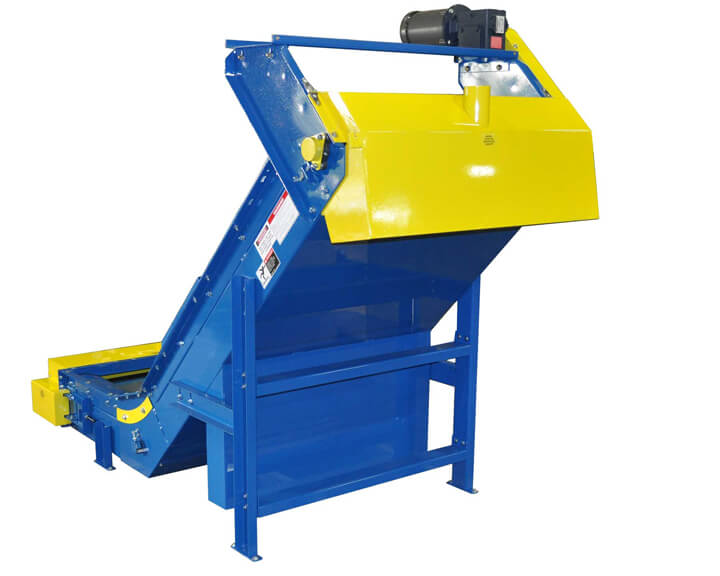

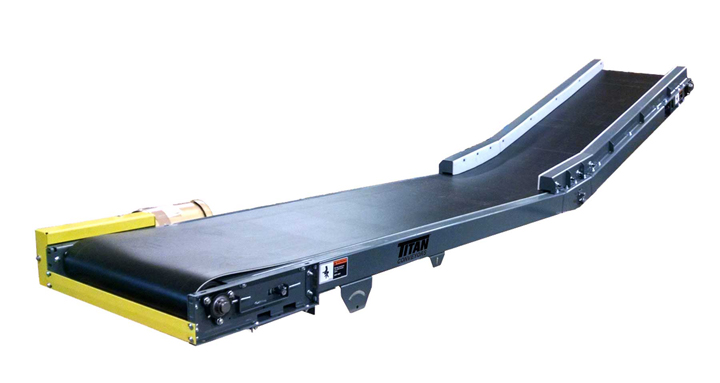

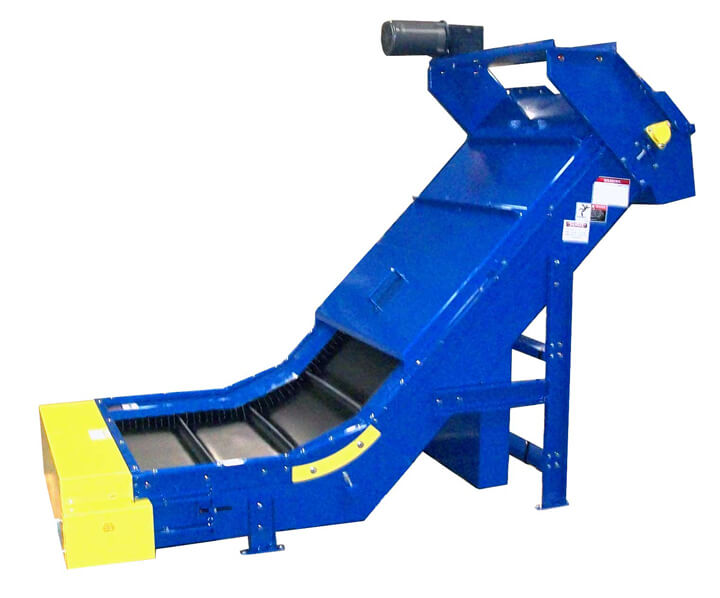

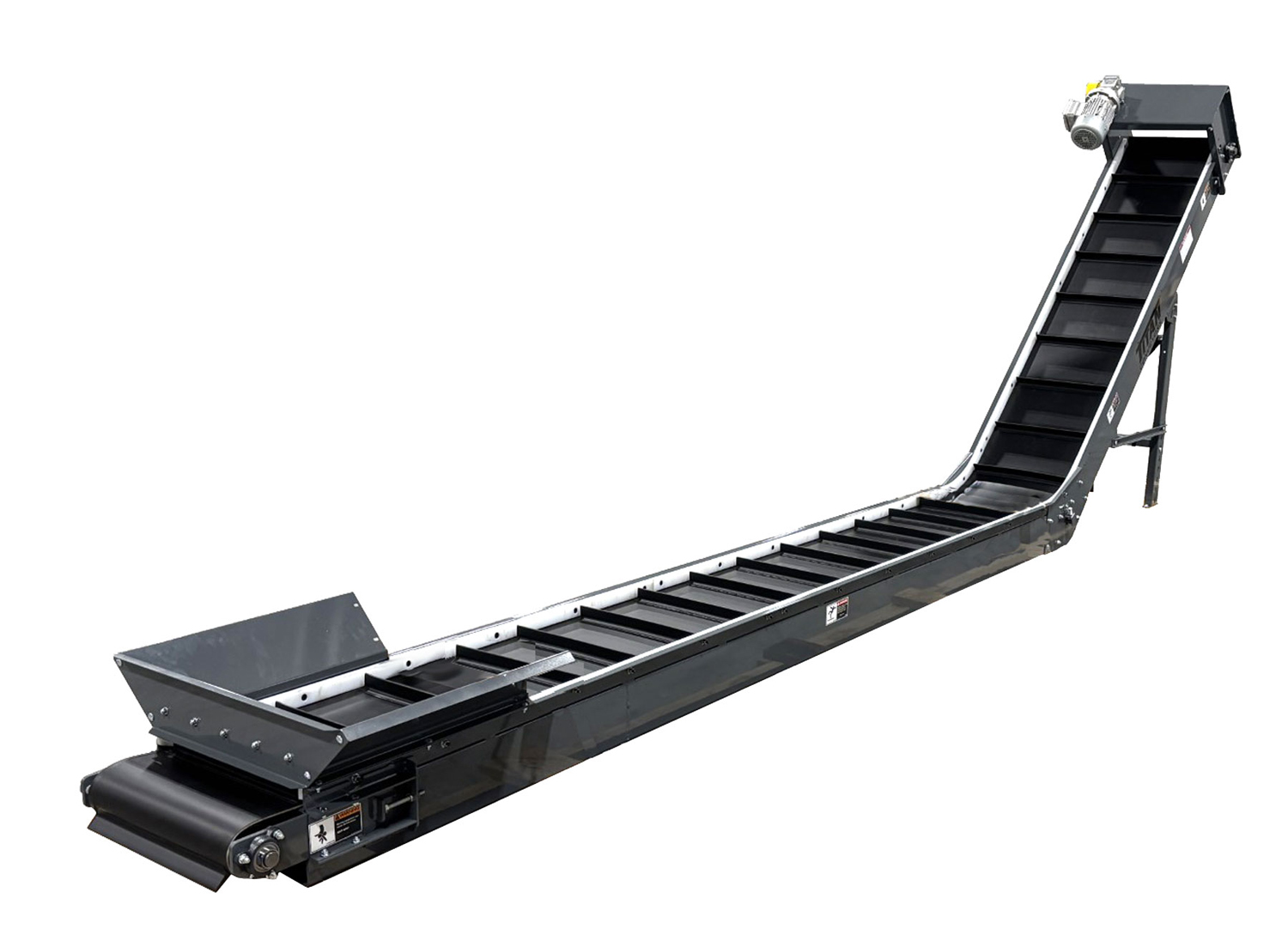

Horizontal to Incline Parts Conveyor

Model Description:

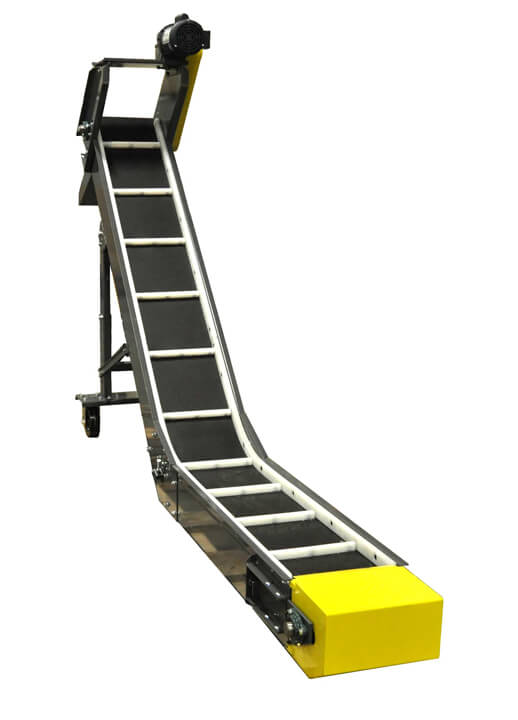

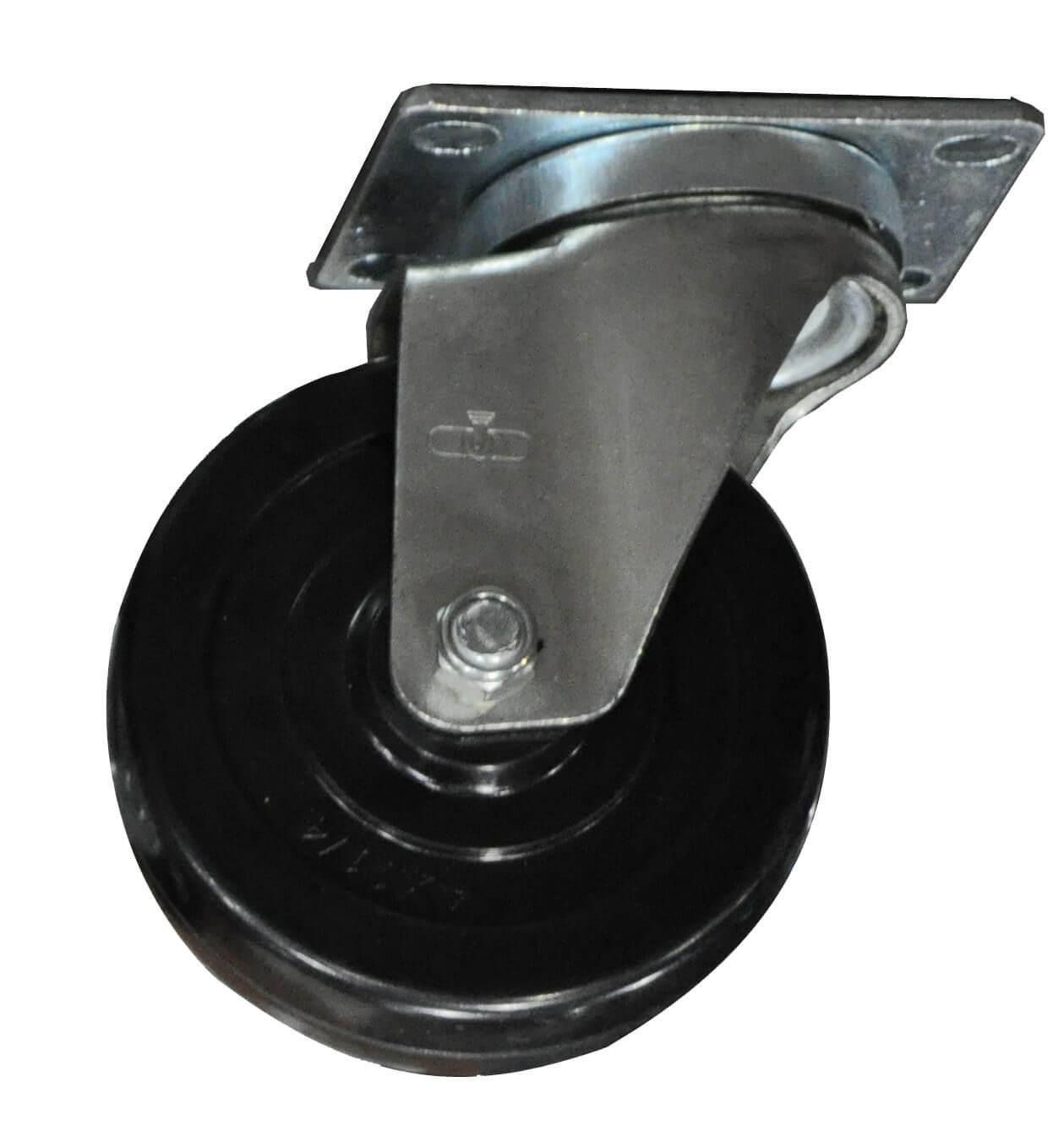

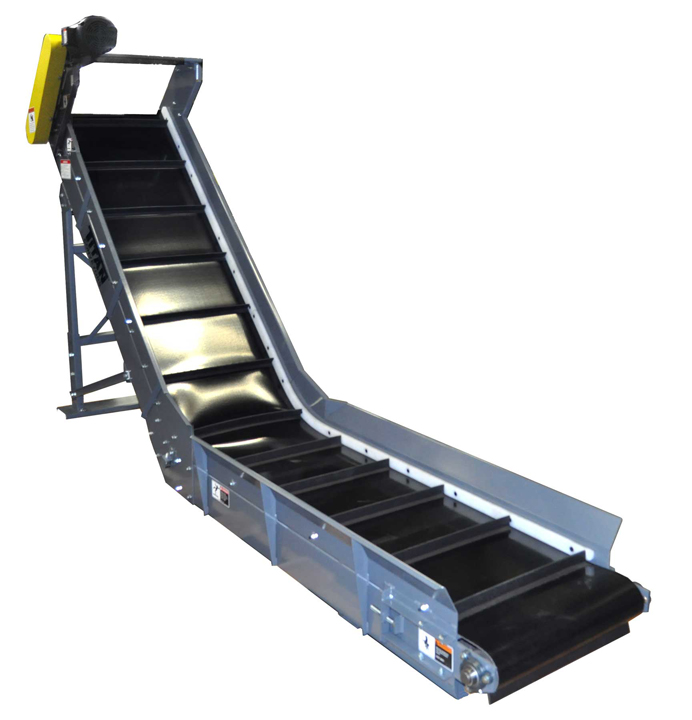

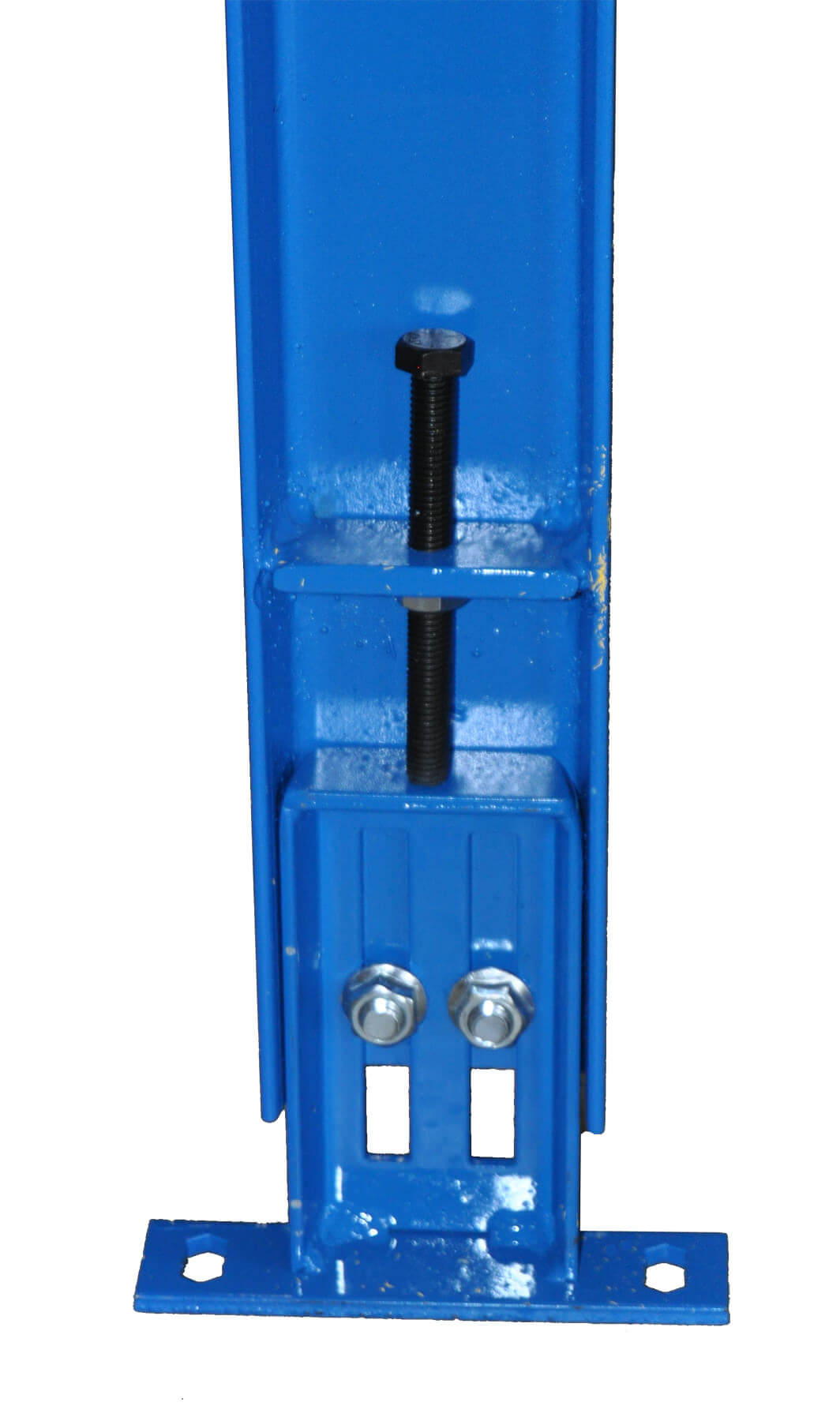

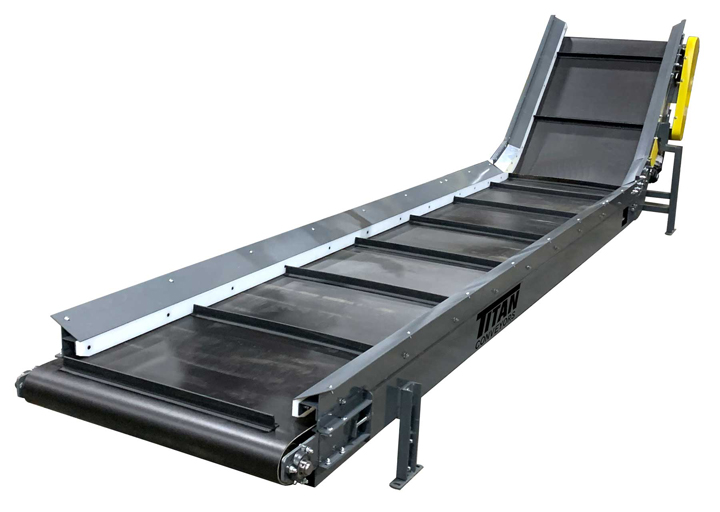

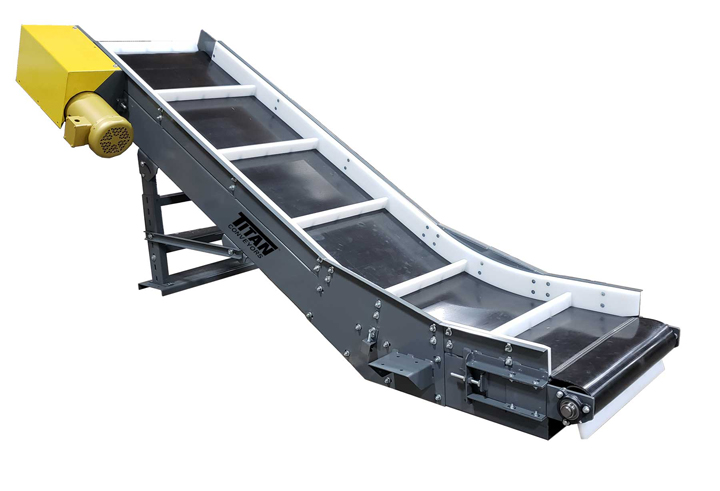

If the economical handling of your parts requires a unique approach, you should consider using the Titan Model 310 horizontal/incline belt conveyor. The Model 310 is offered in various belt widths with horizontal and incline lengths manufactured to fit your specific requirements. The standard belt is a black P.V.C. with 1-1/2" high rubber cleats on 12" Centers with other types of belts available as optional equipment. The Model 310 is also available with an optional adjustable undercarriage arrangement with 10" diameter wheels for portability. Electrical controls are supplied as optional equipment.

Model 310 Cleated Belt Parts Conveyor Specifications:

Belt: Black PVC With 1-1/2" High Cleats on 12" Centers

Belt Speed: 60 F.P.M.

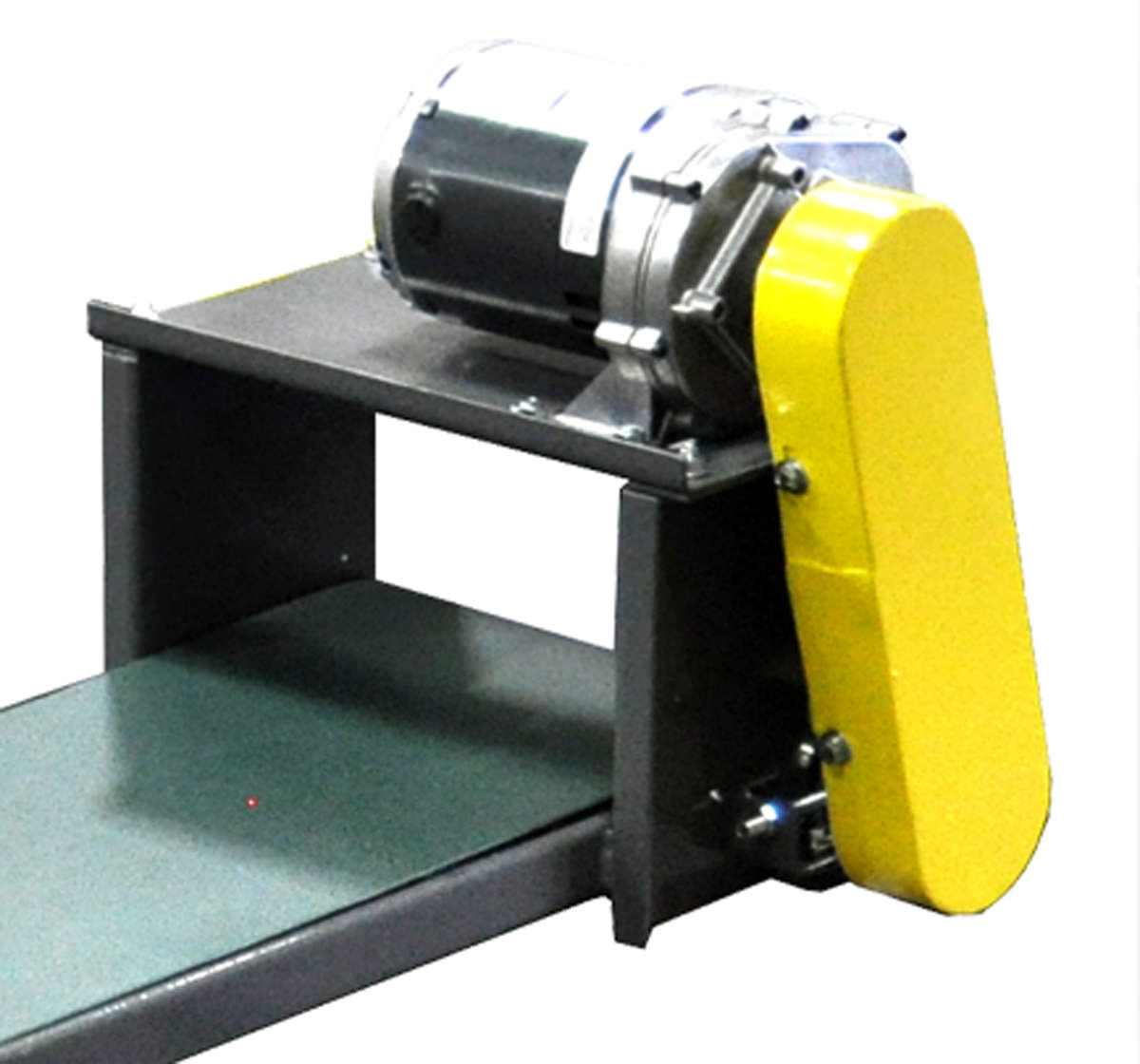

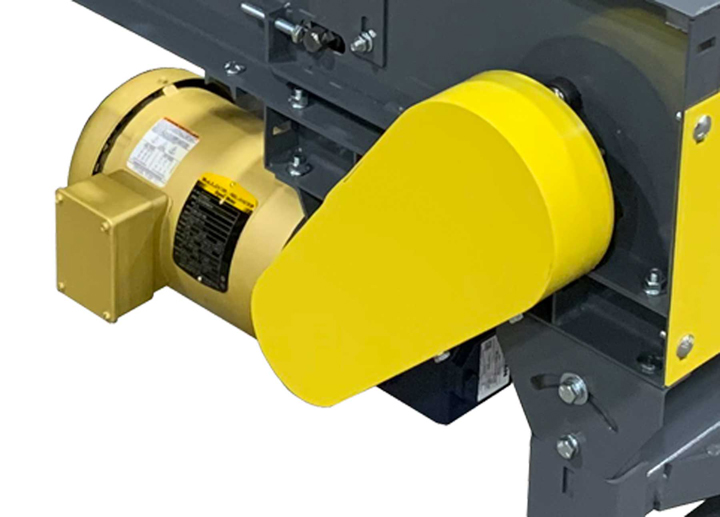

Drive: 1/2 H.P. 230/460/3/60

Frame: 8-5/8" Deep Formed 12 Gauge
