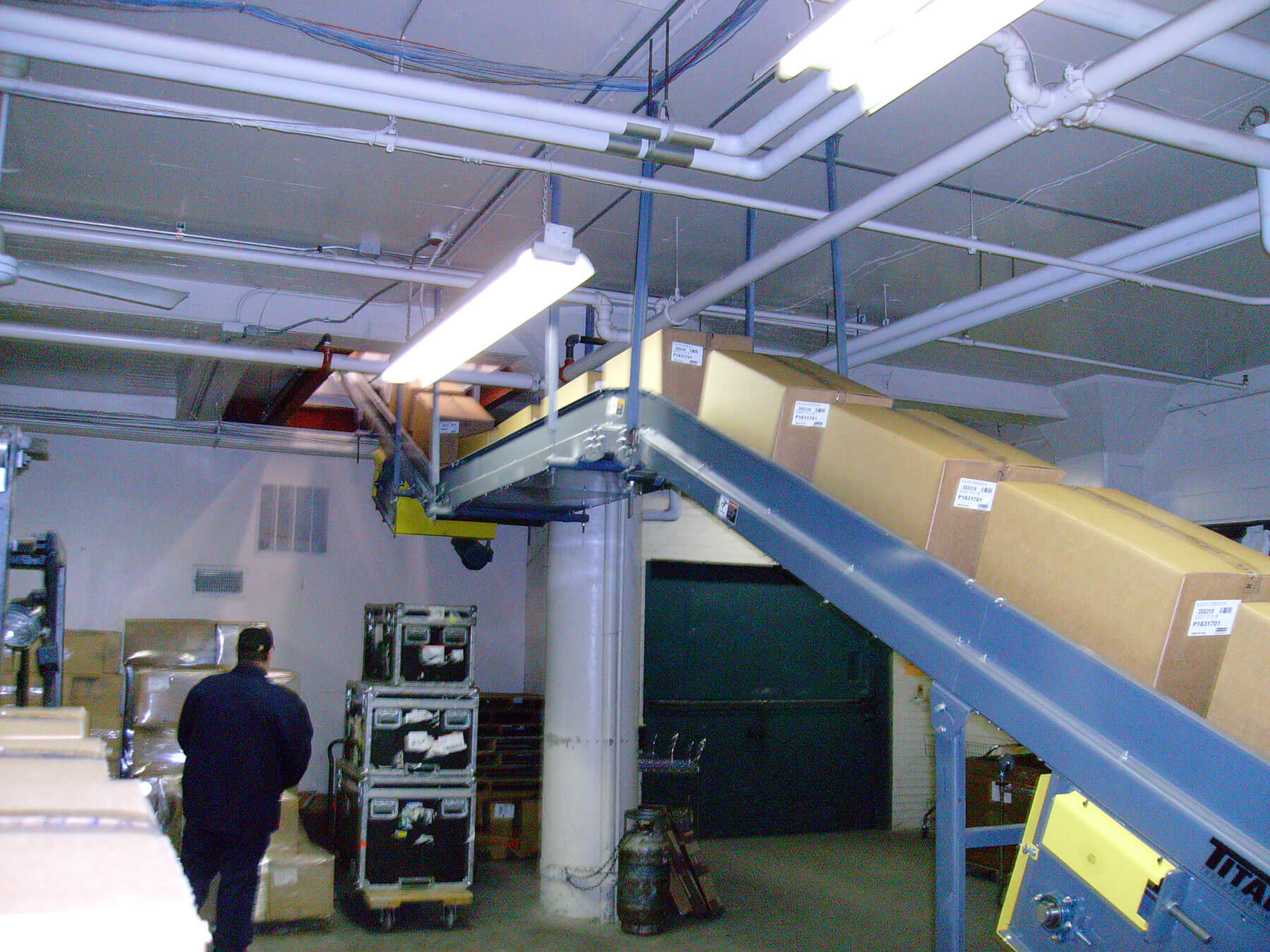

Floor To Floor Slider Bed

Model Description:

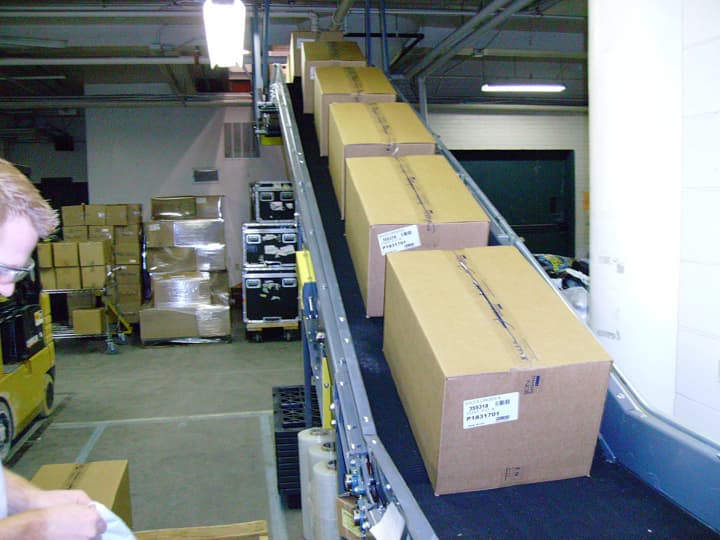

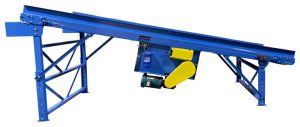

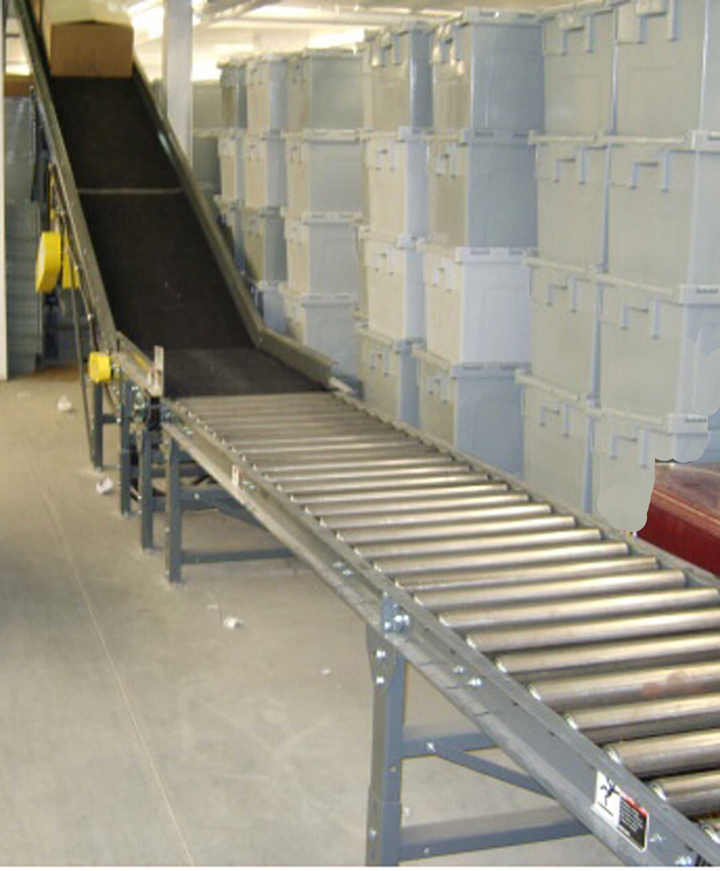

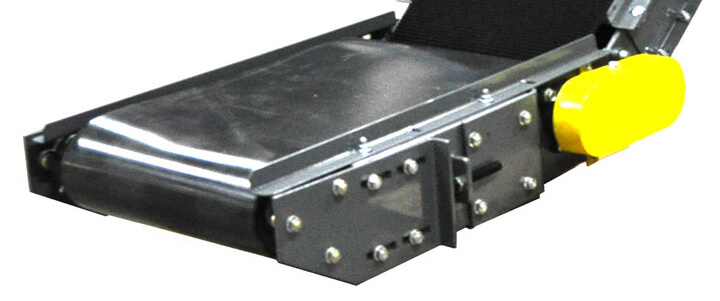

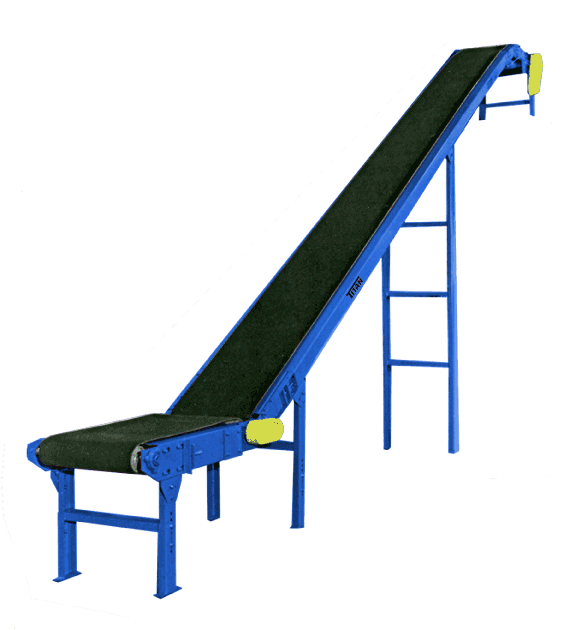

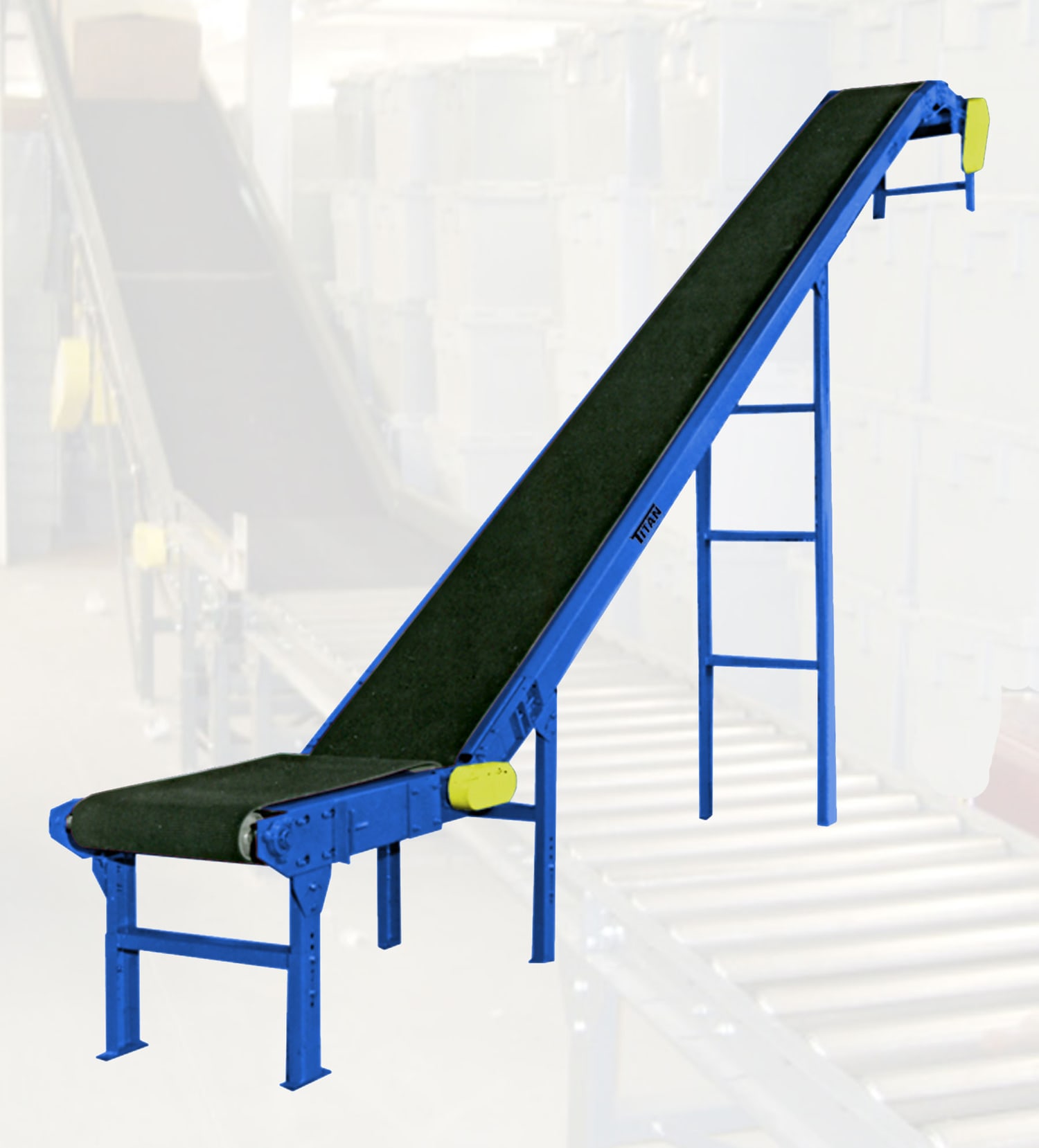

If a rugged, industrial material handling system is required, consider using the Titan Model 208 Floor to Floor Slider Bed conveyor in your system. The heavy-duty 8" diameter rubber lagged (vulcanized) drive pulley gives that extra capacity for heavier loads and longer incline sections. The optional 3" long power feeder adds flexibility for in-line flow of your product. The standard double nose over is adjustable up to a 30 degree incline. The Titan Model 208 has all of the rugged design features of our proven Model 108 Slider Bed and standard optional equipment is available but if your application requires a special modification, Titan Industries is willing and happy to accommodate your requirements.

Model 208 Floor To Floor Slider Bed Specifications:

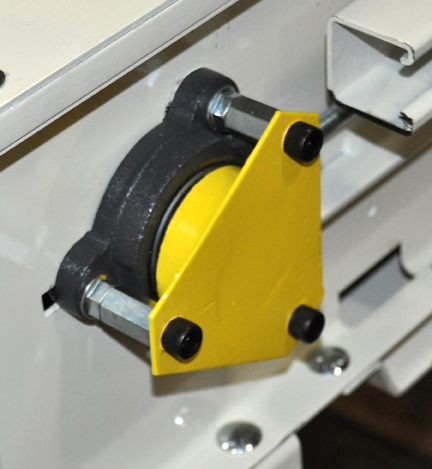

Bearings: Grease Sealed

Belt: Black Rubber Rough Top

Belt Speed: 60 F.P.M.

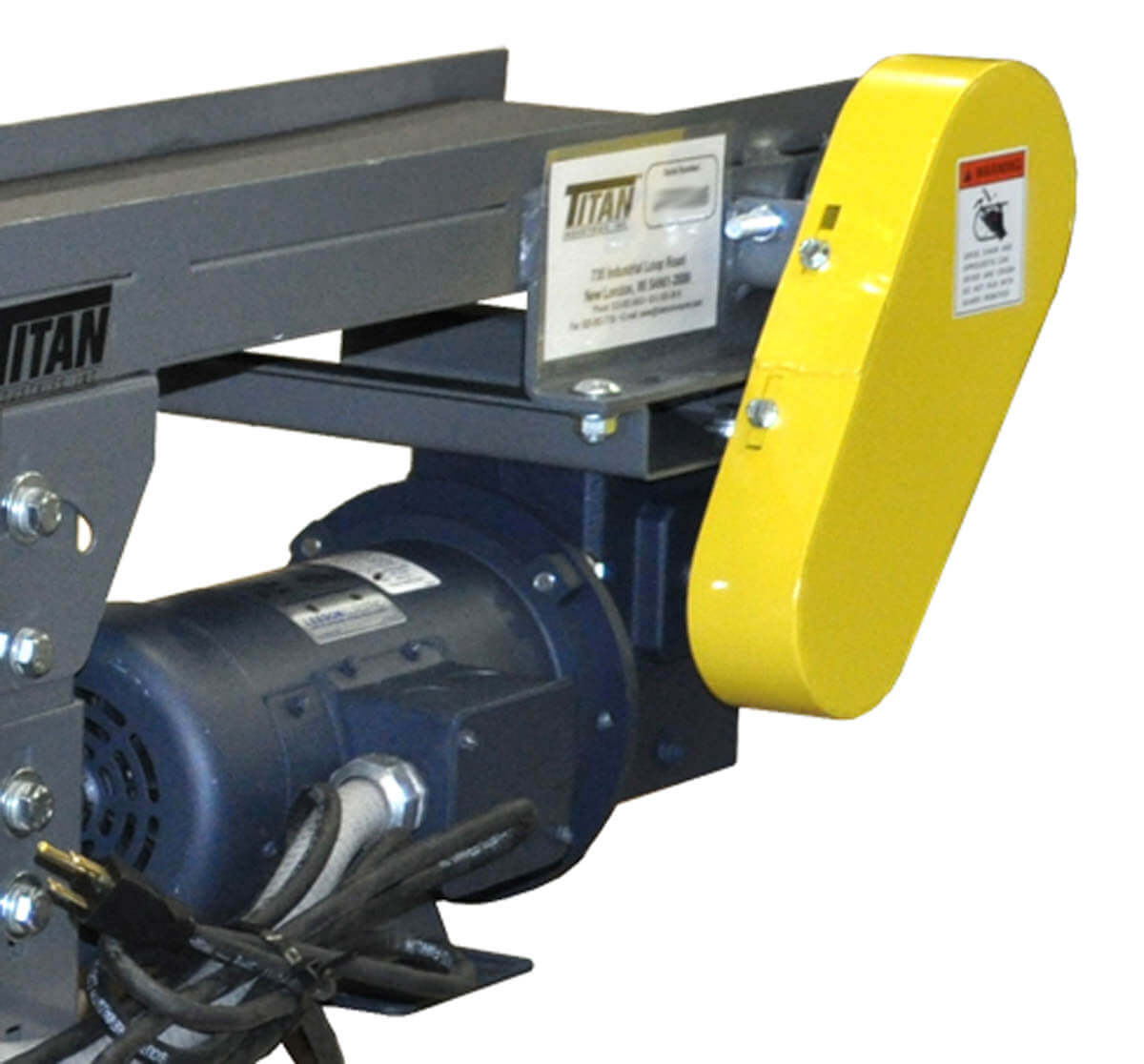

Drive: 3/4 HP 230/460/3/60

Frame: 4" Deep Formed 12 Gauge

Paint: One Coat Industrial Enamel

Pulleys: 8" Diameter Crown Face Rubber lagged Drive 4" Diameter Crown Face Takeup

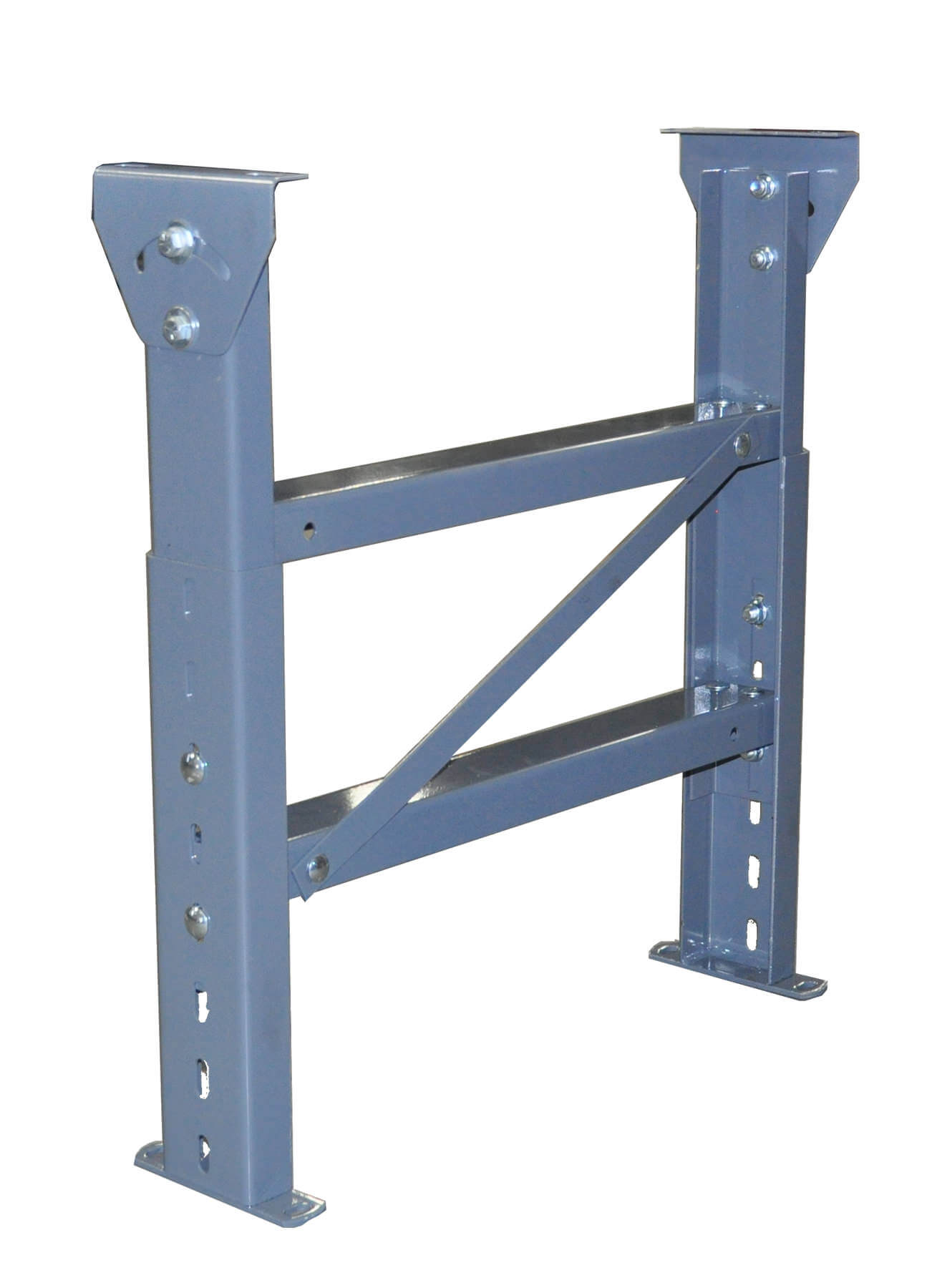

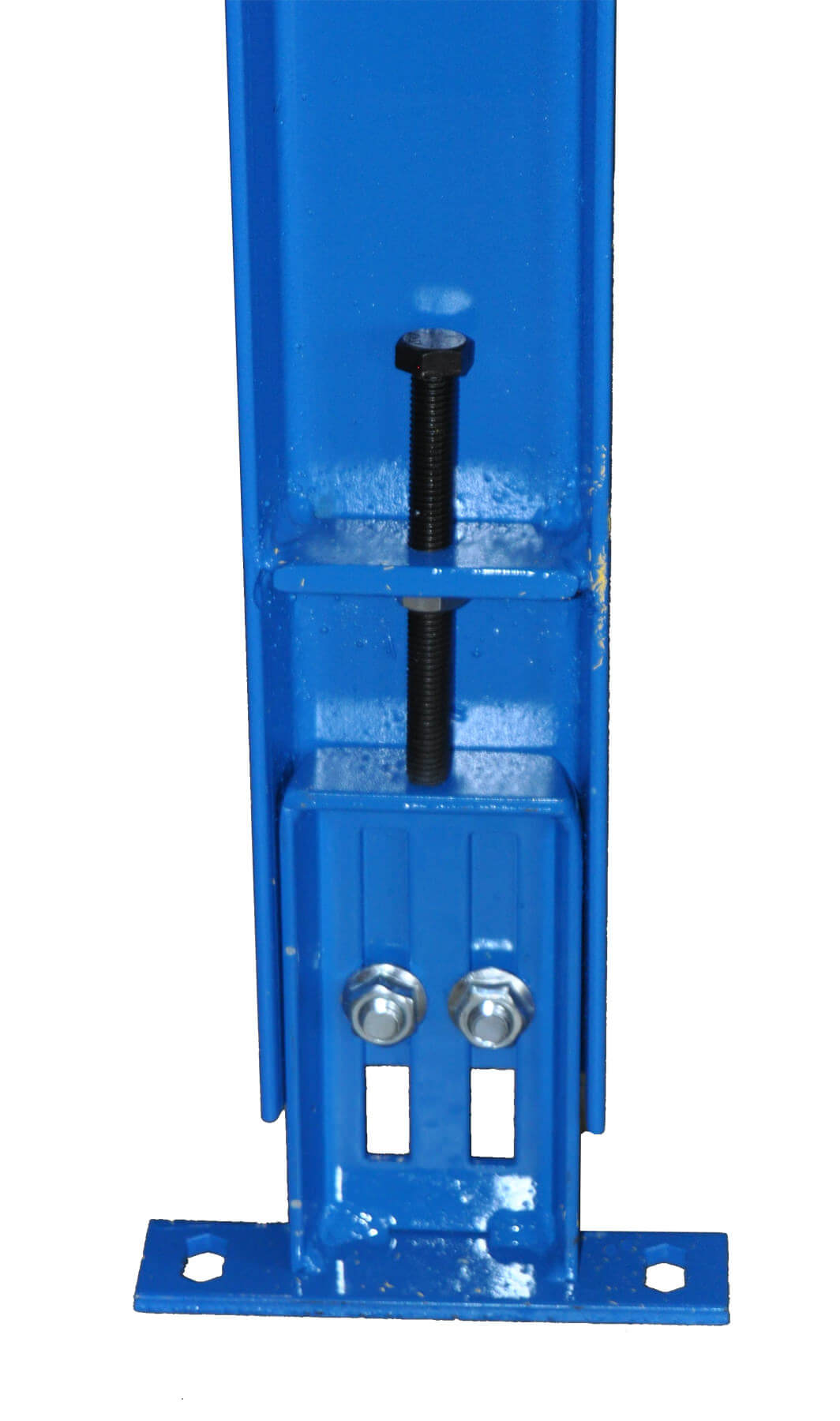

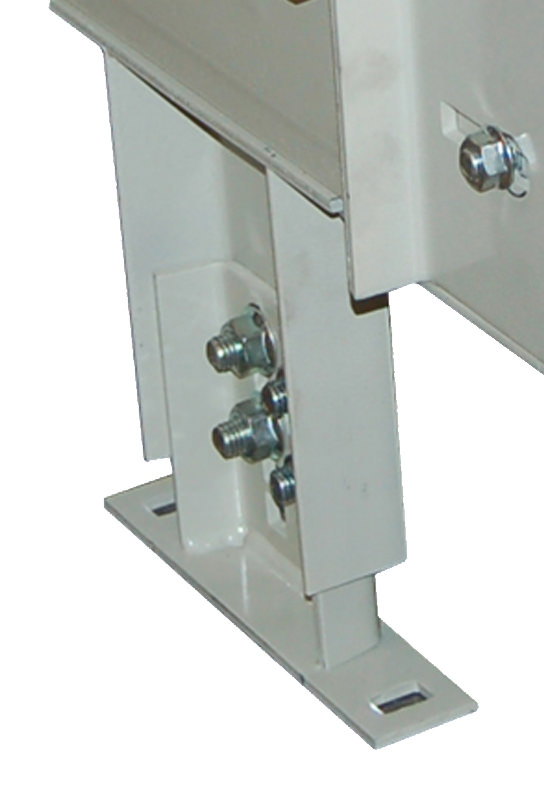

Supports: H" Type Adjustable
