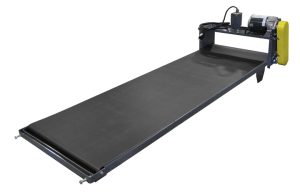

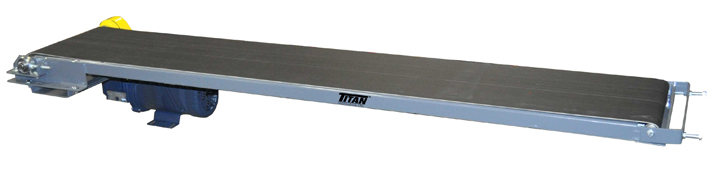

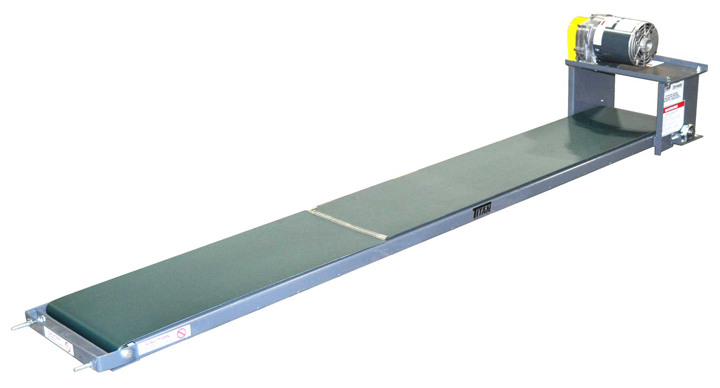

Model 102 "Mini-Pro"

Low Profile Belt Conveyors

Model Description:

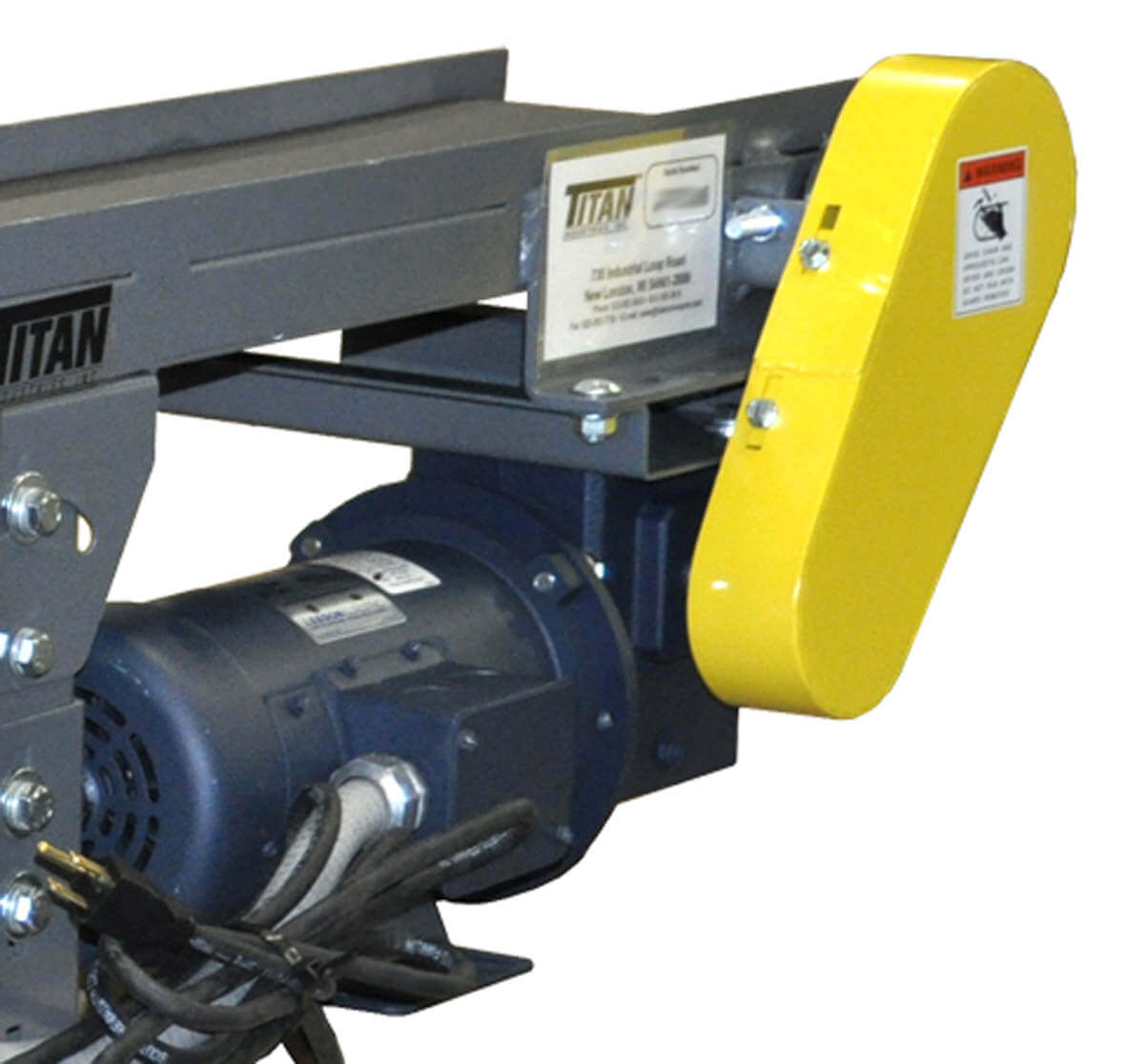

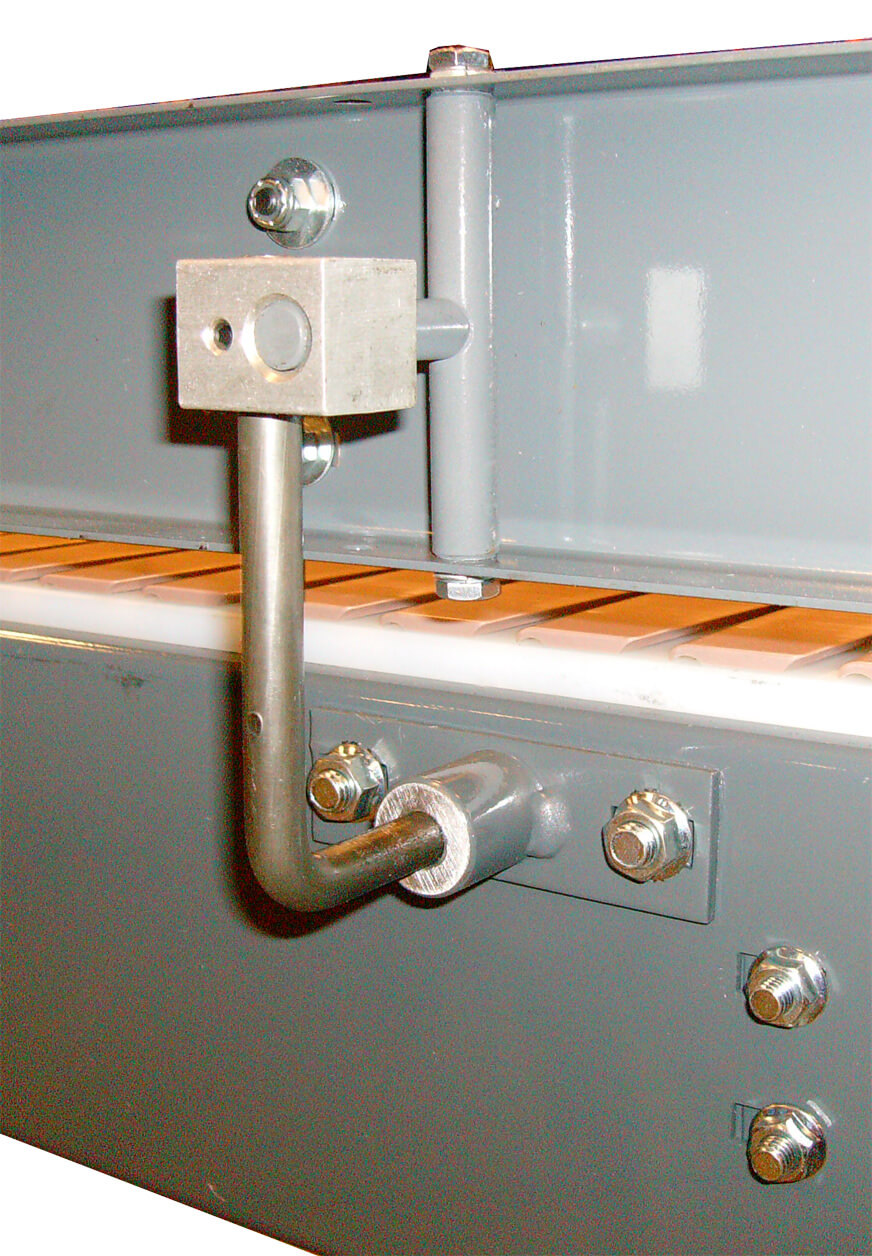

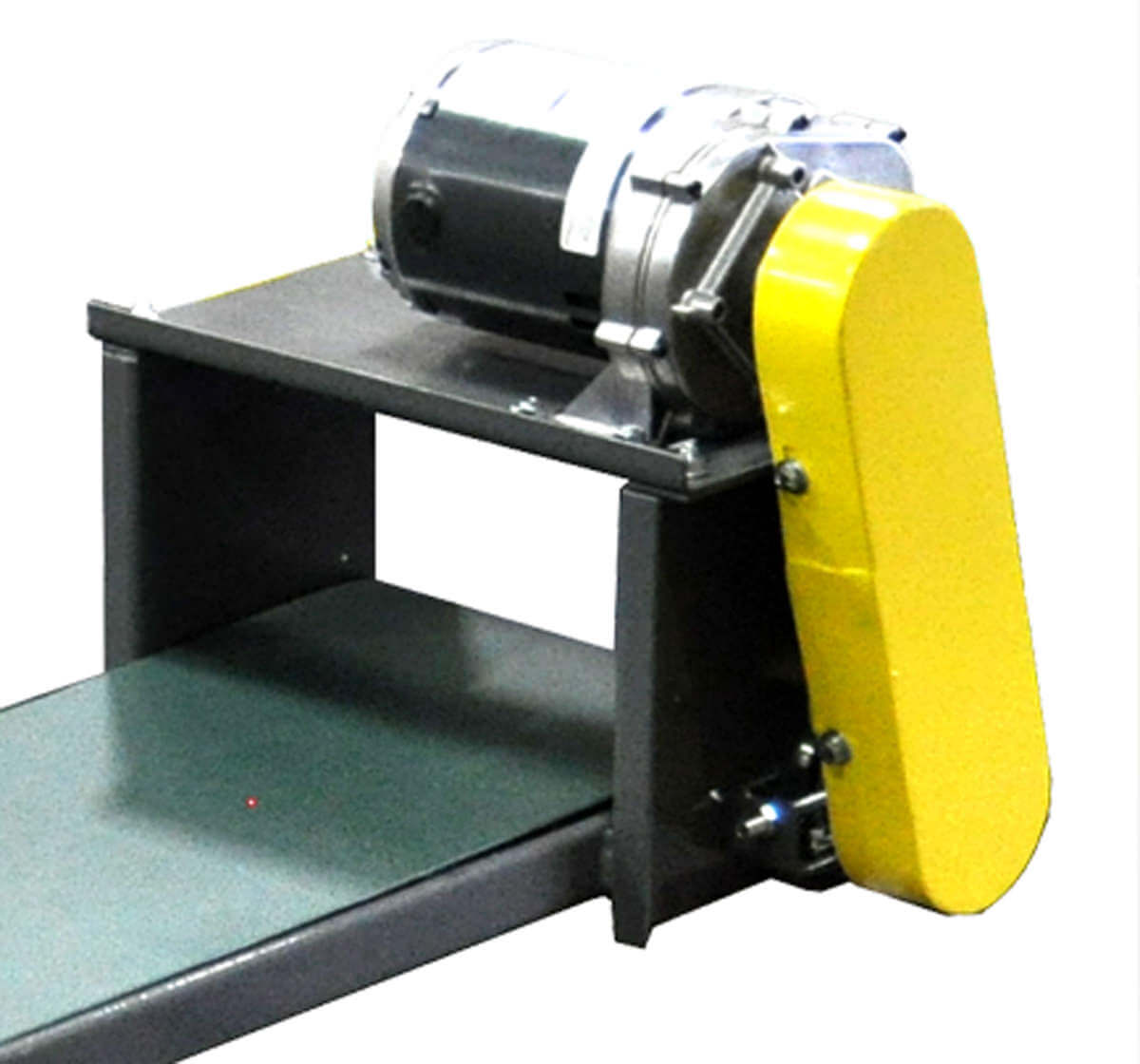

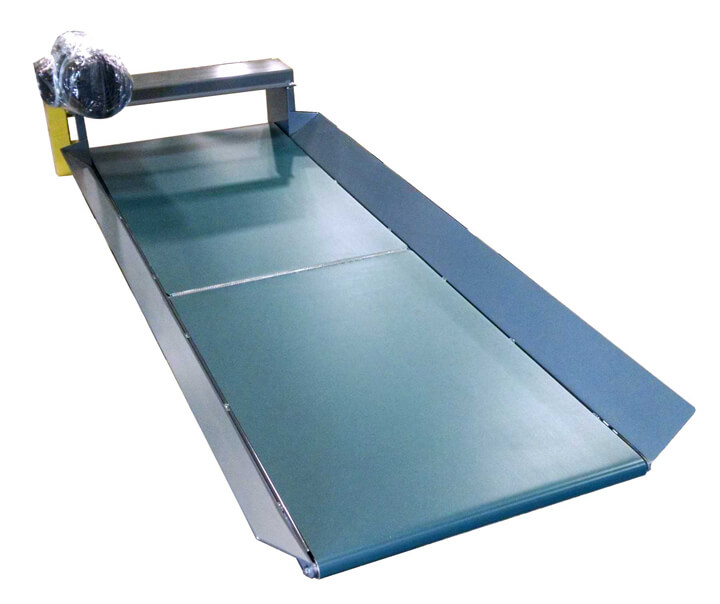

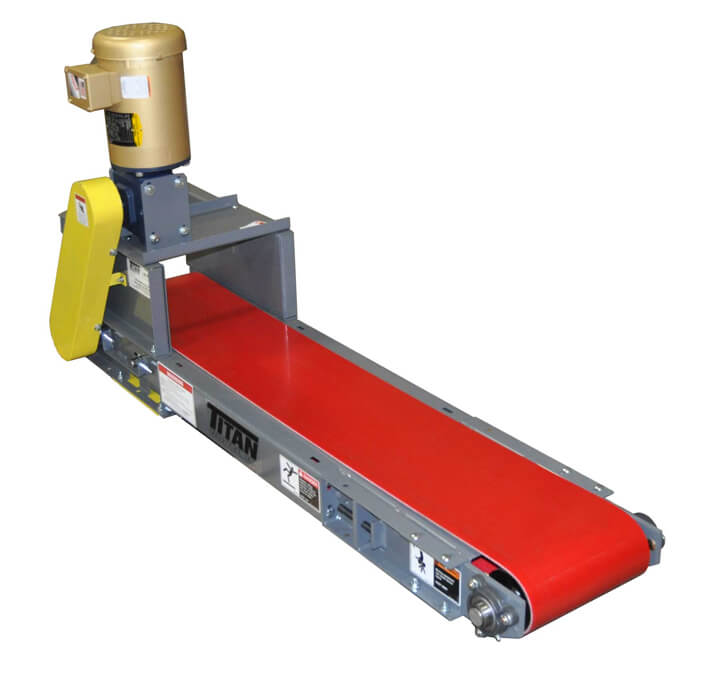

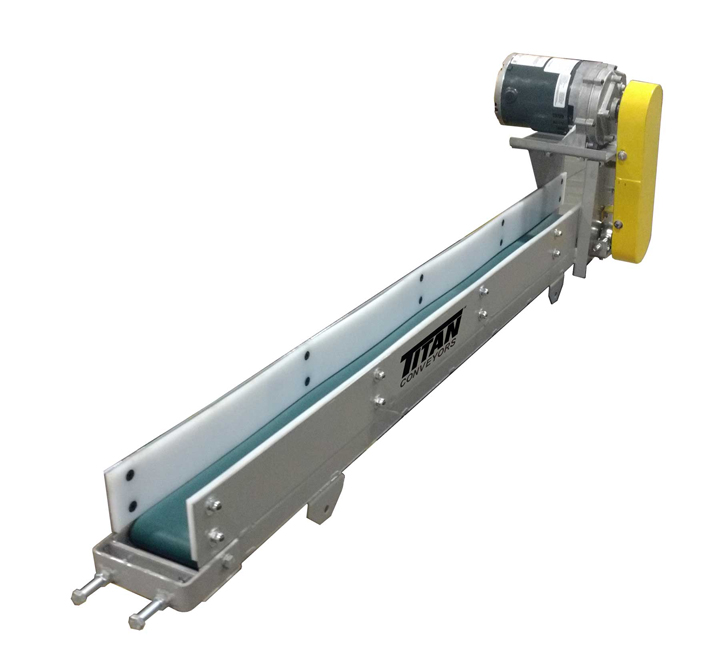

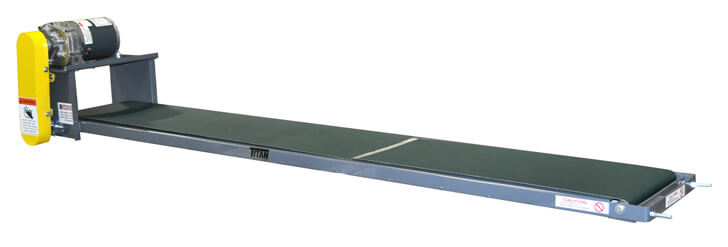

Titan Conveyors developed the Model 102 Mini-Pro Conveyor to solve scrap handling problems from under your dies. The Mini-Pro has a 1-1/2" low profile frame that will easily fit under most die parallels to quickly remove scrap or finished parts. A knurled 2" diameter drive pulley provides positive belt pull under extremely oily conditions. Mini-Pro's narrow frame width (belt width plus 1/2") is unique for this type of conveyor. A bottom mounted drive is furnished as standard but a top mounted drive arrangement is optional. Other optional features available are vertical or flared side rail to suit your application, supports as required, different belt types and special belt speeds. Standard belt widths from 2" to 24" wide, with lengths from 4' to 10' maximum as standard.

Model 102 "Mini-Pro" Low Profile Belt Conveyors Specifications:

Belt Width:  2" to 30"

Belt: Black Oil Resistant

Belt Speed: Various

Drive: 1/4 H.P. 115/1/60 Gearmotor

Frame: 1 1/2" Deep Formed 12 Gauge

Paint: One Coat Industrial Enamel

Pulleys: 2" Diameter Crown Face Knurled Drive

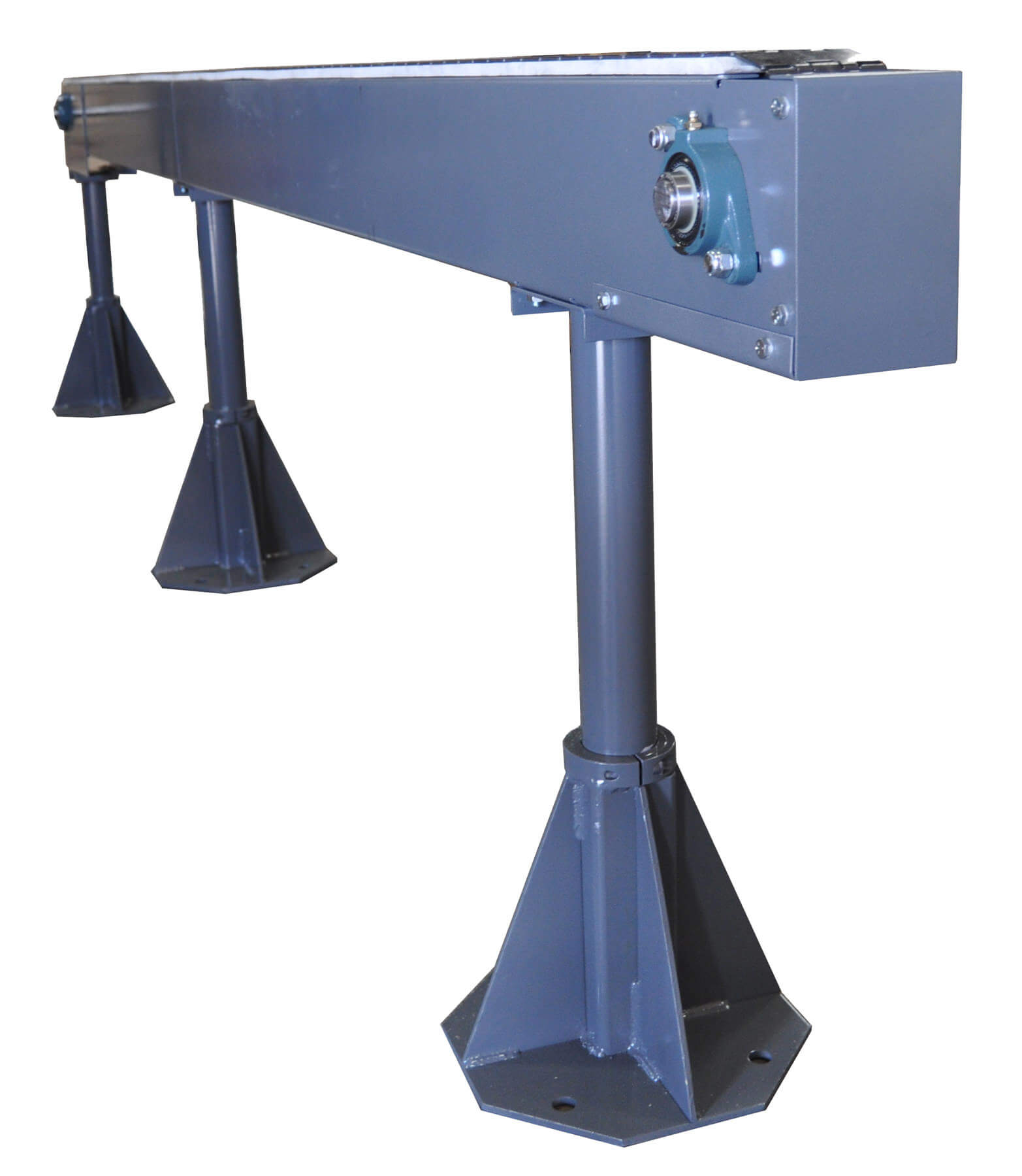

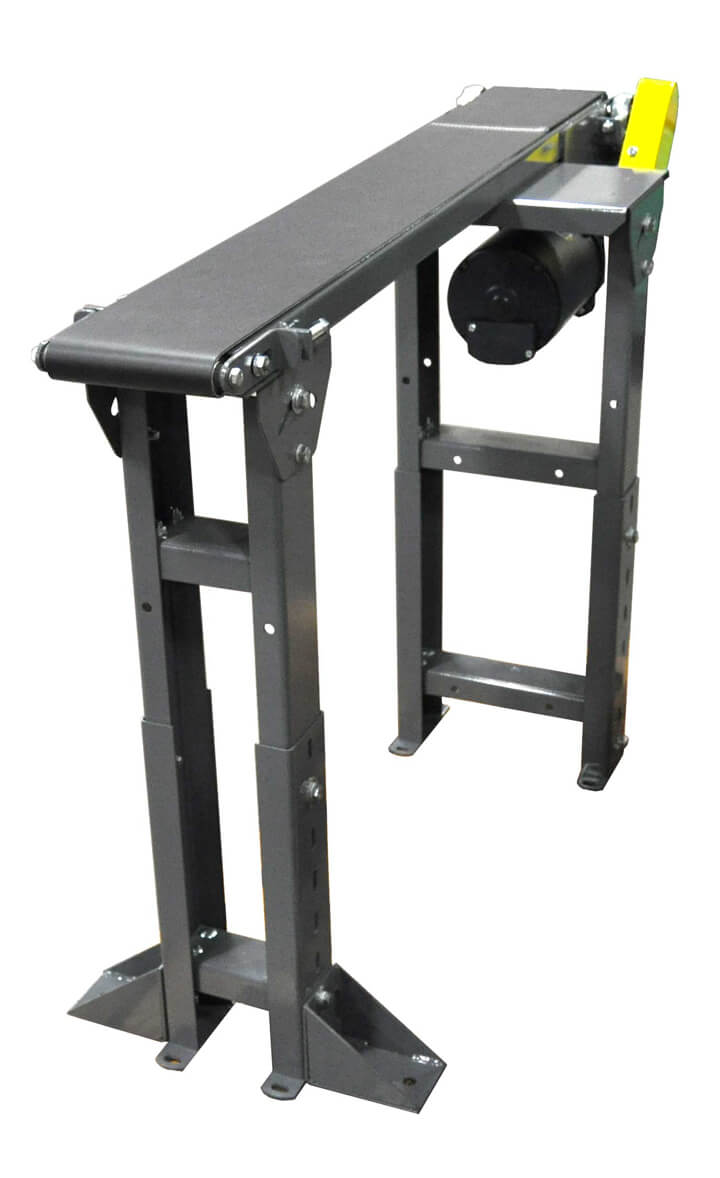

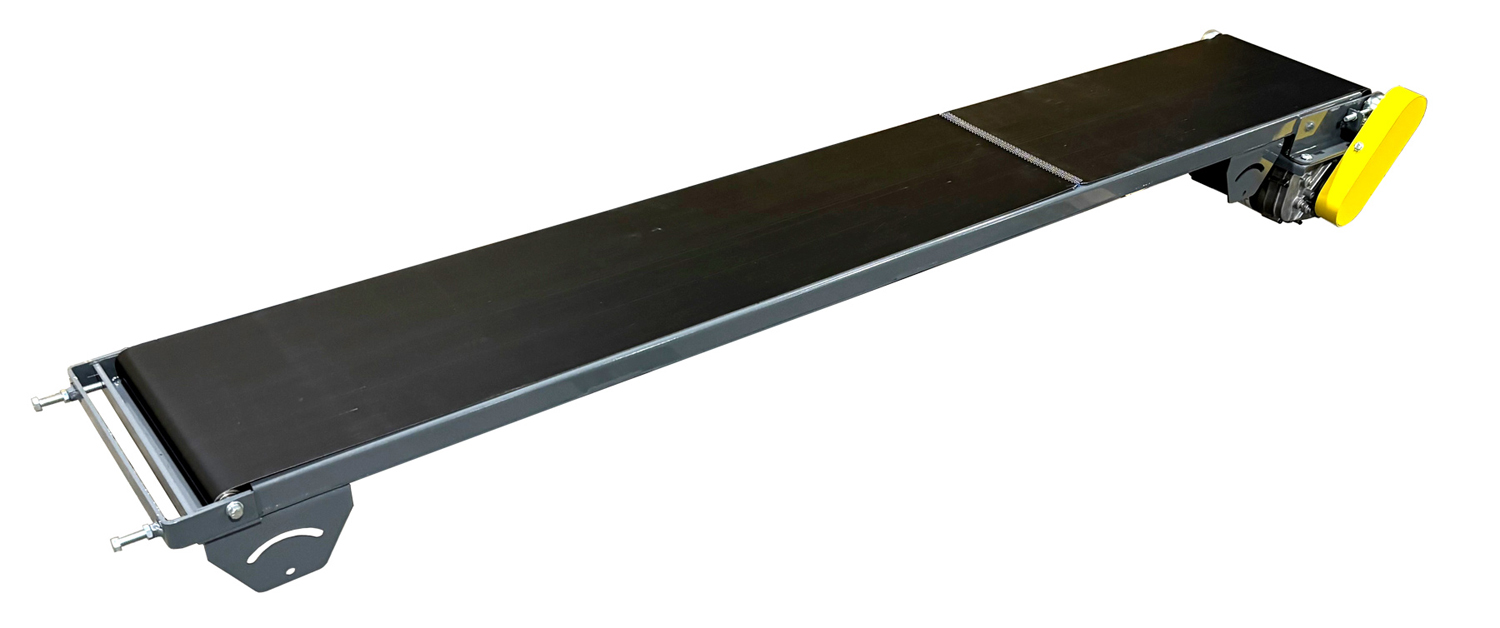

Supports: Supplied As Optional Equipment
