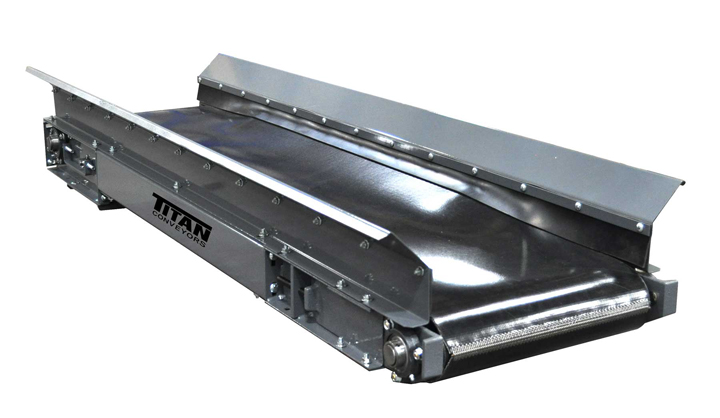

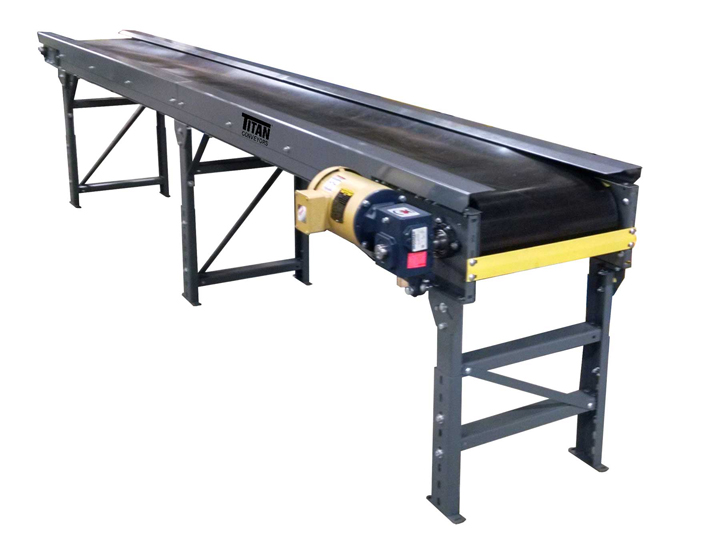

Troughed Belt Conveyors

Model Description:

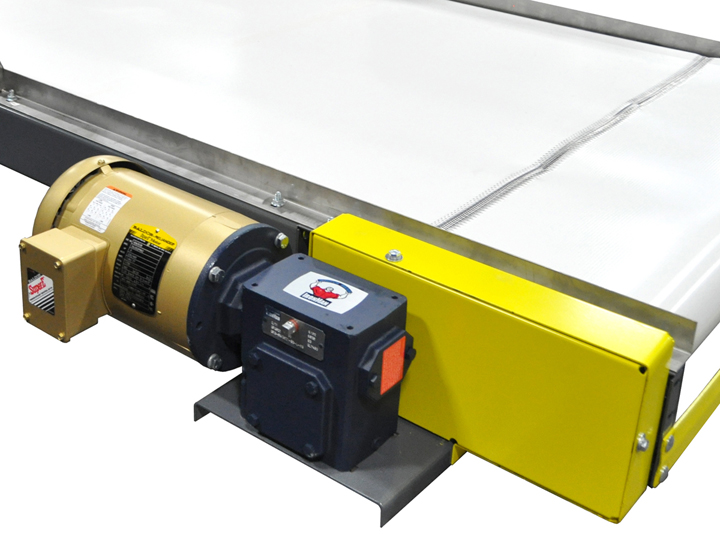

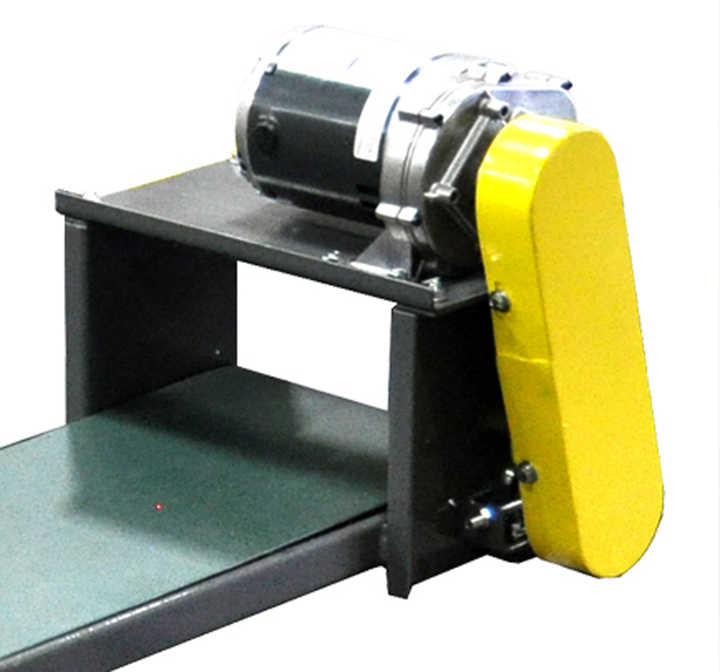

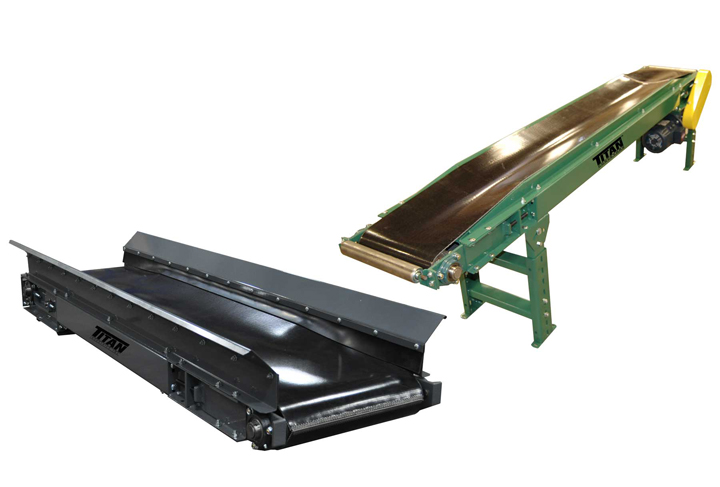

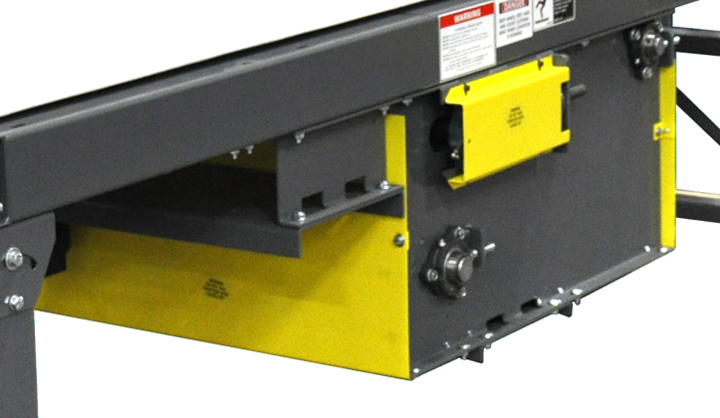

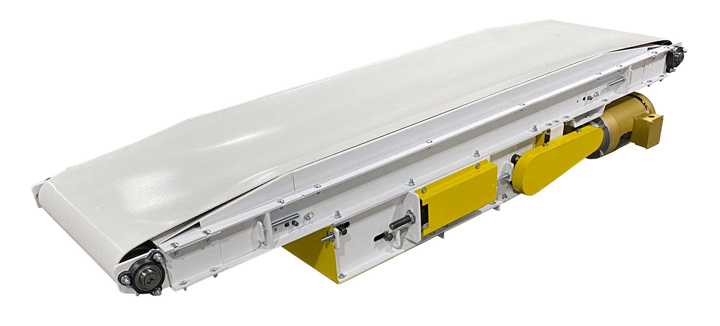

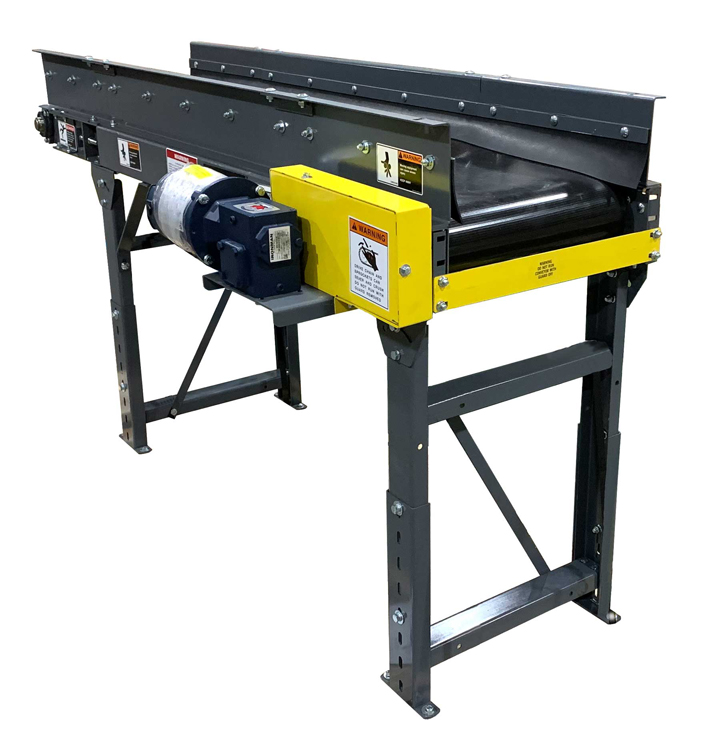

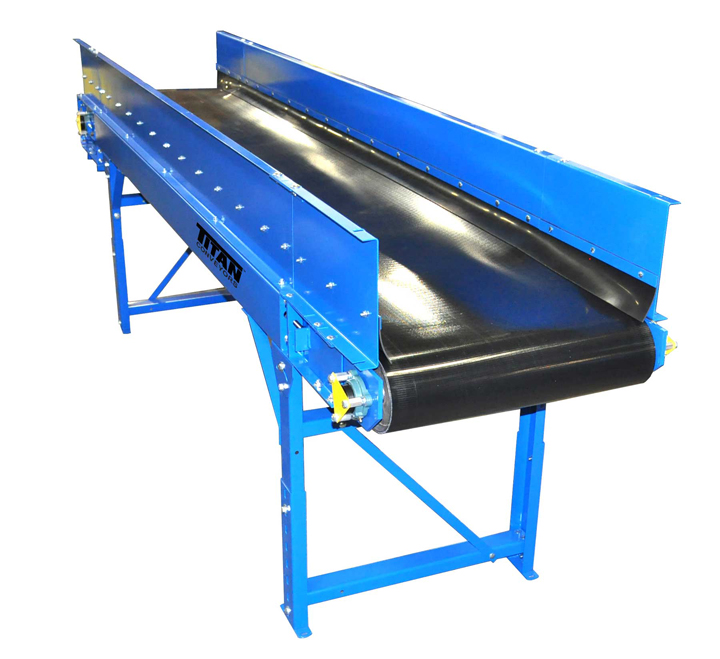

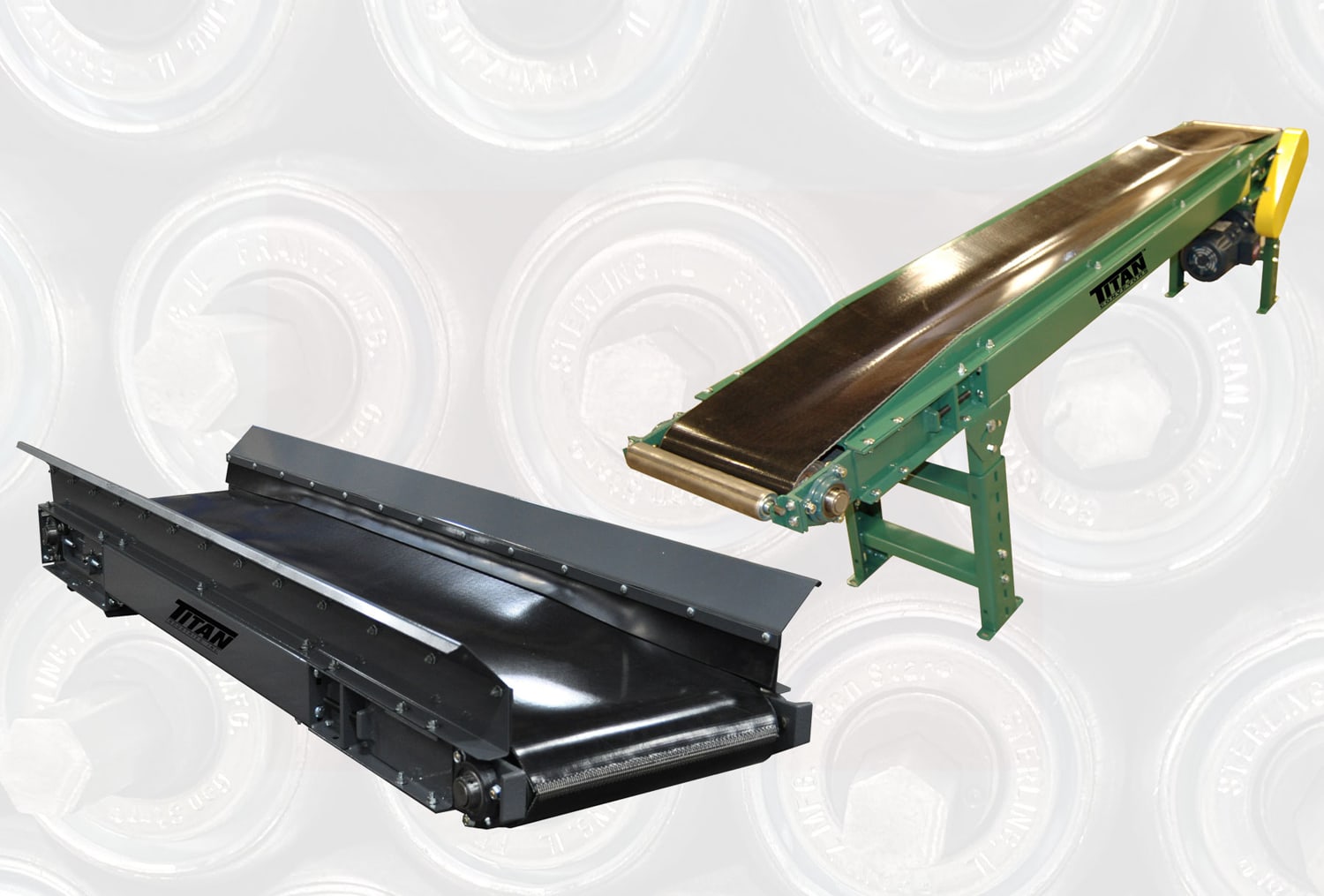

The Model 114 troughed belt conveyor is designed with simplicity and flexibility in mind. Whether an individual conveyor or as part of a conveyor system the standard 4" deep formed 12 gauge frame allows for reduced total weight and yet the rigidity needed for lighter duty applications. Excellent design for conveying loose parts or conveying bulk materials. Bottom, top or center drive available.

Model 114 Troughed Belt Conveyor Specifications:

Belt: Black P.V.C.

Belt Speed: 60 F.P.M.

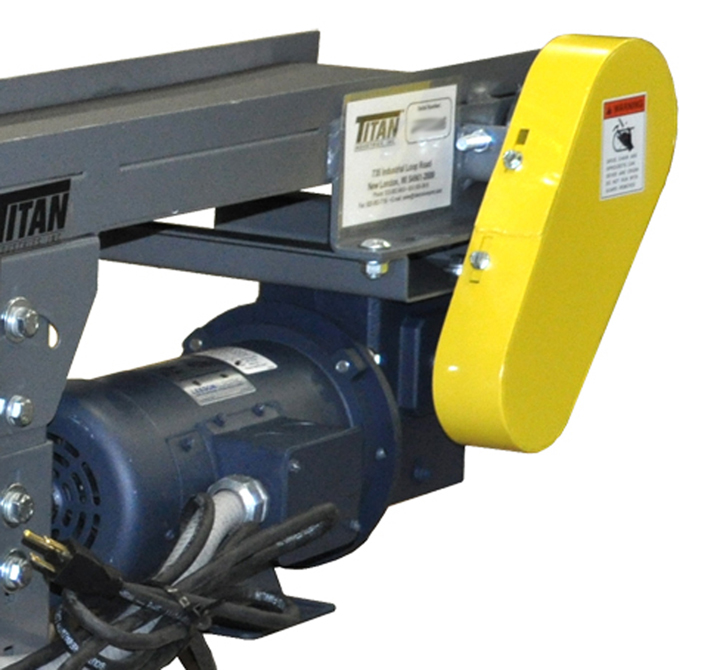

Drive: 1/2 H.P. 230/460/3/60

Frame: 4" Deep Formed 12 Gauge

Paint: One Coat Gray Industrial Enamel

Pulleys: 4" DIA. Crown Face Rubber Lagged Drive 4" DIA. Crown Face Take Up

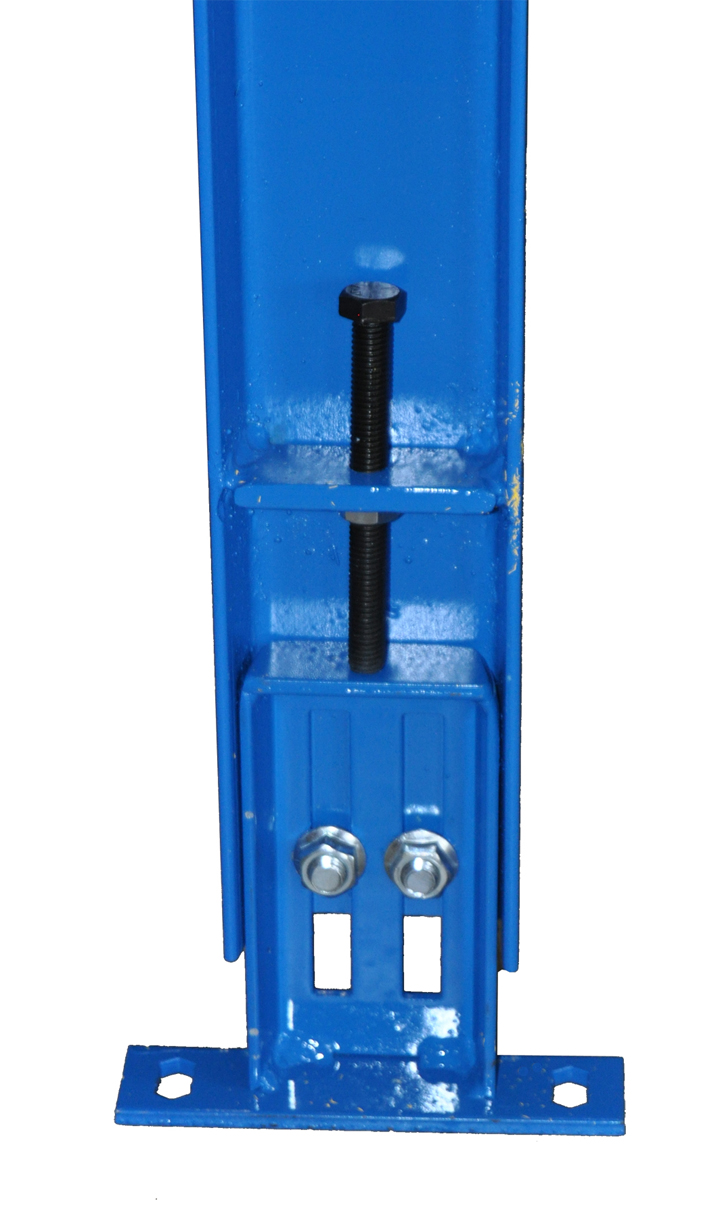

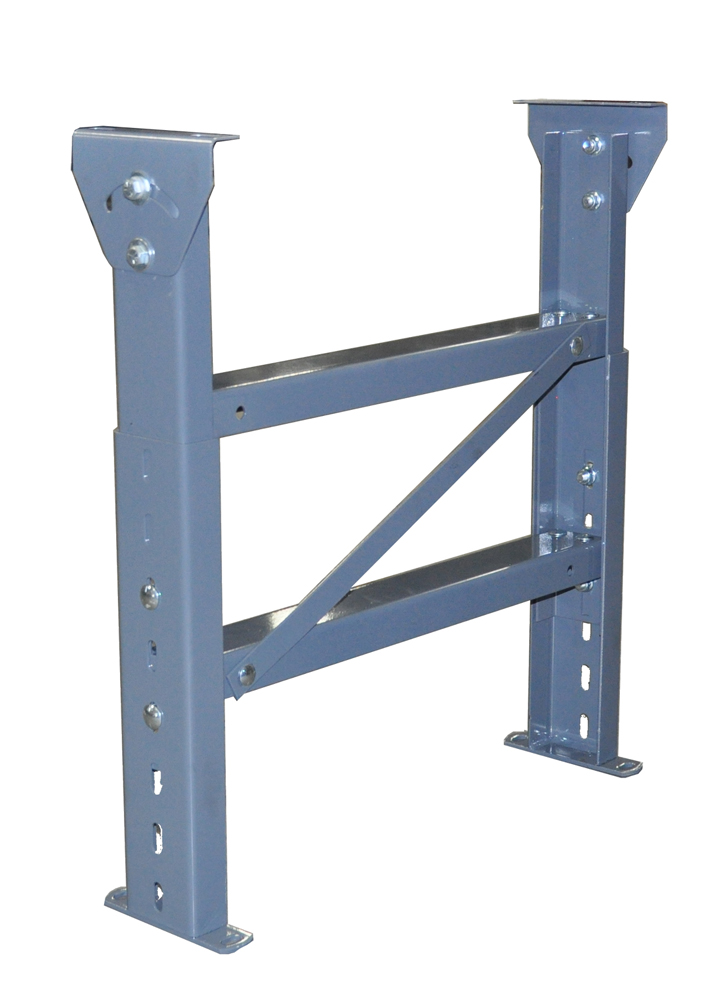

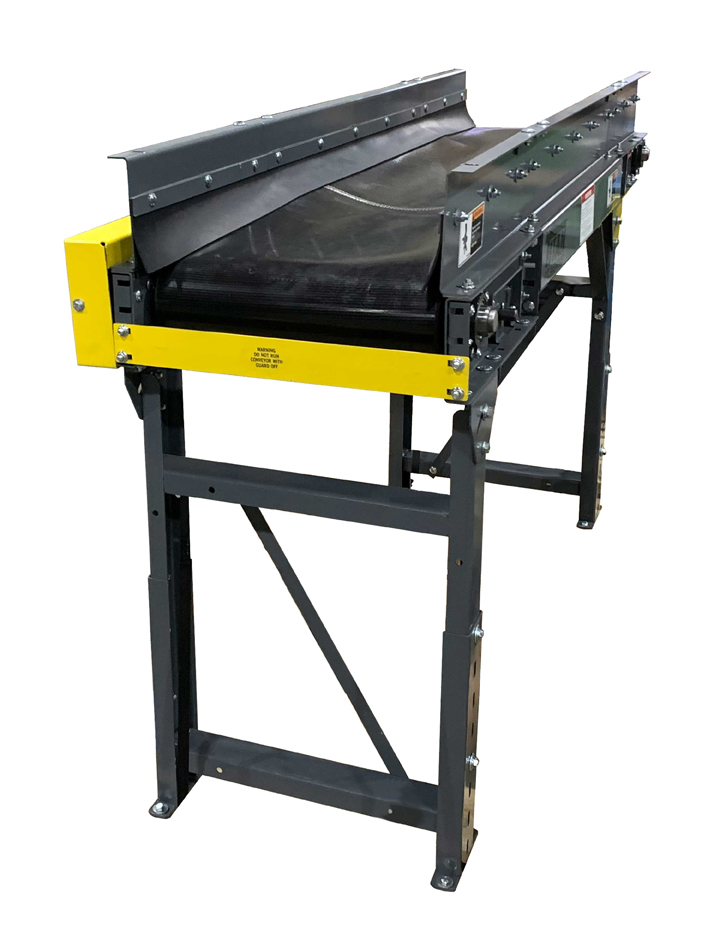

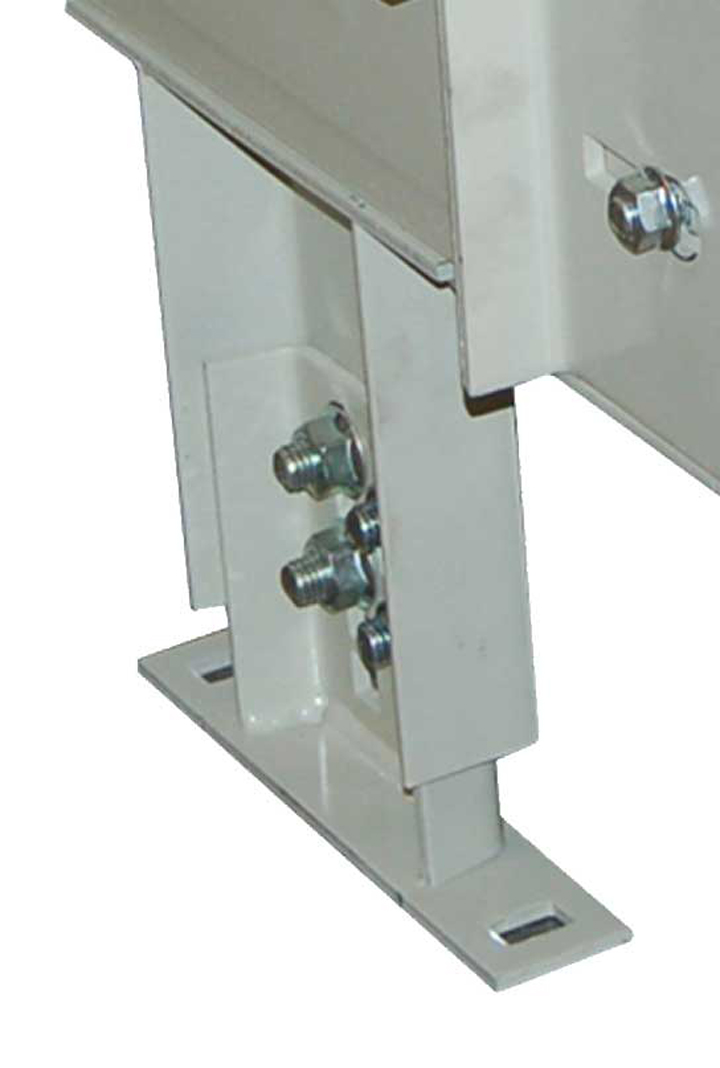

Supports: "H" Type Adjustable For 30" Elevation
