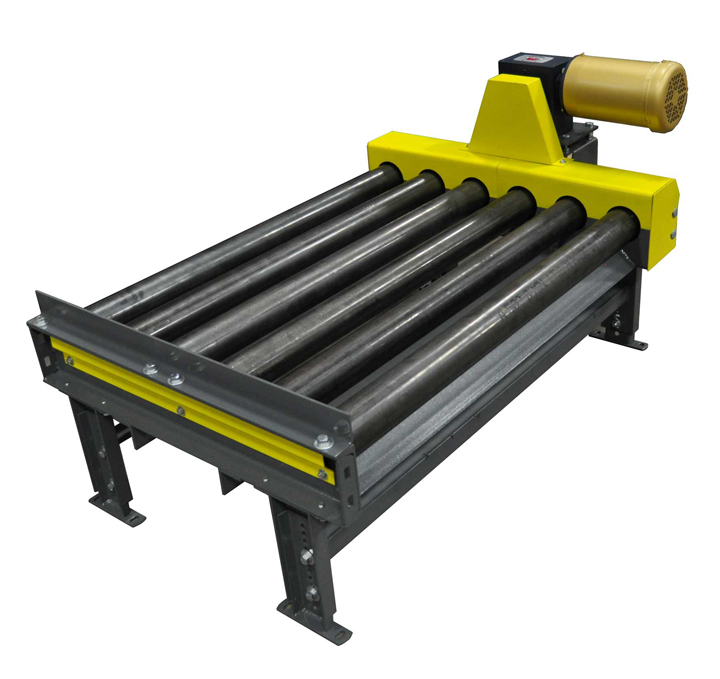

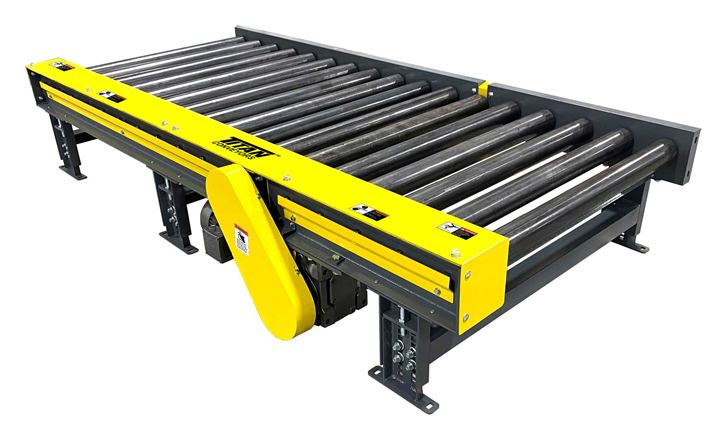

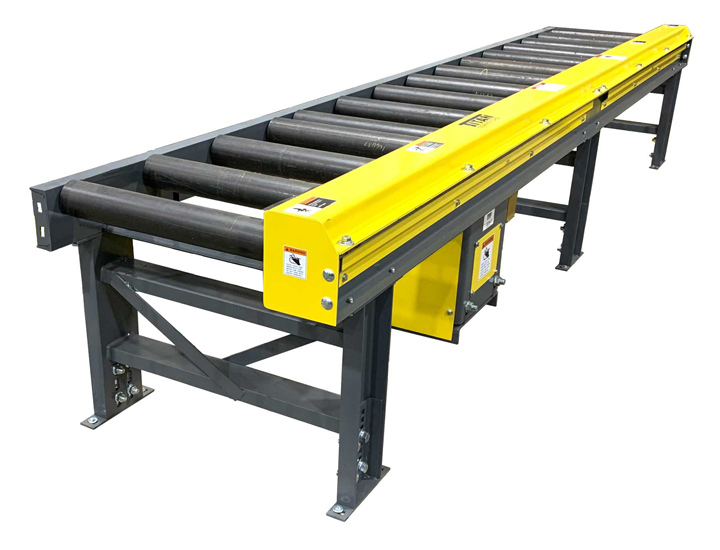

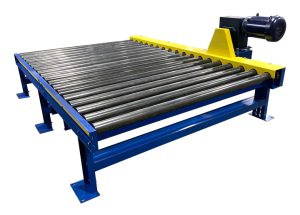

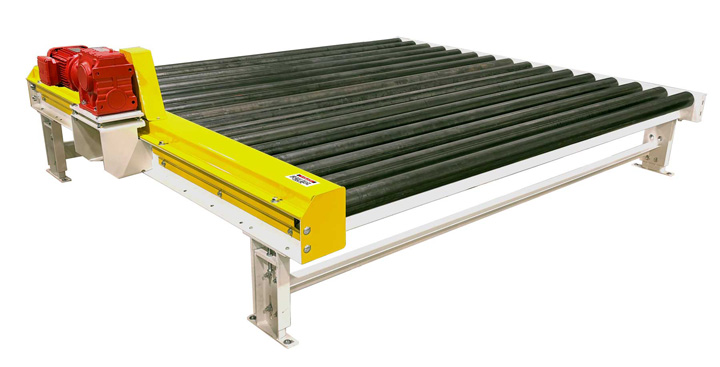

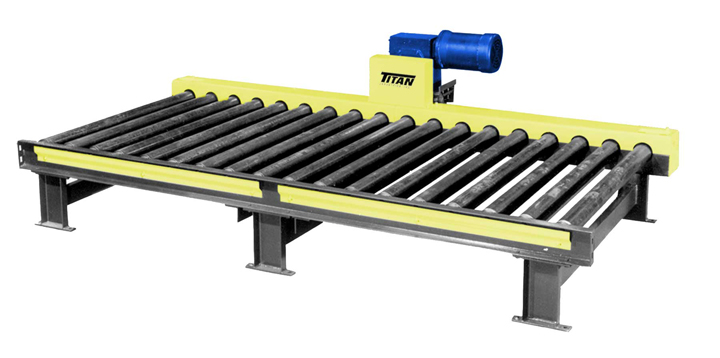

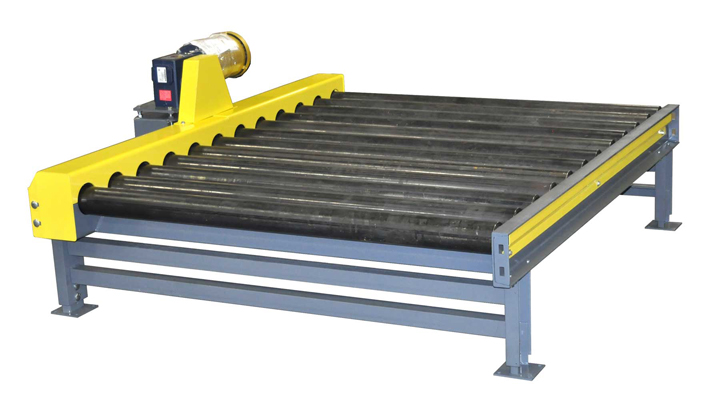

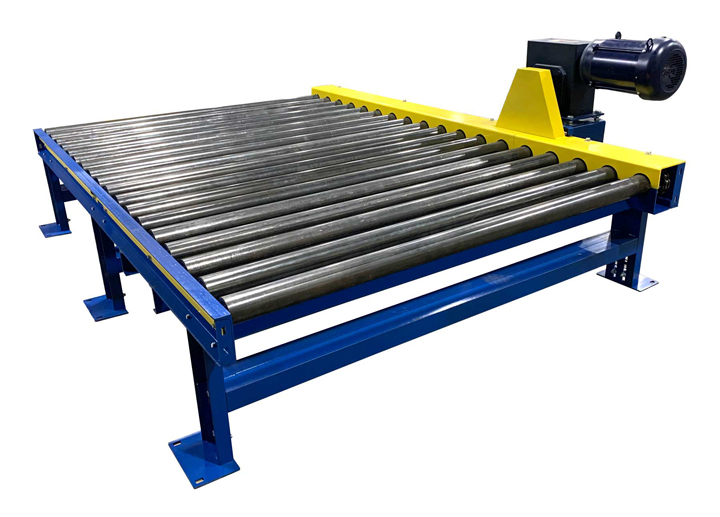

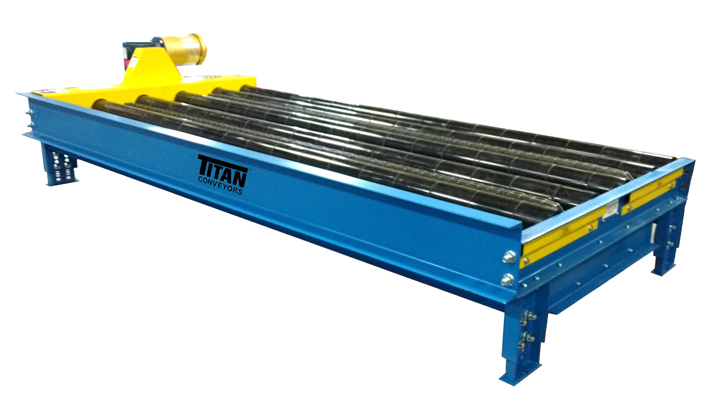

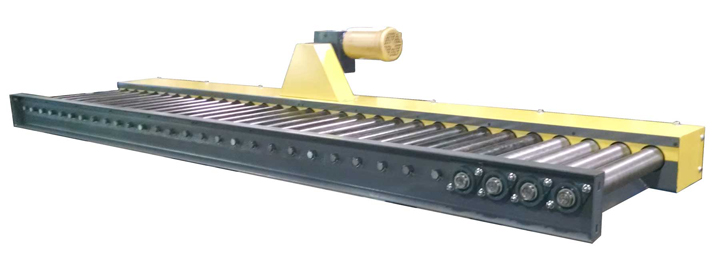

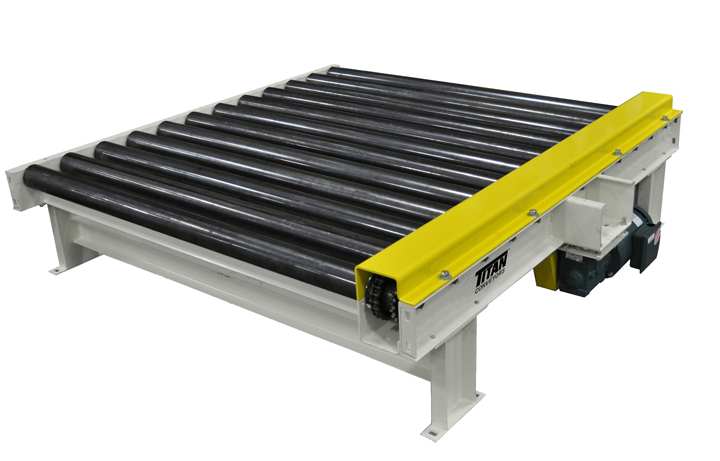

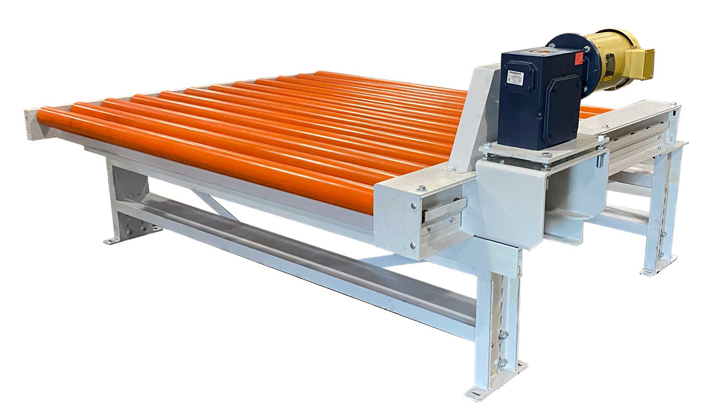

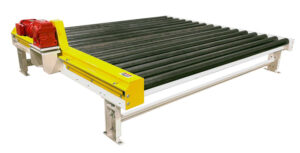

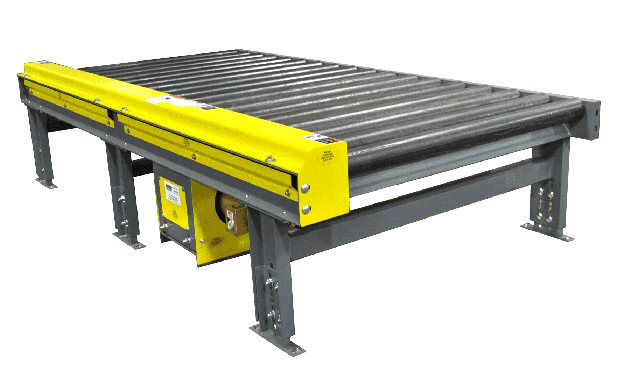

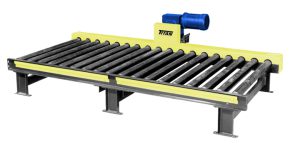

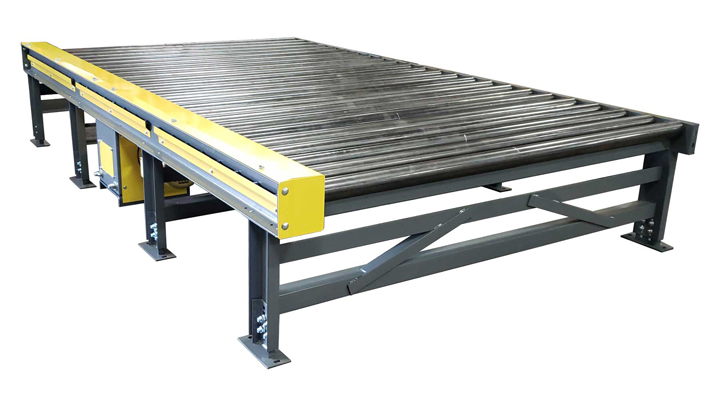

Model 535

Chain Driven Live Roller Conveyor

Model Description:

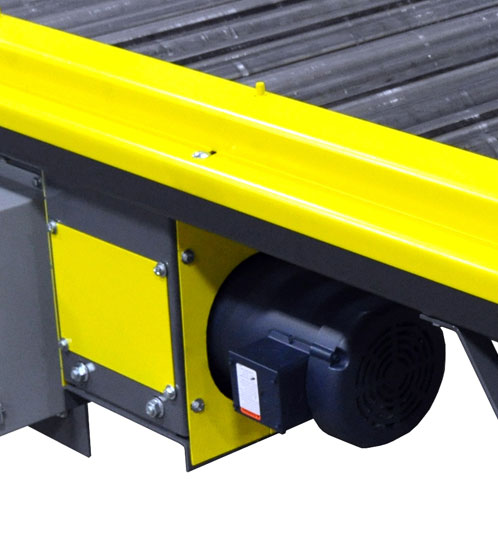

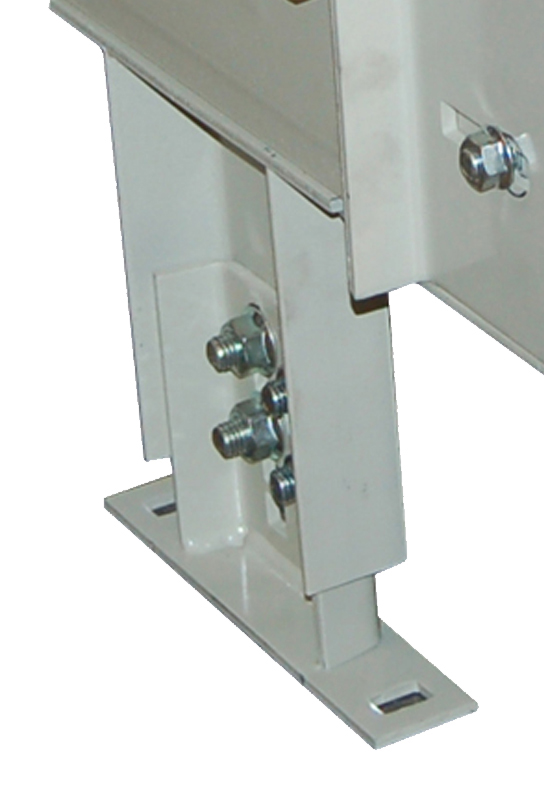

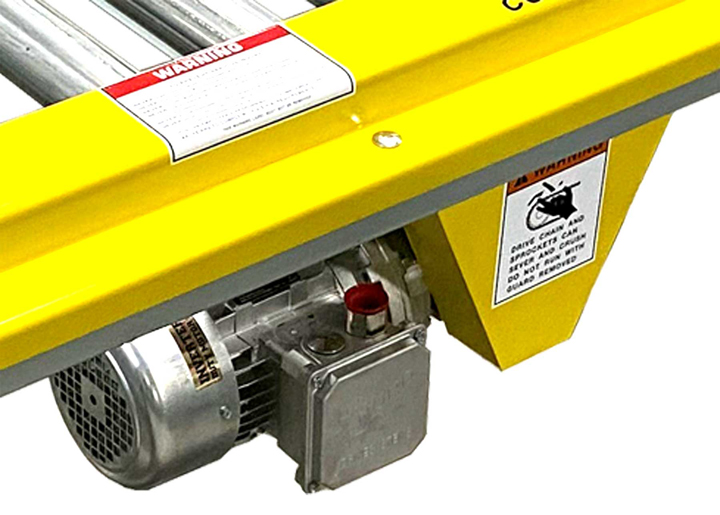

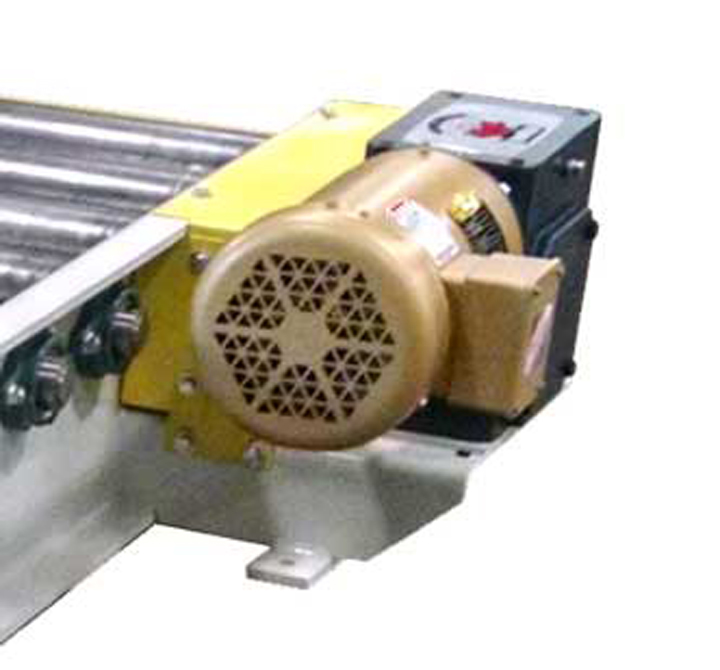

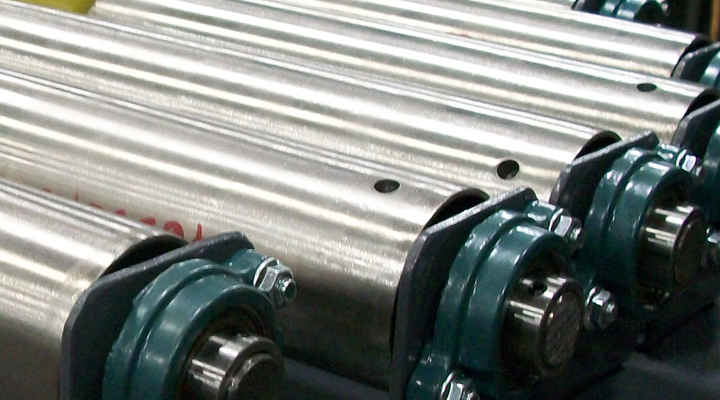

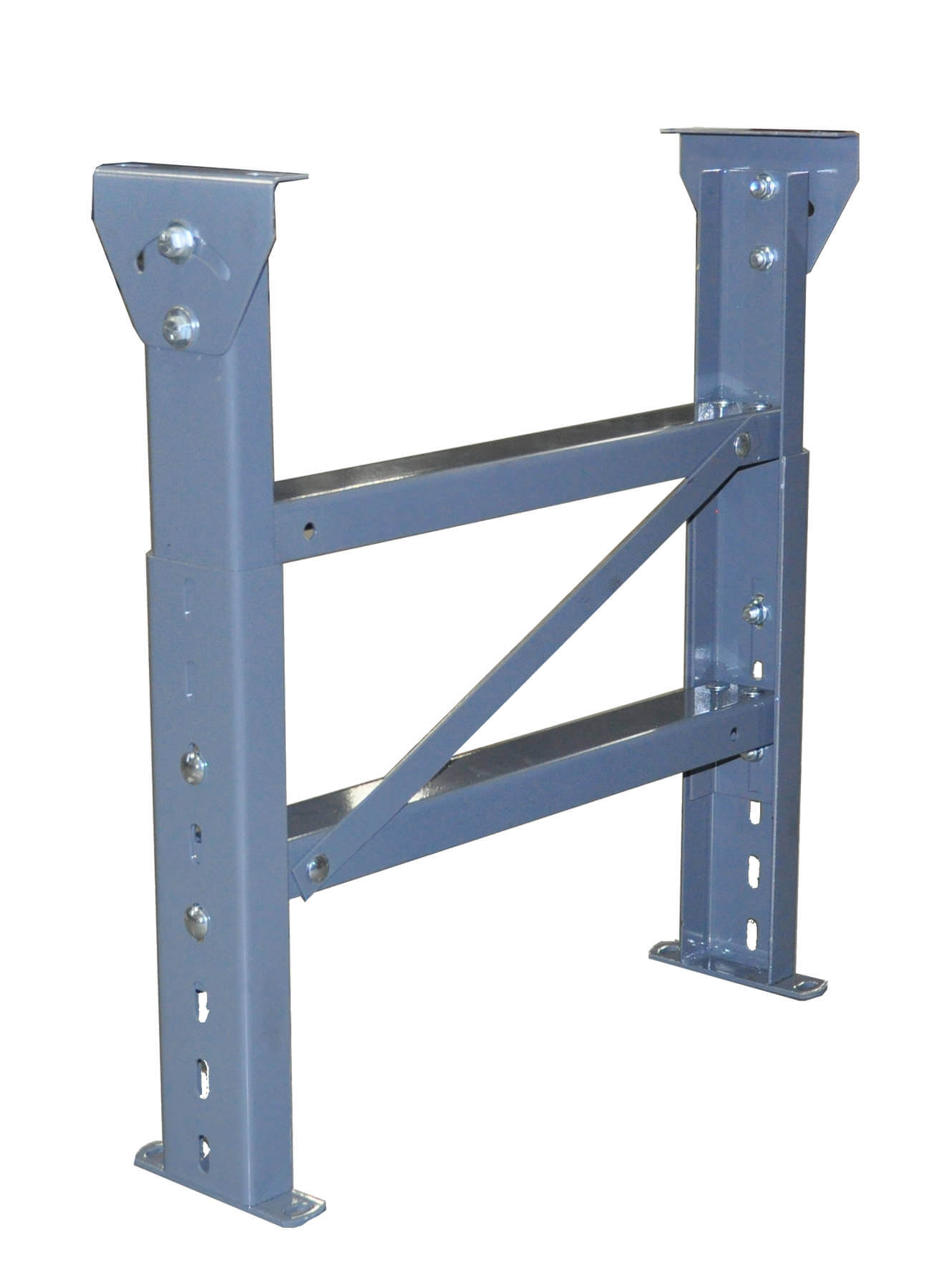

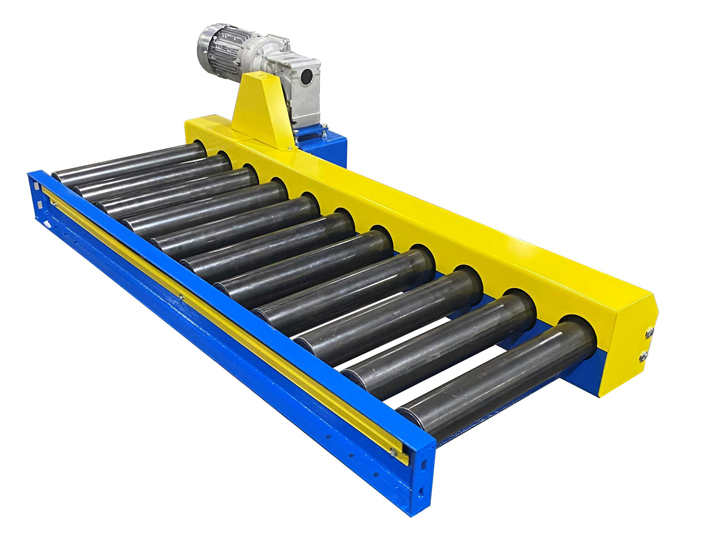

The ultimate in heavy-duty conveying for pallets, skids, or drums - the Model 535 is designed to handle extremely heavy loads. The 3-1/2" diameter X .300 wall (schedule 80 pipe) rollers are rated for 2500 lbs. per roller. The rollers use a heavy-duty industrial, grease sealed, 1-1/16" hex bore bearing. The Model 535 is available with either #60 or #80 roll-to-roll chain drives depending on chain pull required. Standard construction is a 6" at 8.2# structural frame. This unit is available with either a bottom mount or side mount drive. Supports are structural channel (non-adjustable) with foot pads. Roller centers are 6" for #60 chain drive and 6-7/16" for #80 chain drive.

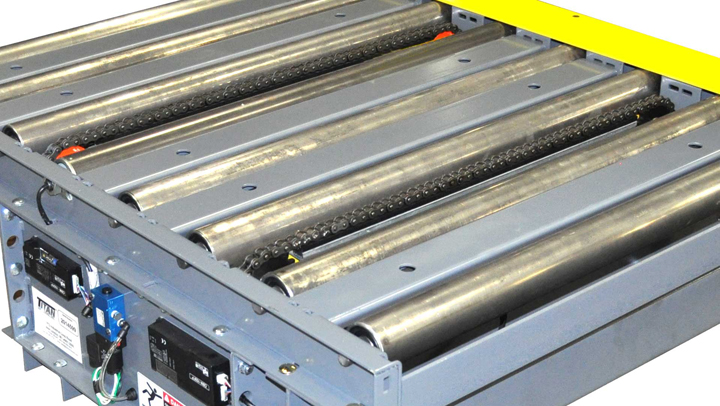

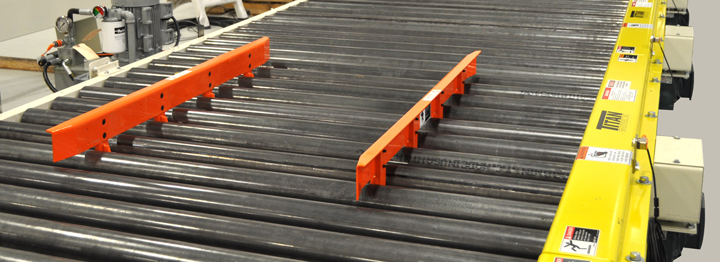

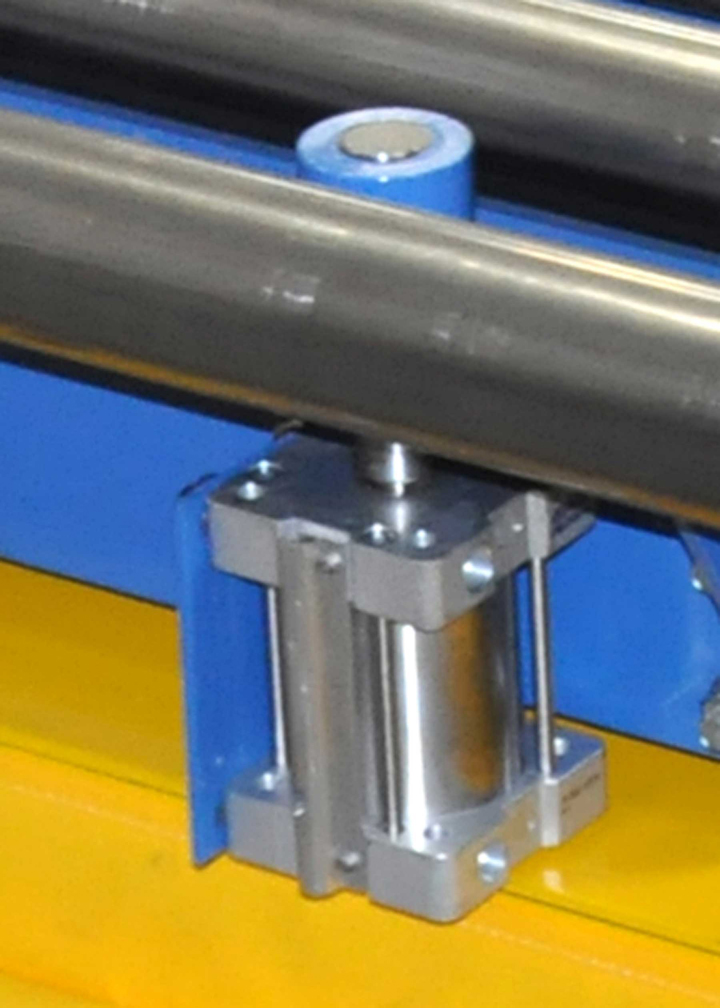

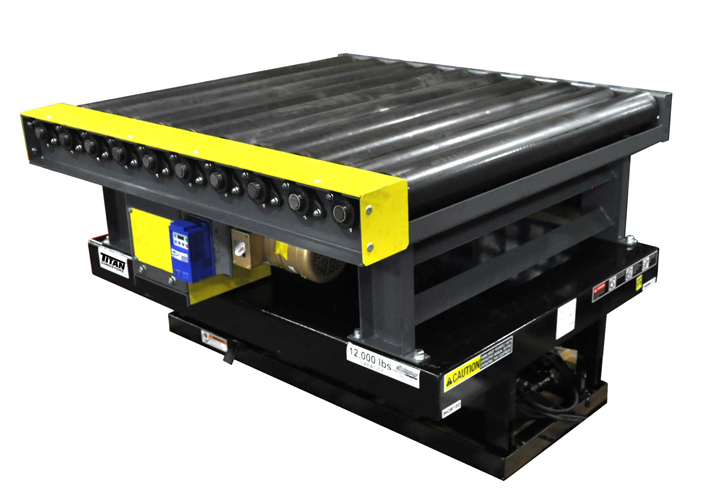

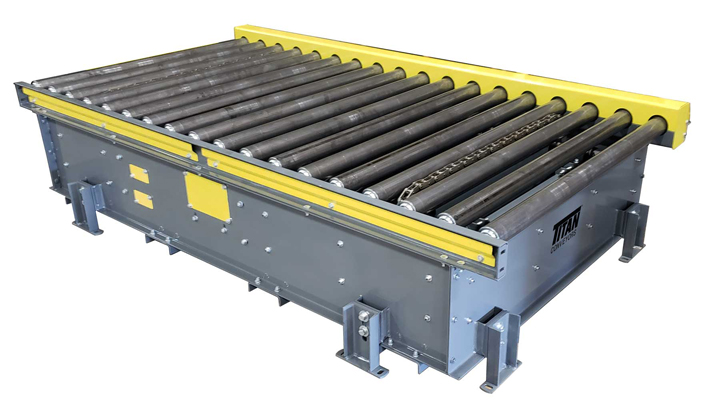

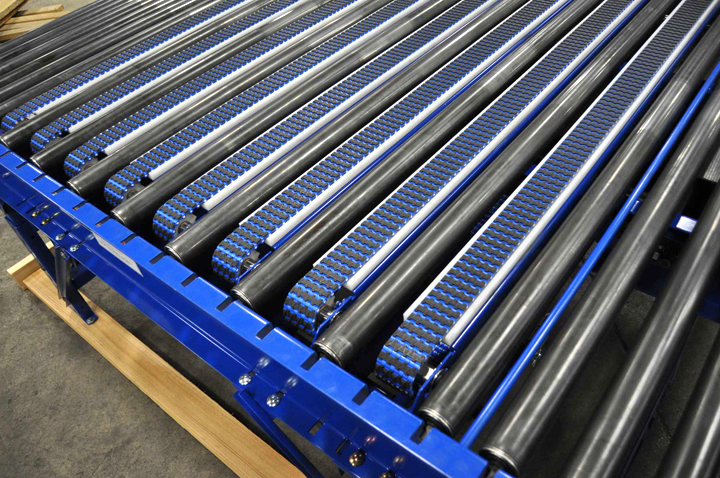

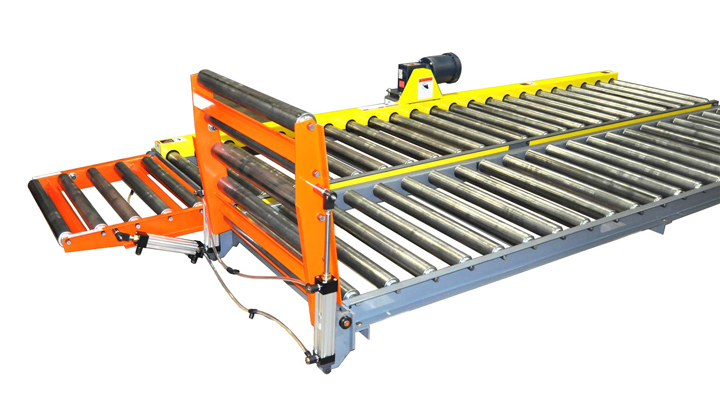

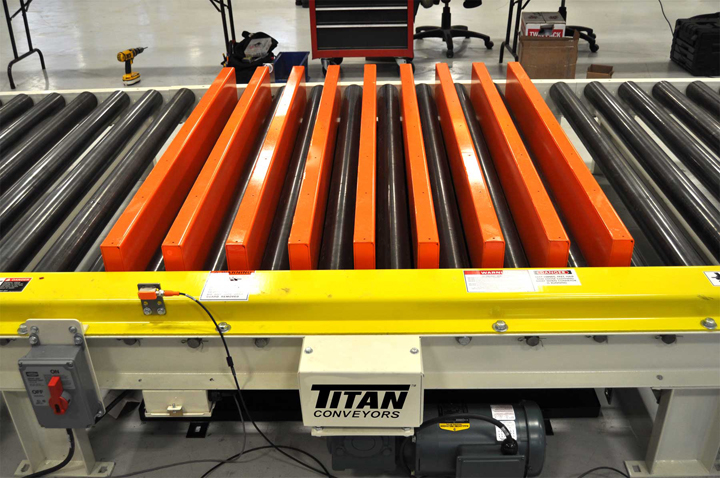

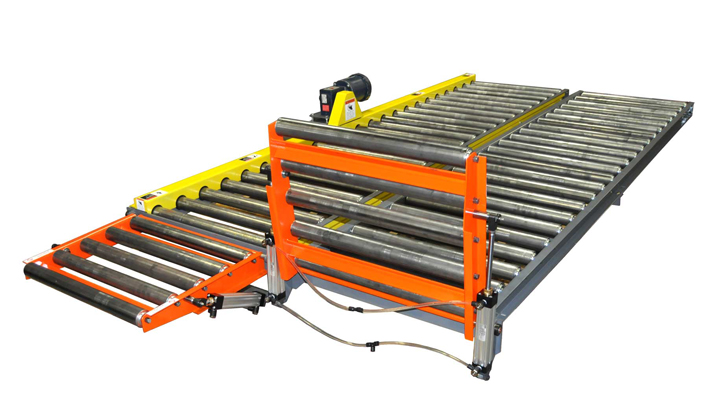

Titan Pop-Up Transfers, Stops, Pallet Centering, Pallet Lifts, Pallet Crowders and Product Rotation units are designed for integration in Titan roller conveyor systems.

Pallet Destacker - is designed to stack or destack pallets in automated pallet handling systems.  See more details under the Drawings tab below or contact Titan directly to get details on the Pallet Destacker custom designed and built to meet your needs.

Model 535 Chain Driven Live Roller Conveyor:

Effective Widths: 15" to 114"

Drive: 1 HP 230/460/3/60

Frame: 6" @ 8.2# Structural Channel

Rollers: 3-1/2" x .300 wall Schedule 80 pipe

Speed: 30 F.P.M.
