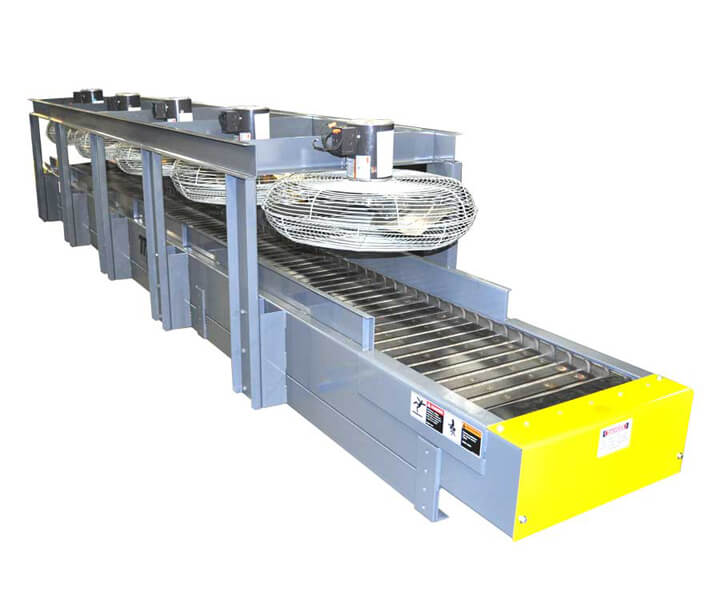

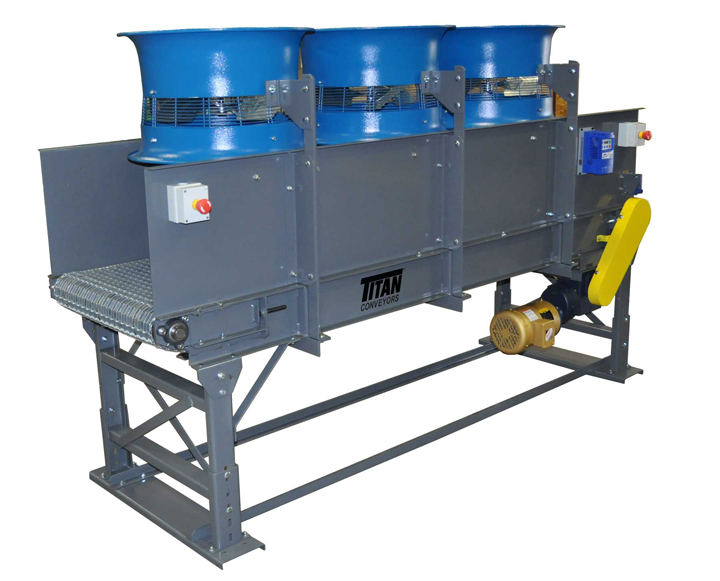

Model Description:

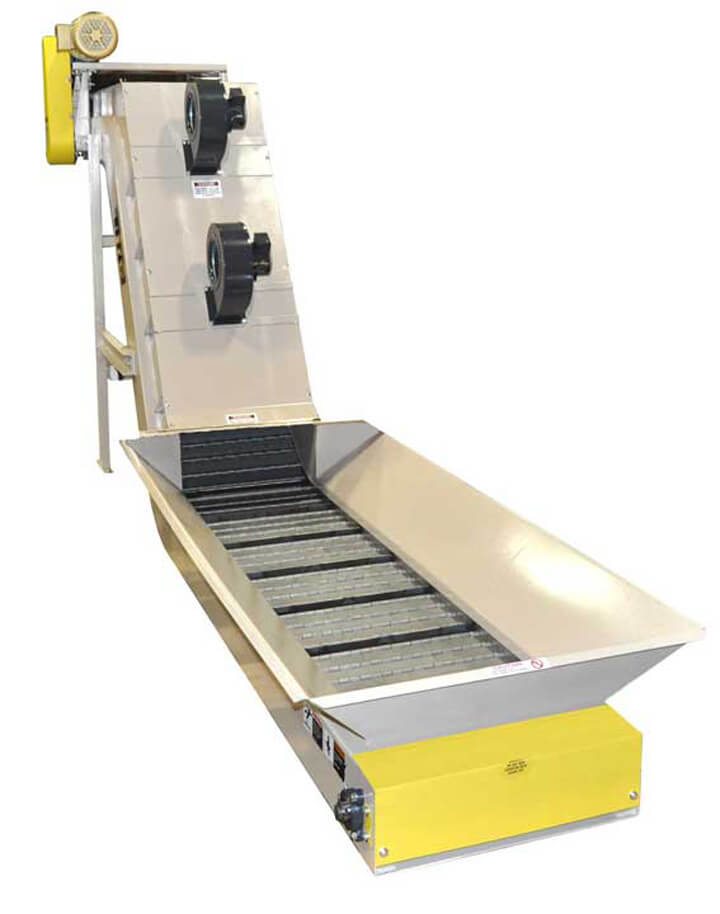

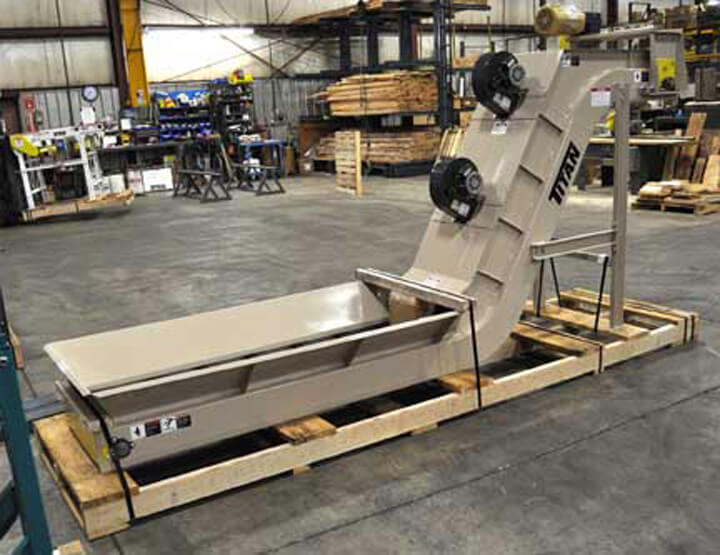

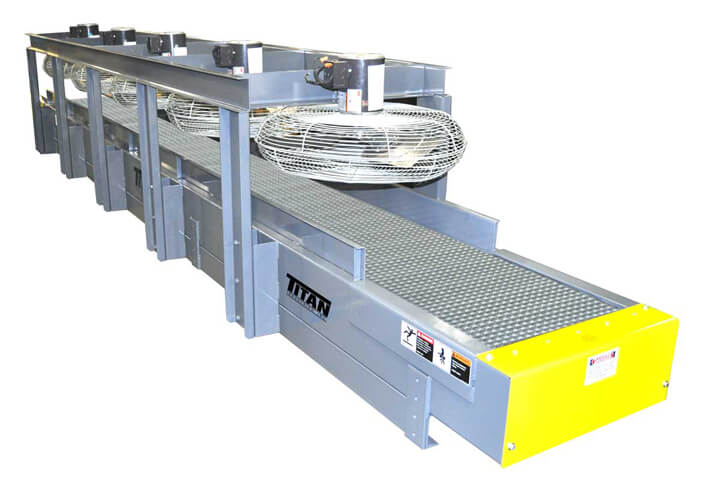

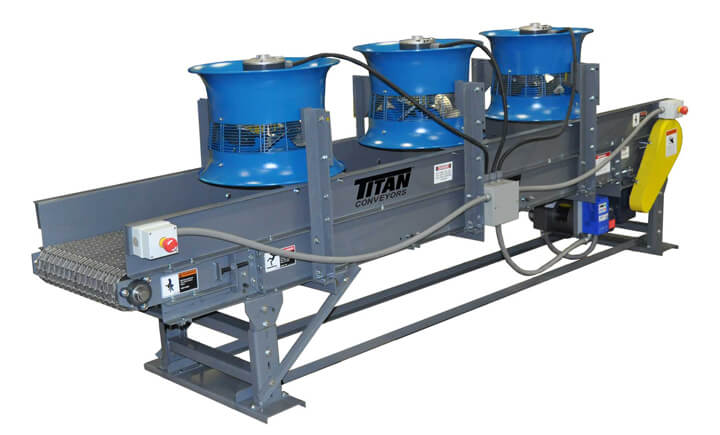

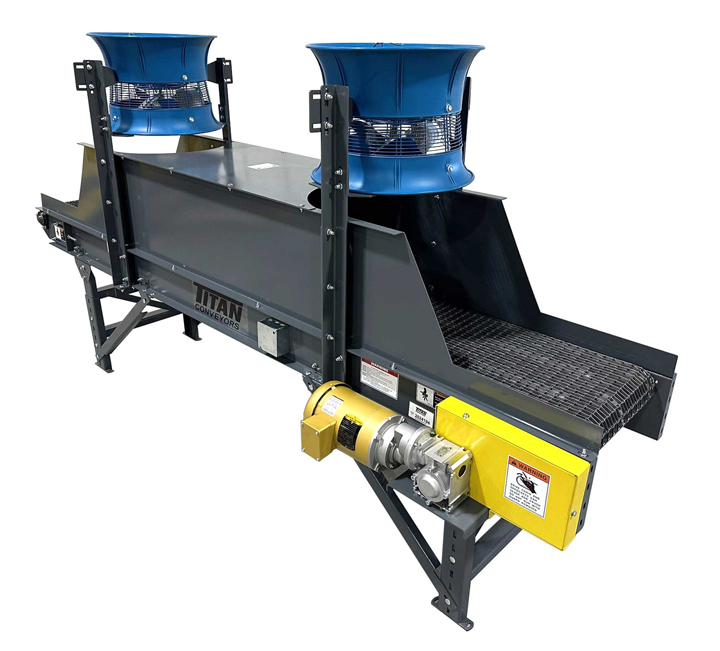

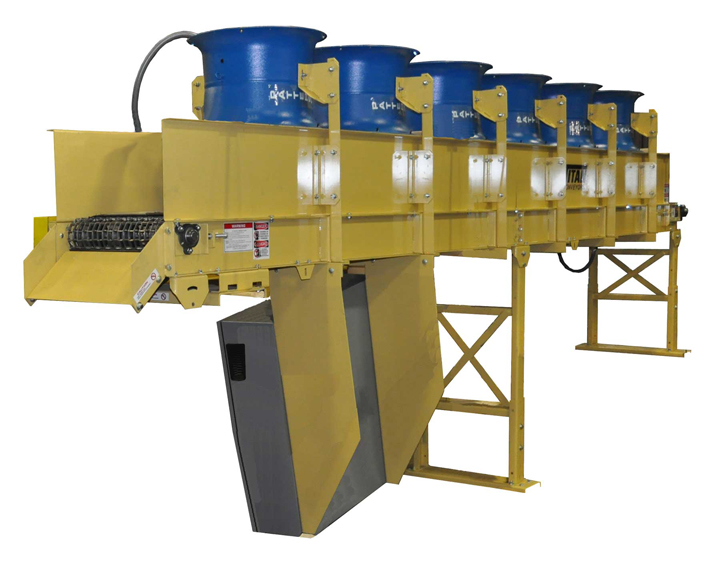

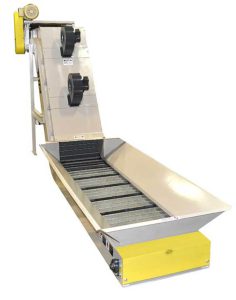

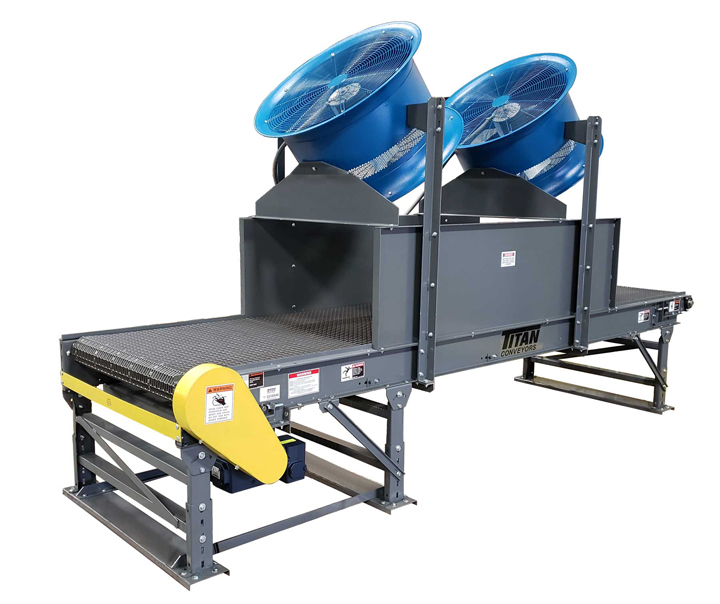

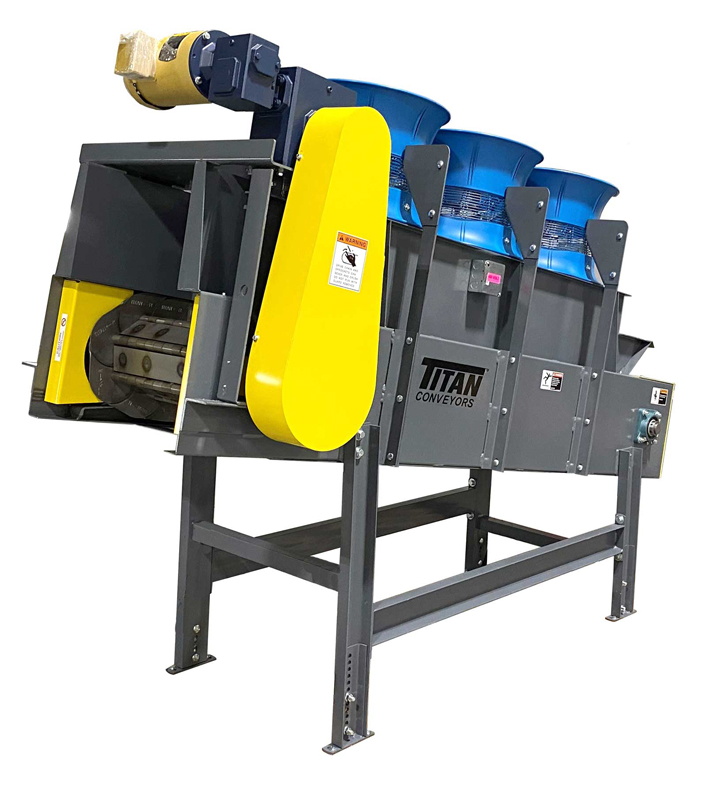

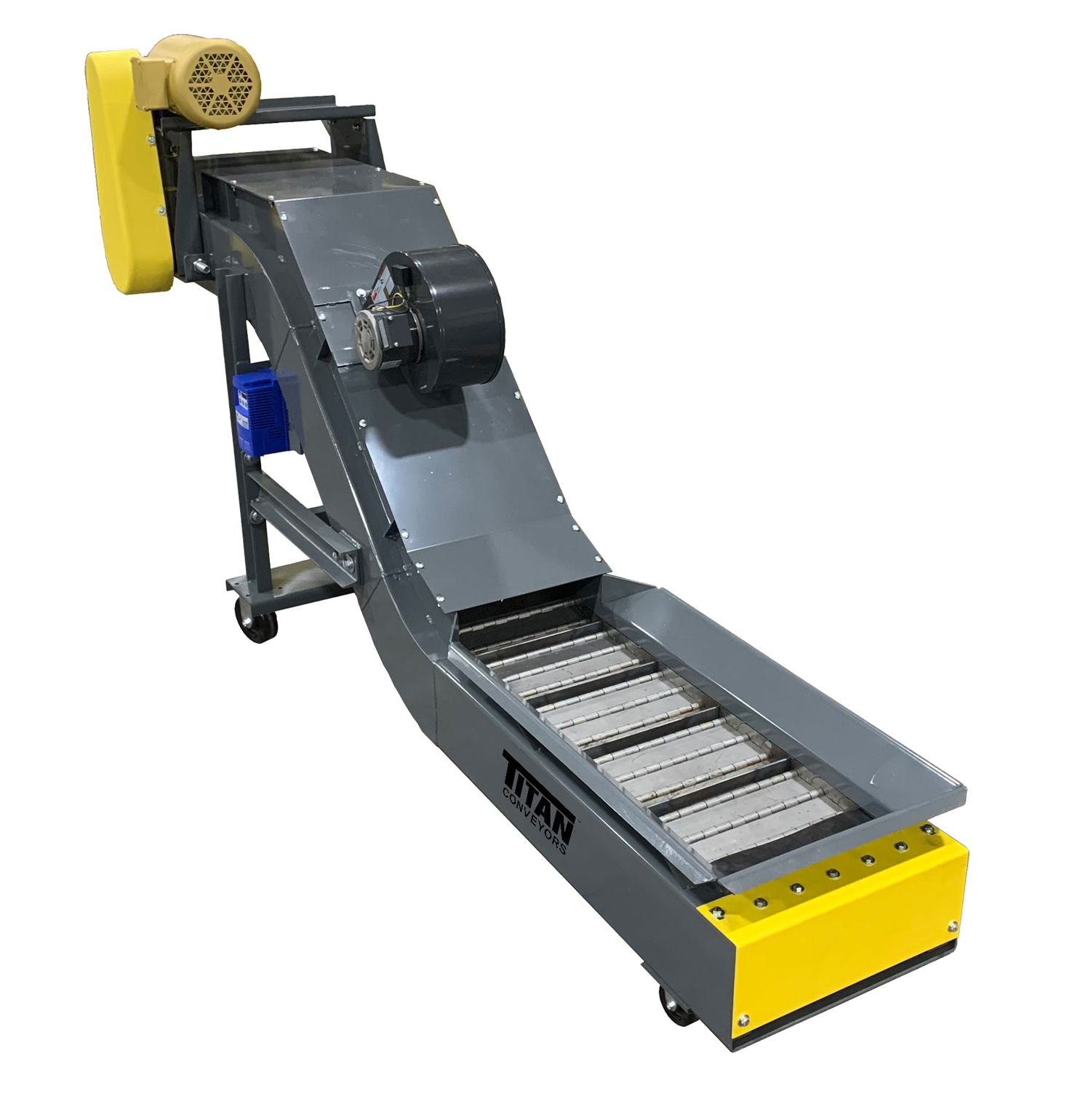

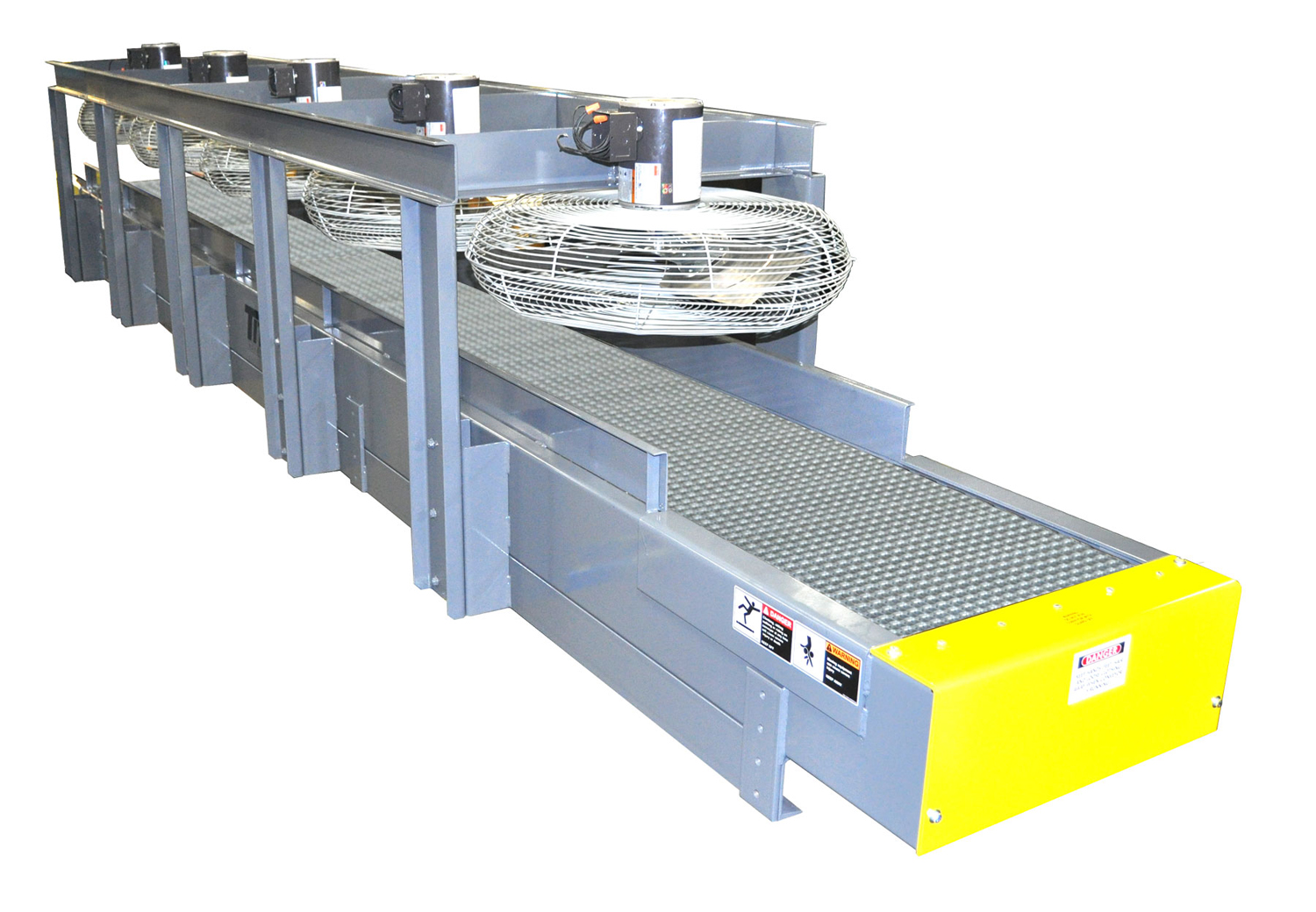

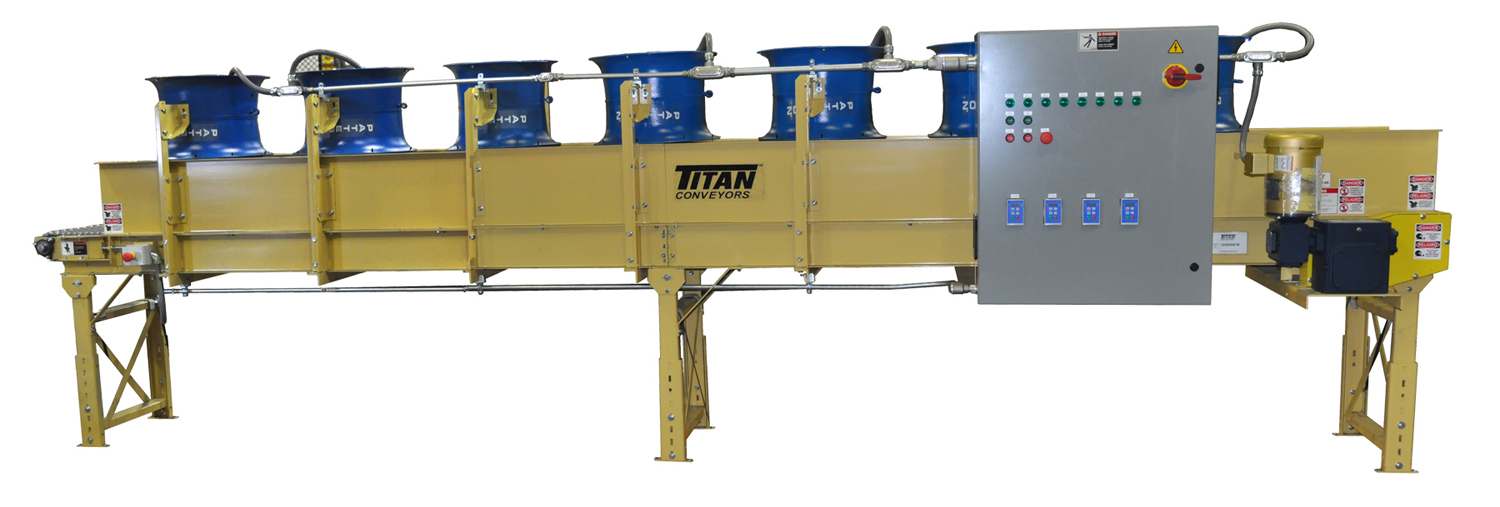

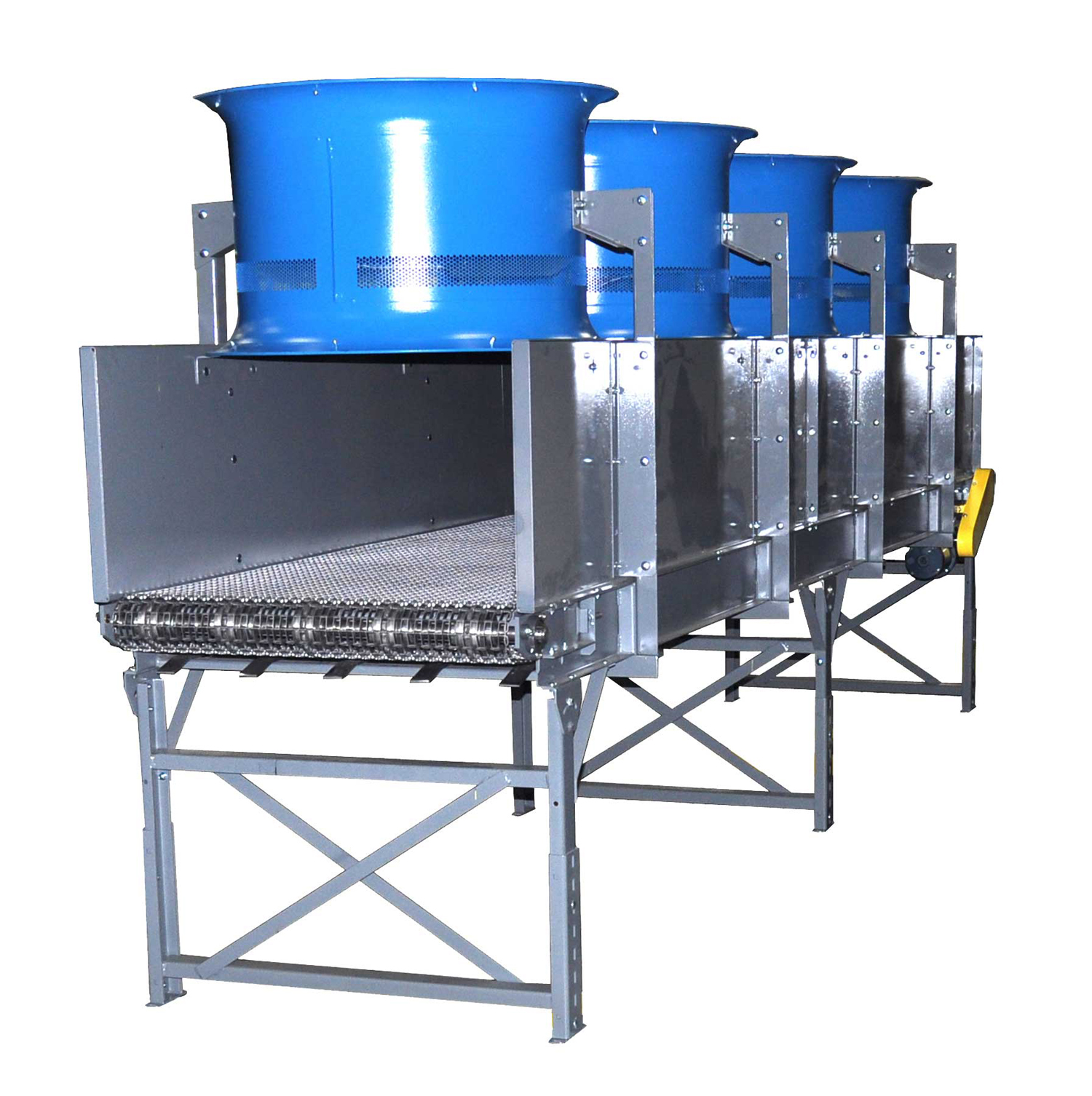

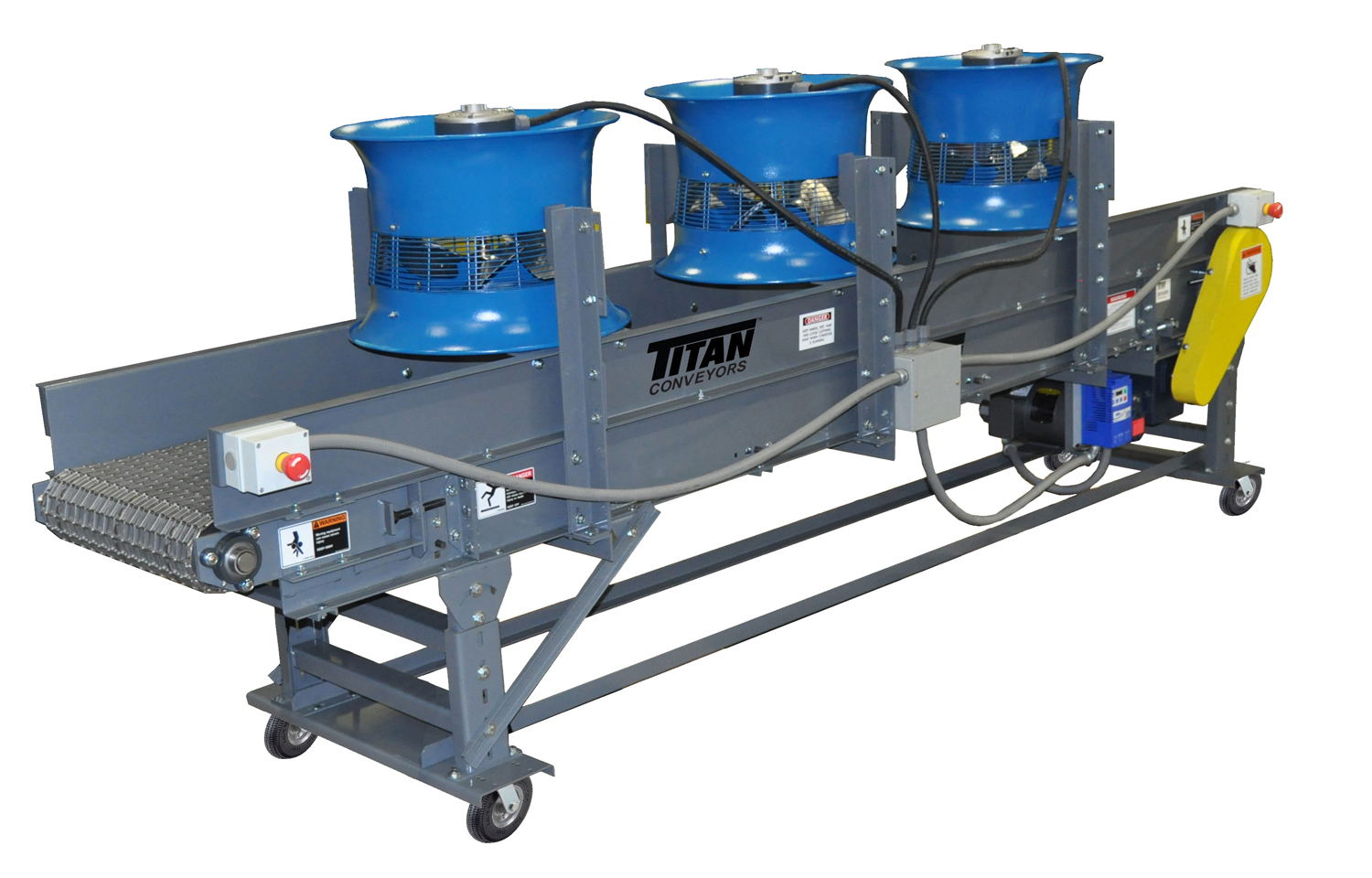

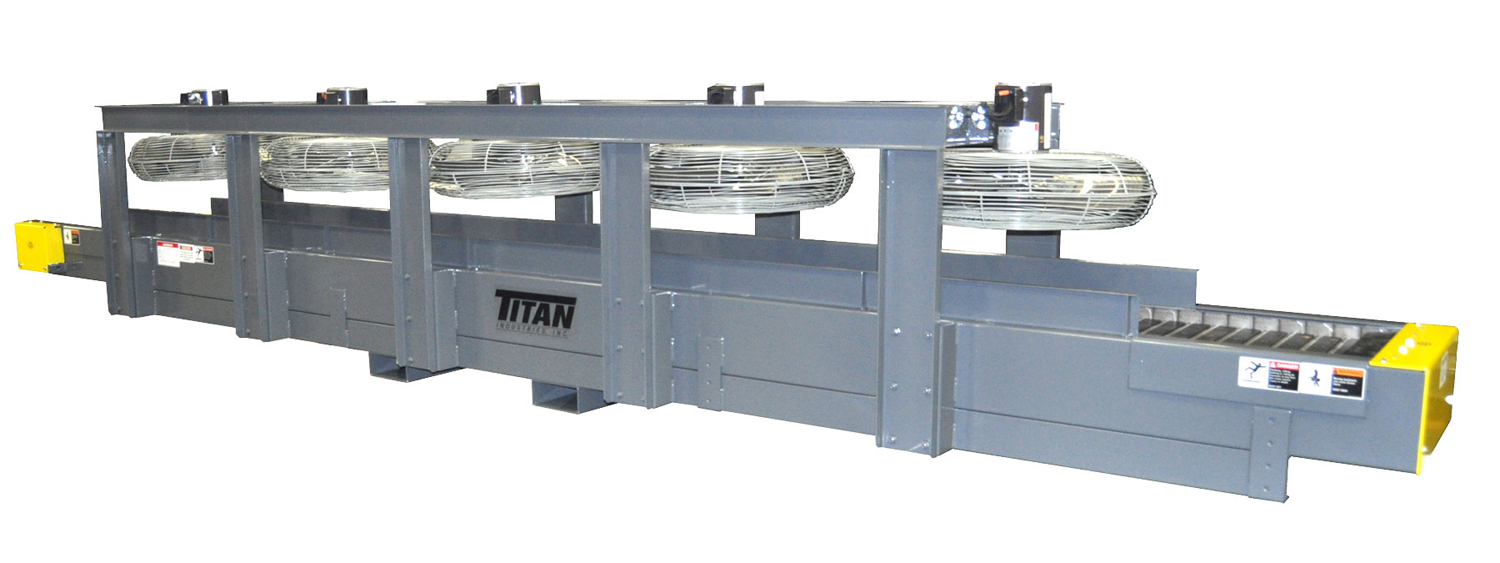

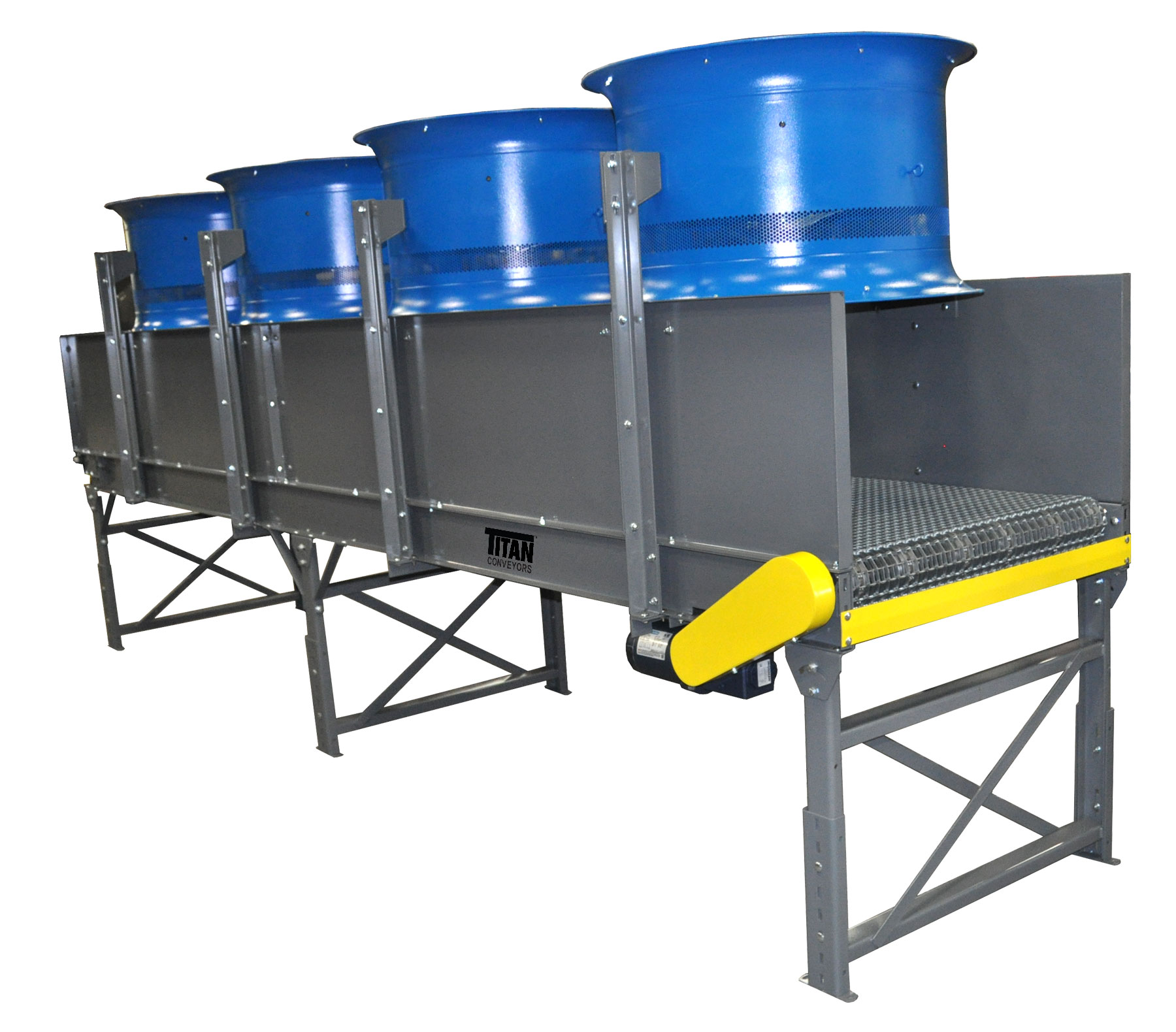

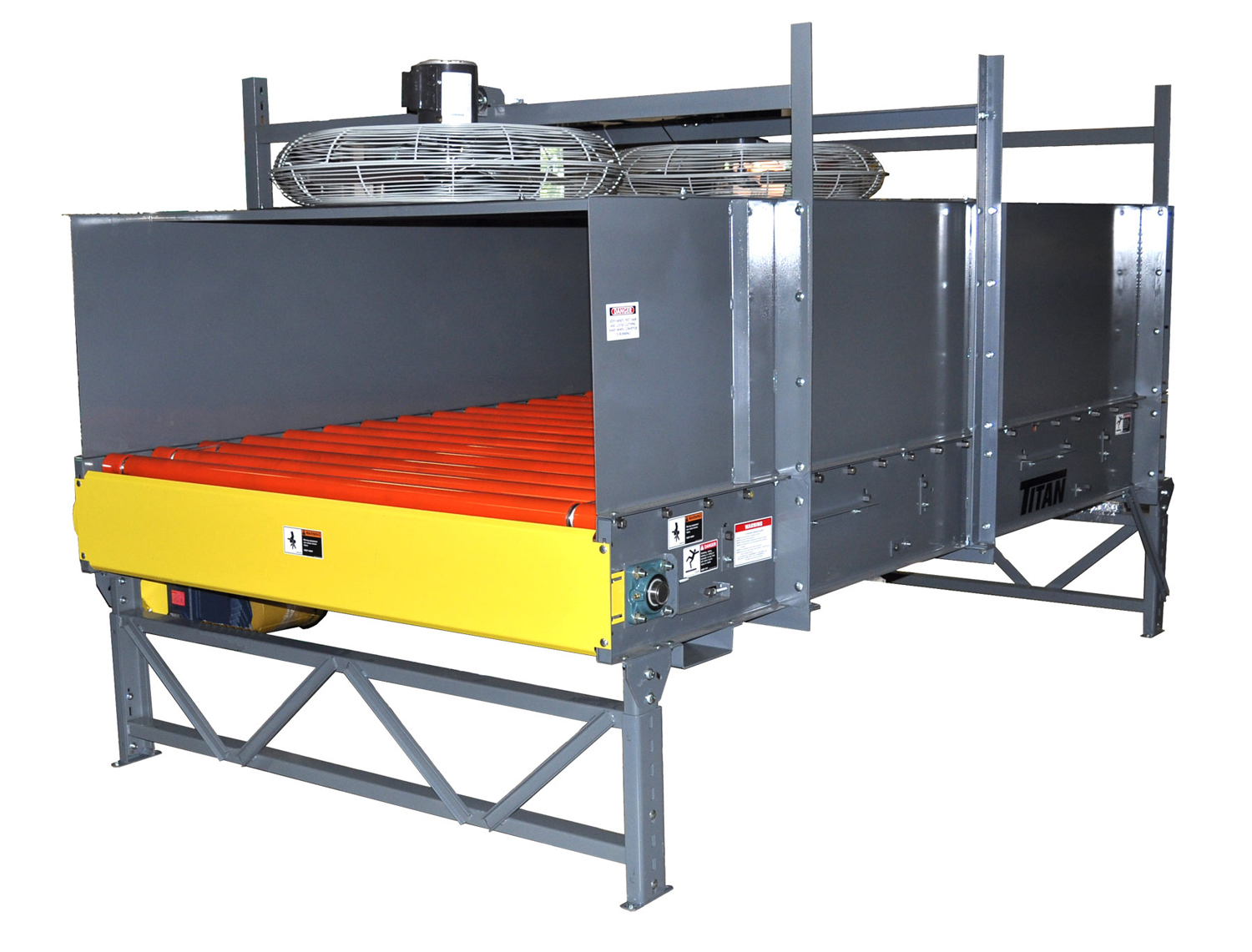

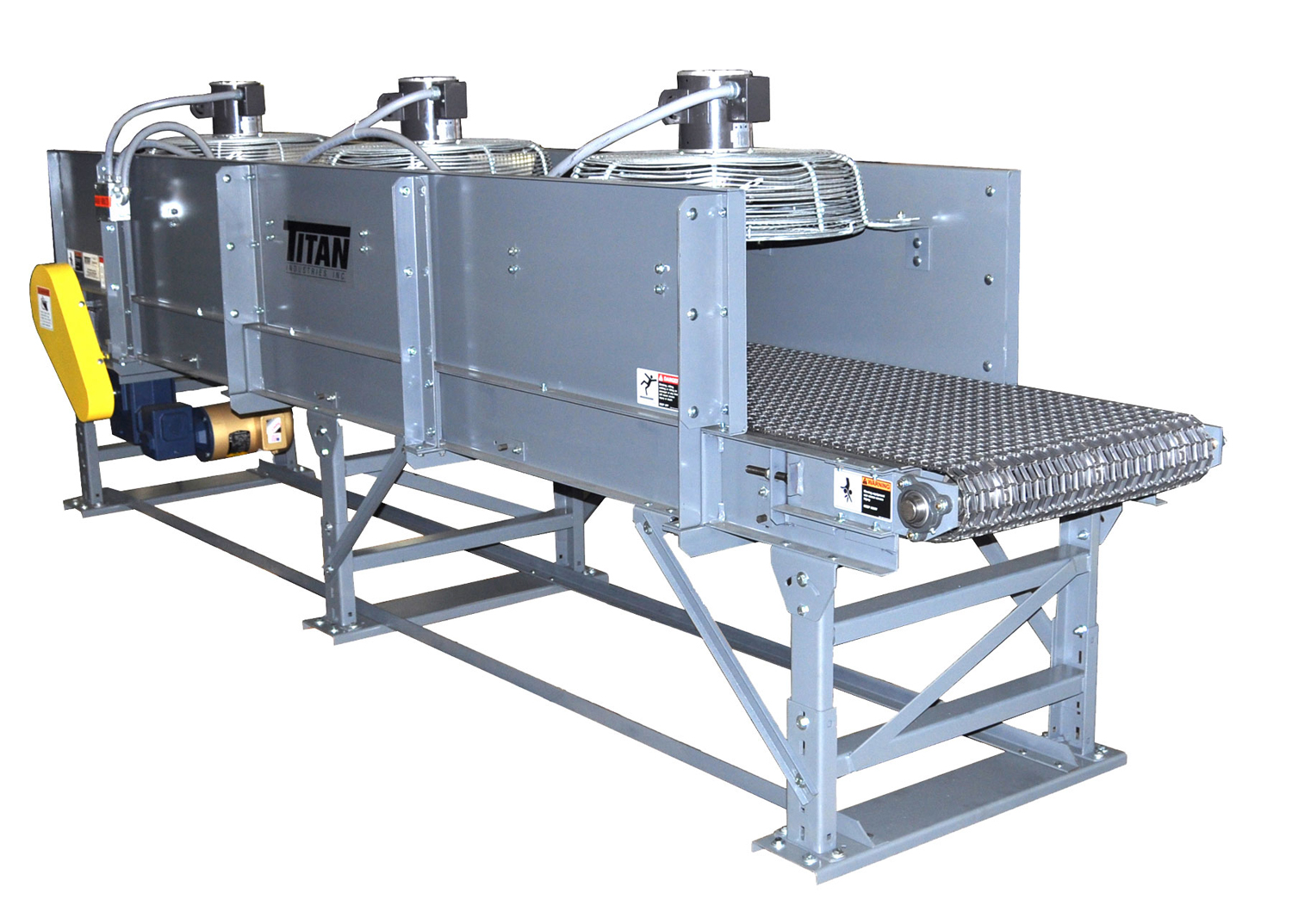

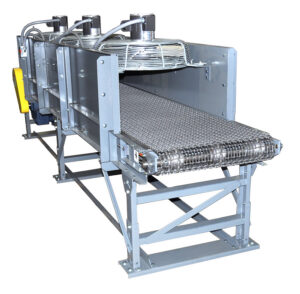

Titan’s Cooling & Drying Conveyor significantly increases efficiencies in die casting. It eliminates mist in cooling hot die castings, and it replaces water quench and reduces cool down time. It’s designed to interface with existing conveyor systems and is custom engineered from standard components. Both constant speed and variable speed are available.

Call Titan Industries toll free at 800-558-3616 for more information or individual model specifications.

  • Ideal for controlled cooling of hot die castings, eliminates mist, replaces water quench
  • Greatly improves dry time efficiency for parts washer system
  • Constant speed or variable speed available
  • Designed to interface with existing conveyor system
  • Custom engineered from standard components

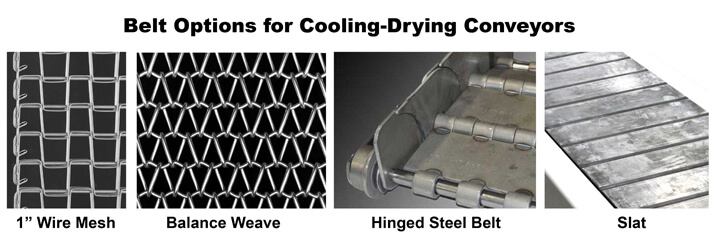

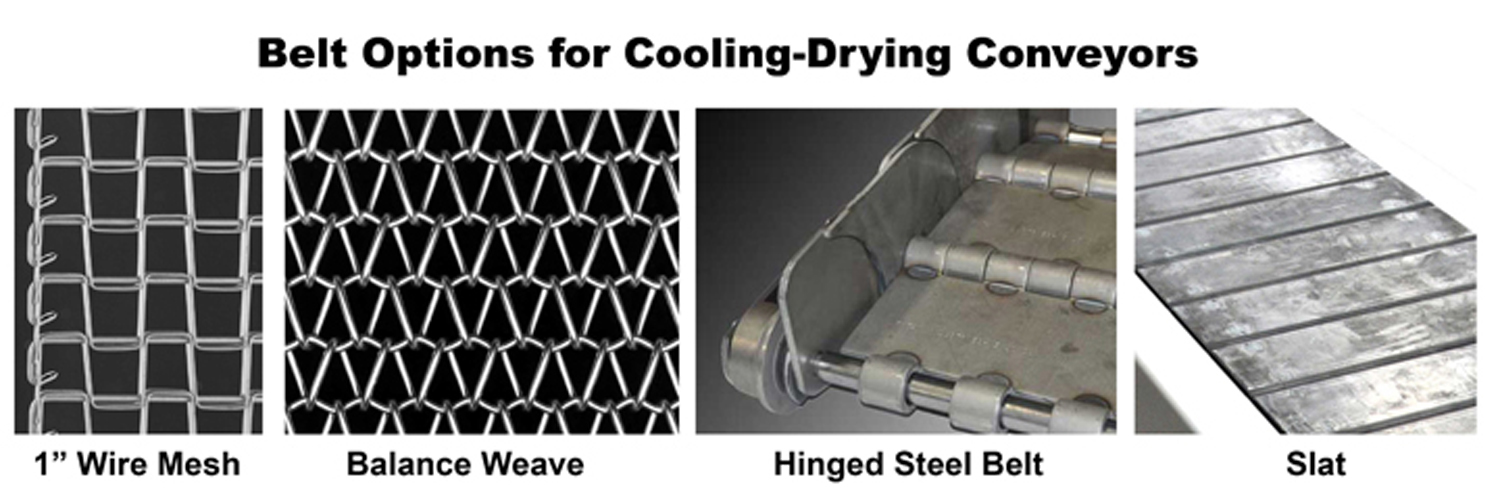

  • Variety of belt options

Cooling Conveyors & Drying Conveyor Specifications:

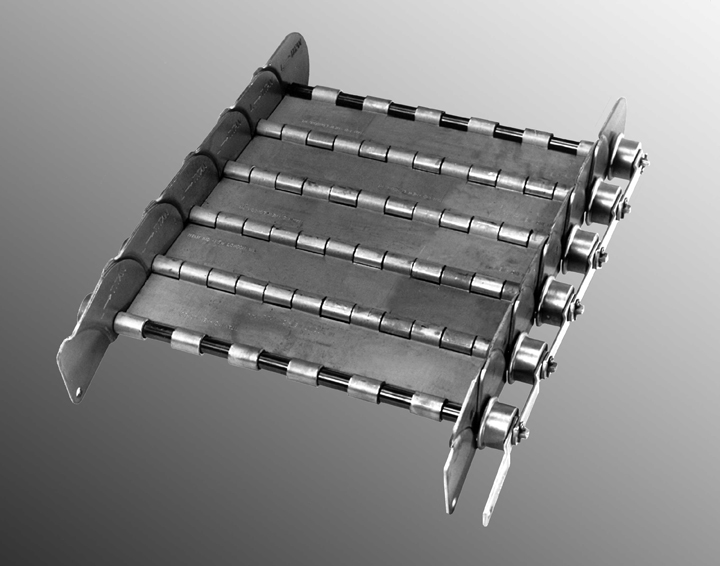

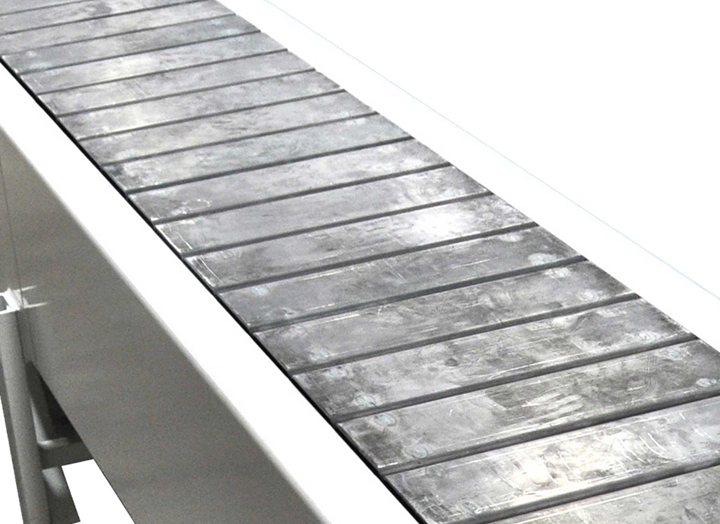

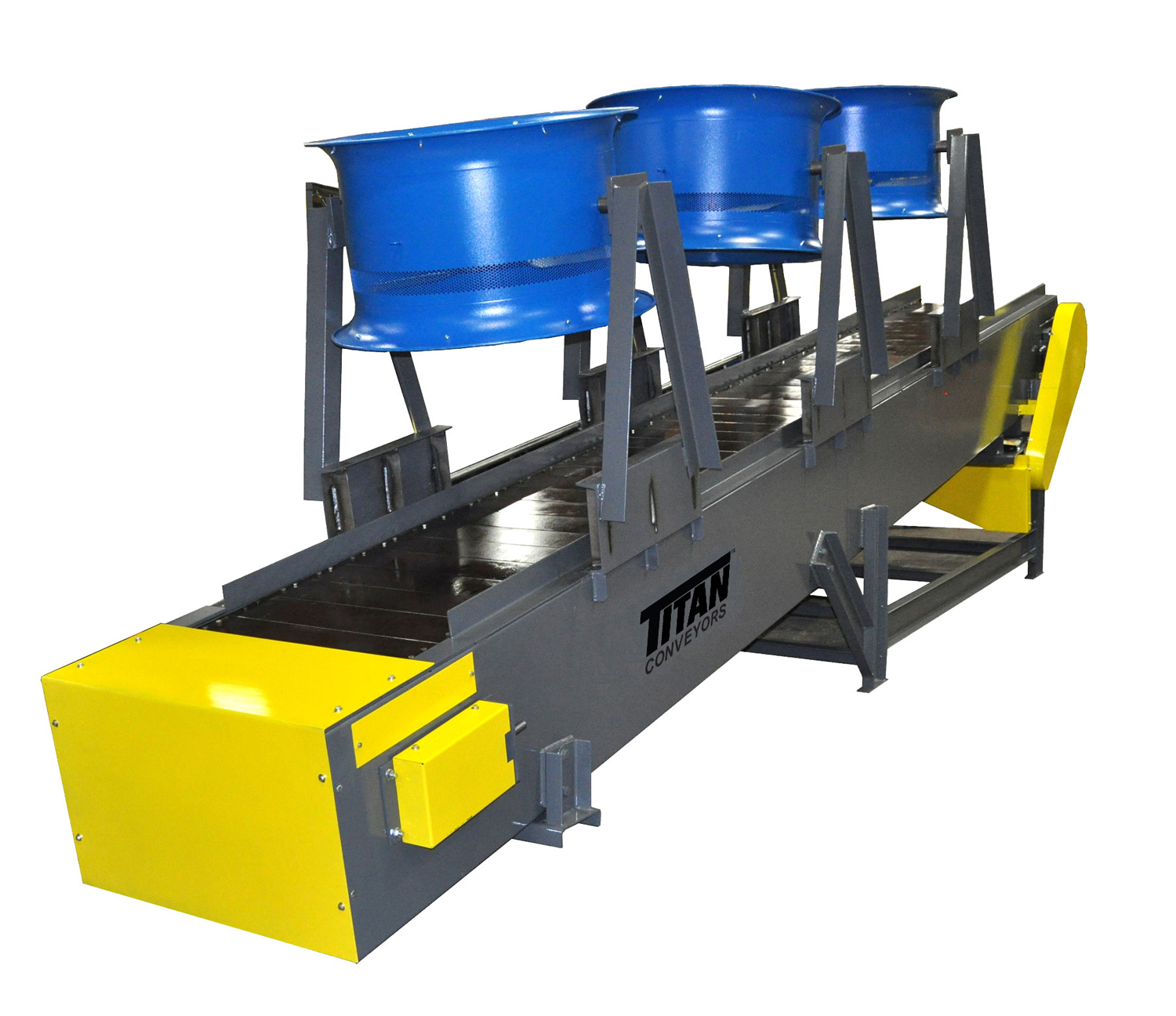

Belt:  Hinged Steel Belt, Slat

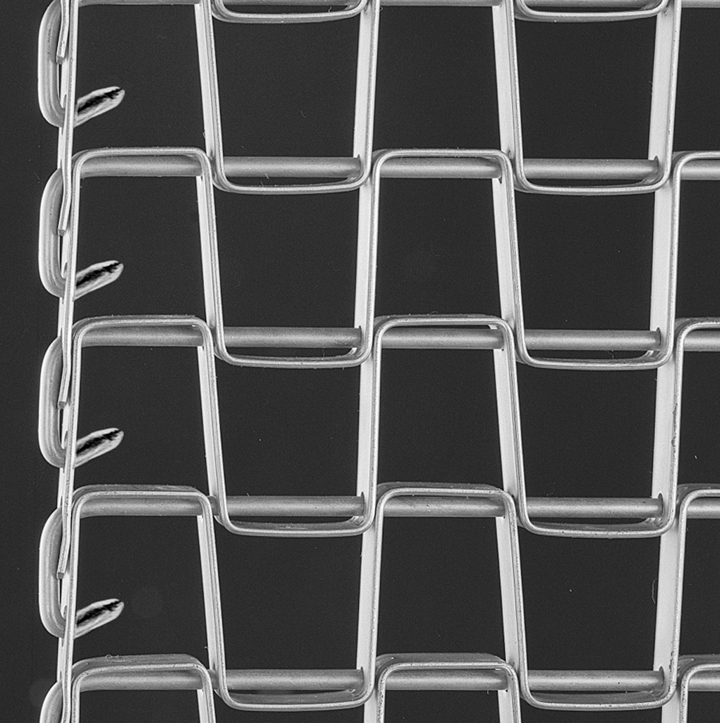

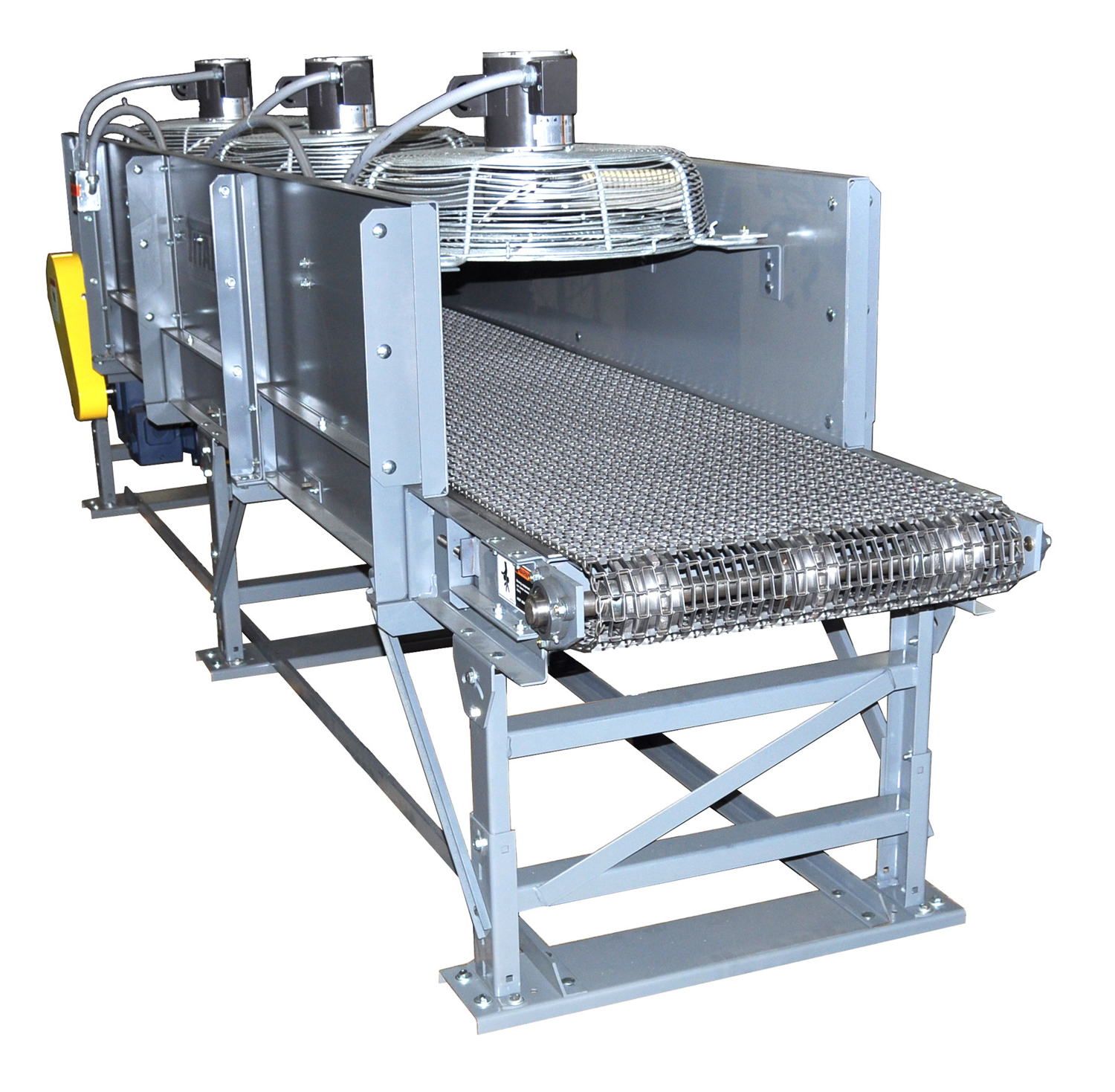

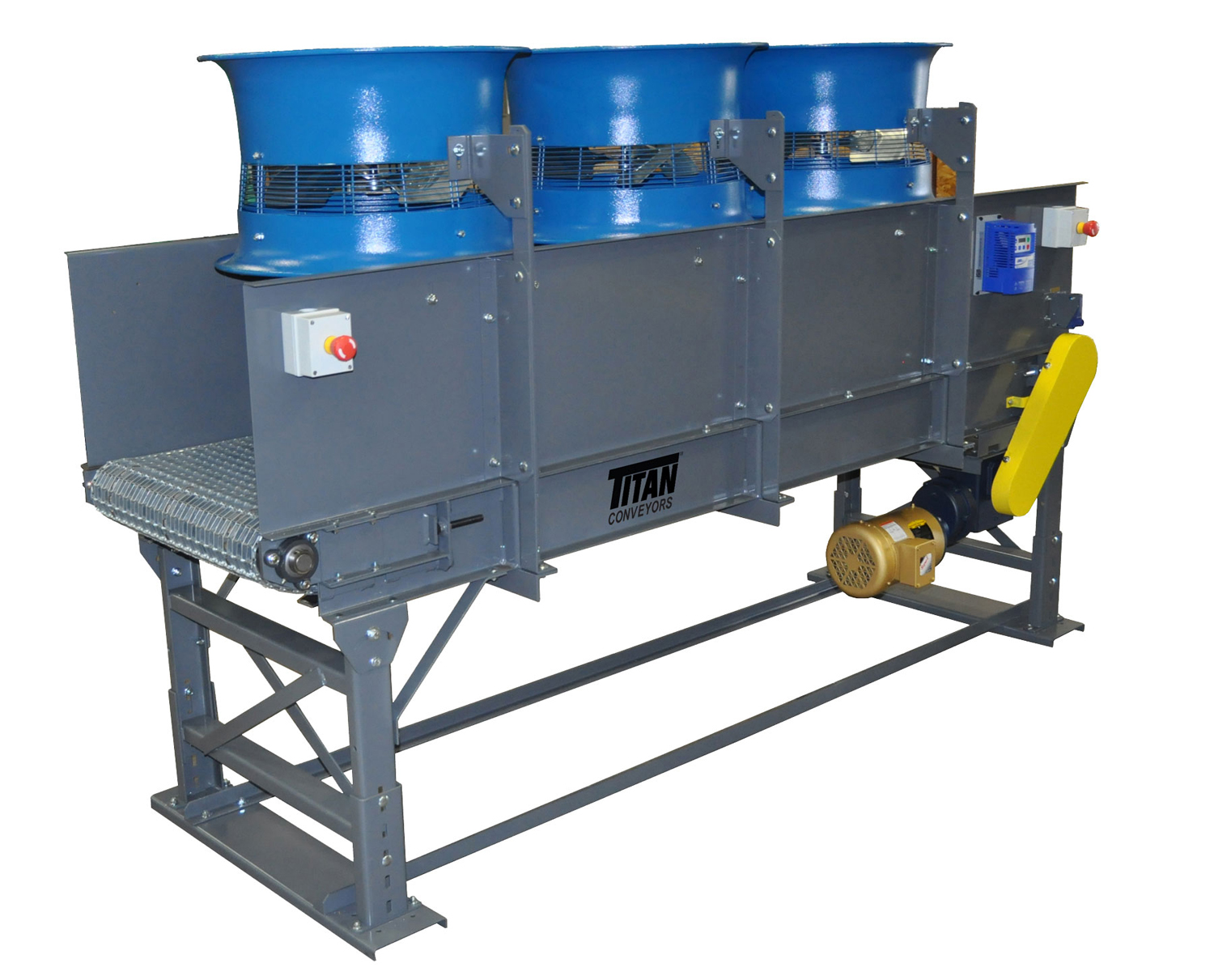

           or  1/2″ X 1″ galvanized flat wire mesh

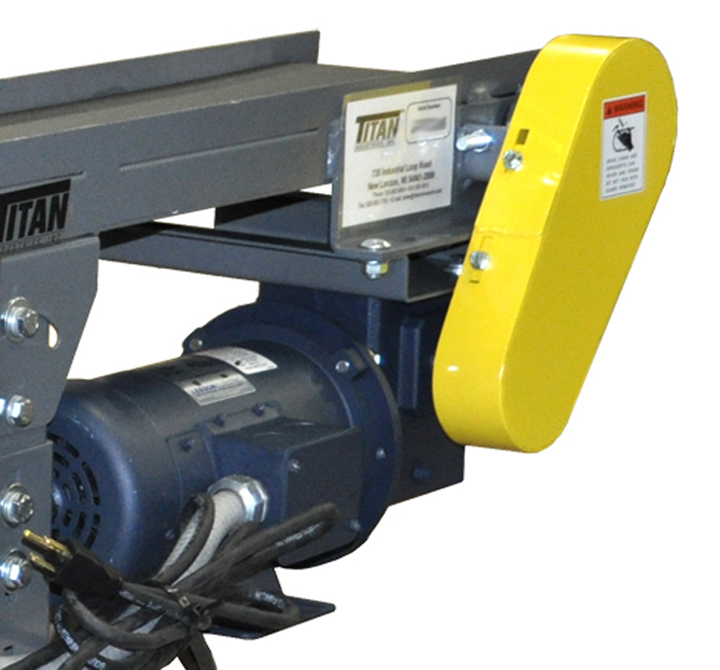

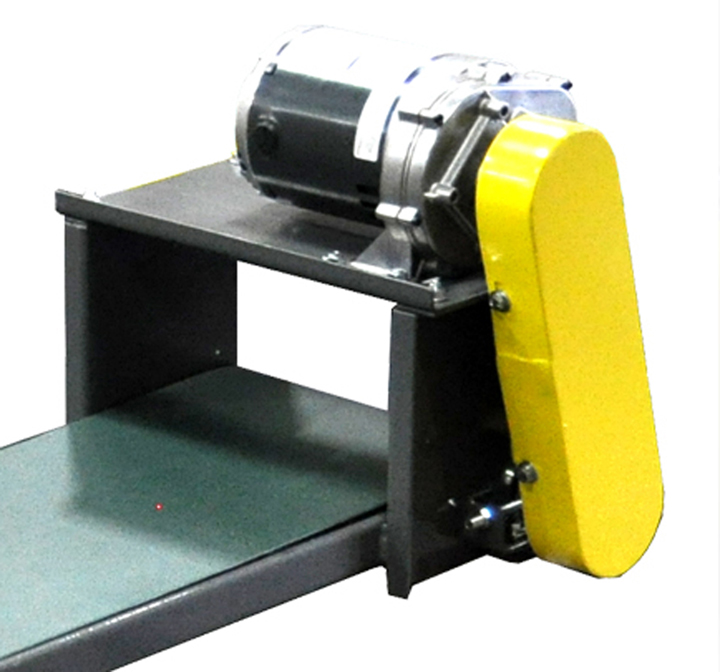

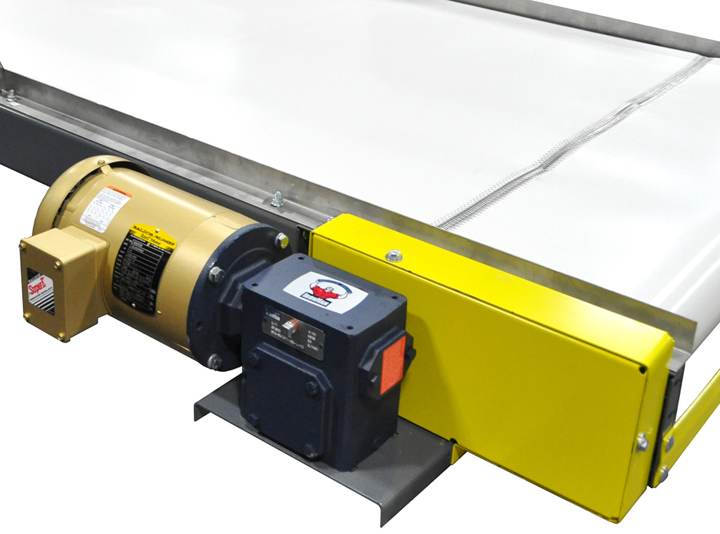

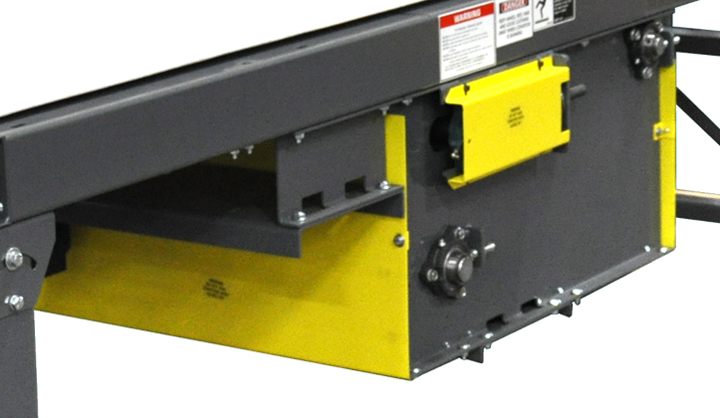

Drive: 1/2 H.P. 230/460/3/60

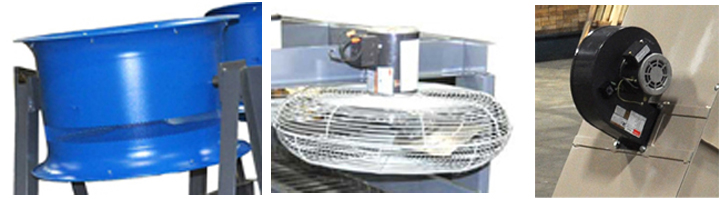

Fan: Consult Factory

Frame: Formed 10 Gauge

Paint: One Coat Gray Industrial Enamel

Speed: 60 F.P.M.

Sprockets: 13 Tooth 4.4″ P.D.

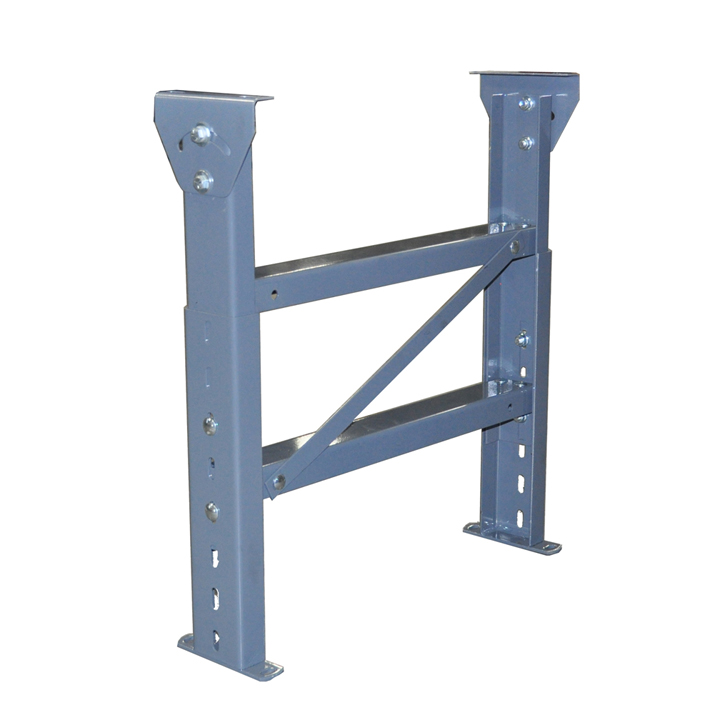

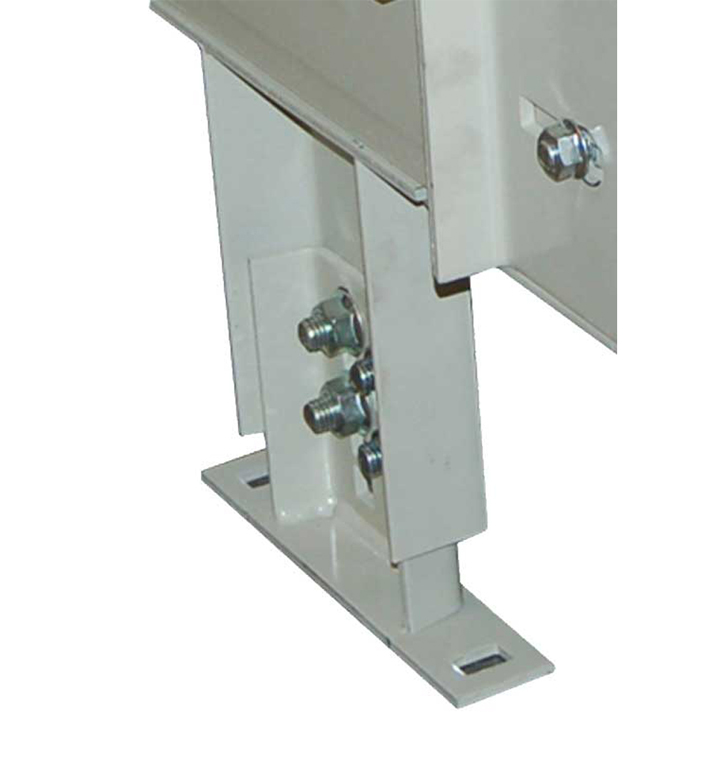

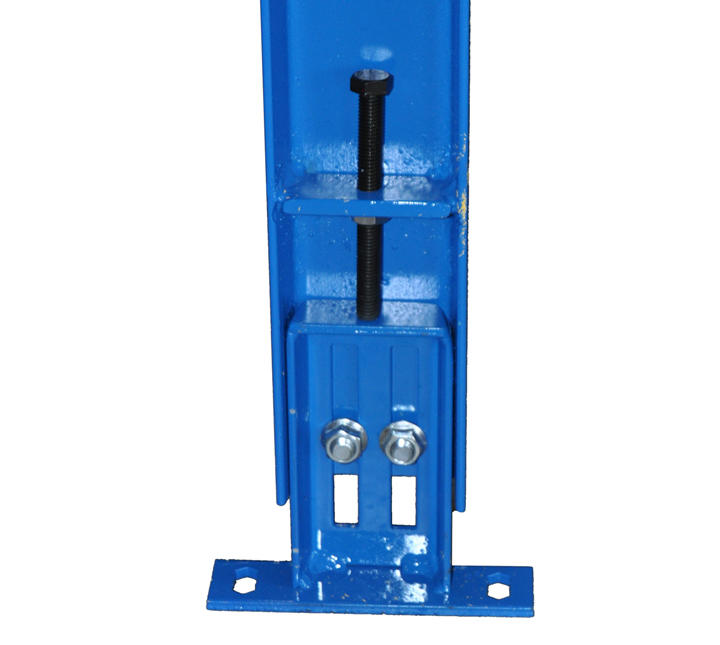

Supports: “H” Type Adjustable

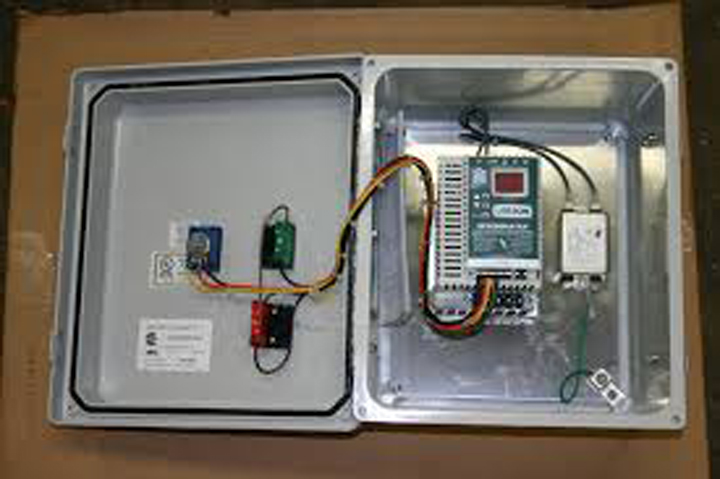

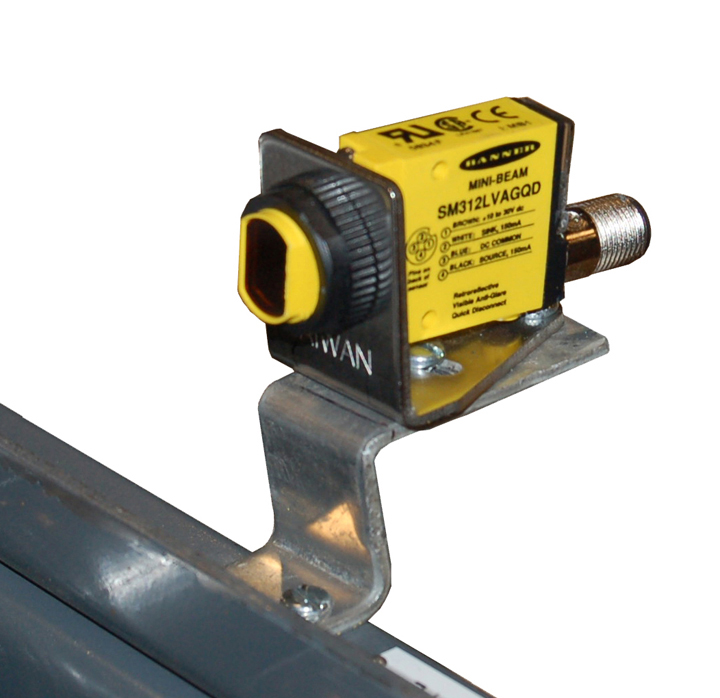

Wiring & Controls: Optional
