Roller Bed

Model Description:

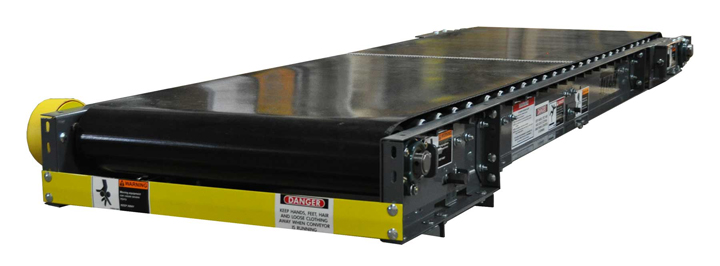

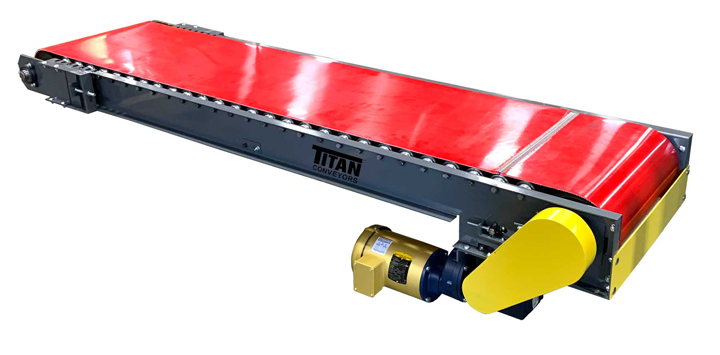

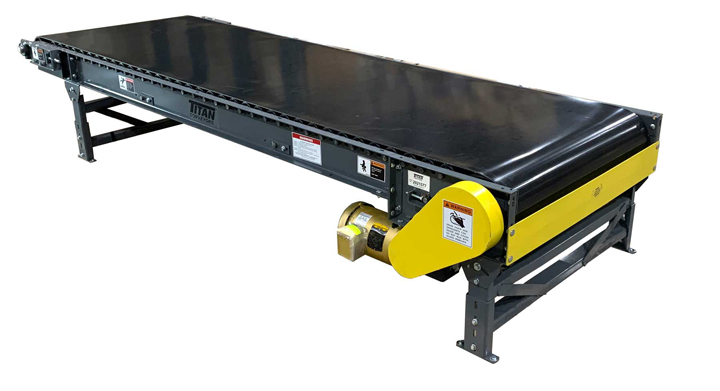

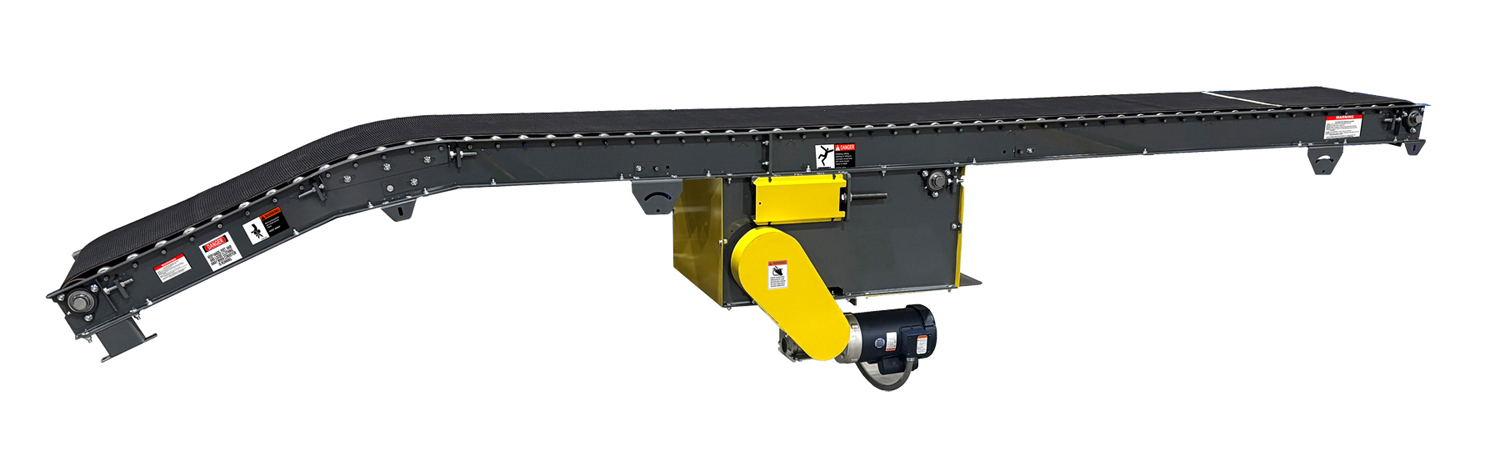

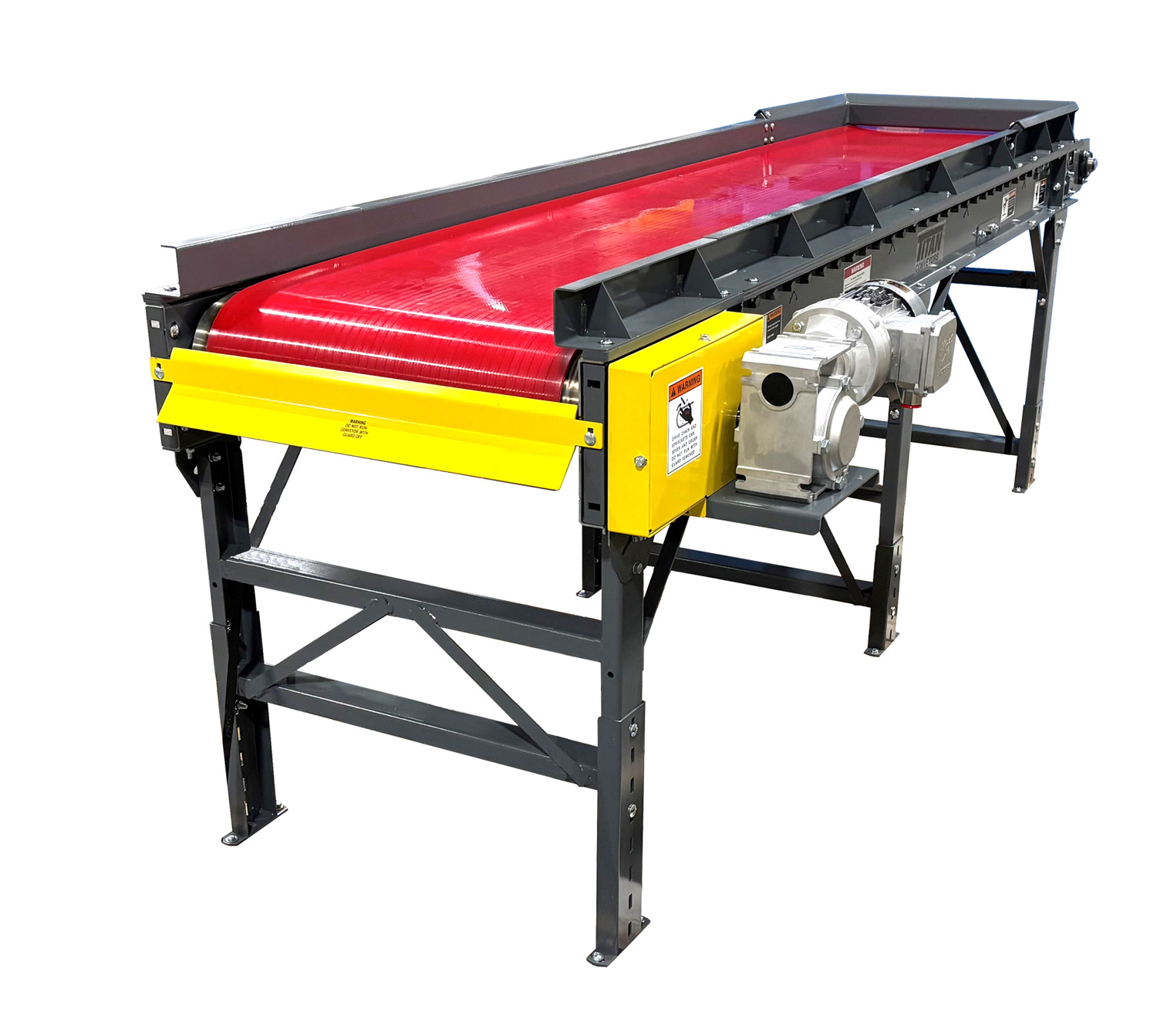

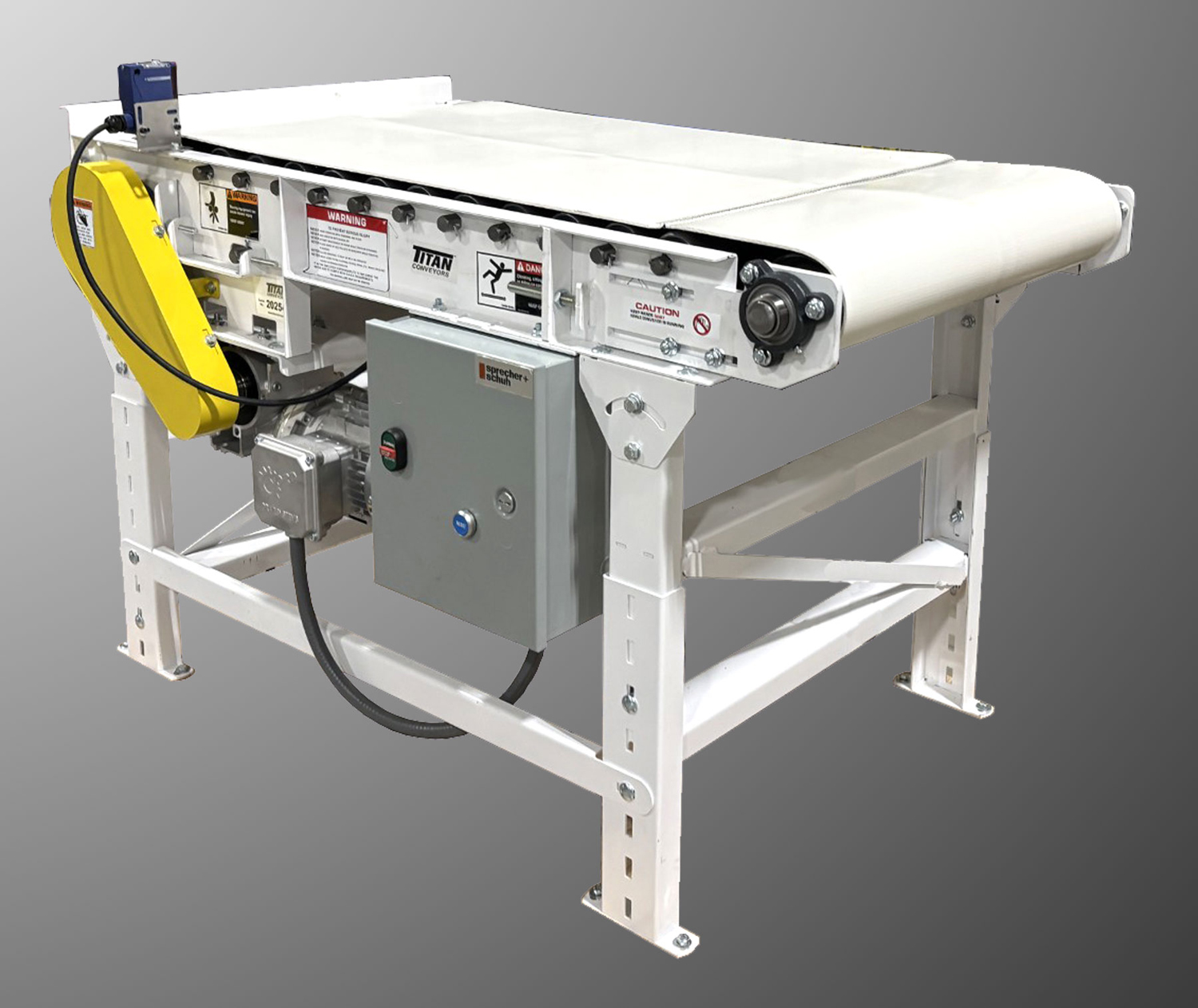

The Model 109 roller bed belt conveyor is ideal if your production requires a rugged, industrial designed unit. The Model 109 has a rugged 8" diameter rubber lagged drive pulley. With the modular design of the Model 109 you will be able to add-on additions at a later date if the need arises. Even though the Titan Model 109 is a heavy-duty unit it is economical to own and operate.

Standard adjustable supports for a working height of 30", grease sealed bearings and screw type take-ups are just a few of the many outstanding standard features of this conveyor.

Model 109 Specifications:

Belt Widths: 8" to 72"

Belt: Black P.V.C.

Belt Speed: 60 F.P.M.

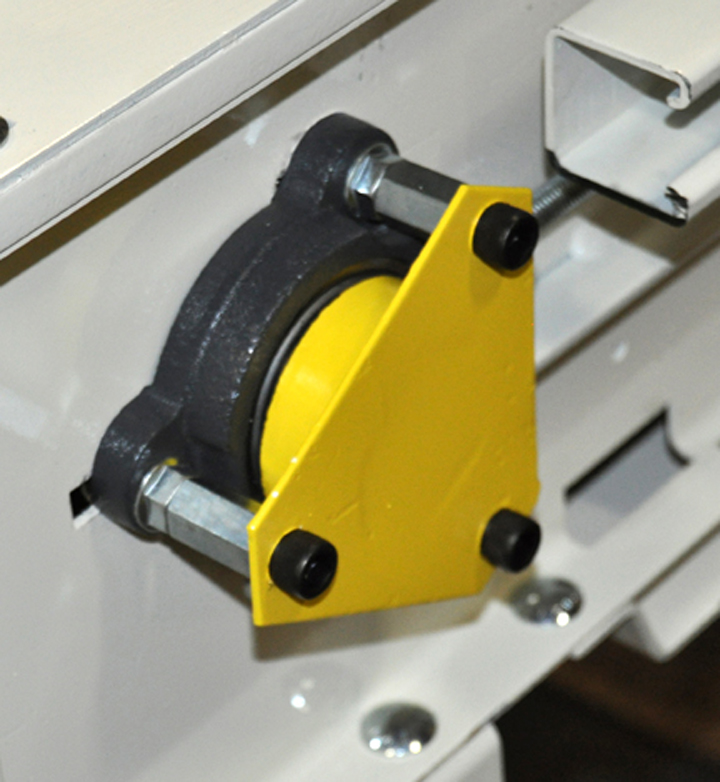

Bearings: Grease Sealed

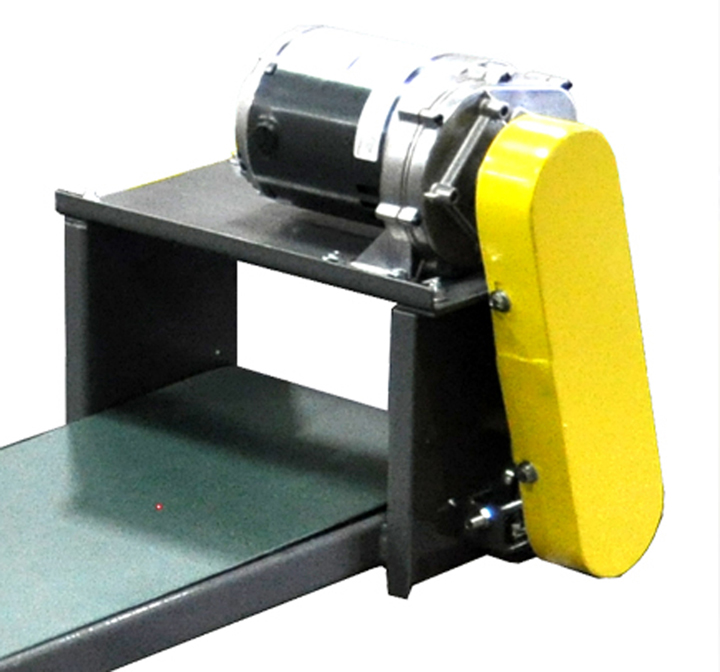

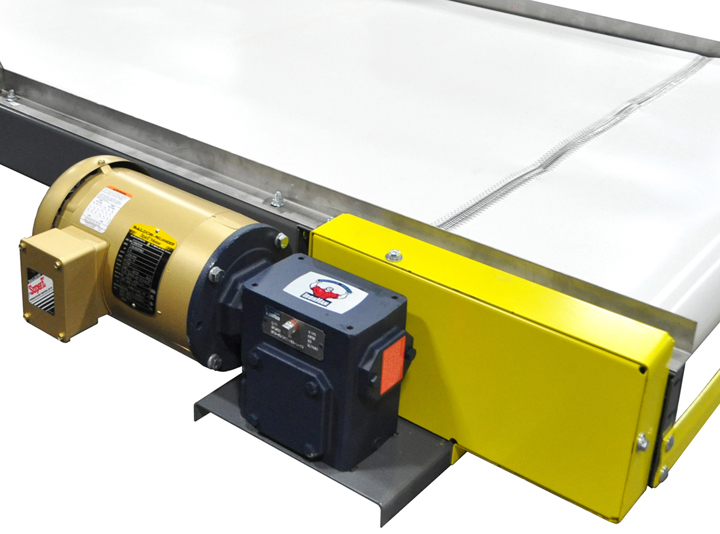

Drive: 1/2 H.P. 230/460/3/60

Frame: Formed 12 Gauge

Paint: One Coat Industrial Enamel

Pulleys: 8" Diameter Drive, 4" Diameter Crown Face Take-Up

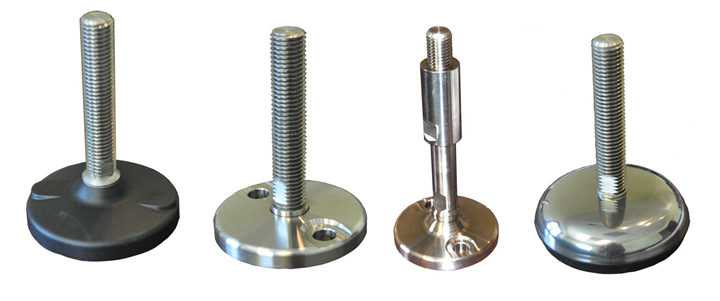

Supports: "H" Type Adjustable
