Model Description:

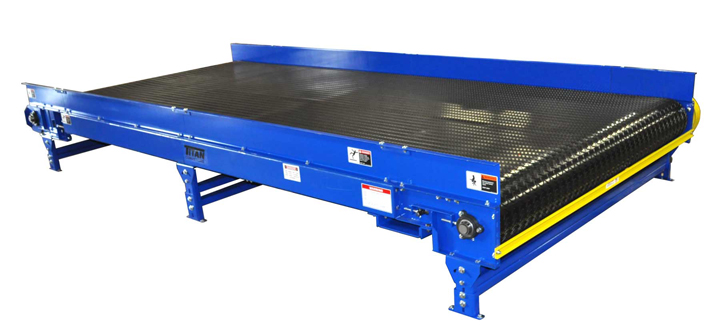

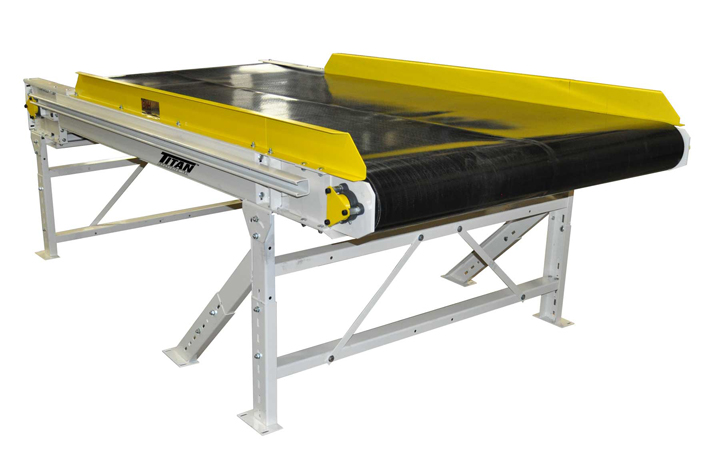

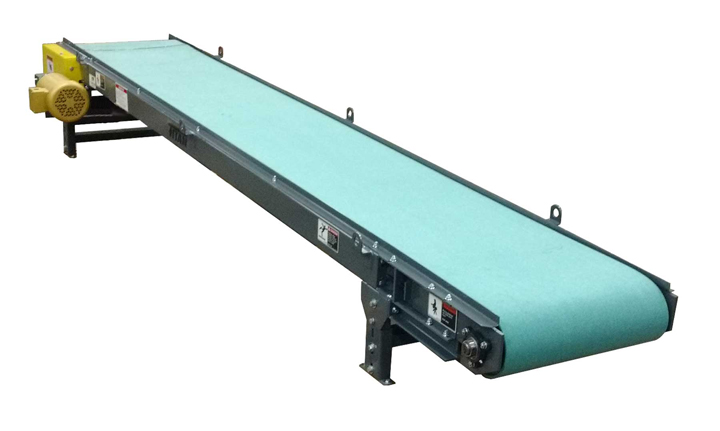

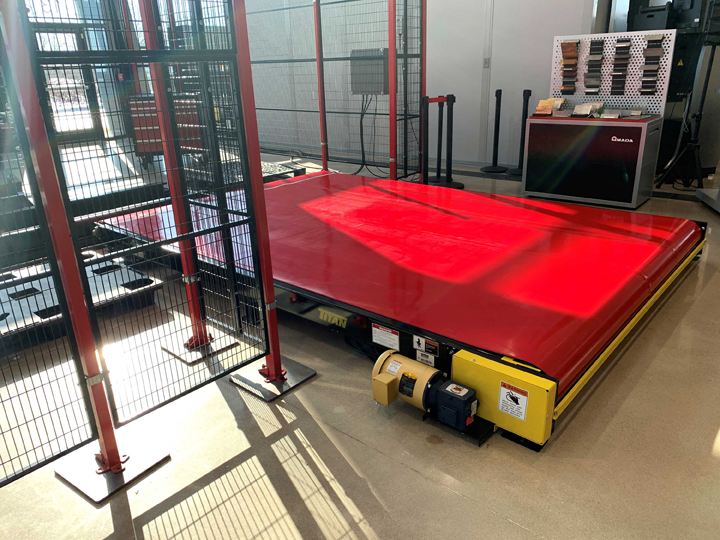

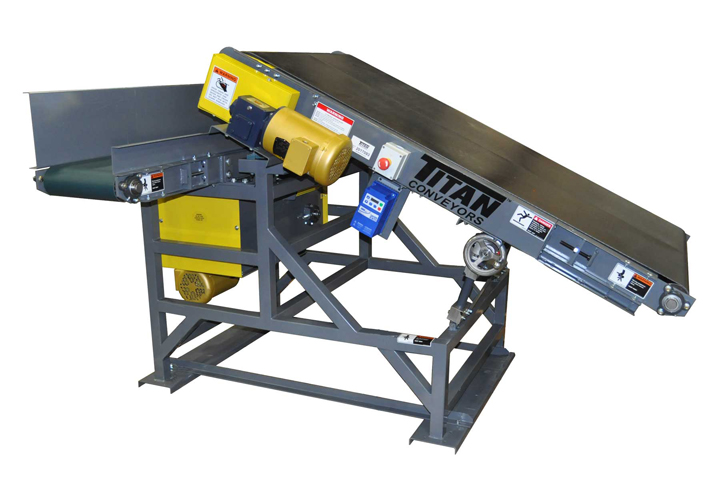

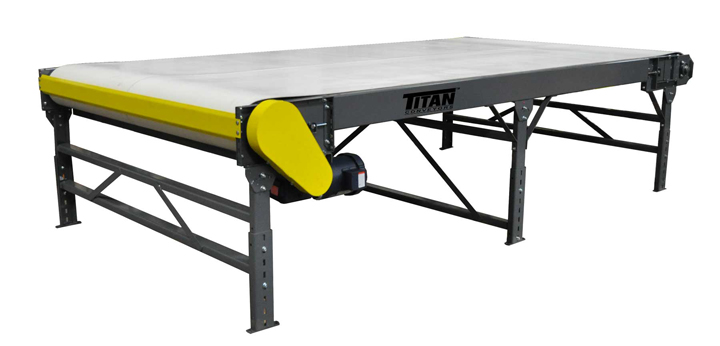

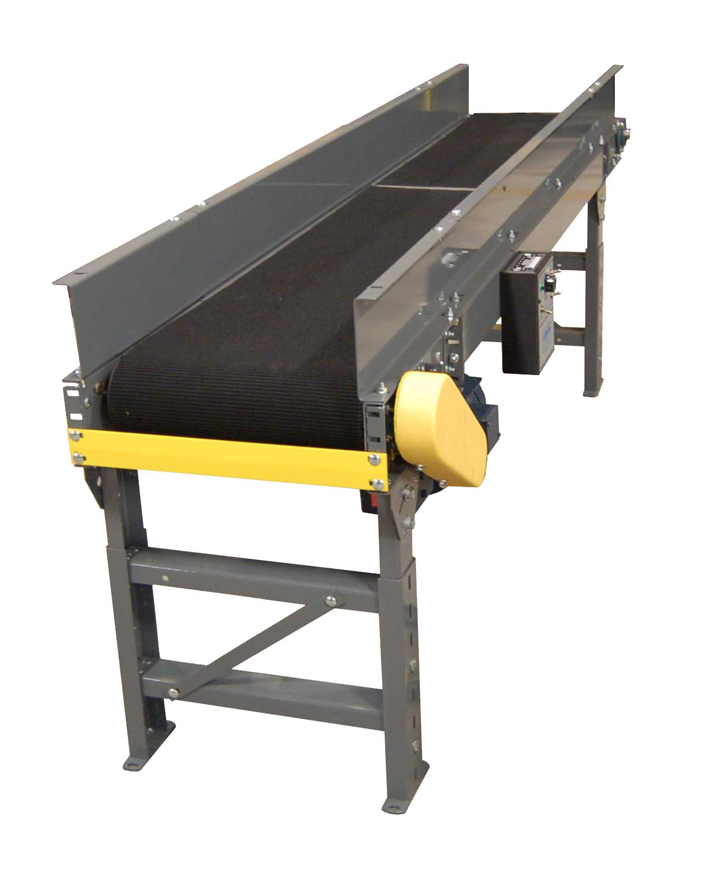

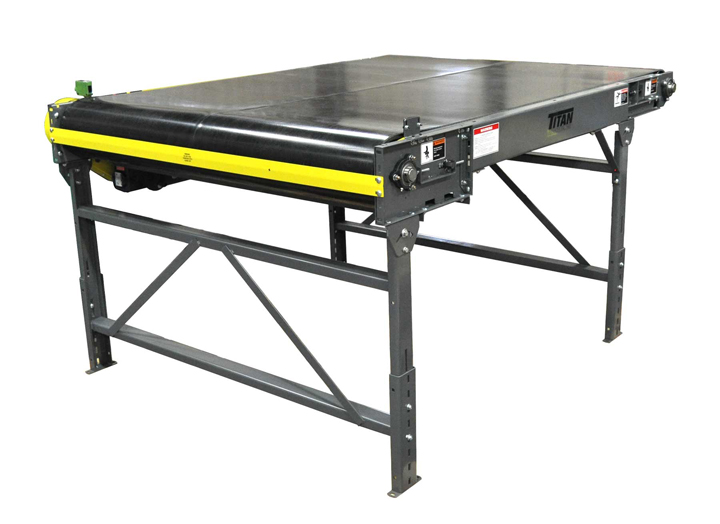

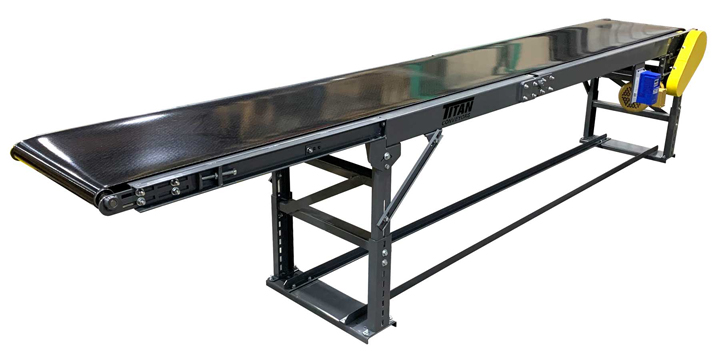

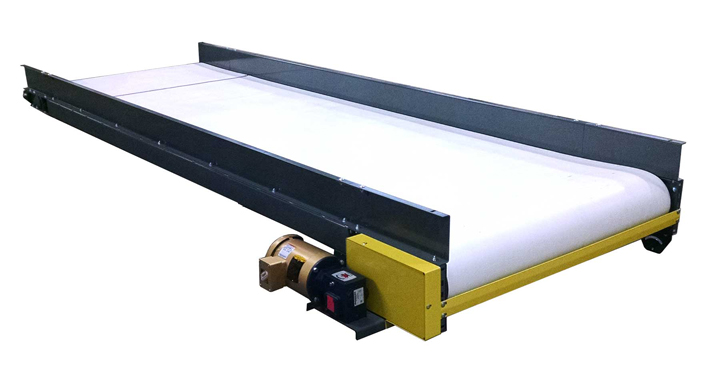

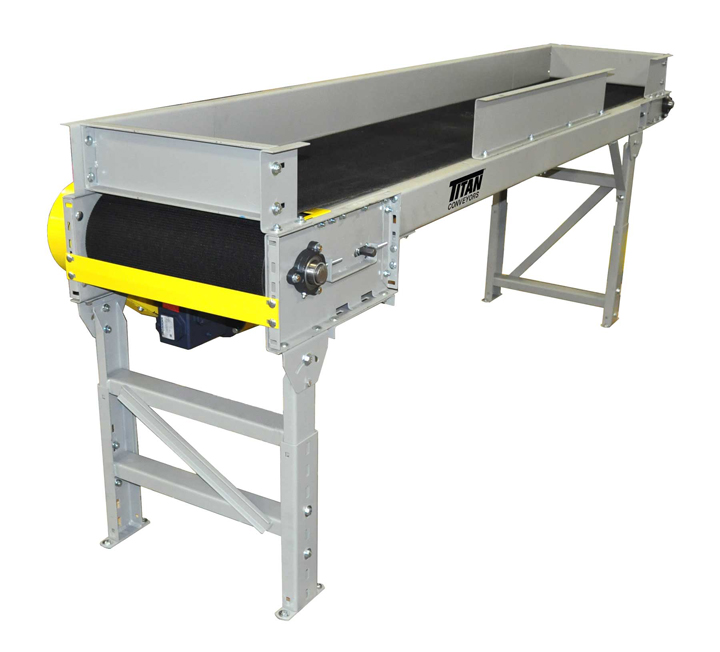

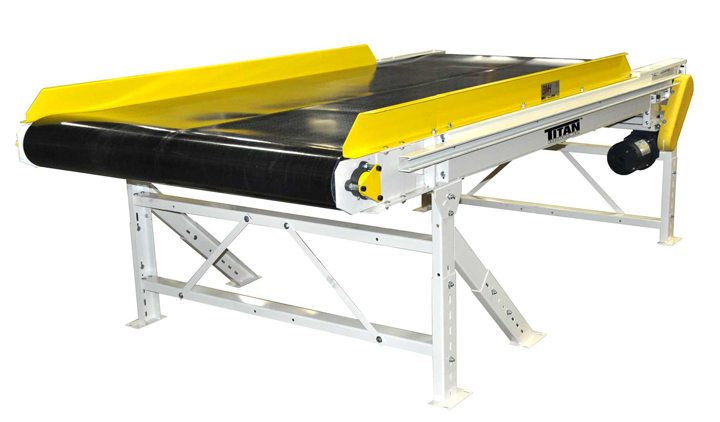

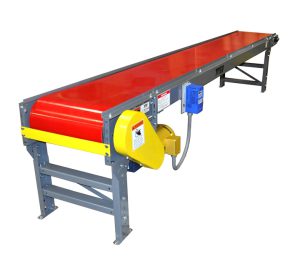

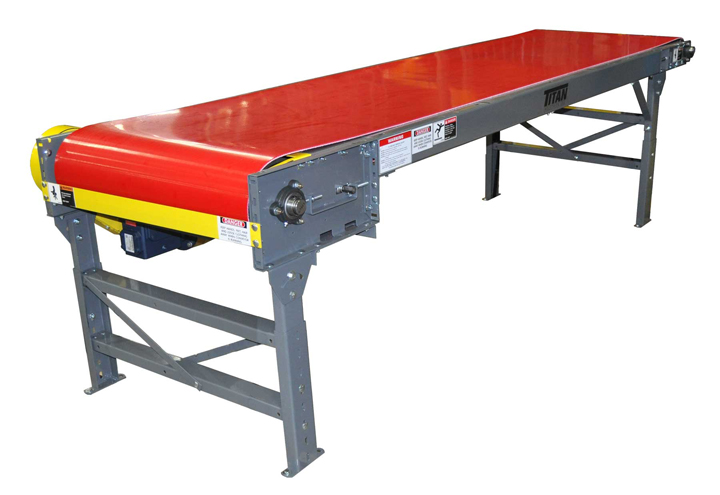

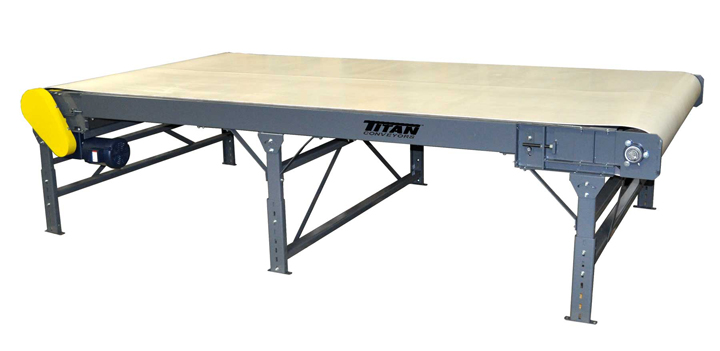

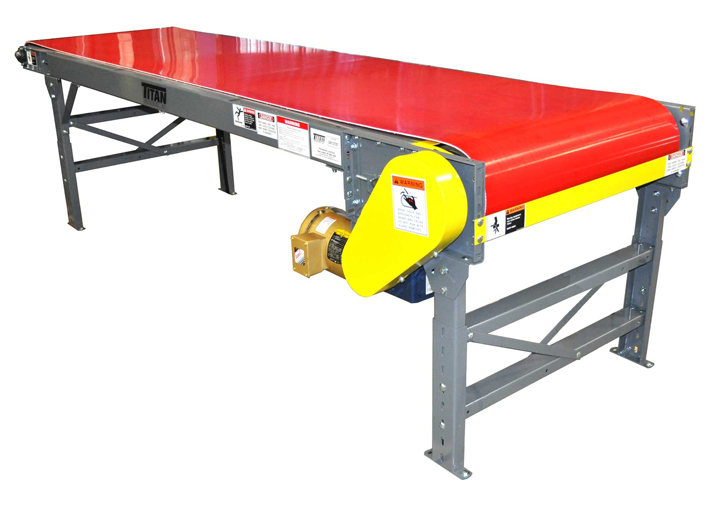

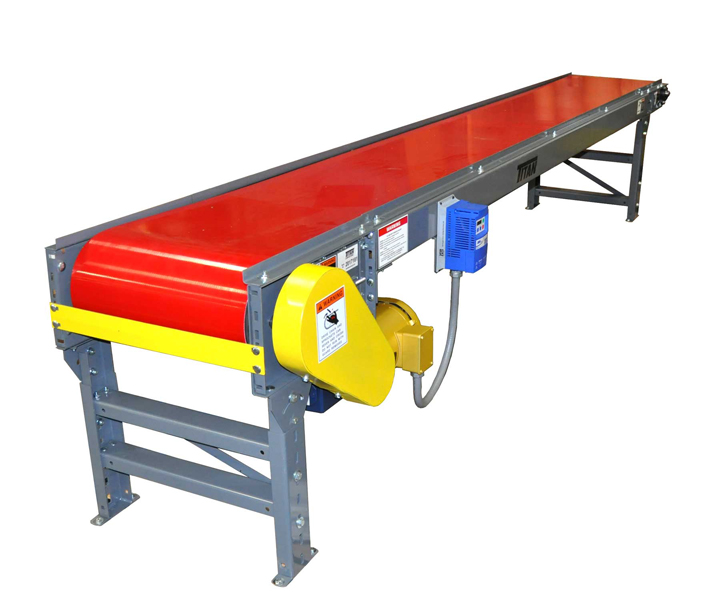

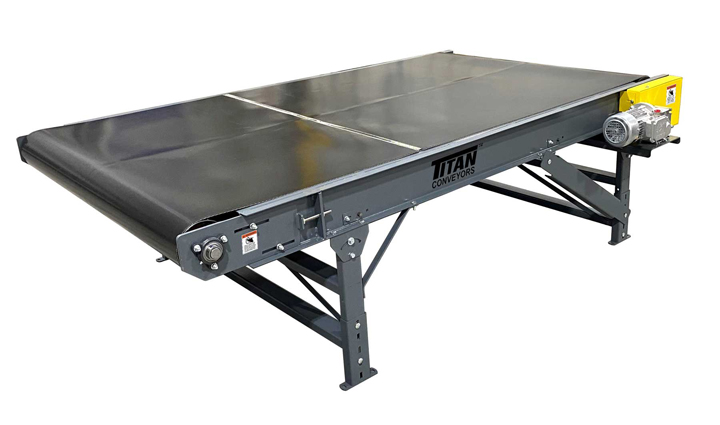

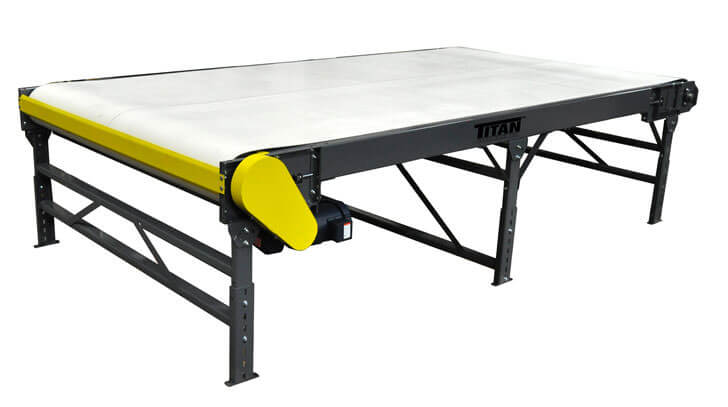

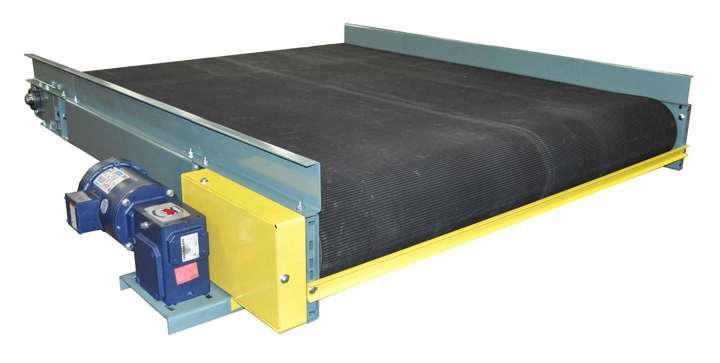

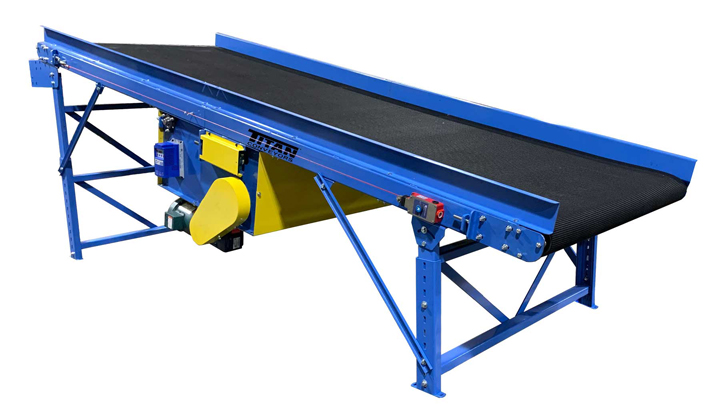

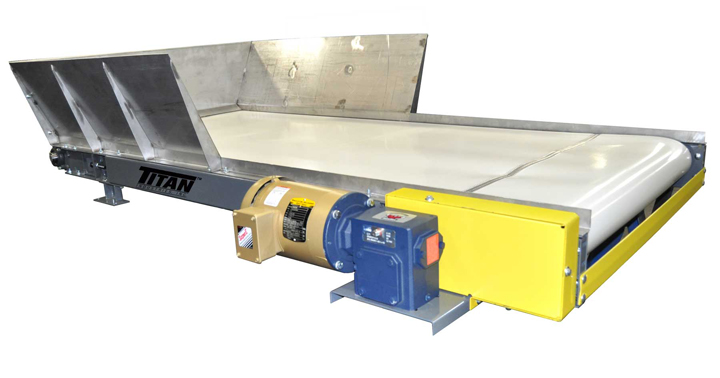

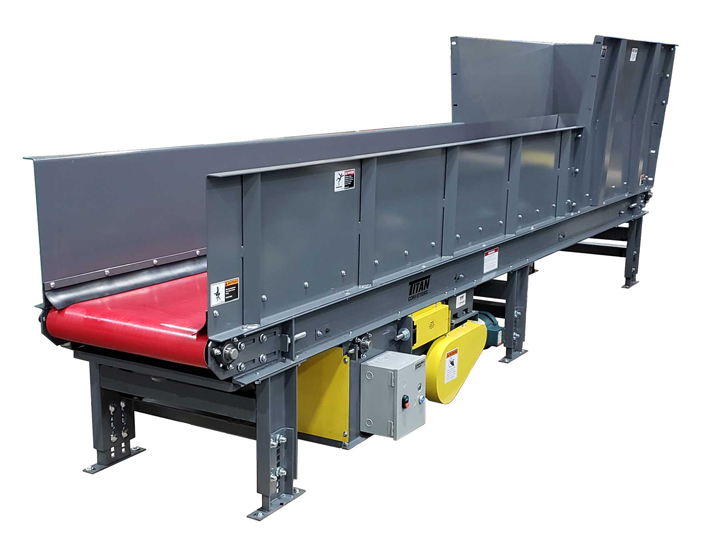

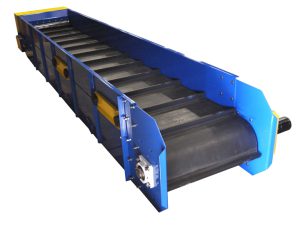

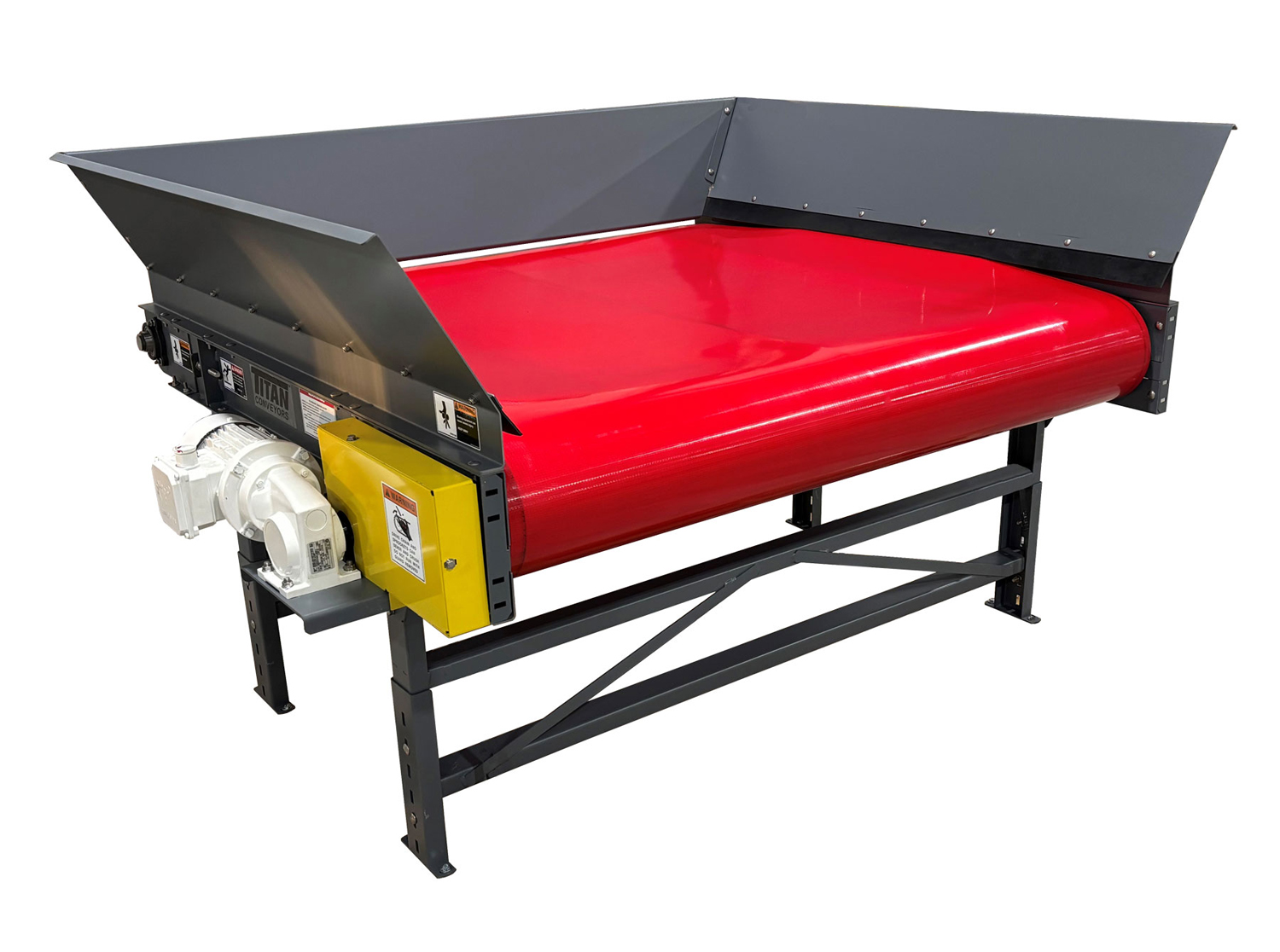

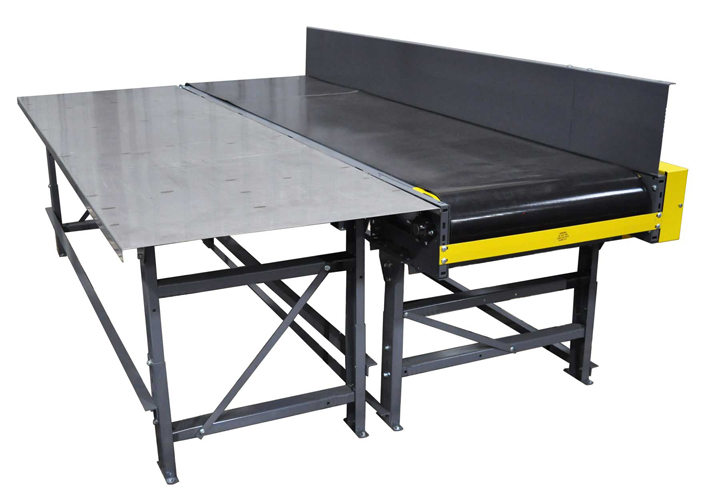

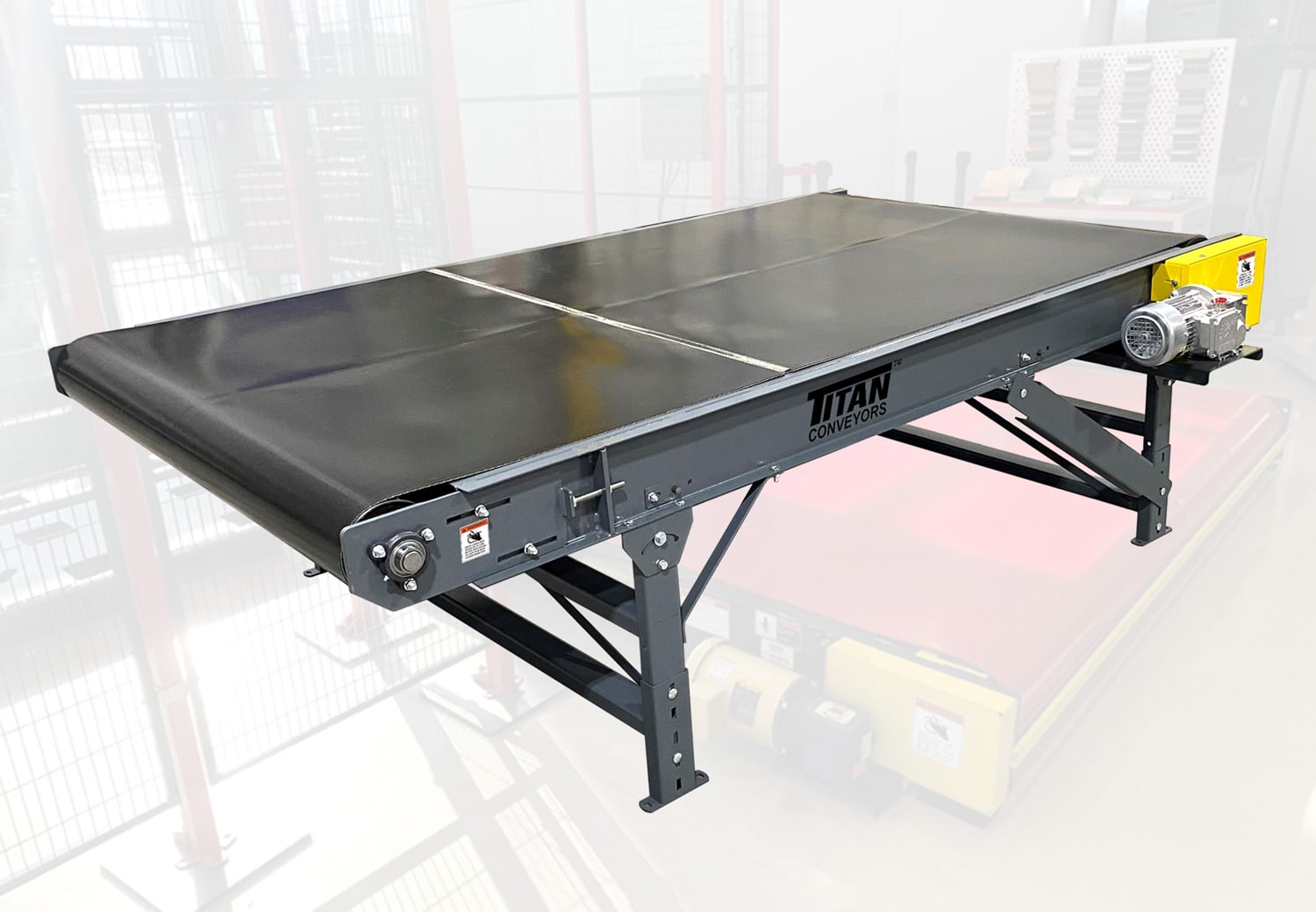

If your requirements call for a rugged, industrial designed unit, then the Model 108 Slider Bed belt conveyor from Titan Conveyors is the unit you should choose. Typical applications include heavy loads, 24/7 operation, and lengths over 10 feet.  The Model 108 has a rugged 8" diameter rubber lagged drive pulley. With the modular design of the Model 108 you will be able to add additional length at a later date if the need arises. Even though the Titan Model 108 is a heavy-duty unit, it is economical to own and operate.  Titan specializes in hard to find special wide versions of the Model 108.  Call Titan for special widths beyond 72".

Model 108 Slider Bed Specifications:

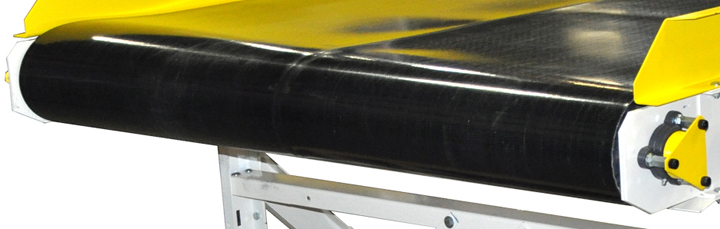

Belt Widths: 6" to 72"

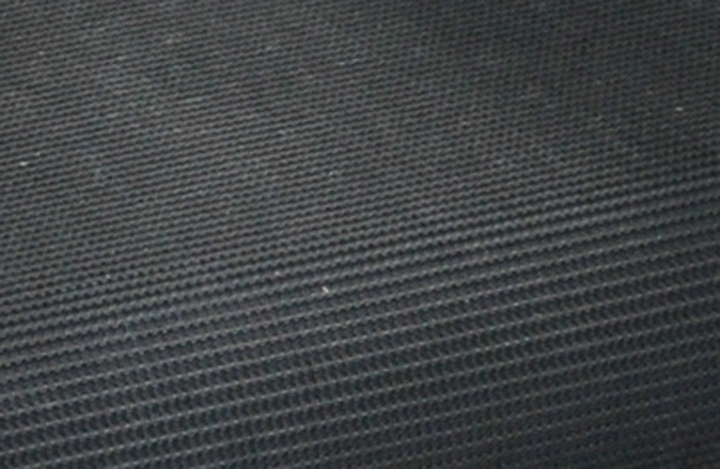

Belt: Black P.V.C.

Belt Speed: Various

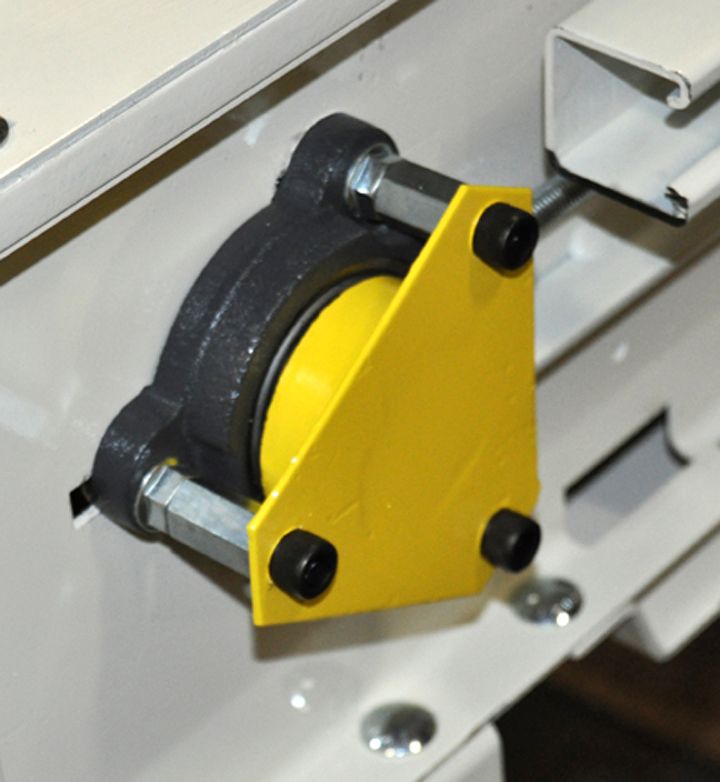

Bearings: Grease Sealed

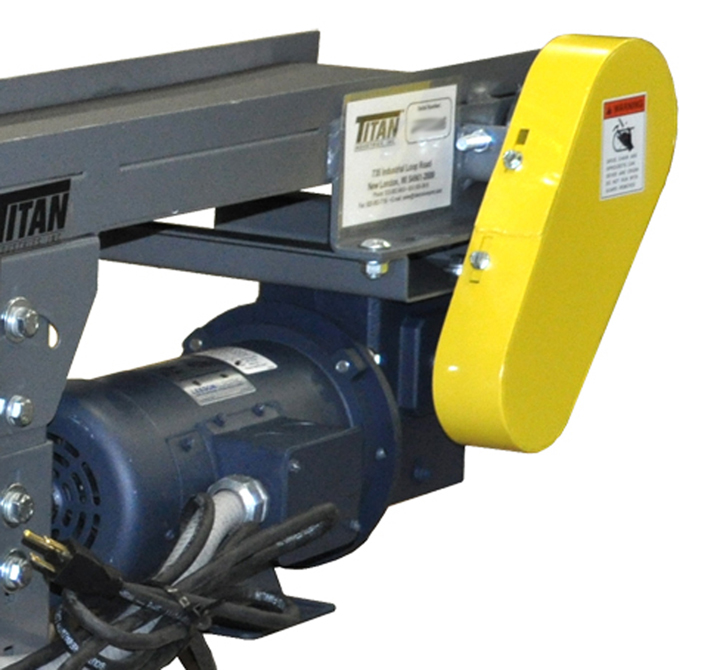

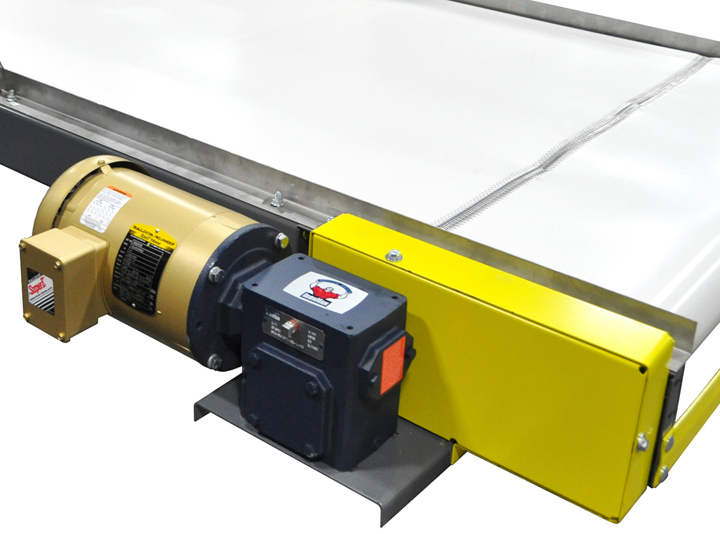

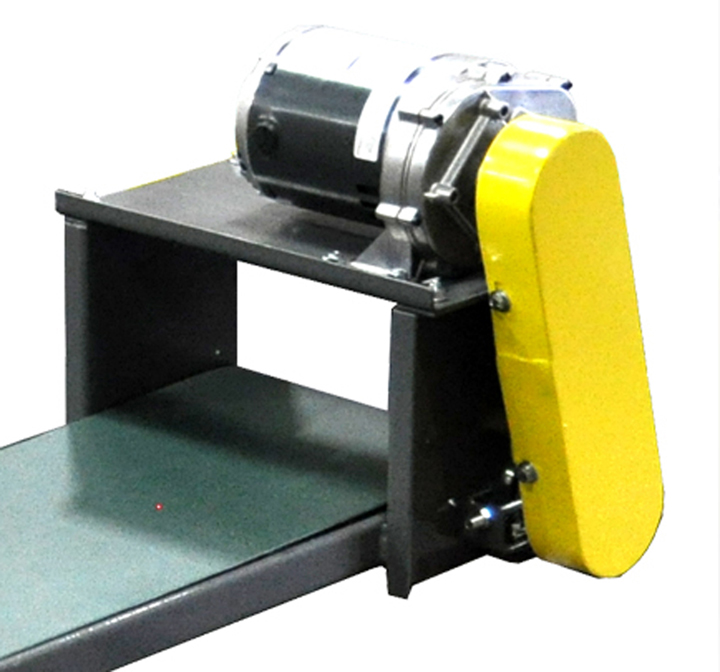

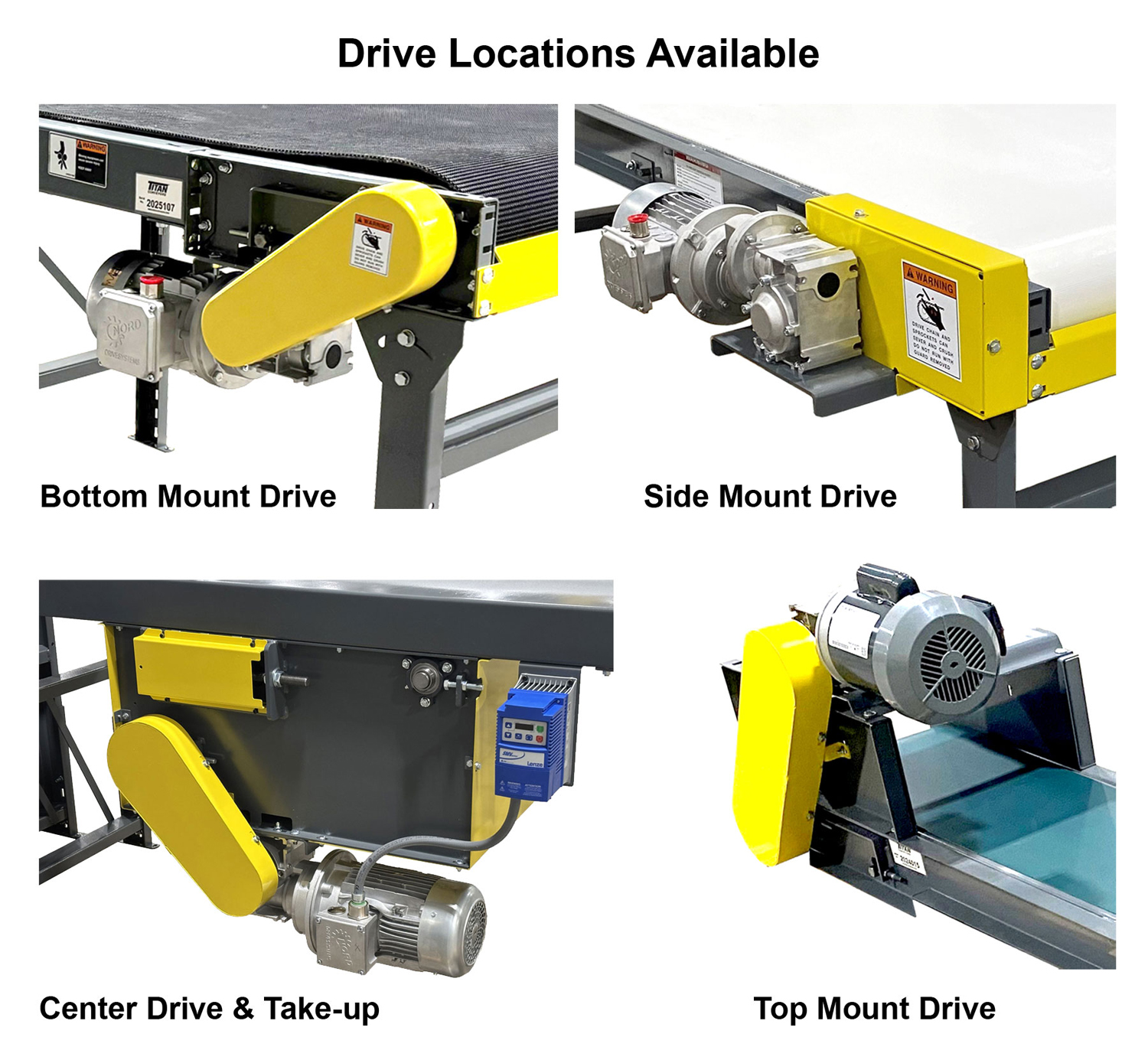

Drive: 1/2 H.P. 230/460/3/60

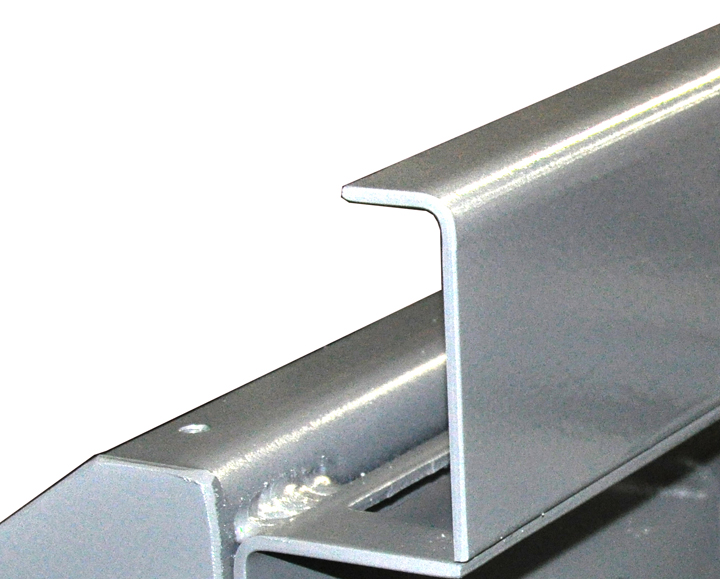

Frame: 4" Deep Formed 12 Gauge

Paint: One Coat Industrial Enamel

Pulleys: 8" Dia. Crown Face Rubber Lagged Drive; 4" Dia. Crown Face Take-Up

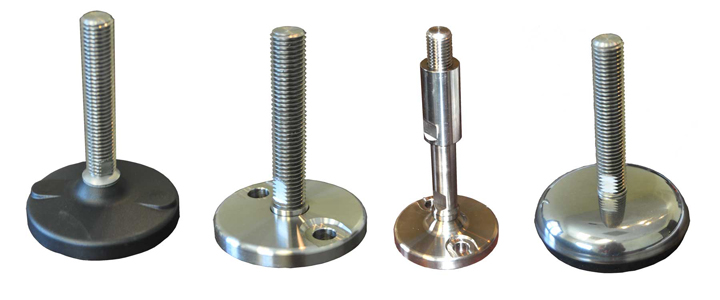

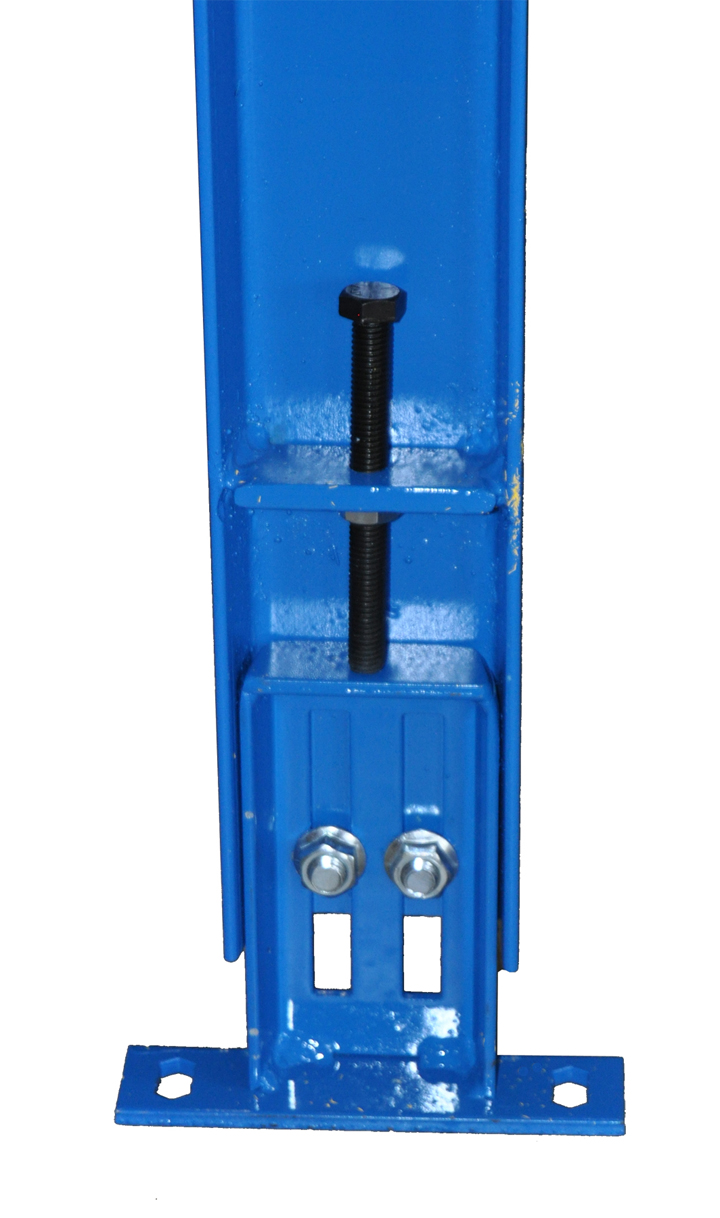

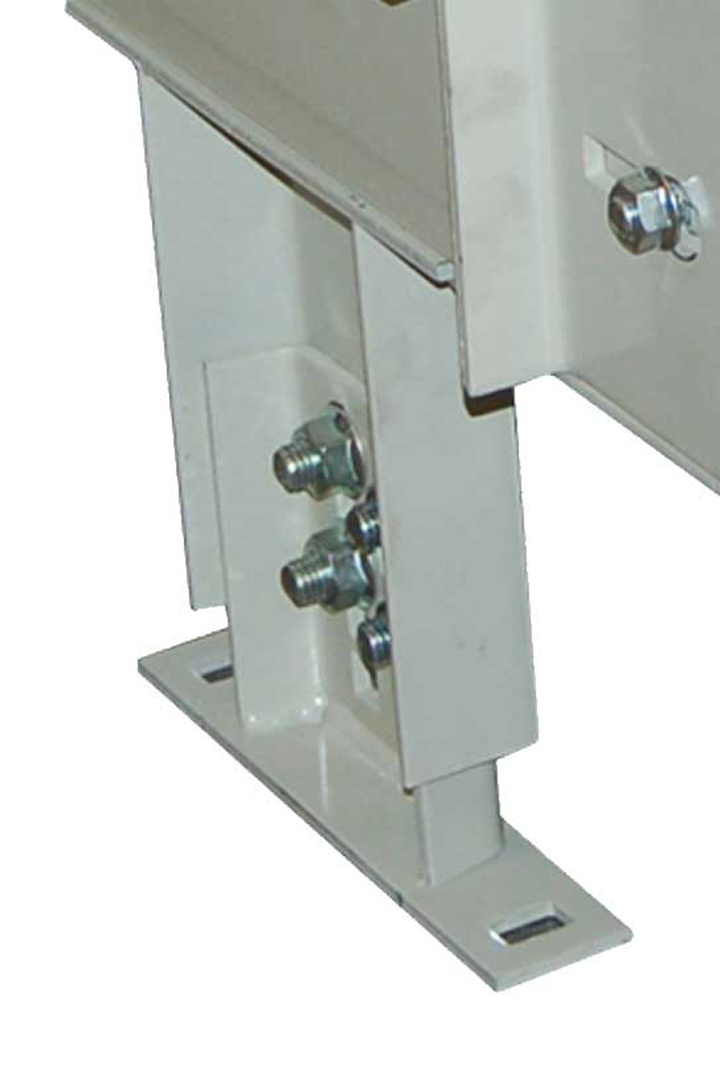

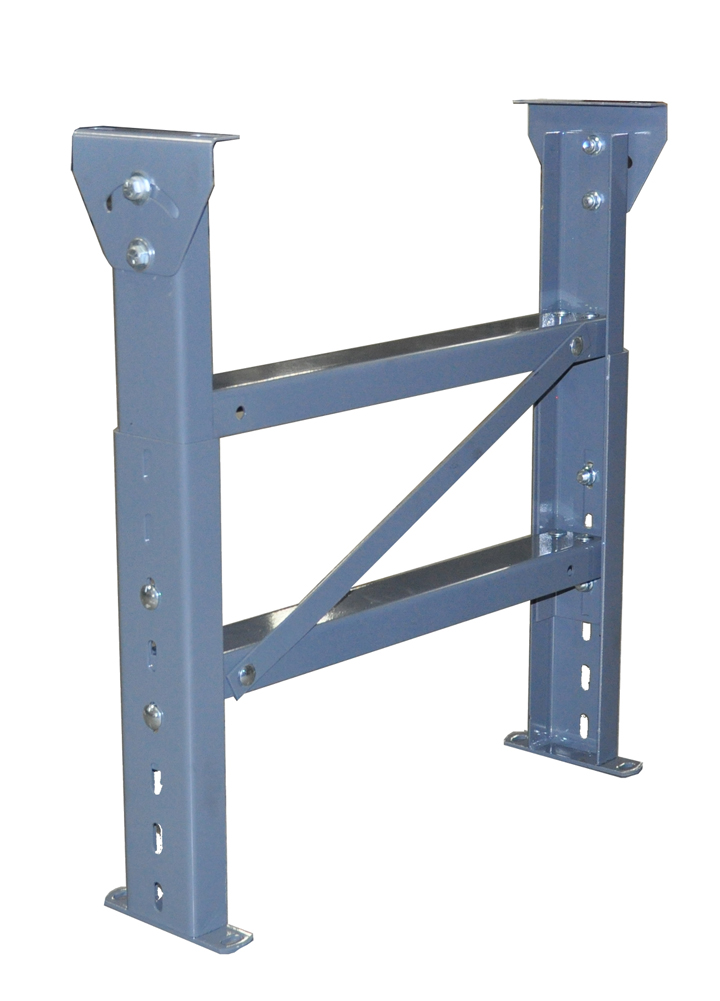

Supports:"H" Type Adjustable
