Model Description:

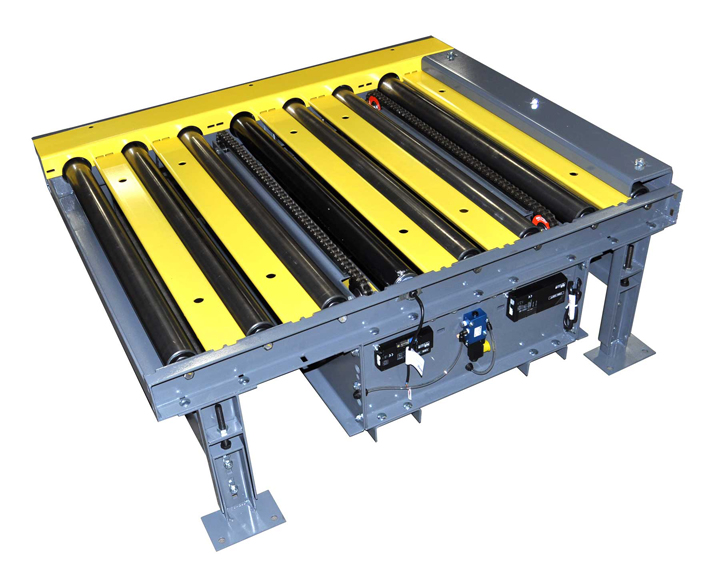

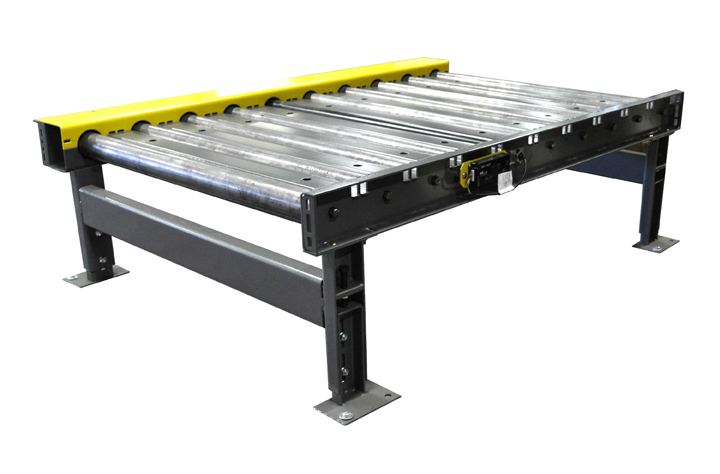

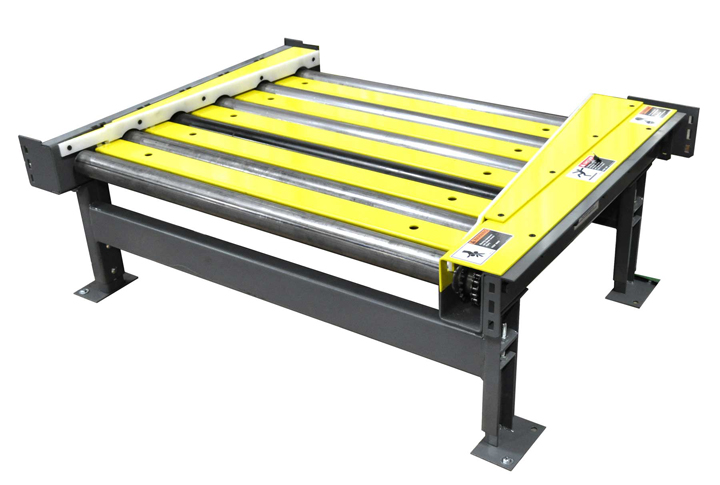

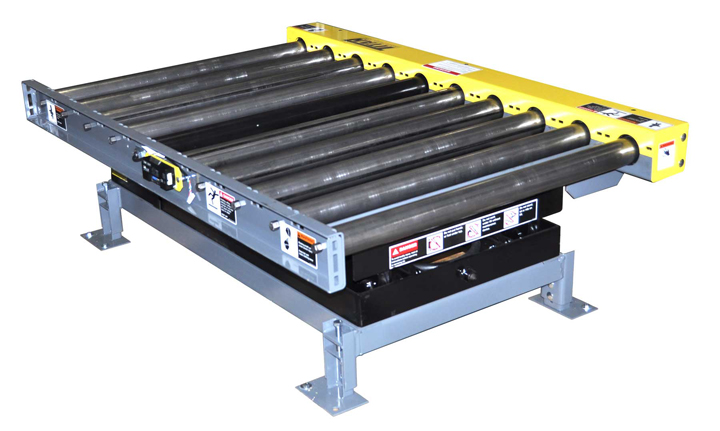

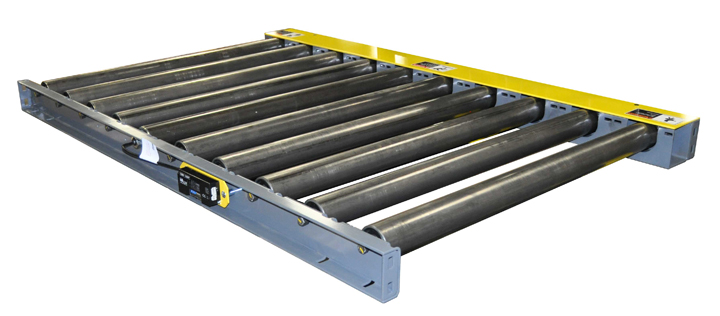

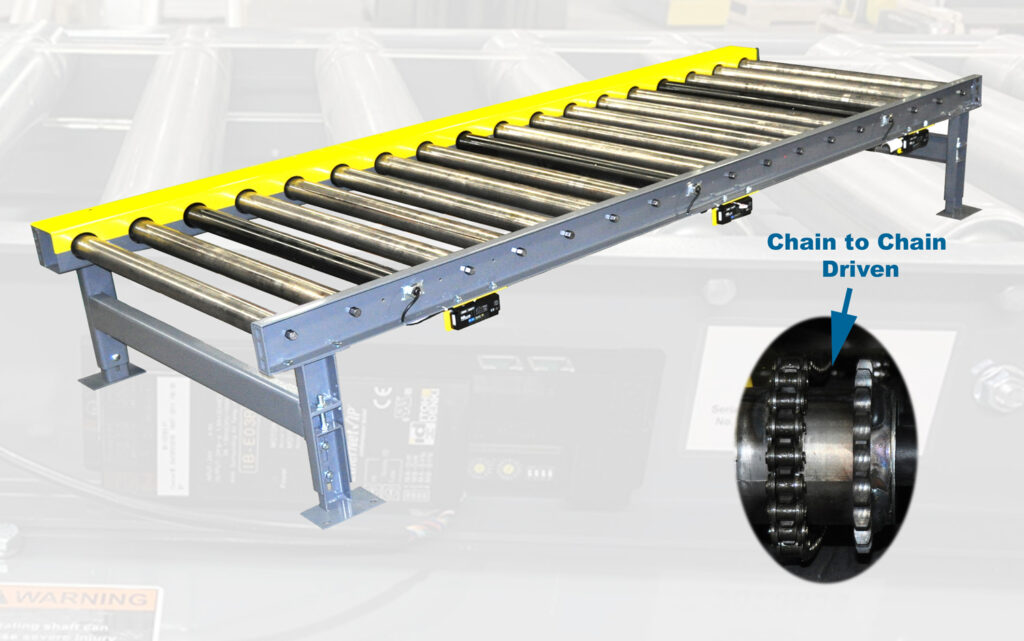

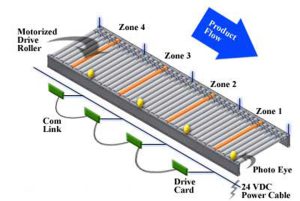

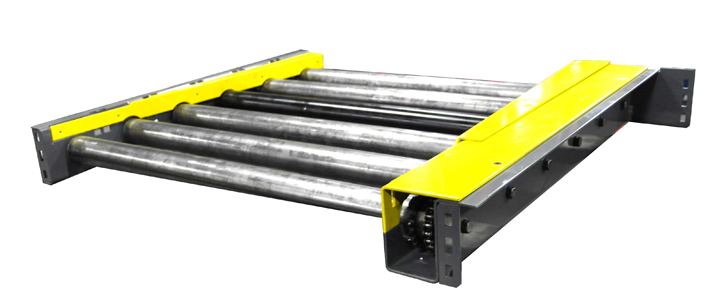

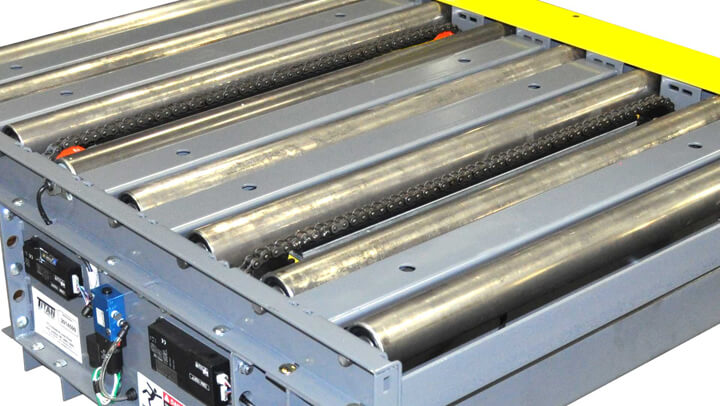

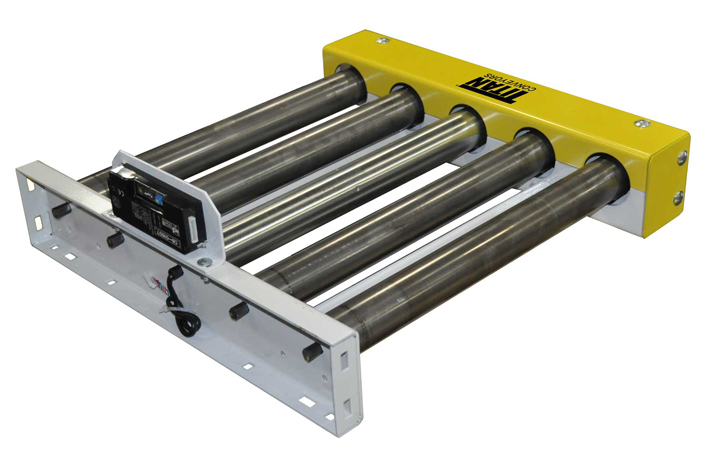

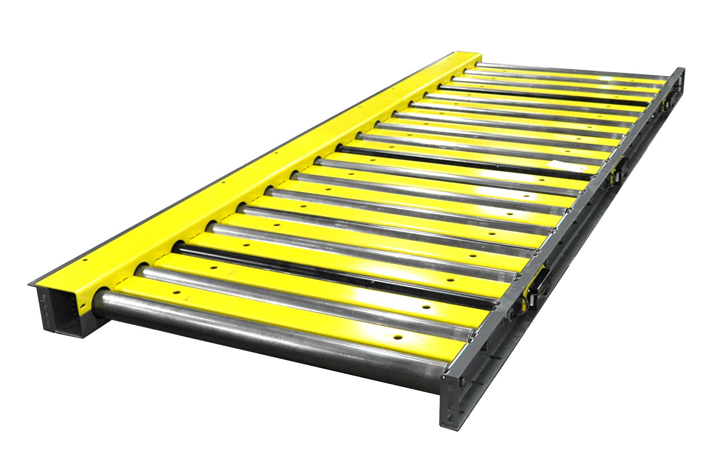

The Powered (Motorized) Roller Conveyor, a modular conveyor system utilizing a 24 volt DC motorized drive within a roller. Adjacent rollers are slave-driven from it using chains. Motorized roller systems are perfect for large zone-controller systems in assembly lines, warehouse situations or unit handling of pallets, totes and cases. Loads up to 3900# can be moved with these clean and efficient motorized roller systems.

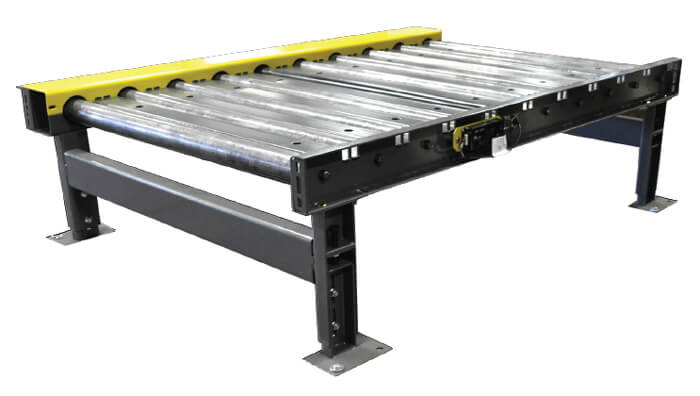

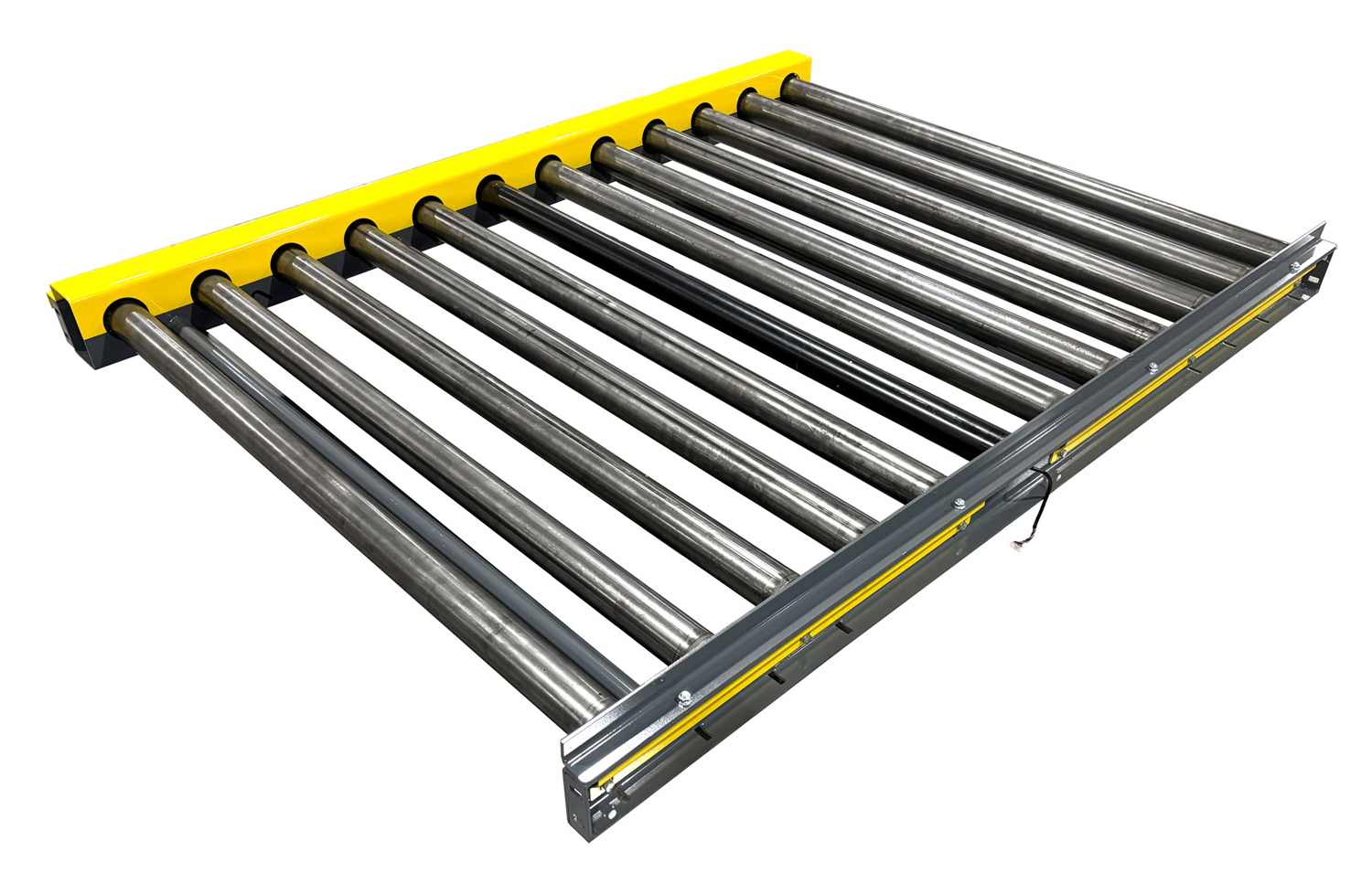

Model MDR Chain to Chain Motor Driven Roller Conveyor Specifications:
Bearings: Grease Sealed

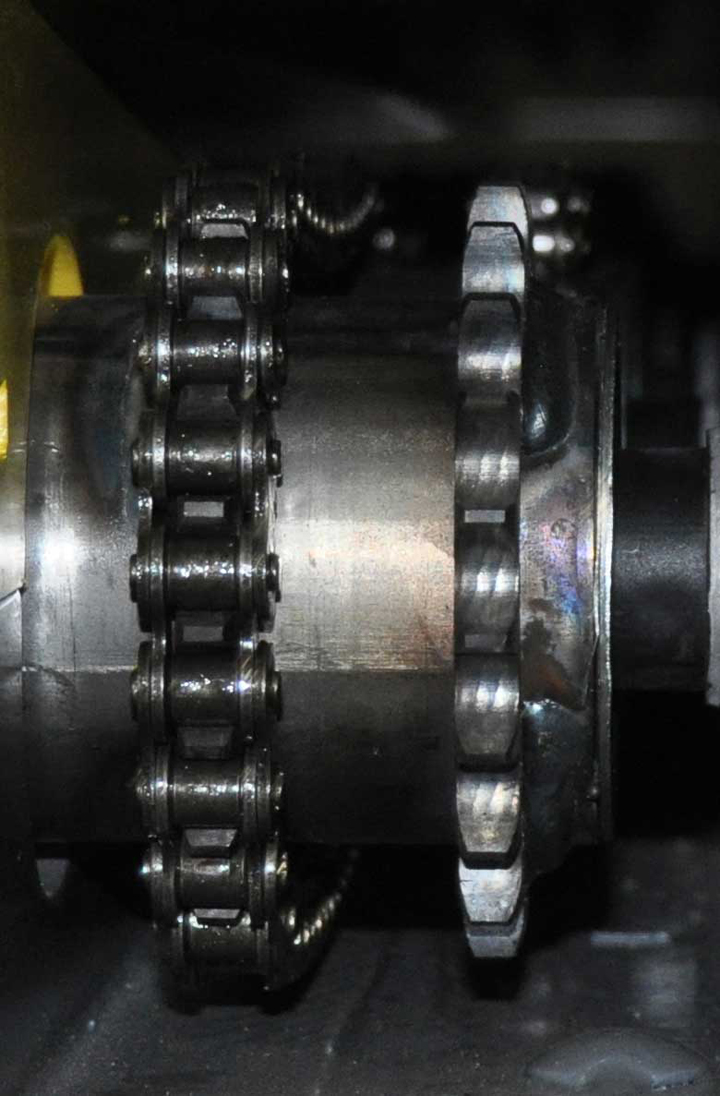

Chain: #40 or #50 as required

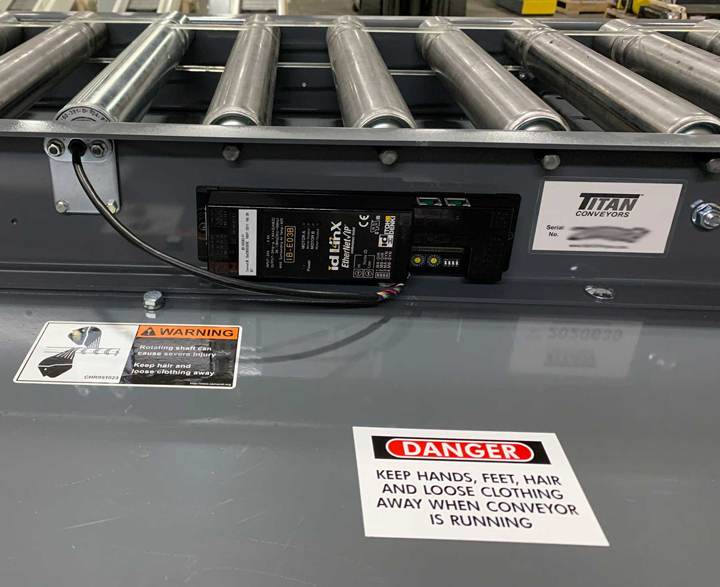

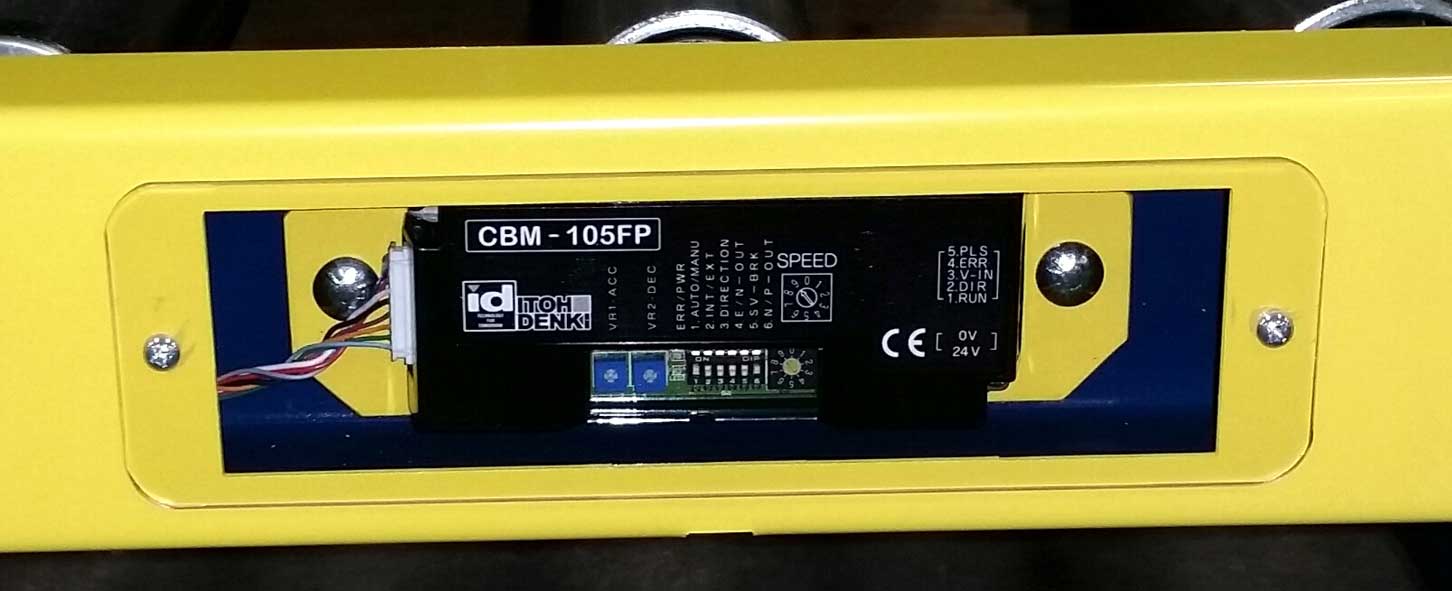

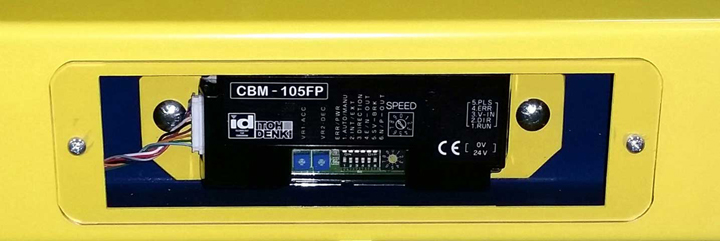

Drive: Itoh Denki 24 Volt DC Motor Driven Roller
Frame: Formed 7 Gauge
Paint: One Coat Industrial Enamel

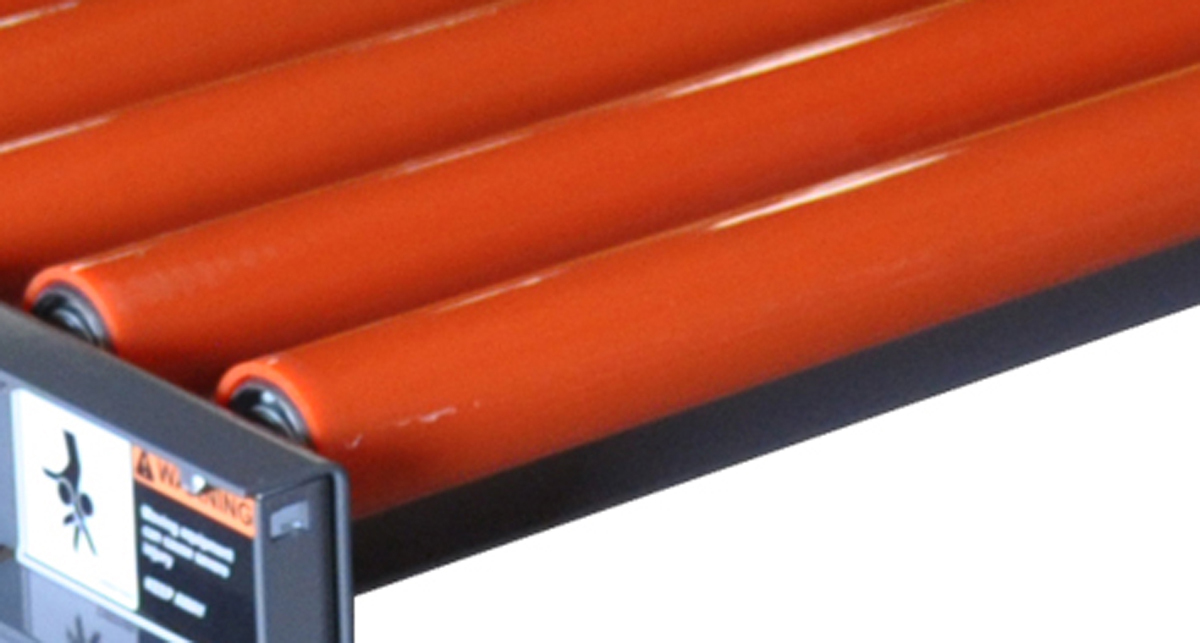

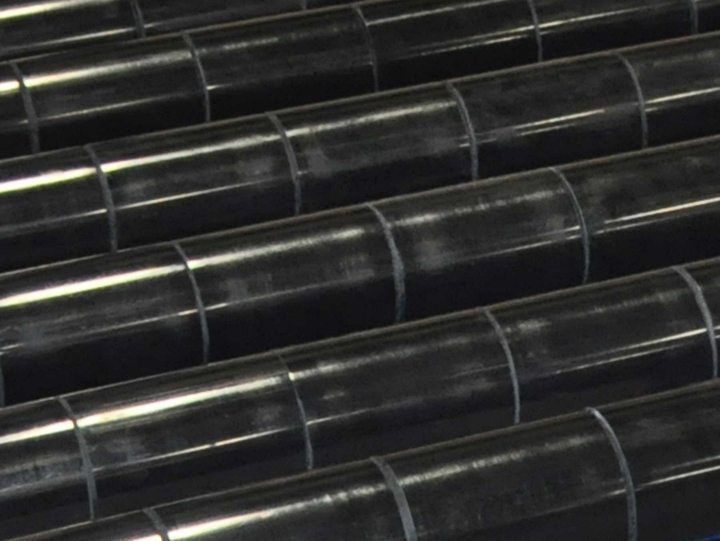

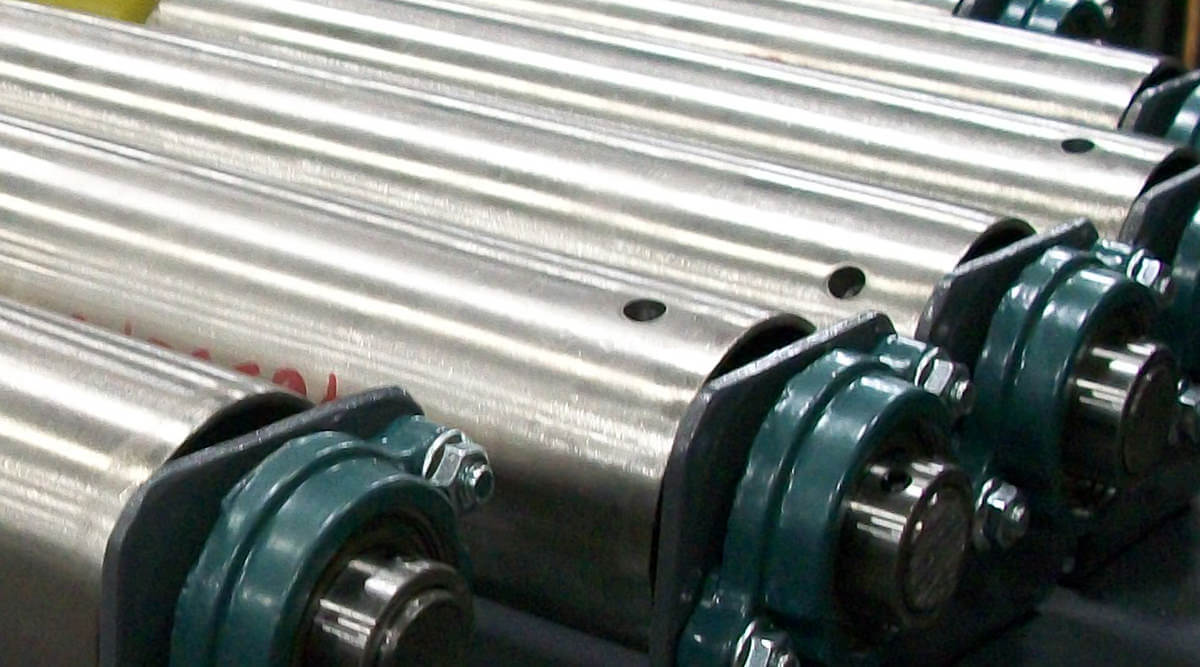

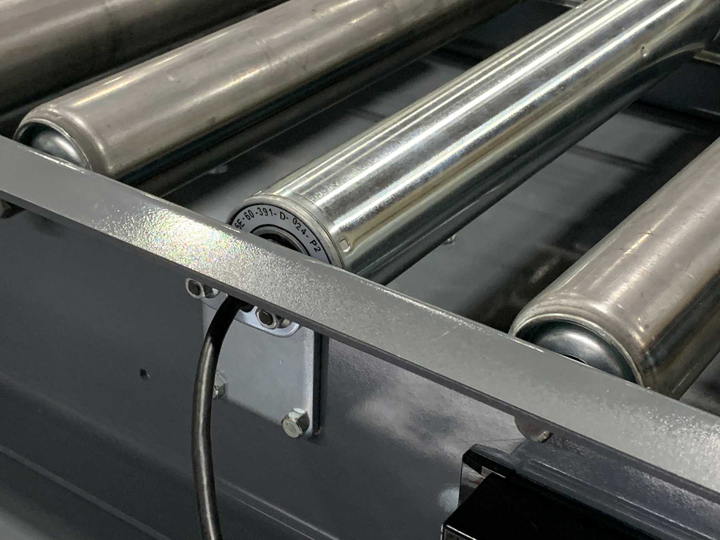

Rollers: 2-1/2″ dia.11ga. or 2-5/8″ dia. X 7 ga. or 1.9″ dia. X 16 ga./Spring Loaded 7/16″ Hex Shaft
Speed: Specify

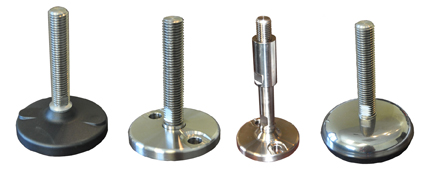

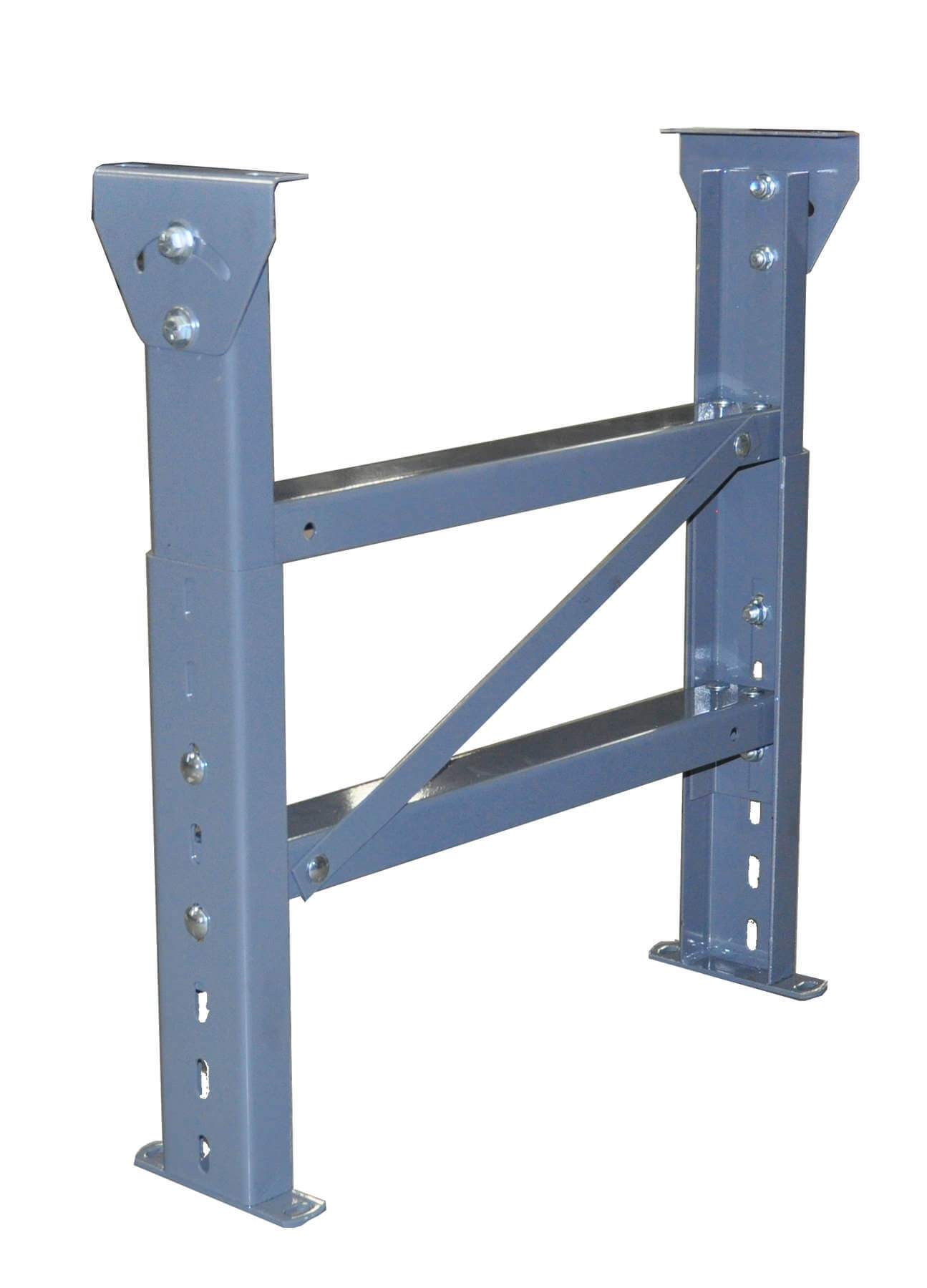

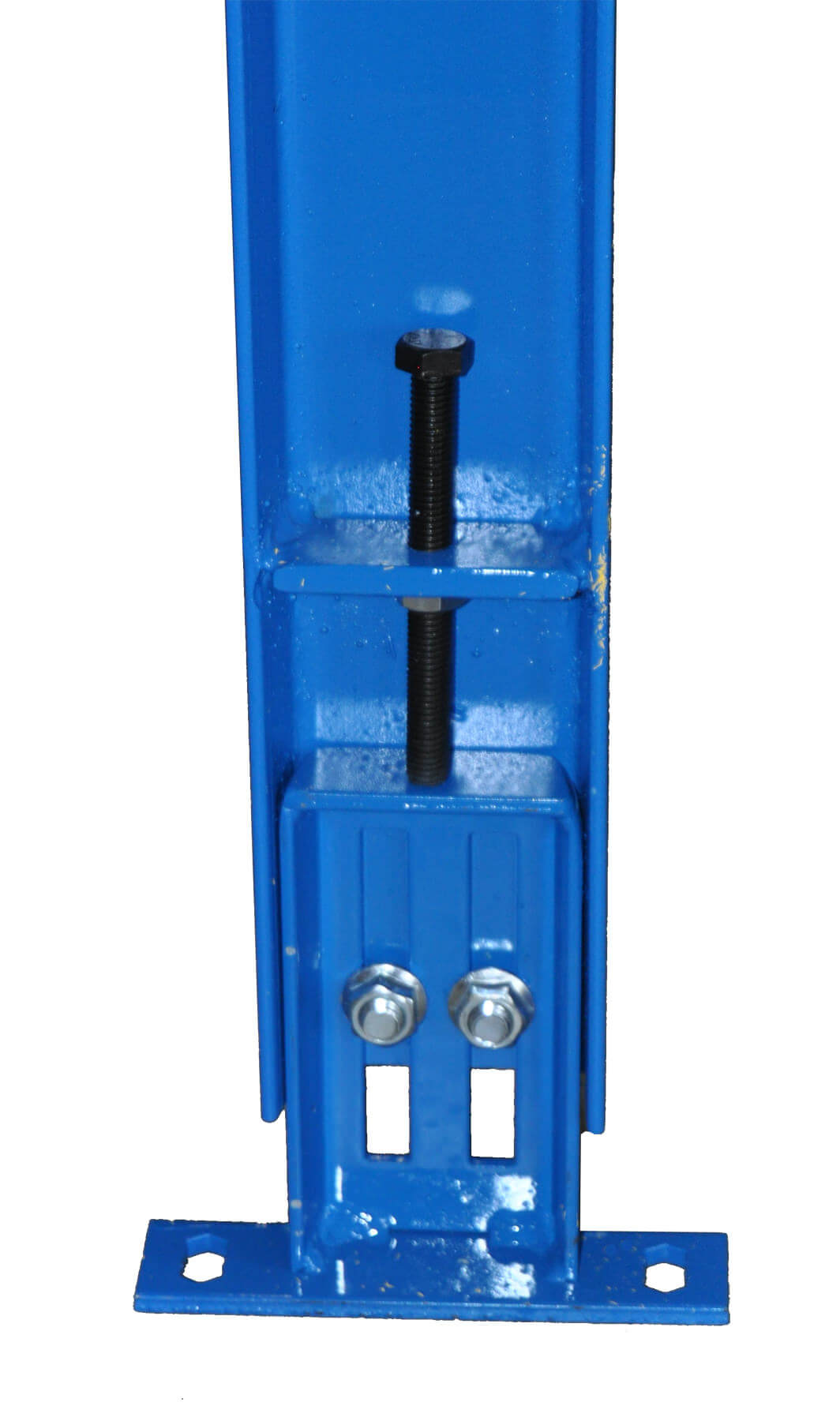

Supports: “H” Type Adjustable
